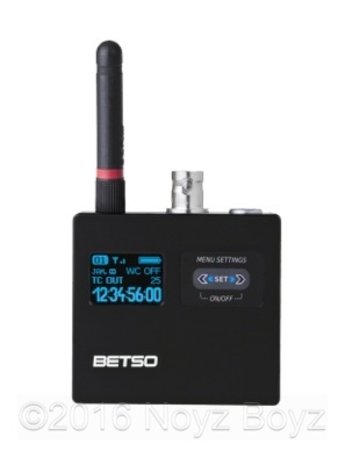

    Betso SBOX-2RF

    Betso Betso SBOX-2RF
    Product description
    Betso SBOX-2RF [SBOX-2RF] The Betso SBOX-2RF is a compact and highly accurate timecode and wordclock generator with RF transmission of timecode and status information. It combines a large 1″ OLED display with intuitive plug-and-play operation and very long battery life from a single AA cell, making it suitable for synchronization workflows on lo...

    Betso SBOX-2RF [SBOX-2RF]

    The Betso SBOX-2RF is a compact and highly accurate timecode and wordclock generator with RF transmission of timecode and status information. It combines a large 1″ OLED display with intuitive plug-and-play operation and very long battery life from a single AA cell, making it suitable for synchronization workflows on location or in studio environments.

    Main Features

    • Timecode and wordclock generator with RF transmission of timecode and status info.
    • RF transmission with frequency-hopping protocol for wireless jamming up to approx. 500 m (line of sight).
    • Supports all standard SMPTE timecode formats and common wordclock formats including pull-up/pull-down options.
    • Automatic TC format detection and automatic jamming/calibration.
    • GPS-calibrated temperature-compensated TCXO with high accuracy (±0.1 ppm).
    • Compact, lightweight CNC-milled aluminium chassis with removable antenna.
    • Large 1″ blue OLED display with adjustable brightness.
    • Supports external powering (0.9–3 V DC) in addition to AA battery powering.

    Specifications

    • Display: 1″ blue OLED with adjustable brightness.
    • Dimensions (h × w × d): 61 × 55 × 20 mm.
    • Weight (without battery): approx. 100 g.
    • Mechanical construction: CNC-milled, anodized aluminium.
    • Powering: 1× AA battery (alkaline, lithium, NiMH, NiCd) or external 0.9–3 V DC power.
    • Current consumption: 50–150 mA (depends on operating mode).
    • Battery life: up to approx. 50 hours.
    • SMPTE TC formats: 23.976–30 fps including DF/NDF and 0.5×/2× variants.
    • Output TC amplitude: adjustable −30 dBu to +6 dBu.
    • Input TC sensitivity: 0.2–10 V (p-p).
    • TCXO: GPS-calibrated, TCXO ±0.1 ppm.
    • Wordclock range: 32–192 kHz including PAL/SECAM/NTSC pull-up & pull-down.
    • RF frequency range: 902–928 MHz (USA/Canada); 863–870 MHz (EU); 922.4–928 MHz (Japan).
    • Number of RF channels: 5.
    • RF output power: 10 mW (10 dBm).
    • Operating range: up to approx. 500 m (line of sight).

    Included

    • Betso SBOX-2RF [SBOX-2RF].

    Product specifications

    Article number
    BETTimSBOX6606
    SKU
    SBOX2RF
