    BSRF PM-1

    Product description
    BSRF PM-1 RF power meter The BSRF PM-1 checks transmitter output power and coaxial cable loss from 10 to 1000 MHz. Power readings are displayed in dBm or mW. Cable loss measurements also require an RF source, such as an IEM or bodypack transmitter. Features Absolute power readings and relative loss measurements against a stored reference. Positive...

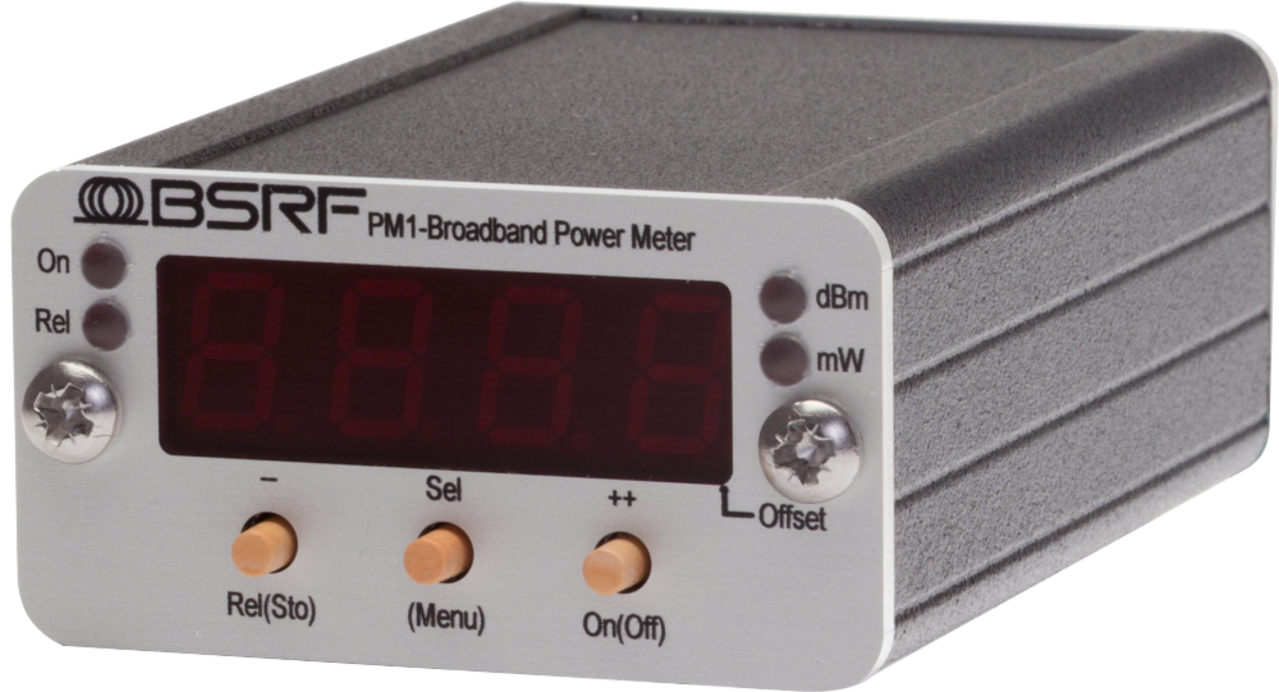

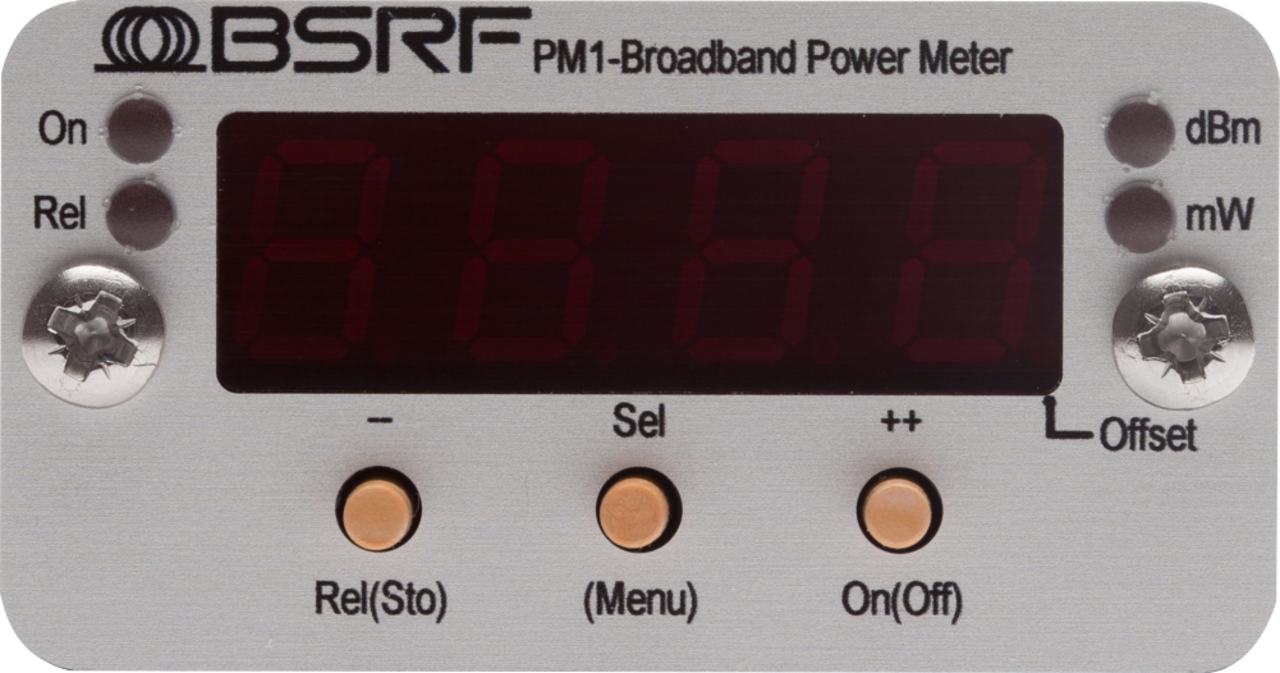

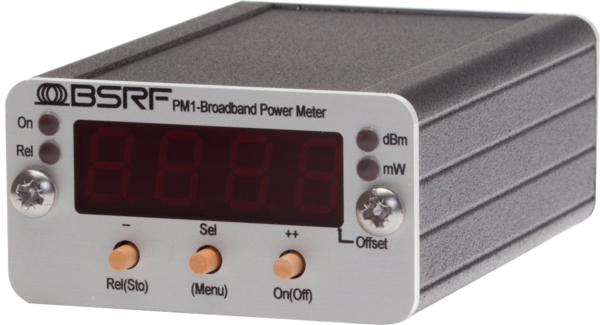

    BSRF PM-1 RF power meter

    The BSRF PM-1 checks transmitter output power and coaxial cable loss from 10 to 1000 MHz. Power readings are displayed in dBm or mW. Cable loss measurements also require an RF source, such as an IEM or bodypack transmitter.

    Features

    • Absolute power readings and relative loss measurements against a stored reference.
    • Positive and negative offset for use with an external attenuator or amplifier.
    • Adjustable upper and lower power alarm thresholds.
    • Transmitter monitoring through an optional directional coupler.
    • Aluminium enclosure.

    For example, check coaxial cables in an antenna distribution system using the BSRF AS-62. Measuring power above 2 W requires a suitable external attenuator; setting an offset does not increase the input power rating.

    Specifications

    • Frequency range: 10–1000 MHz.
    • Direct measurement range: −20 to +33 dBm (0.01 mW to 2 W).

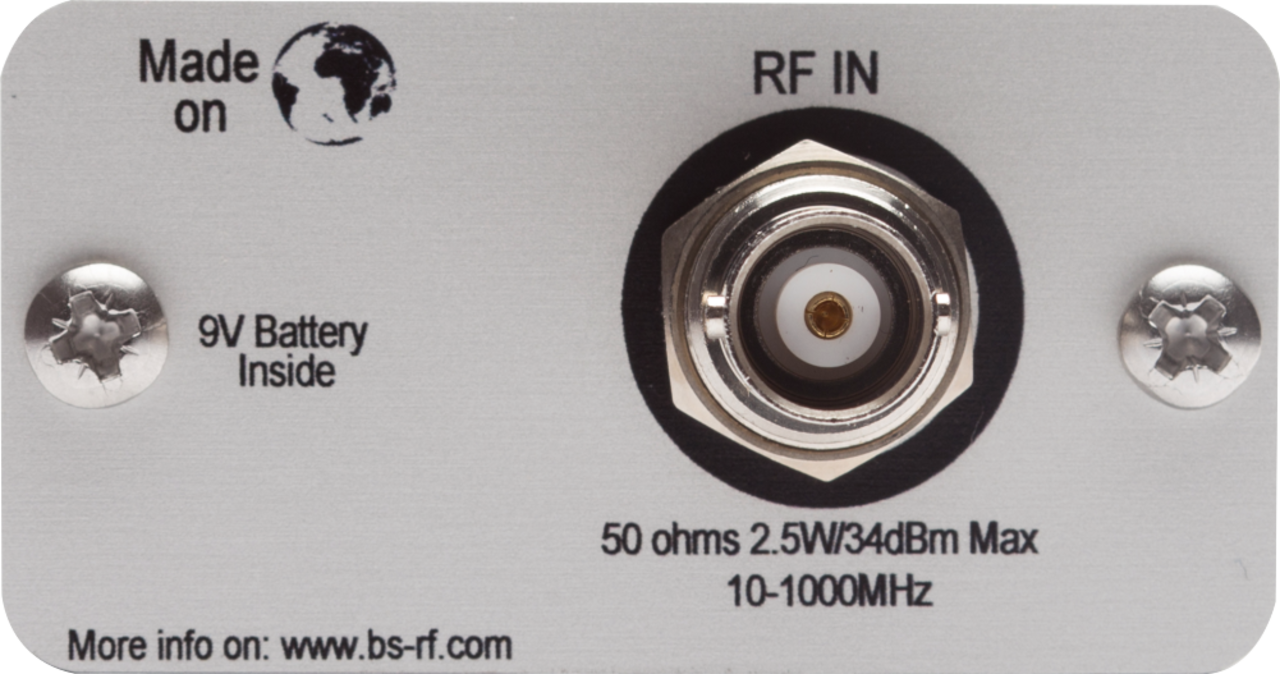

    • RF connection: BNC, 50 Ω.
    • Power supply: 9V alkaline battery; up to 8 hours of operation.
    • Enclosure dimensions: 84 × 59 × 31 mm.
    • Weight including battery: 200 g.

    Included

    • BSRF PM-1 RF power meter.
    • PM-REF-C1: 15 cm coaxial cable with male BNC connectors.
    • PM-AD-1: 50Ω BNC-male to SMA-female adapter.
    • PM-BAT1: 9V alkaline battery.

    Product specifications

    Article number
    BSRRF-PM-17803
    SKU
    PM-1
