Cinela PIANI-2-KMA-MS

Cinela PIANI-2-KMA-MS Windshield System

The Cinela PIANI-2-KMA-MS is a PIANISSIMO windshield system for a Neumann MS microphone combination with analog KM A output stages. The internal suspension and wiring are matched to the specified microphone configuration.

In MS recording, a forward-facing microphone provides the mid channel. A KK 120 with KM A provides the figure-eight side channel. Both signals remain separately available through the XLR5M output, allowing stereo width to be adjusted during decoding.

Main features

• PIANISSIMO configuration for a Neumann KM A MS combination.
• Internal suspension to reduce transmitted handling noise.
• Primary 3D fabric and synthetic fur windshield for wind protection.
• 5-pin XLR output carrying separate mid and side signals.

Compatibility

Cinela lists this version for the “KM180/120 A” combination. The side channel uses a Neumann KK 120 with KM A. Specify the exact mid-channel microphone when ordering so that the correct suspension and wiring are supplied.

Specifications

• Model: PIANI-2-KMA-MS.
• Product series: PIANISSIMO.
• Configuration: MS stereo, two microphone channels.
• Microphone system: Neumann KM A.
• Output: 5-pin XLR male.

Included

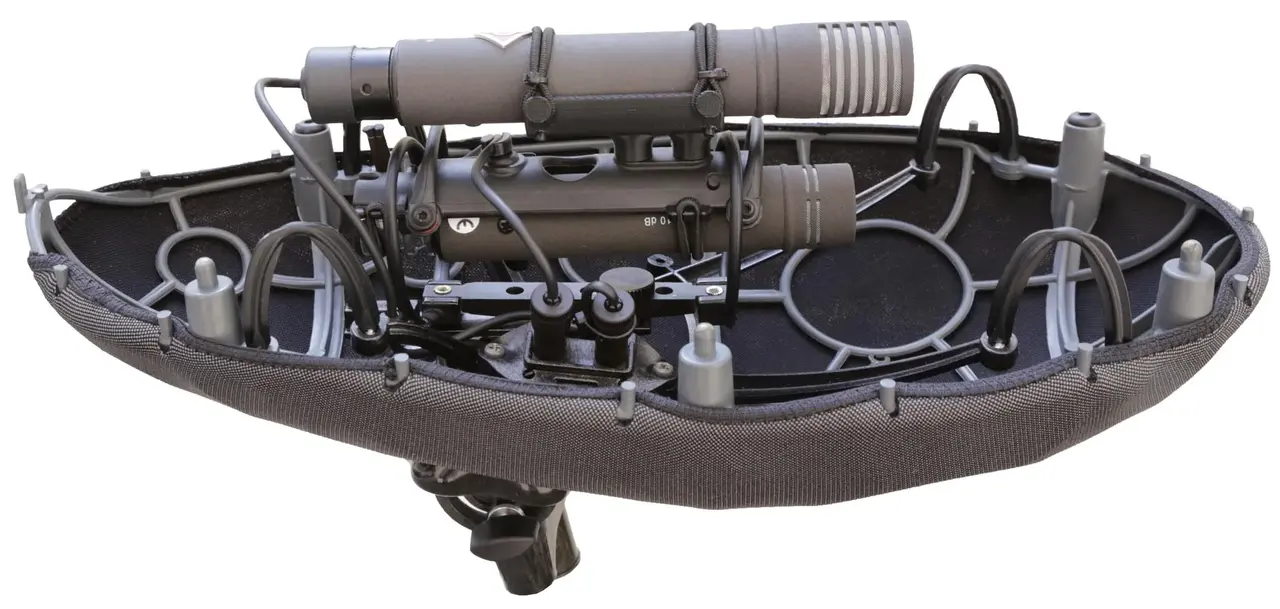

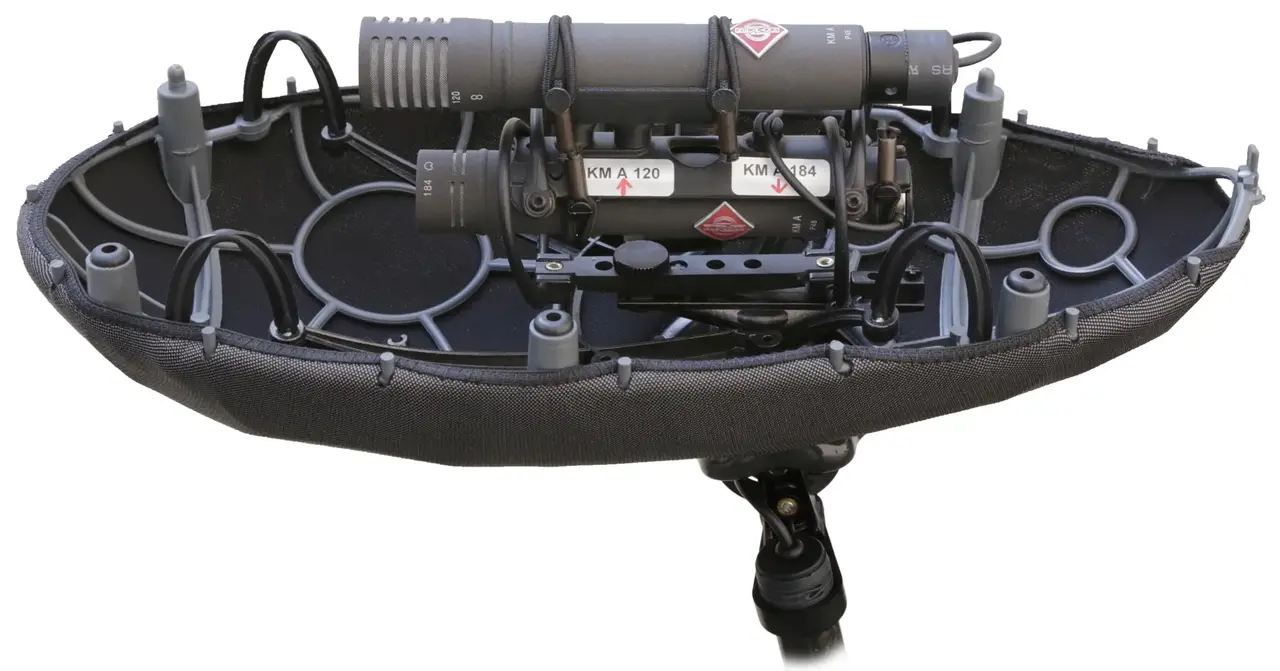

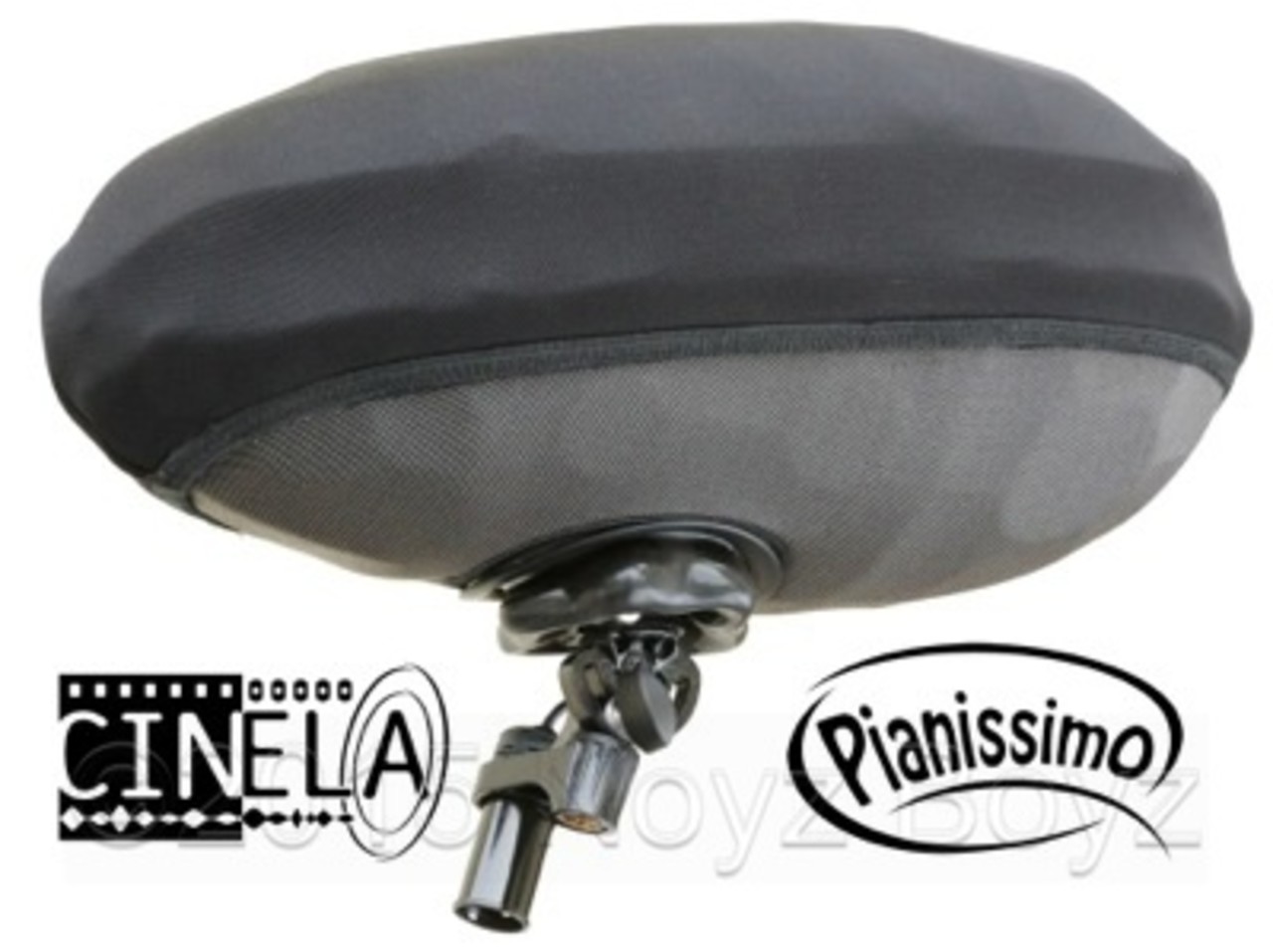

• 1 × complete PIANISSIMO windshield system with suitable MS suspension, internal wiring and 3D fabric.

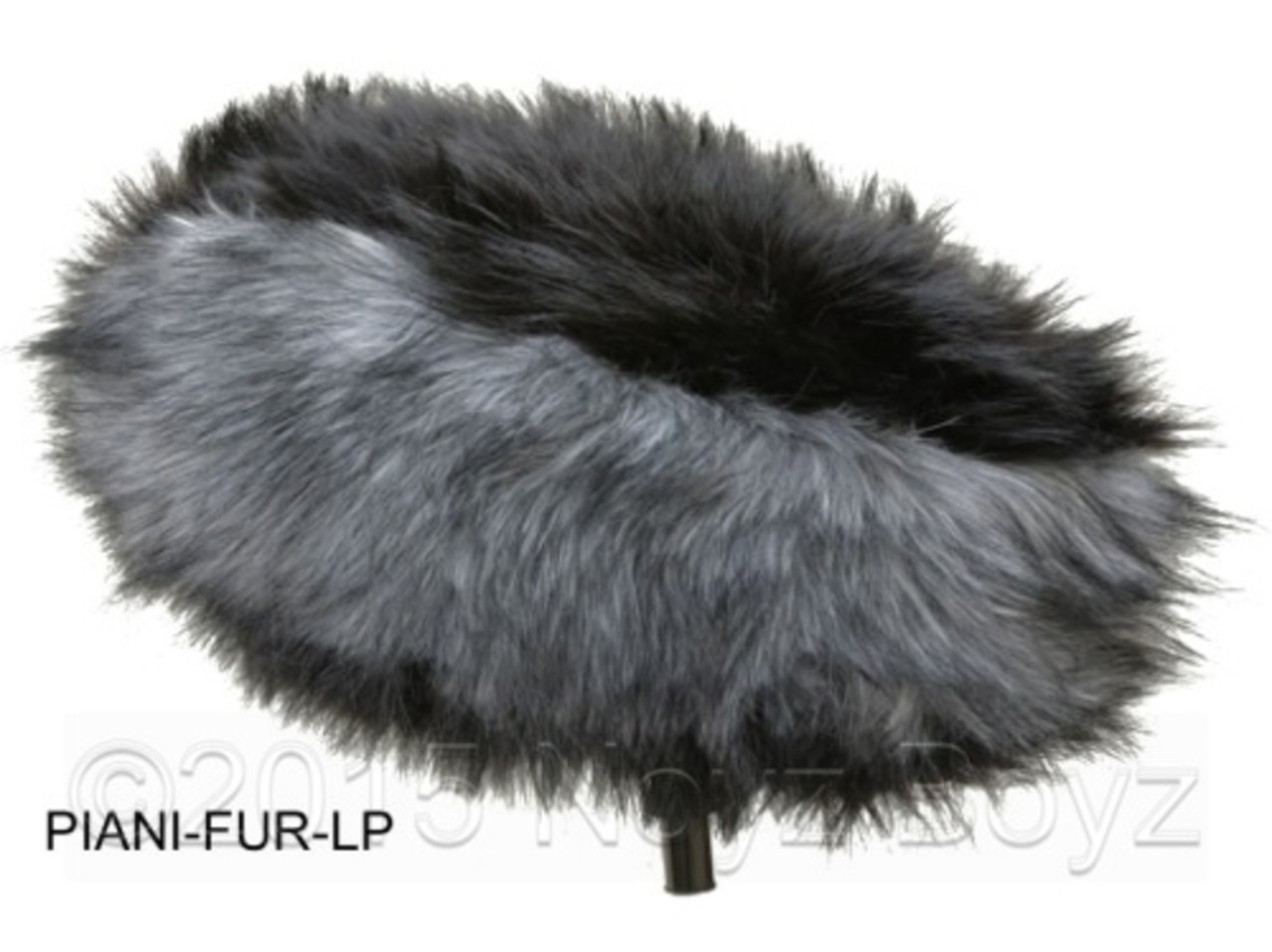

• 1 × synthetic fur windshield; version and color as ordered.

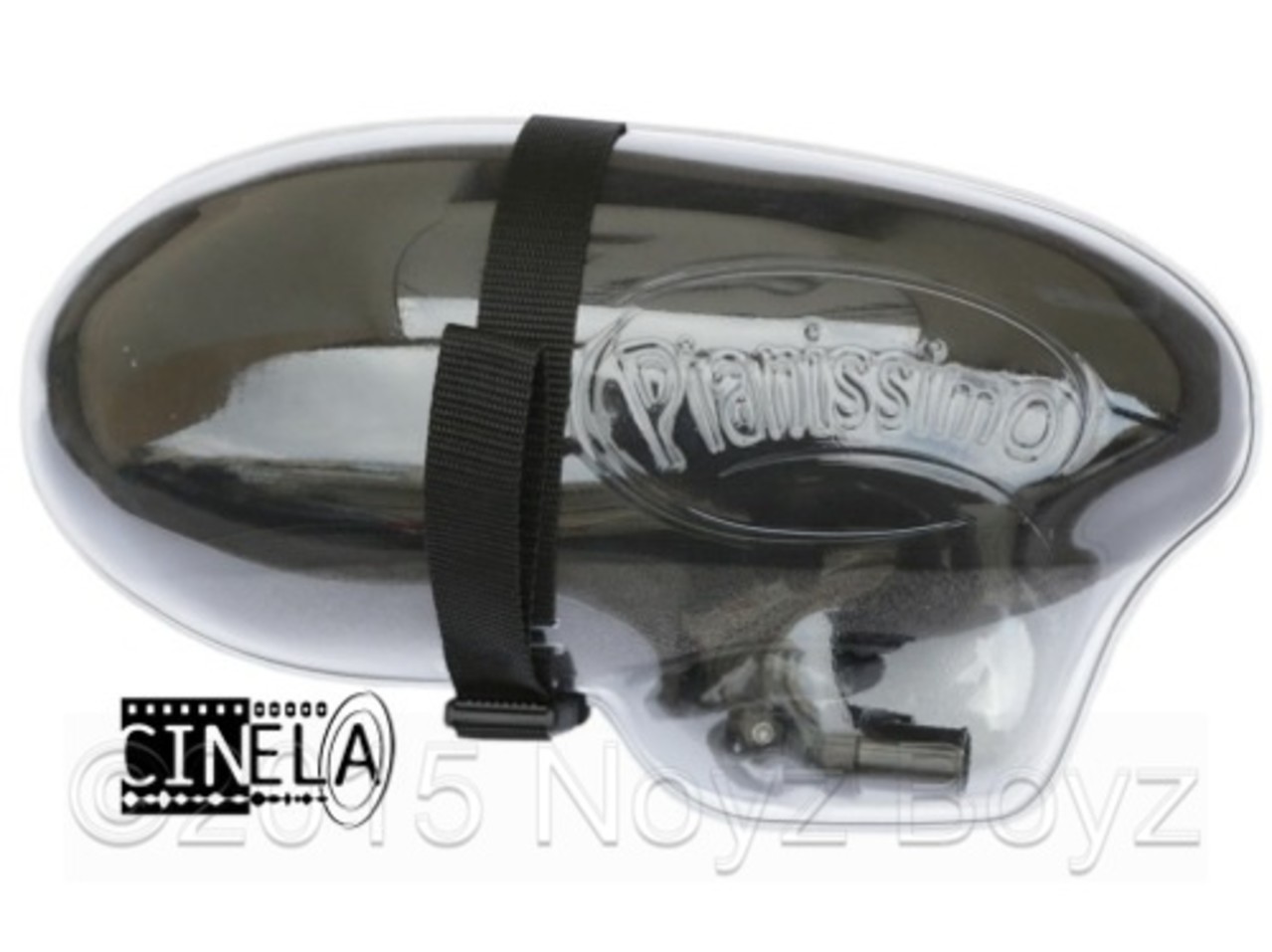

• 1 × polycarbonate protective transport shell.

Microphones, capsules, output stages, external extension cable and breakout cable not included.
