Cinela PIANI-2-KMIT-CMC1U

Cinela PIANI-2-KMIT-CMC1U Windshield System

The Cinela PIANI-2-KMIT-CMC1U is a PIANISSIMO windshield system for a Schoeps MS stereo combination with XLR connections. A KMIT with CMC 1 U provides the mid channel, while an MK 8 with a second CMC 1 U provides the figure-eight side channel.

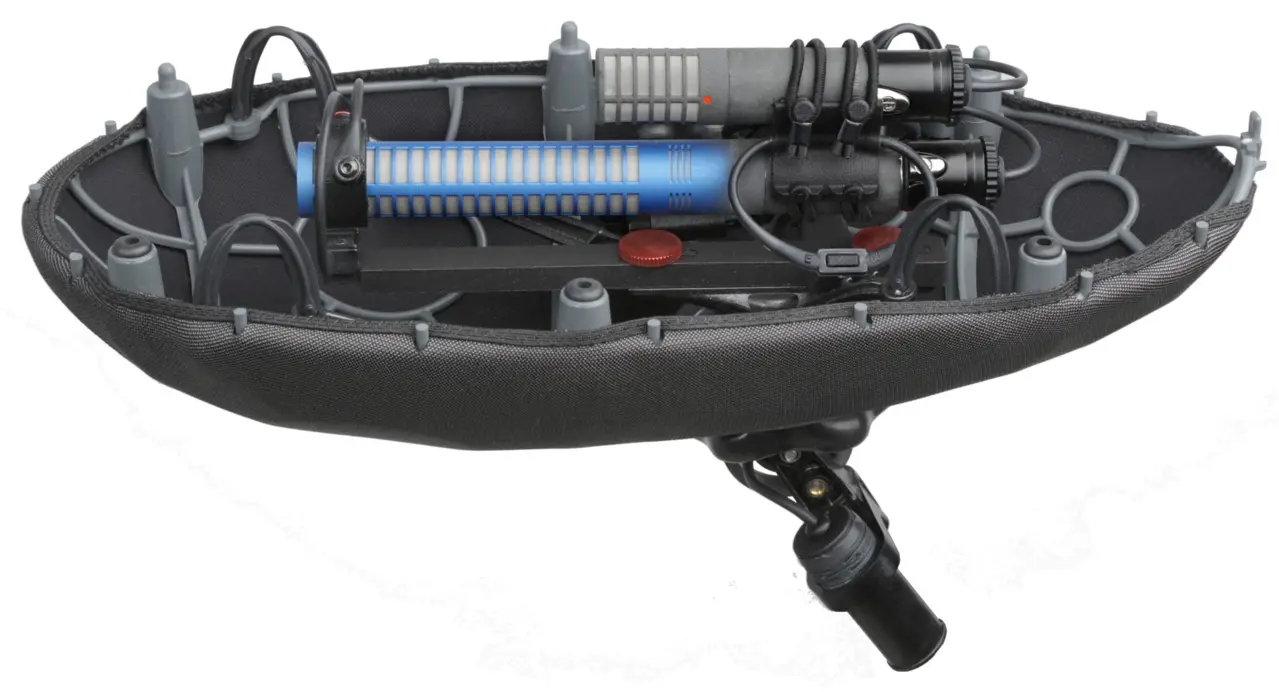

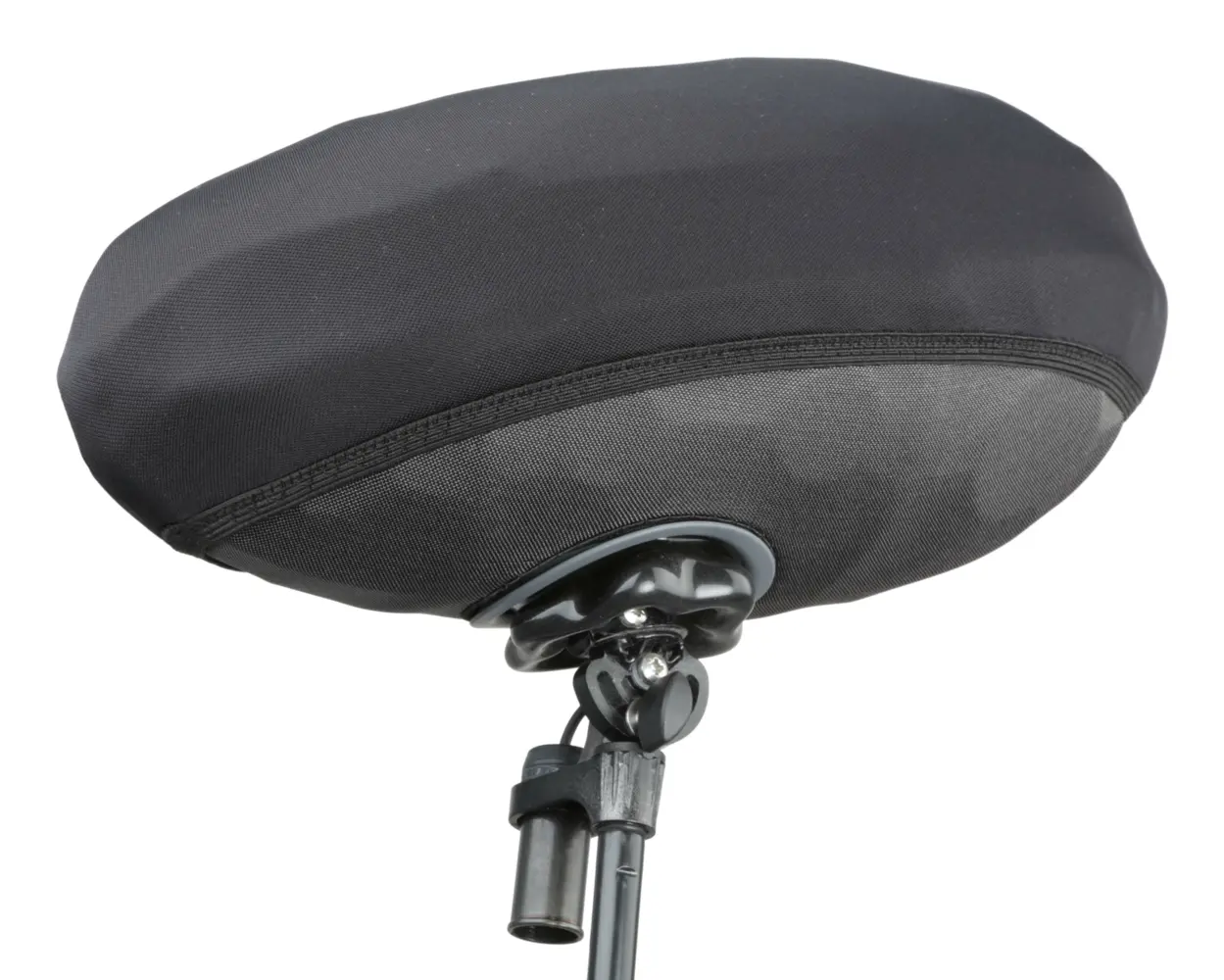

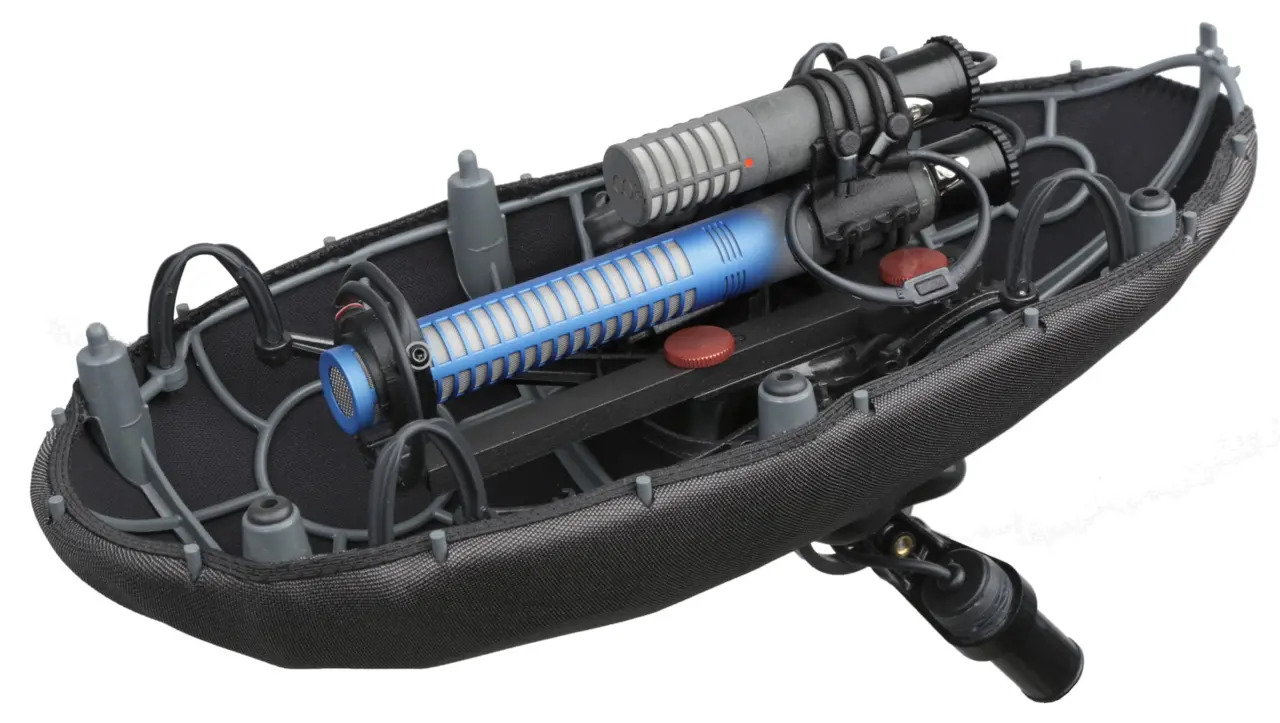

The system combines an elastically suspended ovoid basket with an internal MS suspension. The 3D fabric and synthetic fur windshield provide wind protection. Integrated wiring routes both channels to a single XLR5M output.

Main features

• Internal MS suspension for two CMC 1 U amplifiers.
• SW-2AX swivel with two adjustment axes.
• Internal Binder connections for detachable microphone cables.
• Fur windshield version and color as ordered.

Compatibility

• Mid channel: Schoeps KMIT with CMC 1 U.
• Side channel: Schoeps MK 8 with CMC 1 U.

Specifications

• Configuration: MS stereo.
• Microphone connections: 3-pin XLR female.
• Output: 5-pin XLR male.
• Basket dimensions: approximately 32 × 16 × 14 cm.
• Weight: approximately 335 g with suspension module and 3D fabric, without fur windshield.

Included

• 1 × complete PIANISSIMO windshield system with MS suspension and internal wiring.

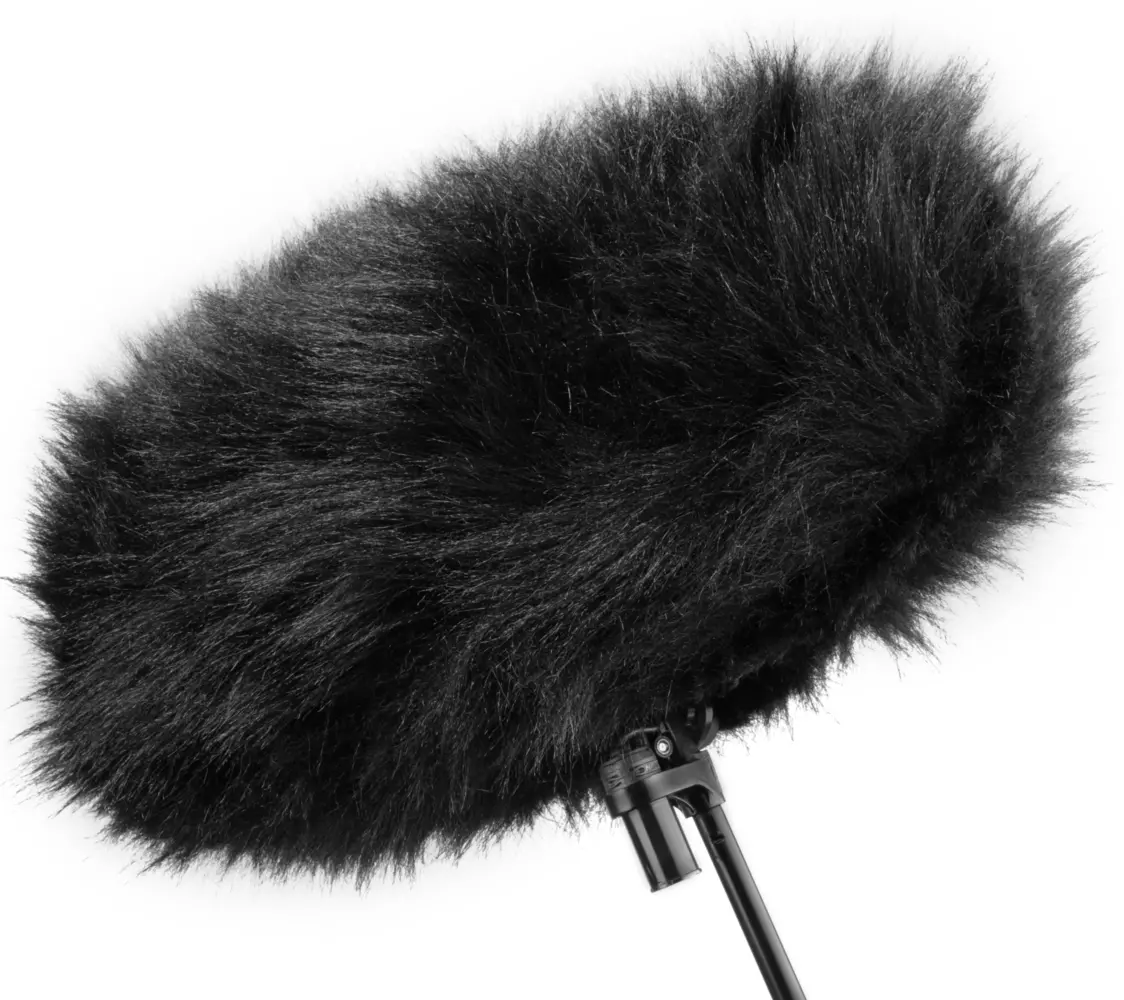

• 1 × synthetic fur windshield.

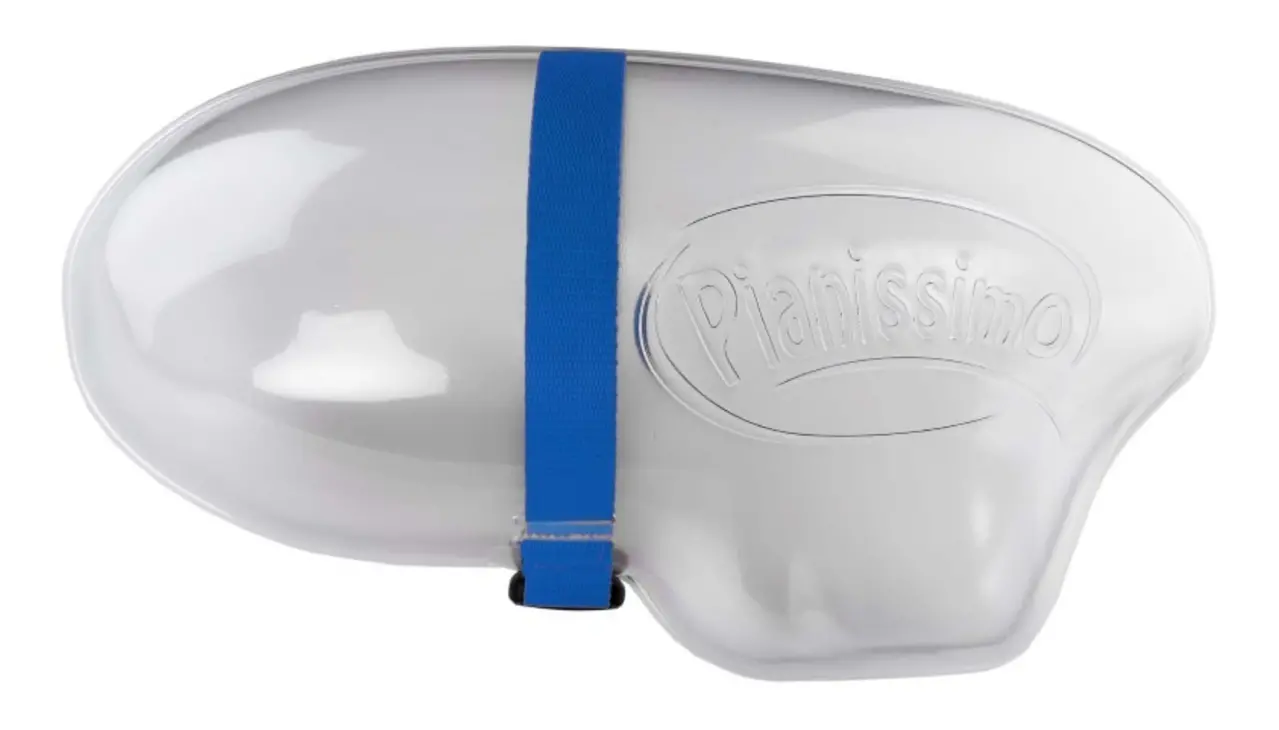

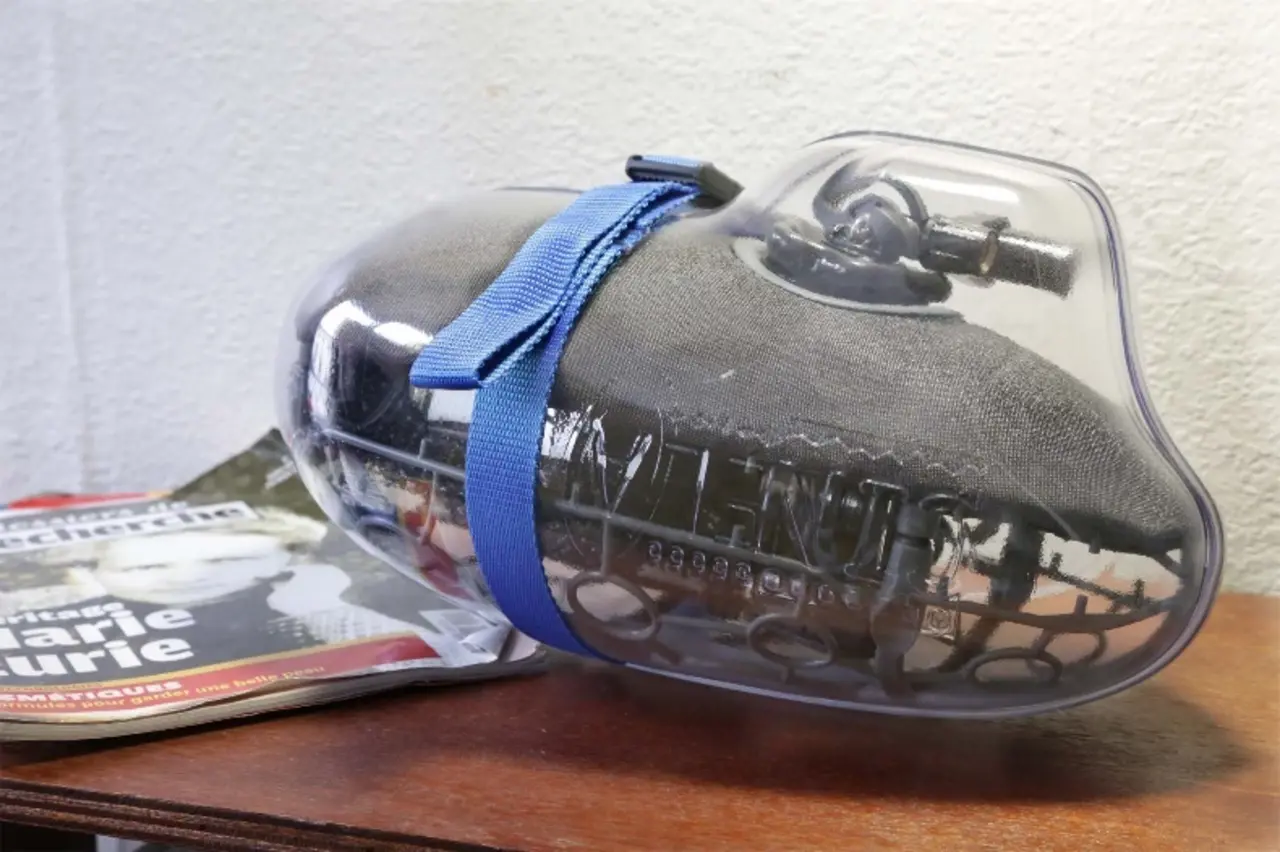

• 1 × polycarbonate protective transport shell.

Microphone capsules and microphone amplifiers not included.
