Cinela Piani-2-4017C-ATE

Cinela PIANI-2-4017C-ATE MS Windshield

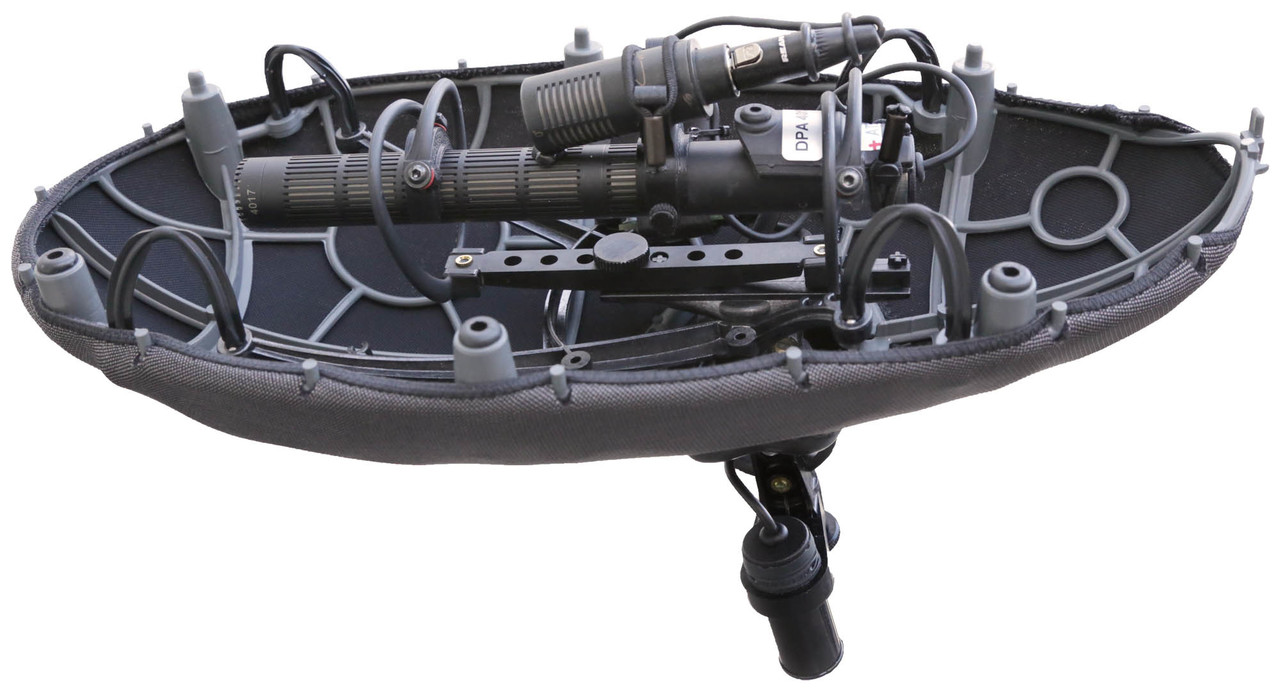

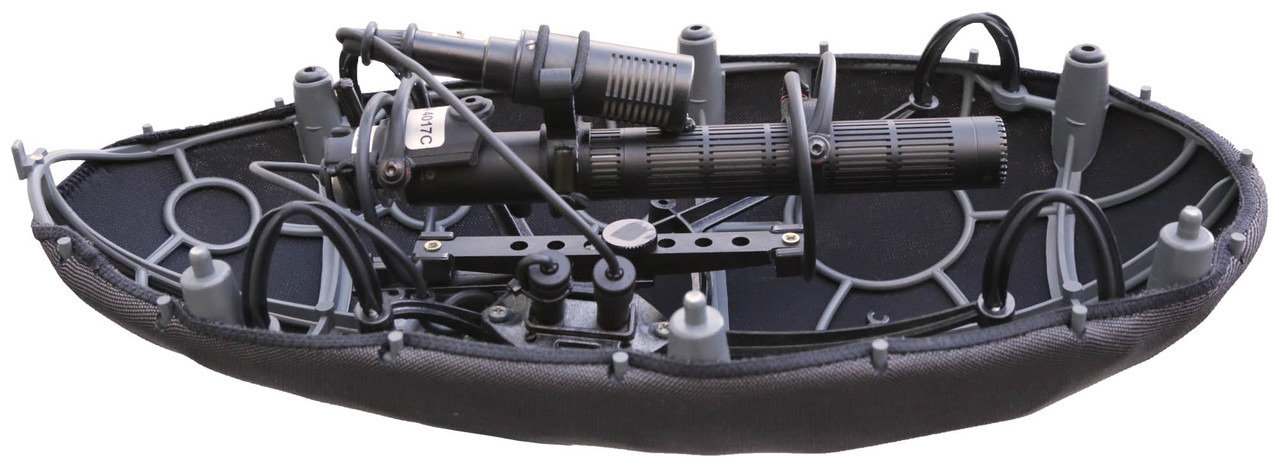

The Cinela PIANI-2-4017C-ATE is a PIANISSIMO windshield system for the DPA 4017C and Ambient Emesser ATE 208 in a Mid-Side configuration. The DPA 4017C provides the Mid signal; the Emesser provides the Side signal.

Main features

• MS suspension adapted to the DPA 4017C and Emesser ATE 208 combination.
• Suspended basket with acoustically transparent 3D fabric.
• Wind protection and mechanical isolation for location recording.
• 5-pin male XLR output carrying the separate Mid and Side signals.
• Fur windshield for additional wind protection.

Connection

The internal cabling connects both microphones to the shared XLR5 output. A suitable XLR5 breakout cable is required for connection to two separate microphone inputs.

Included

• PIANISSIMO windshield system with MS suspension, internal cabling, 3D fabric and swivel.
• Fur windshield.
• Polycarbonate transport protection.

Microphones and external connection or breakout cable are not included.
