Cinela PIANI-2-MKH30/40-V

Cinela PIANI-2-MKH30/40-V Windshield System

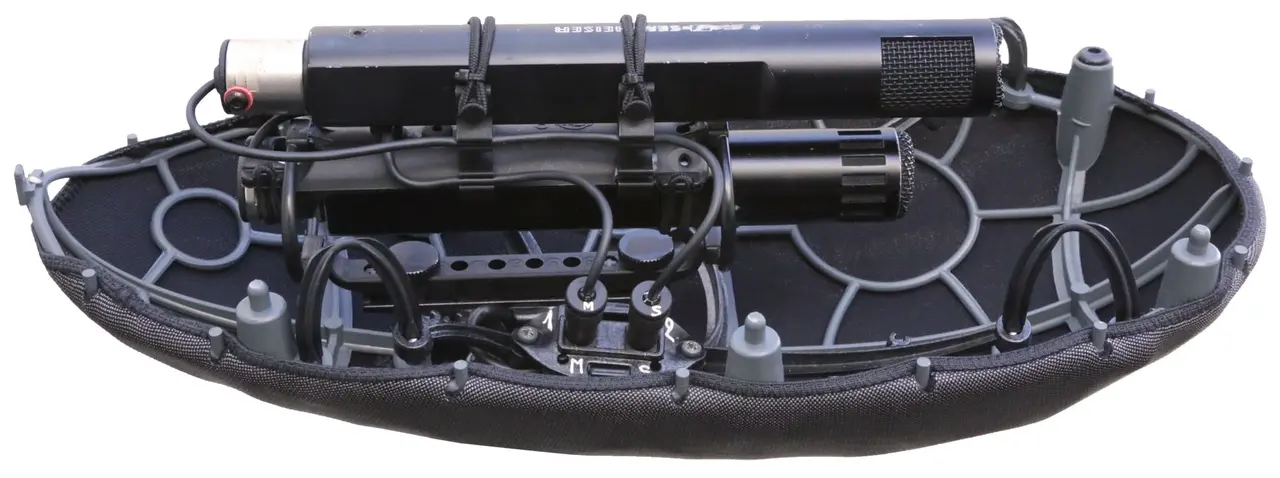

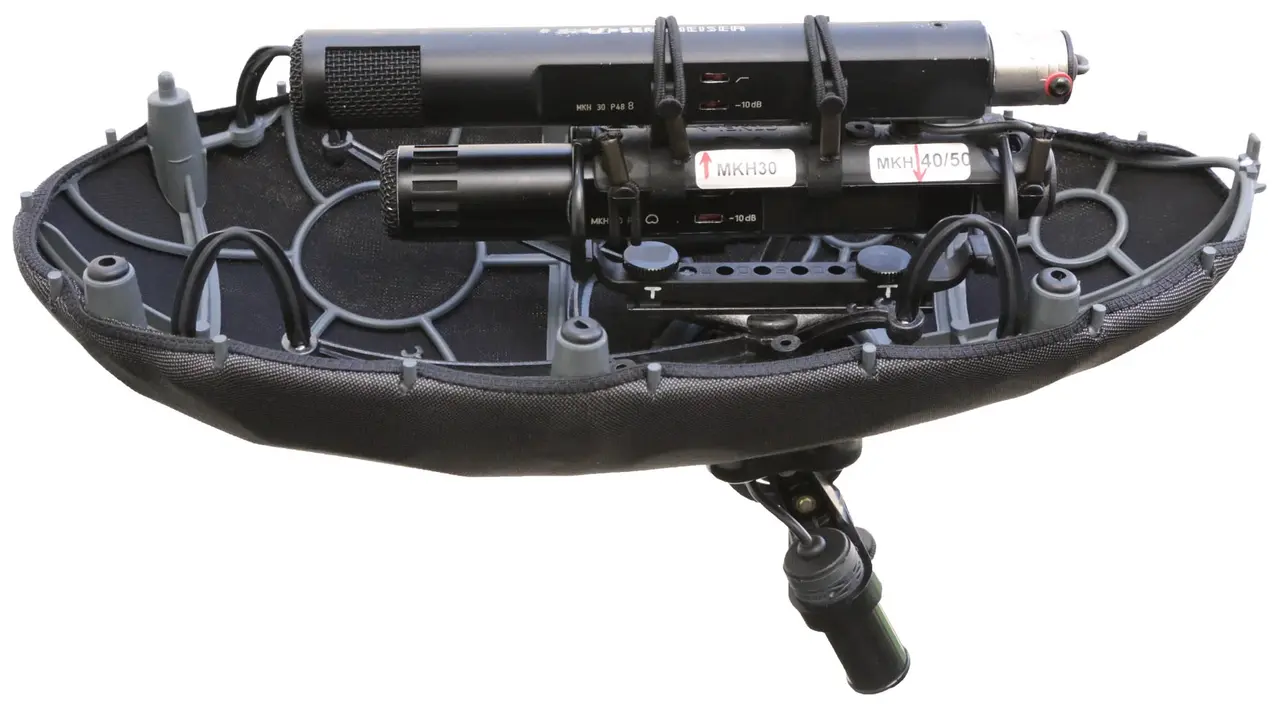

The Cinela PIANI-2-MKH30/40-V is the Versatile version of the PIANISSIMO windshield system for an MS pair comprising a Sennheiser MKH 30 and MKH 40 or MKH 50. The MKH 40 or MKH 50 provides the mid channel, while the figure-eight MKH 30 provides the side channel.

The suspension module and internal cables are interchangeable. This allows the system to be adapted to other microphone combinations using suitable parts. This version uses elliptical isolators and slightly higher microphone positioning; according to Cinela, vibration isolation of the MKH 30 is consequently less effective than with the Dedicated version.

Main features

• Interchangeable MS suspension module with elliptical isolators.

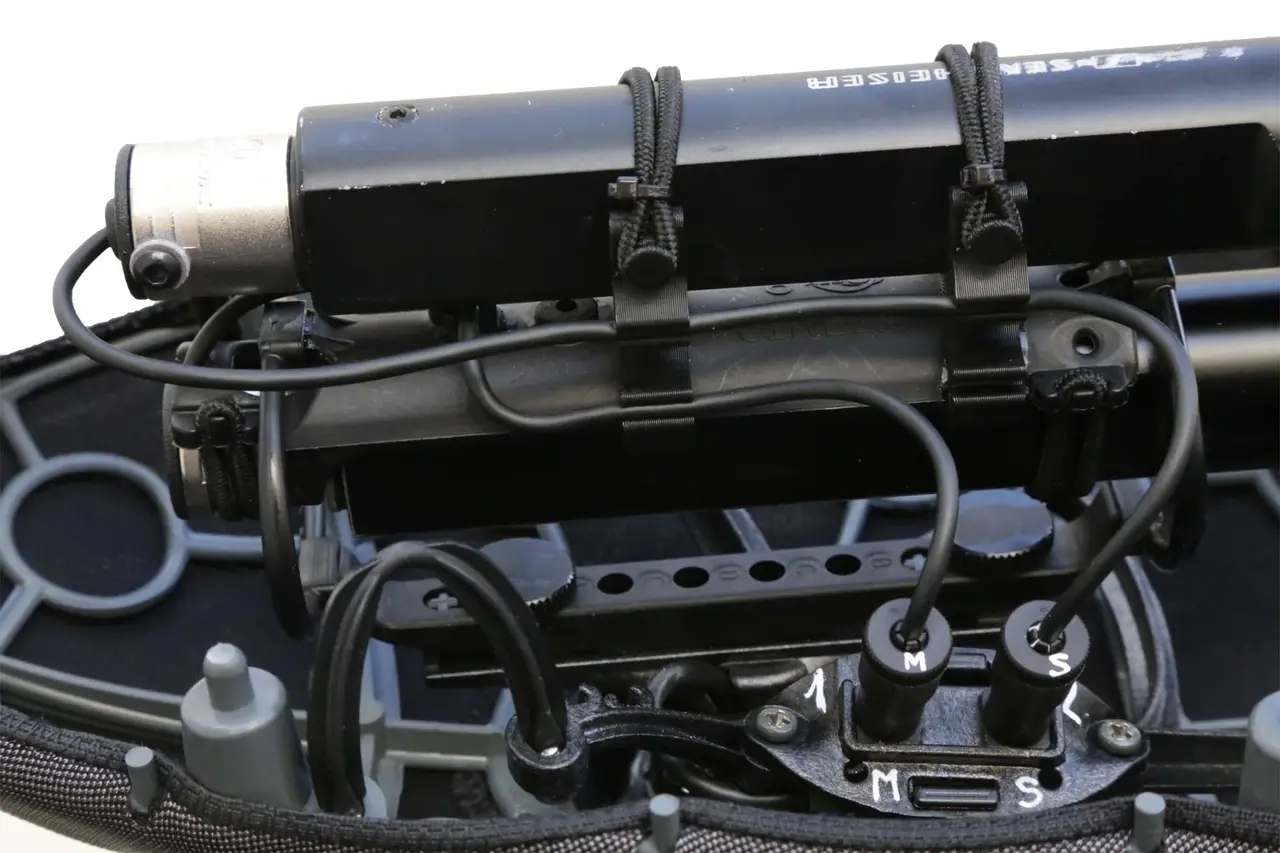

• Detachable internal microphone cables via two Binder connections.

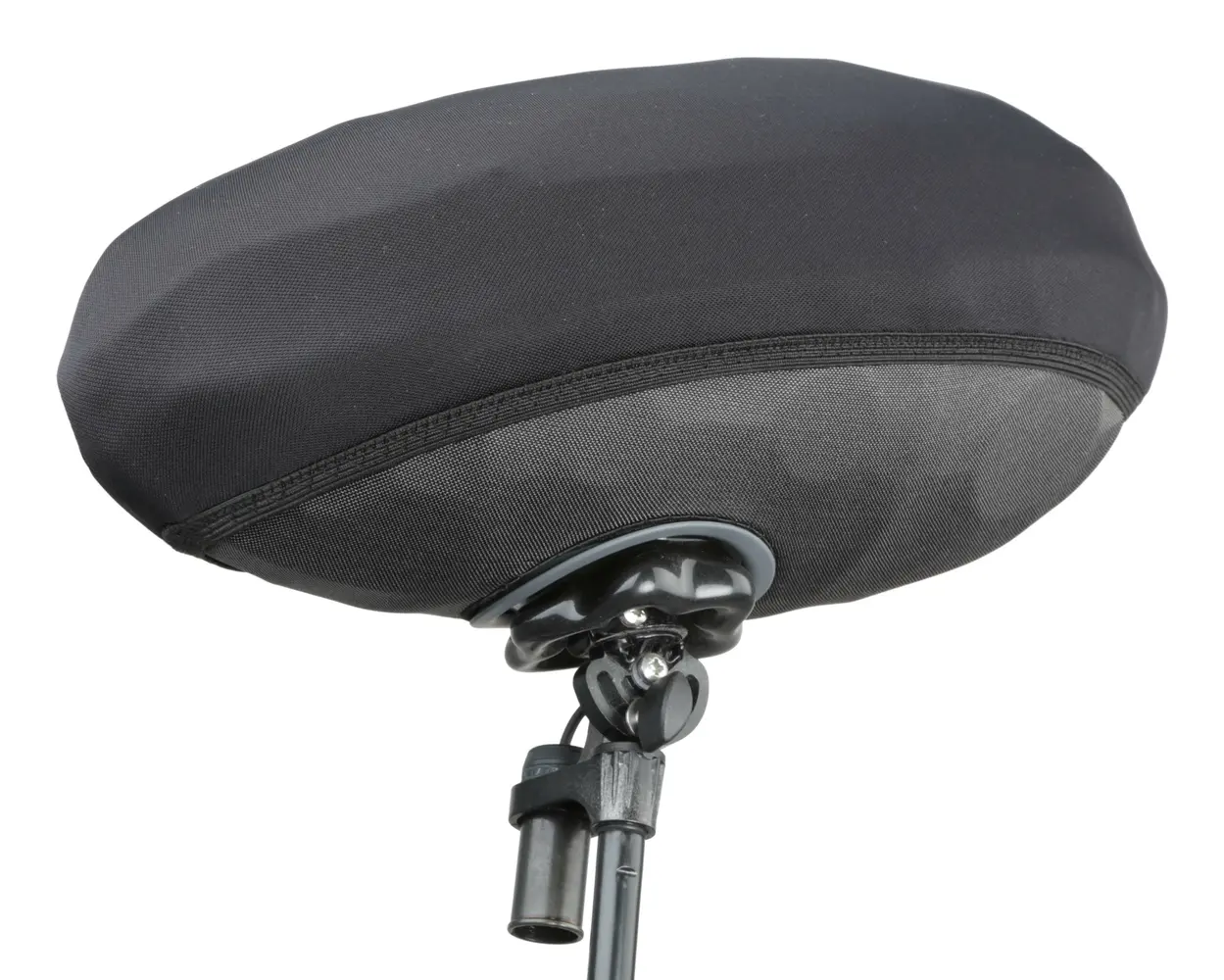

• Primary 3D fabric and synthetic fur windshield.
• XLR5M output carrying separate mid and side signals.
• Adaptable to other microphone combinations with suitable suspension and wiring.

Compatibility

• Sennheiser MKH 30 with MKH 40.
• Sennheiser MKH 30 with MKH 50.

Specify the required microphone combination when ordering. Parts for other configurations are not included as standard.

Specifications

• Model: PIANI-2-MKH30/40-V.
• Product series: PIANISSIMO.
• Version: Versatile, with interchangeable suspension module.
• Configuration: MS stereo.
• Isolators: elliptical.
• Internal connections: double Binder holder.
• Output: 5-pin XLR male.

Included

• 1 × complete PIANISSIMO windshield system with suitable MS suspension, internal wiring and 3D fabric.
• 1 × synthetic fur windshield; version and color as ordered.
• 1 × polycarbonate protective transport shell.

Microphones, external extension cable and breakout cable not included.
