DPA 4006C

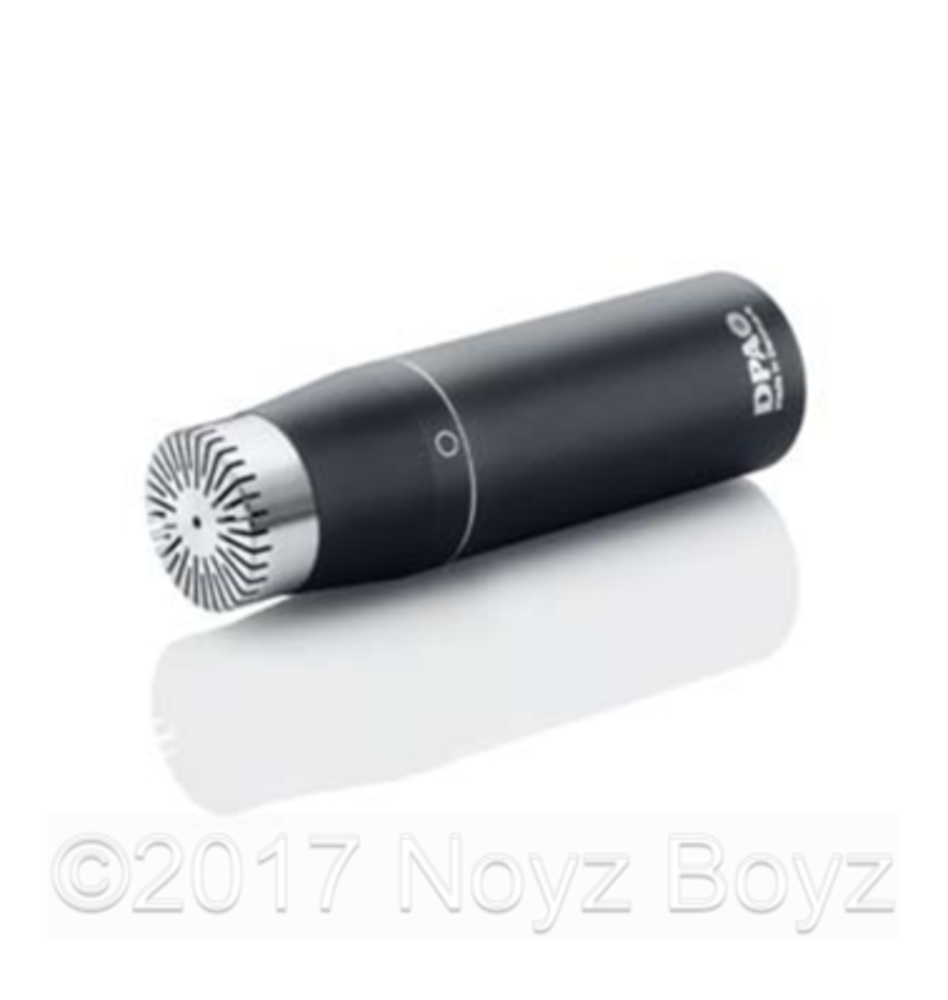

DPA 4006C Compact Omnidirectional Microphone
The DPA 4006C is a compact omnidirectional condenser microphone for instrument recording, A-B stereo and capturing room ambience and audience sound. It combines the MMC4006 capsule with the compact MMP-C preamplifier. Measuring 64 mm in length and weighing 63 g, this version provides more placement flexibility where a longer microphone would be impractical or too conspicuous.
The 4006C can be mounted, suspended or concealed. DPA describes applications in theatres, opera houses, concert halls, houses of worship and film recording. Close-miking double bass, trumpet and piano are also documented applications. Its omnidirectional pattern captures both the direct source and the surrounding space.
Main Features
- The same MMC4006 omnidirectional capsule used in the 4006A.
- Compact MMP-C preamplifier with an Active Drive output stage.
- Frequency range of 20 Hz to 20 kHz within ±2 dB.
- Typically 15 dB(A) self-noise and a typical dynamic range of 116 dB.
- Modular capsule and preamplifier for changing the microphone configuration.
Grids and Acoustic Adjustment
Interchangeable grids adapt the high-frequency response to the recording distance and sound field. Adjustment takes place acoustically at the capsule.
| Grid | Function |
|---|---|
| DD0251 Free-field Grid, silver | Pre-mounted grid providing a neutral frequency response in the direct sound field. |
| DD0254 Close-miking Grid, silver | Gently rolls off the highest frequencies when recording at short distances, including sources with strong high-frequency transients. |
| DD0297 Diffuse-field Grid, black | Compensates for high-frequency loss in a diffuse sound field, such as at greater recording distances. |
Specifications
| Directional pattern | Omnidirectional |
|---|---|
| Operating principle | Pressure |
| Capsule type | Pre-polarized condenser |
| Capsule and preamplifier | MMC4006 with MMP-C |
| Frequency range | 10 Hz – 20 kHz |
| Frequency range within ±2 dB | 20 Hz – 20 kHz |
| Sensitivity at 250 Hz, nominal ±2 dB | 36 mV/Pa; -28.9 dB re. 1 V/Pa |
| A-weighted equivalent noise level | Typically 15 dB(A), maximum 17 dB(A), re. 20 µPa |
| Equivalent noise level, ITU-R BS.468-4 | Typically 27 dB, maximum 29 dB |
| Sound pressure level at THD <1% | 128 dB SPL RMS; 131 dB SPL peak |
| Dynamic range | Typically 116 dB |
| Maximum SPL at 10% THD | 139 dB SPL peak |
| Rated output impedance | 100 Ω |
| Output balancing | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio | >50 dB |
| Cable drive capability | Up to 100 m of cable |
| Maximum output voltage | 4.5 V RMS |
| Power supply | P48, 48 V phantom power |
| Current consumption | 2.8 mA |
| Connector | XLR3M |
| XLR pin assignment | Pin 1: shield; pin 2: signal +; pin 3: signal − |
| Polarity | Positive voltage at pin 2 for positive sound pressure |
| Capsule diameter | ø16 mm |
| Microphone diameter | ø16–19 mm, depending on the grid |
| Length | 64 mm |
| Weight | 63 g |
| Operating temperature | -40 °C to +45 °C |
| Relative humidity | Up to 90% |
Included
- 4006C microphone comprising an MMC4006 capsule and MMP-C preamplifier.
- DD0251 Free-field Grid, pre-mounted.
- DD0254 Close-miking Grid.
- DD0297 Diffuse-field Grid.
Compatibility and Expansion
The MMC4006 belongs to DPA's modular Pencil Microphones Series. The capsule can be combined with other preamplifiers from this modular series; the resulting specifications depend on the combination selected. The MMP-C is the compact version. DPA describes its sonic character as slightly softer than that of the other preamplifiers in the series.
Optional acoustic accessories include the UA0777 Nose Cone and APE30RS, APE40RS and APE50RS Acoustic Pressure Equalizers. The APE spheres modify the mid- and high-frequency response and increase directionality at higher frequencies.
4006C and 4006A Compared
| Feature | 4006C — this model | 4006A |
|---|---|---|
| Preamplifier | MMP-C, compact | MMP-A |
| Length | 64 mm | 170 mm |
| Weight | 63 g | 163 g |
| Frequency range within ±2 dB | 20 Hz – 20 kHz | 10 Hz – 20 kHz |
| Typical dynamic range | 116 dB | 121 dB |
| Maximum SPL at 10% THD | 139 dB peak | 146 dB peak |
