DPA 4018VL-B-W12

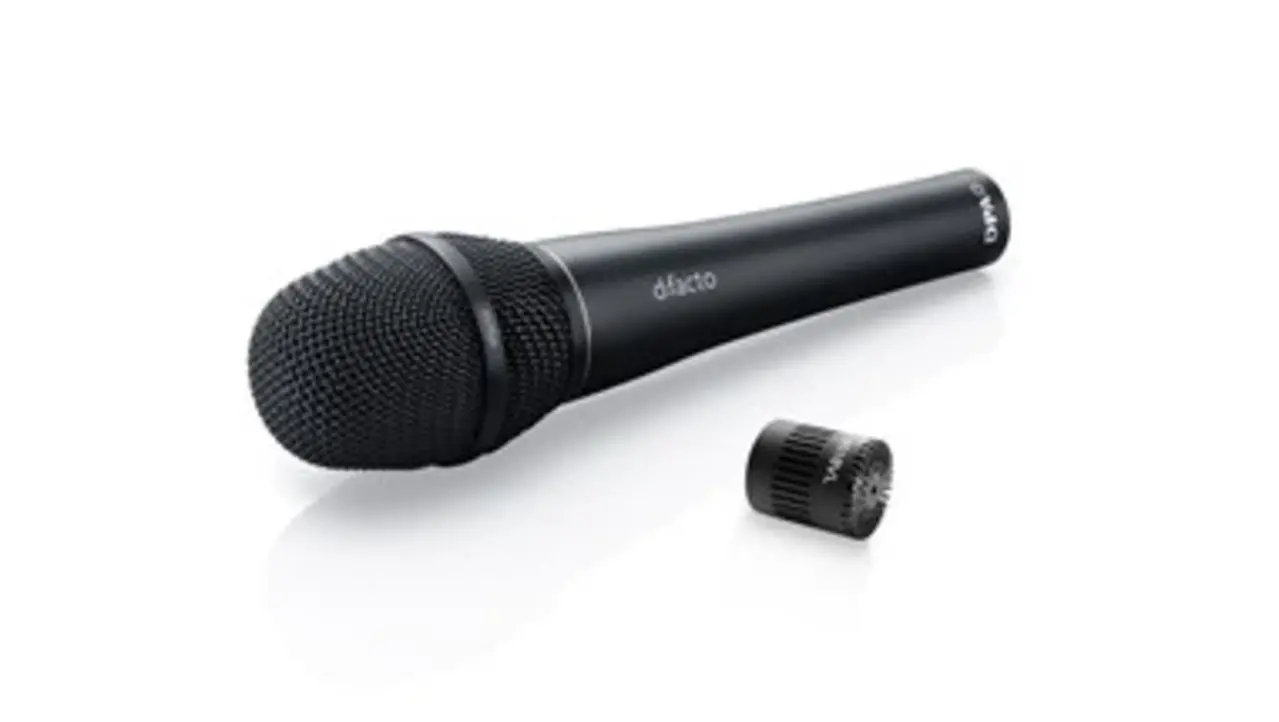

DPA 4018VL-B-W12 d:facto 4018VL Linear Supercardioid Mic with W12 Adapter

The DPA 4018VL-B-W12 is a black d:facto 4018VL linear supercardioid condenser microphone with a W12 adapter. The 4018VL is designed for live vocals, broadcast and professional wireless applications where a neutral and transparent sound is required.

The linear 4018VL capsule has no presence boost, leaving the final tonal shaping to the engineer. The modular d:facto system allows the same capsule to be used with different wireless handheld transmitters by simply changing the adapter. The W12 adapter is compatible with Wisycom MTH400 and MTH410 wireless handheld transmitters.

Main Features

• Linear d:facto 4018VL condenser capsule
• Supercardioid polar pattern
• Neutral sound without presence boost
• High separation from nearby sound sources
• Suitable for live vocals, broadcast and speech

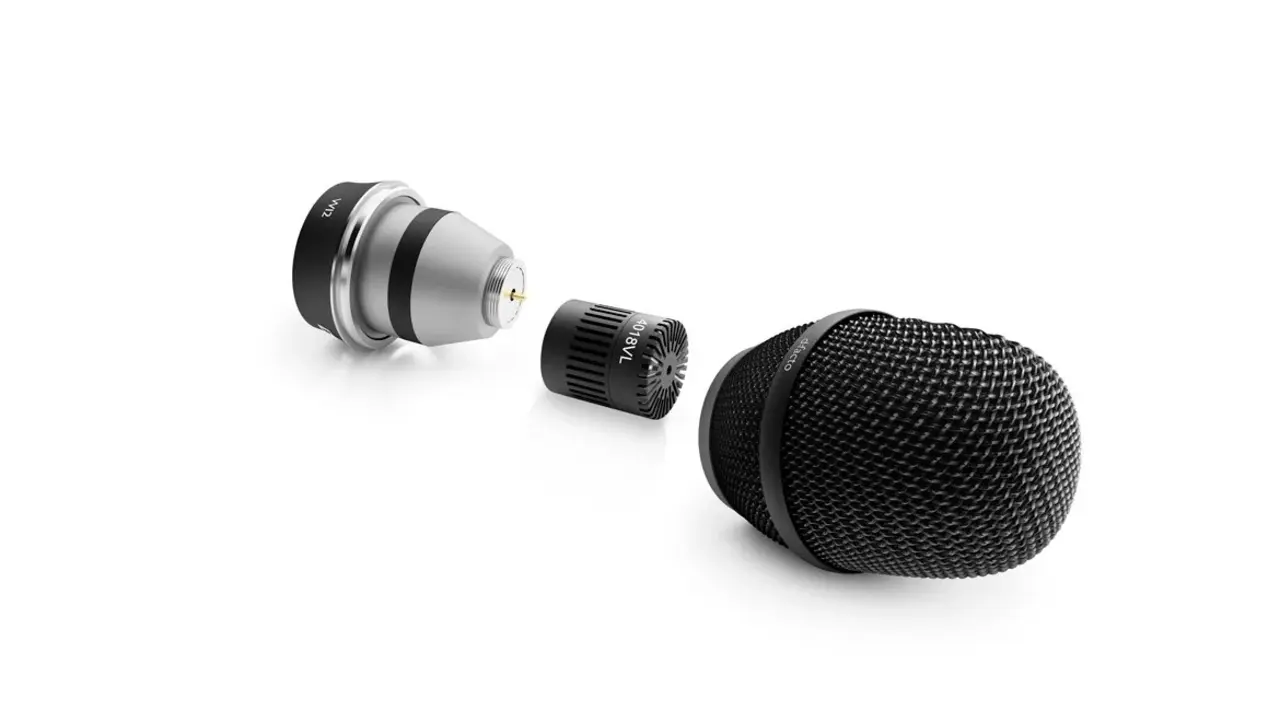

• Modular d:facto system with interchangeable adapter
• W12 adapter for Wisycom MTH400 and MTH410 handheld transmitters
• Black finish

Specifications

• Polar pattern: supercardioid
• Principle of operation: pressure gradient
• Capsule type: pre-polarized condenser
• Frequency range: 20 Hz – 20 kHz
• Effective frequency range ±2 dB at 12 cm: 40 Hz – 16 kHz
• Sensitivity: 5 mV/Pa; −46 dB re. 1 V/Pa
• Equivalent noise level: typ. 19 dB(A)
• Dynamic range: typ. 120 dB
• Maximum SPL: 160 dB SPL (peak)
• Output impedance: 100 Ω
• Power supply: P48 phantom power
• Colour: black

Included

• d:facto 4018VL microphone capsule
• W12 adapter for Wisycom MTH400 and MTH410 wireless handheld transmitters
• Pop protection grille
