DPA 4018VL-B-SL1

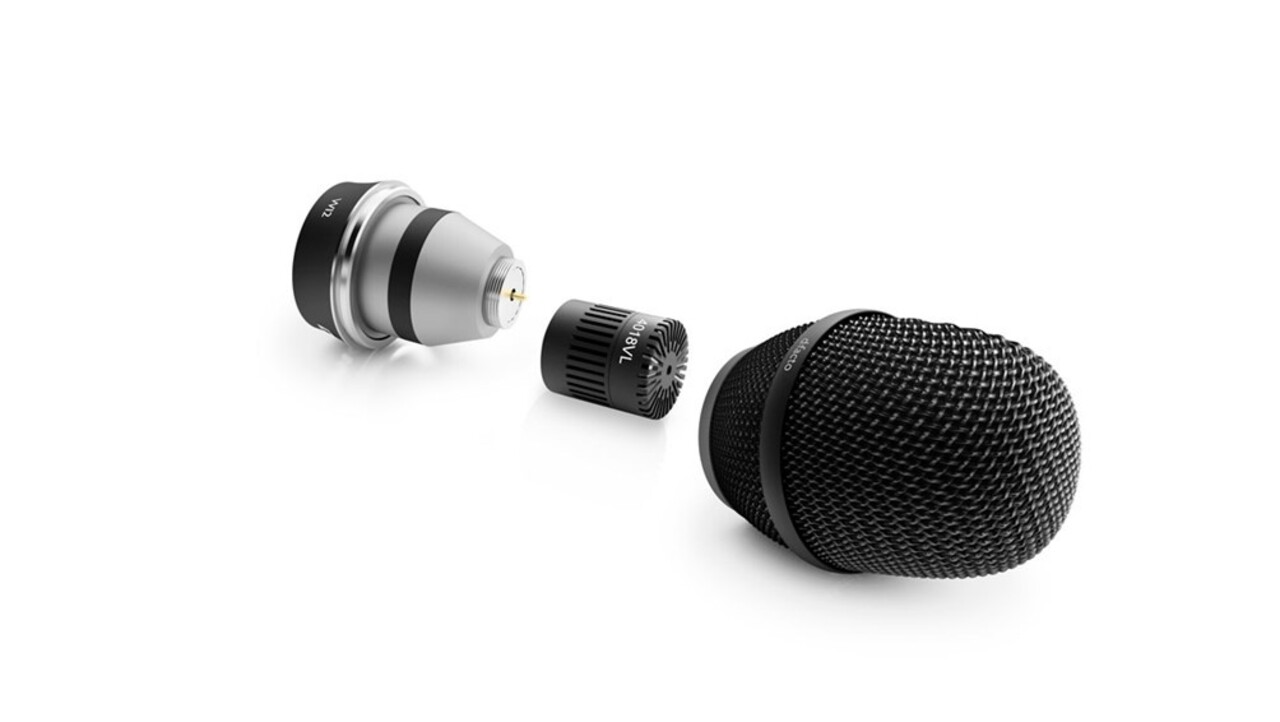

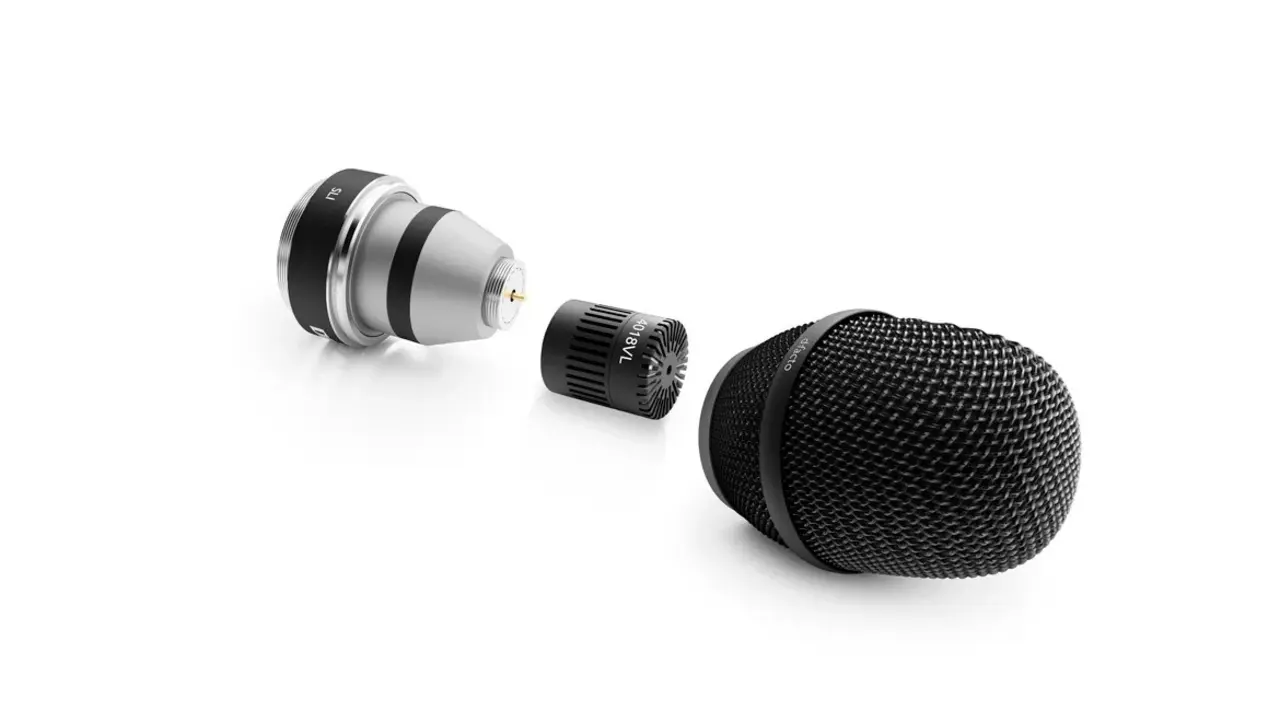

DPA 4018VL-B-SL1 d:facto 4018VL Linear Supercardioid Mic with SL1 Adapter

The DPA 4018VL-B-SL1 is a black d:facto 4018VL linear supercardioid condenser microphone with an SL1 adapter. The 4018VL is designed for live vocals, broadcast and professional wireless applications where a neutral and transparent sound is required.

The linear 4018VL capsule has no presence boost, leaving the final tonal shaping to the engineer. The modular d:facto system allows the same capsule to be used with different wireless handheld transmitters by simply changing the adapter. The SL1 adapter is compatible with Wisycom MTH610, Shure, Sony, Audio-Technica and Lectrosonics wireless handheld transmitters.

Main Features

• Linear d:facto 4018VL condenser capsule
• Supercardioid polar pattern
• Neutral sound without presence boost
• High separation from nearby sound sources
• Suitable for live vocals, broadcast and speech
• Modular d:facto system with interchangeable adapter
• SL1 adapter for Wisycom MTH610, Shure, Sony, Audio-Technica and Lectrosonics handheld transmitters
• Black finish

Specifications

• Polar pattern: supercardioid
• Principle of operation: pressure gradient
• Capsule type: pre-polarized condenser
• Frequency range: 20 Hz – 20 kHz
• Effective frequency range ±2 dB at 12 cm: 40 Hz – 16 kHz
• Sensitivity: 5 mV/Pa; −46 dB re. 1 V/Pa
• Equivalent noise level: typ. 19 dB(A)
• Dynamic range: typ. 120 dB
• Maximum SPL: 160 dB SPL (peak)
• Output impedance: 100 Ω
• Power supply: P48 phantom power
• Colour: black

Included

• d:facto 4018VL microphone capsule
• SL1 adapter for Wisycom MTH610, Shure, Sony, Audio-Technica and Lectrosonics handheld transmitters
• Pop protection grille
