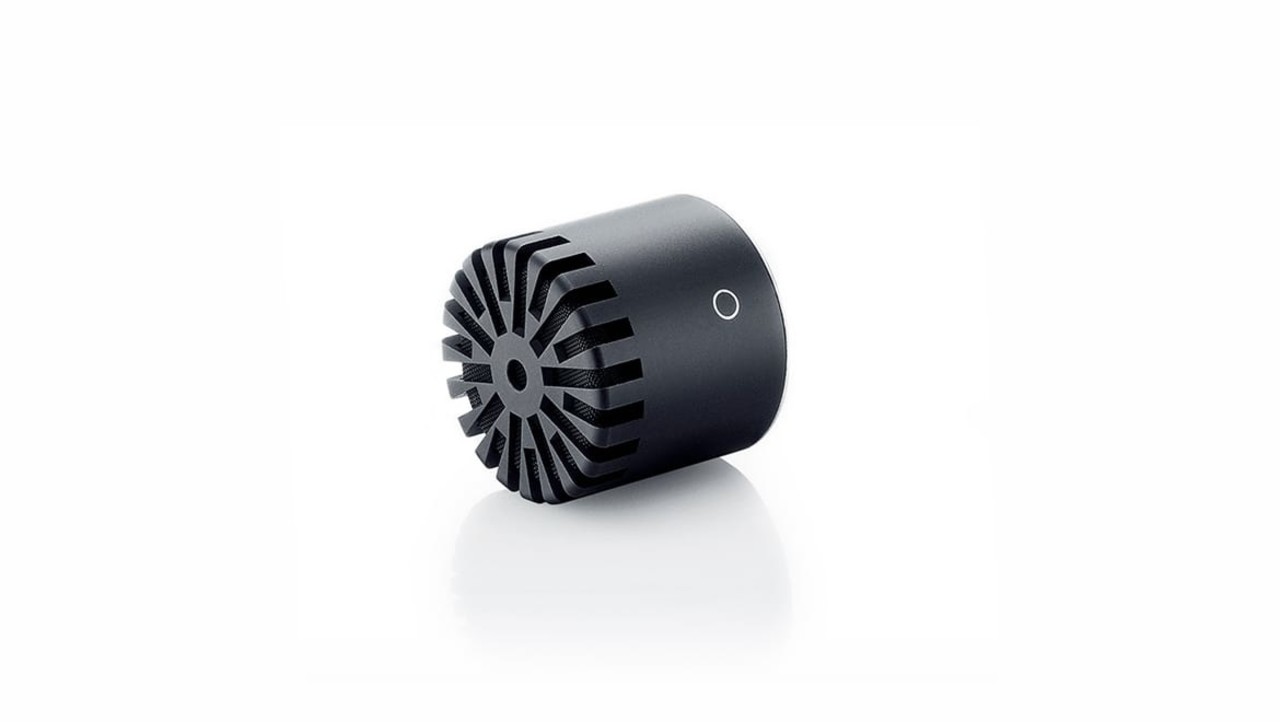

DPA MMC2006

The DPA MMC2006 is a high-quality microphone capsule from DPA Microphones' d:dicate series. This capsule utilizes a unique Twin Diaphragm technology, where two opposite-facing miniature capsules are combined into a single double-diaphragm assembly. This design combines the advantages of small capsules, such as fast impulse response and wide frequency bandwidth, with the lower inherent noise achieved from a larger diaphragm area. (dpamicrophones.com)

Key Specifications and Features:

• Polar Pattern: Omnidirectional, providing natural and balanced sound capture from all directions.
• Frequency Range: 20 Hz to 20 kHz, resulting in a wide and detailed sound image.
• Sensitivity: 10 mV/Pa; -40 dB re. 1 V/Pa, contributing to clear and detailed sound reproduction.
• Maximum Sound Pressure Level (SPL): 152 dB SPL, making the capsule suitable for recording very loud sound sources without distortion.
• Impedance:<200 Ω, ensuring optimal signal transfer.
• Compatibility: Designed for use with DPA's MMP series preamplifiers, offering flexibility in various recording setups.
