Lectrosonics DCHR-B1C1

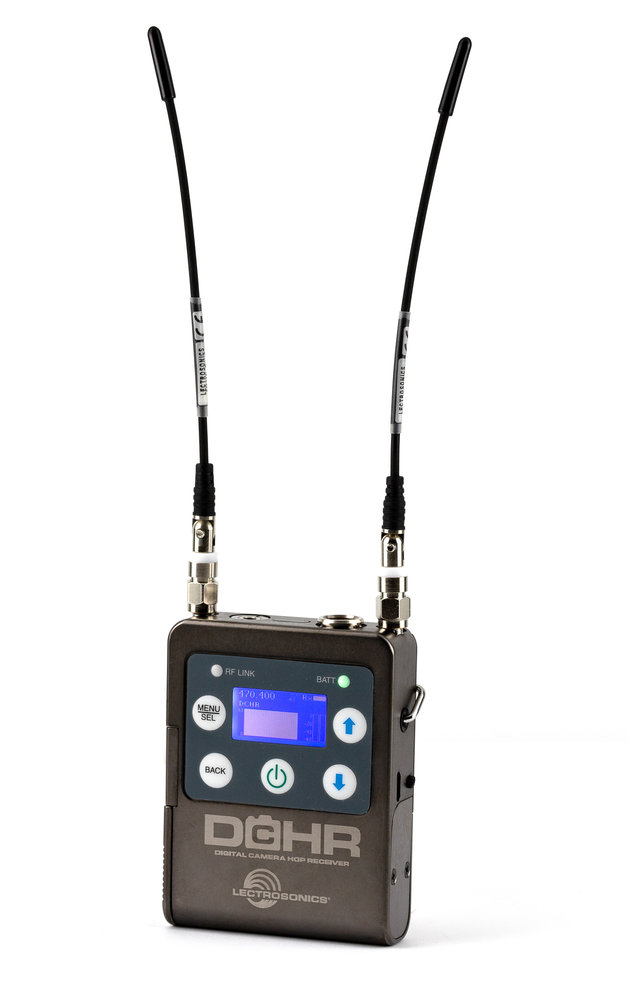

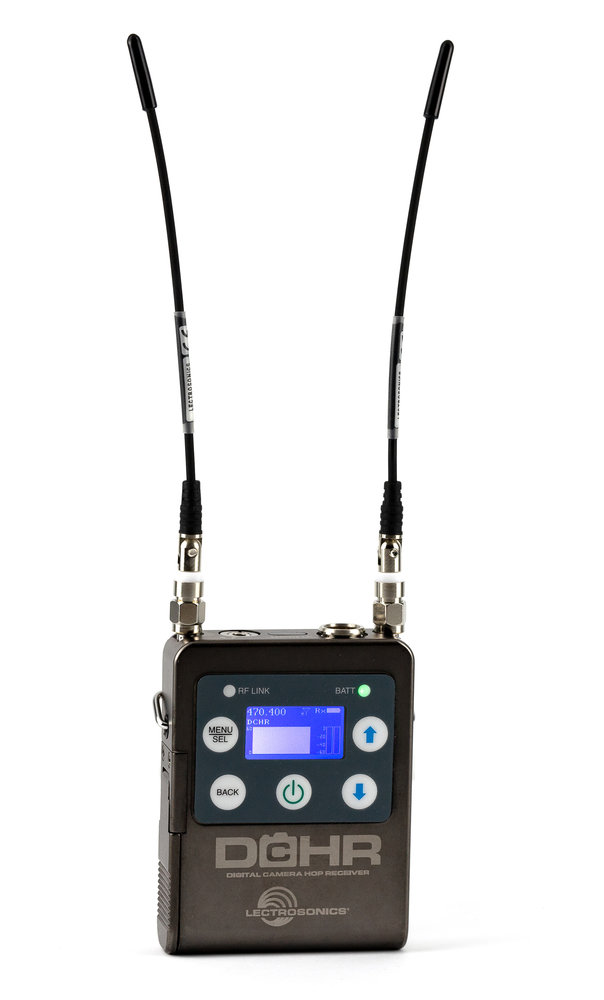

Lectrosonics DCHR-B1C1 Digital Camera Hop Receiver

The Lectrosonics DCHR-B1C1 is a portable digital receiver for wireless audio links to cameras and recorders. This version operates from 537.600 to 691.175 MHz and receives mono or stereo audio from a single RF carrier, depending on the transmitter and compatibility mode.

The locking TA5M connector provides either two balanced analogue audio channels or a two-channel AES3 signal. A separate 3.5 mm headphone output allows direct monitoring.

Main Features

• Frequency range: 537.600–691.175 MHz.
• Antenna diversity for digital reception.
• Selectable analogue or AES3 audio output.
• AES3 output with a 48 kHz sample rate.
• Support for AES-256-CTR encryption.
• SmartTune frequency scanning and IR synchronisation.
• USB connection for firmware updates.
• Powered by two AA batteries; approximately eight hours of operation with lithium AA batteries.

Included

• DCHR-B1C1 receiver.
• Two AMJ22 antennas.
• Two AMJ25 antennas.
• Two AA batteries.
• 26895 wire belt clip.

Compatibility and Connection

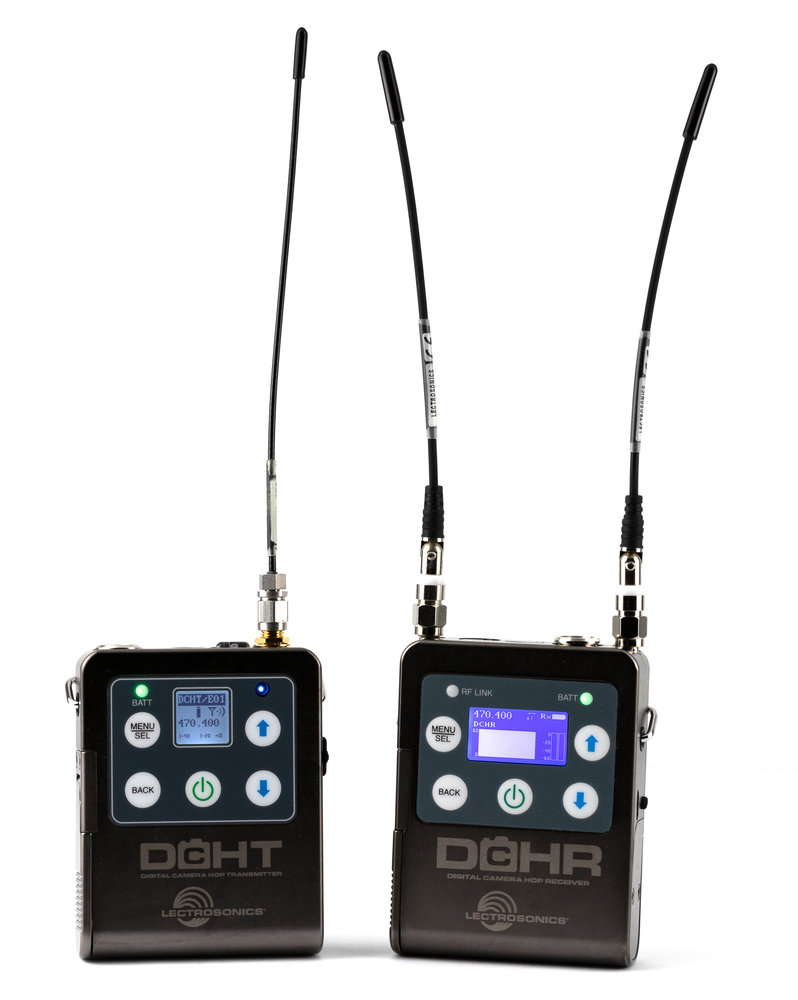

The DCHT/E01-B1C1 is a matching portable two-channel transmitter with the same frequency range.

The M2TND/E01 without Dante and M2T/E01 with Dante can be used within the shared frequency range of 537.600 to 614.375 MHz. The DCHR receives one of their two RF carriers at a time. Match the operating frequency, compatibility mode and encryption key where applicable.

Select an appropriate TA5F cable for the analogue or AES3 input on your camera or recorder. The optional LTBATELIM-H enables external powering.
