Lectrosonics DCHT/E01-B1C1

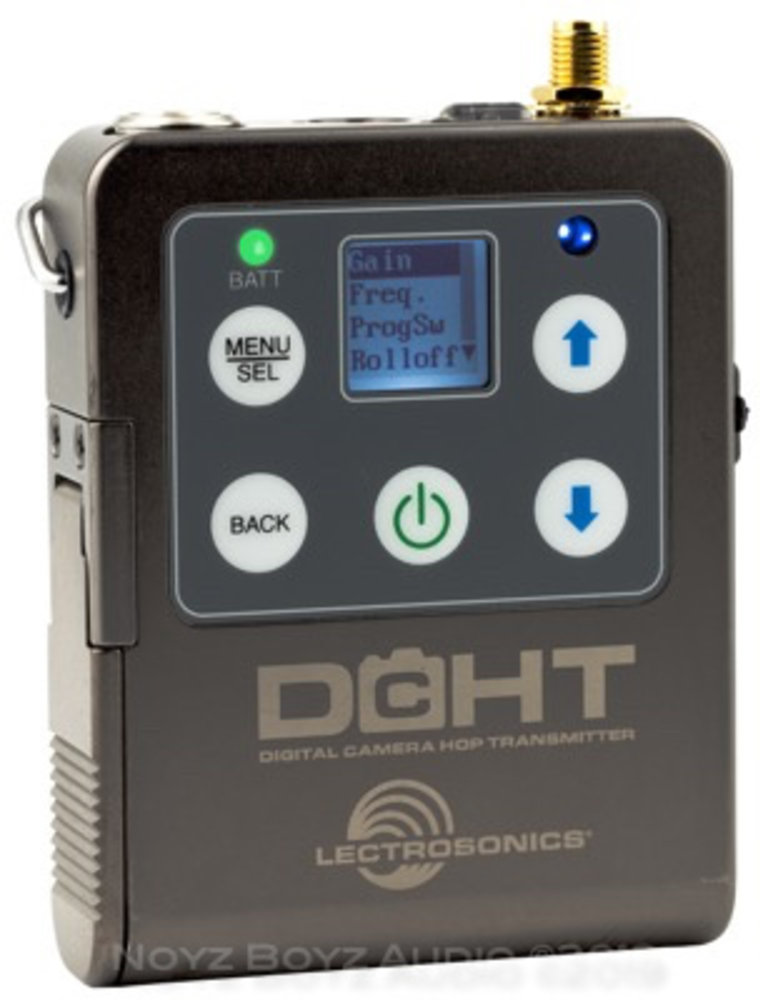

Lectrosonics DCHT/E01-B1C1 Digital Camera Hop Transmitter

The Lectrosonics DCHT/E01-B1C1 is a portable digital two-channel transmitter for wireless audio links from a mixer or recorder to a camera. With a suitable receiver, it also supports IEM and IFB monitoring. This European B1C1 version operates from 537.600 to 691.175 MHz.

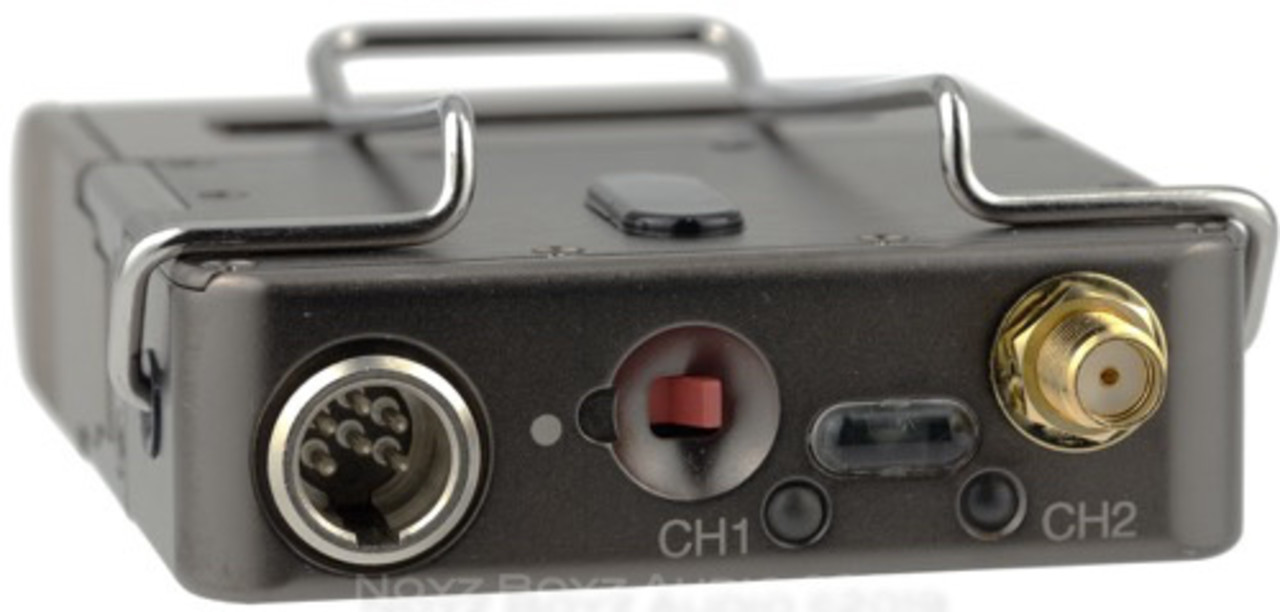

The 6-pin audio connector accepts two analogue microphone or line-level signals, or a digital AES signal through an appropriate cable. The analogue inputs can be adjusted independently or linked for a stereo source.

Main Features

• Two audio channels over a digital RF link.
• Frequency range: 537.600–691.175 MHz.
• Selectable RF output power: 10, 25 or 50 mW.
• Support for AES-256-CTR encryption.
• Input gain adjustable across 51 dB in 1 dB steps.
• DSP-controlled input limiter.
• Two-way IR synchronisation and USB for firmware updates.
• Powered by two AA batteries.

Included

• DCHT/E01-B1C1 transmitter.
• Wire belt clip.
• Two AA batteries.

Compatibility

The DCHR B1C1 is a matching camera hop receiver. The M2Ra-A1B1 can be used within the shared frequency range of 537.600 to 614.375 MHz. Match the operating frequency, compatibility mode and encryption key where applicable.

The optional LTBATELIM-H enables external powering.

Other Transmitters in the System

For a fixed installation, choose the M2TND/E01 without Dante or the M2T/E01 with Dante. The M2C-L antenna combiner combines multiple suitable RF outputs into one transmitting antenna.
