Lectrosonics LRBATELIM-H

Lectrosonics LRBATELIM

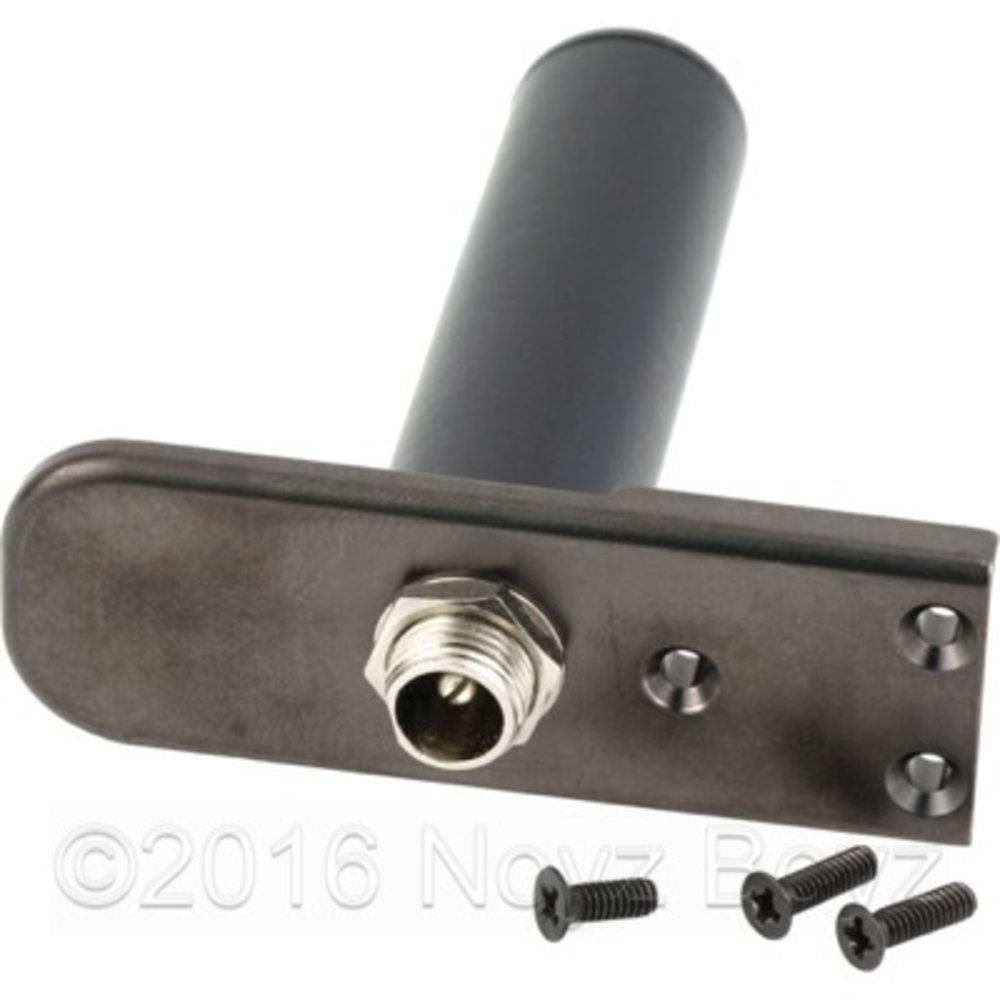

The Lectrosonics LRBATELIM is a battery eliminator that replaces the standard battery tray and door of the LR Digital Hybrid Wireless receiver. It allows the LR receiver to be powered from an external DC source, making it ideal for applications requiring continuous power without the use of AA batteries. The LRBATELIM is secured with three included screws and features a locking DC connector to ensure a secure and reliable connection. Additionally, the unit provides protection against shorts and reverse polarity.

Main Features

• Compatible with the Lectrosonics LR Digital Hybrid Wireless receiver
• Replaces the standard battery tray and door
• Enables power via an external DC source
• Secured with three included screws
• Locking DC connector for a secure connection
• Protection against shorts and reverse polarity

Technical Specifications

• Input Voltage: 5 to 25 VDC
• Current Consumption: 310 mA @ 5 V; 130 mA @ 12 V; 65 mA @ 25 V
• Dimensions: 53 × 60 × 21 mm
• Weight: 23 grams

Included

• LRBATELIM battery eliminator
• 3 mounting screws
• User manual
