Sanken CUB-01

Sanken CUB-01 Boundary Microphone

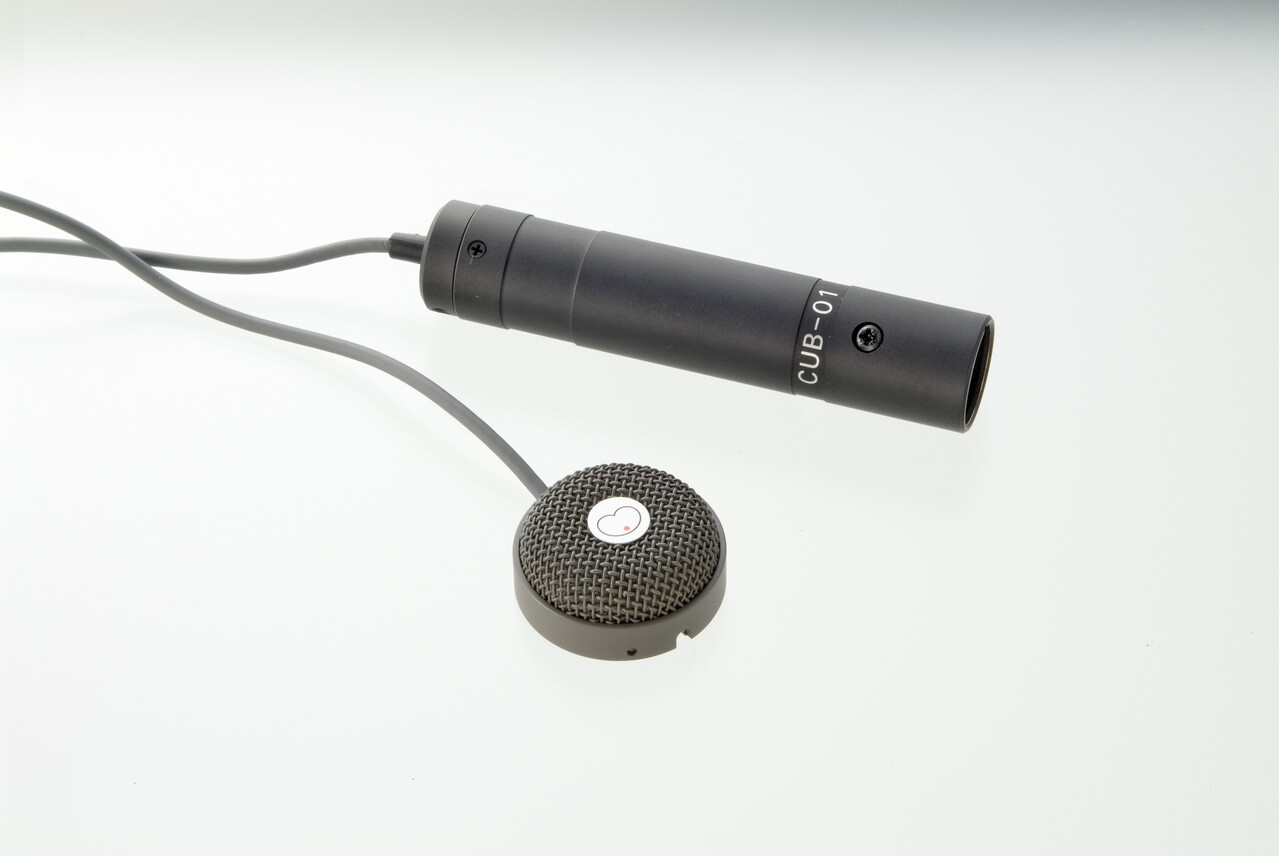

The Sanken CUB-01 is a compact boundary microphone featuring a unique square capsule design with cardioid directivity at the front side of the hemisphere. Despite its small size (32.5 mm diameter, 14 mm height, 45 g), it delivers a rich, full-bodied sound usually associated with larger microphones. Its discreet form factor makes it easy to conceal and position in a wide variety of situations, from film and TV production to conference tables and automotive interiors.

Main Features

• Exclusive square capsule design enlarges diaphragm area
• Cardioid directivity (front side of hemisphere)
• Compact and discreet, easy to place and hide
• Rich, natural sound without the “thin” character of conventional boundary microphones
• Available in three colors: beige (CUB-01-BE), grey (CUB-01-GY), and white (CUB-01-WH)

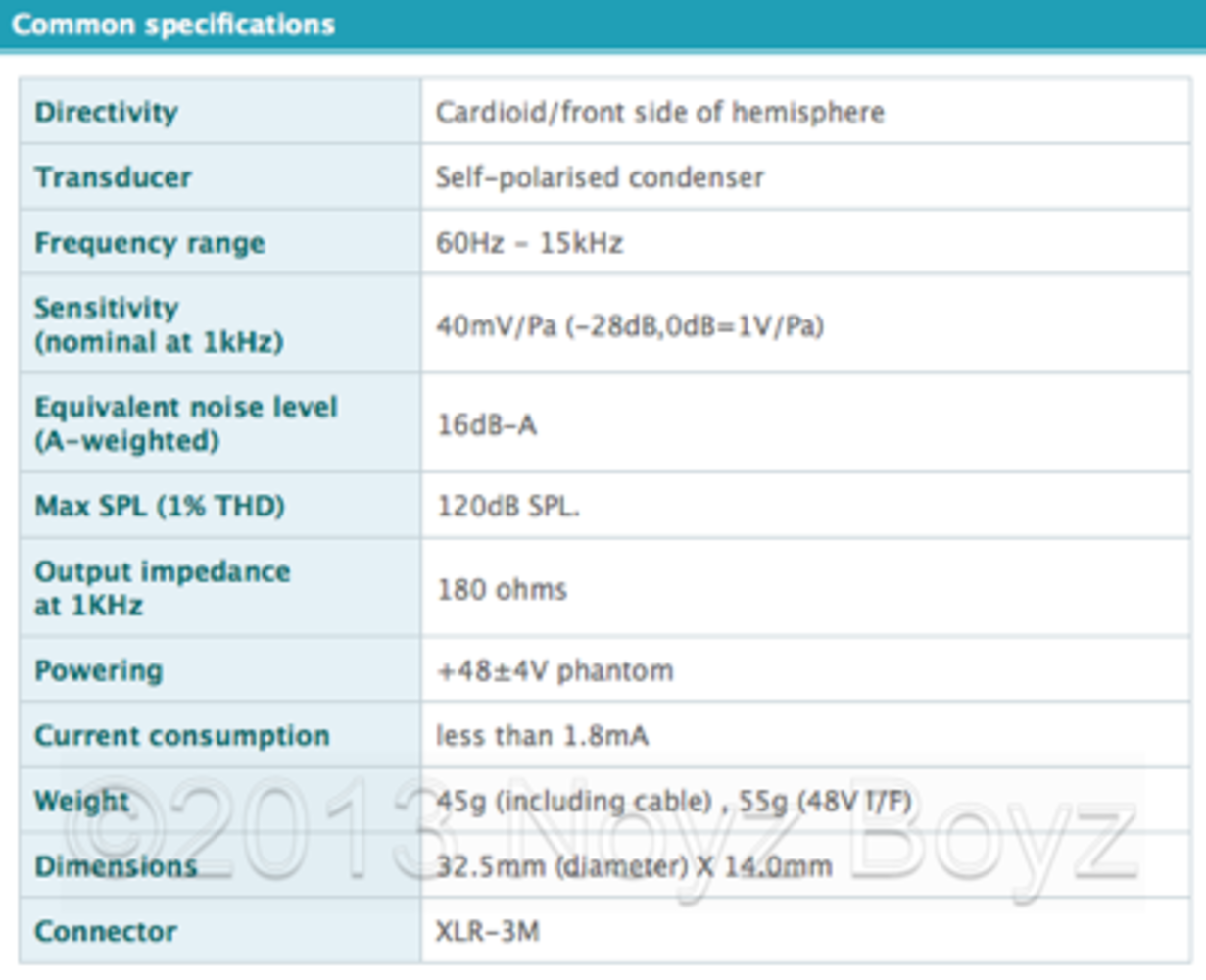

Specifications

• Type: Self-polarised condenser
• Polar pattern: Cardioid (front side of hemisphere)
• Frequency response: 60 Hz – 15 kHz
• Sensitivity (1 kHz): –28 dB (40 mV/Pa)
• Equivalent noise (A-weighted): 16 dB-A
• Max SPL (1% THD): 120 dB SPL
• Output impedance: 180 Ω
• Powering: +48 ± 4 V phantom
• Current consumption: < 1.8 mA
• Dimensions: Ø 32.5 mm × 14 mm
• Weight: 45 g (including cable) / 55 g (48 V I/F)
• Connector: XLR-3M

Applications

• Film and television production
• Broadcast and studio recording
• Conference and meeting rooms
• Vehicle mounting or stage environments

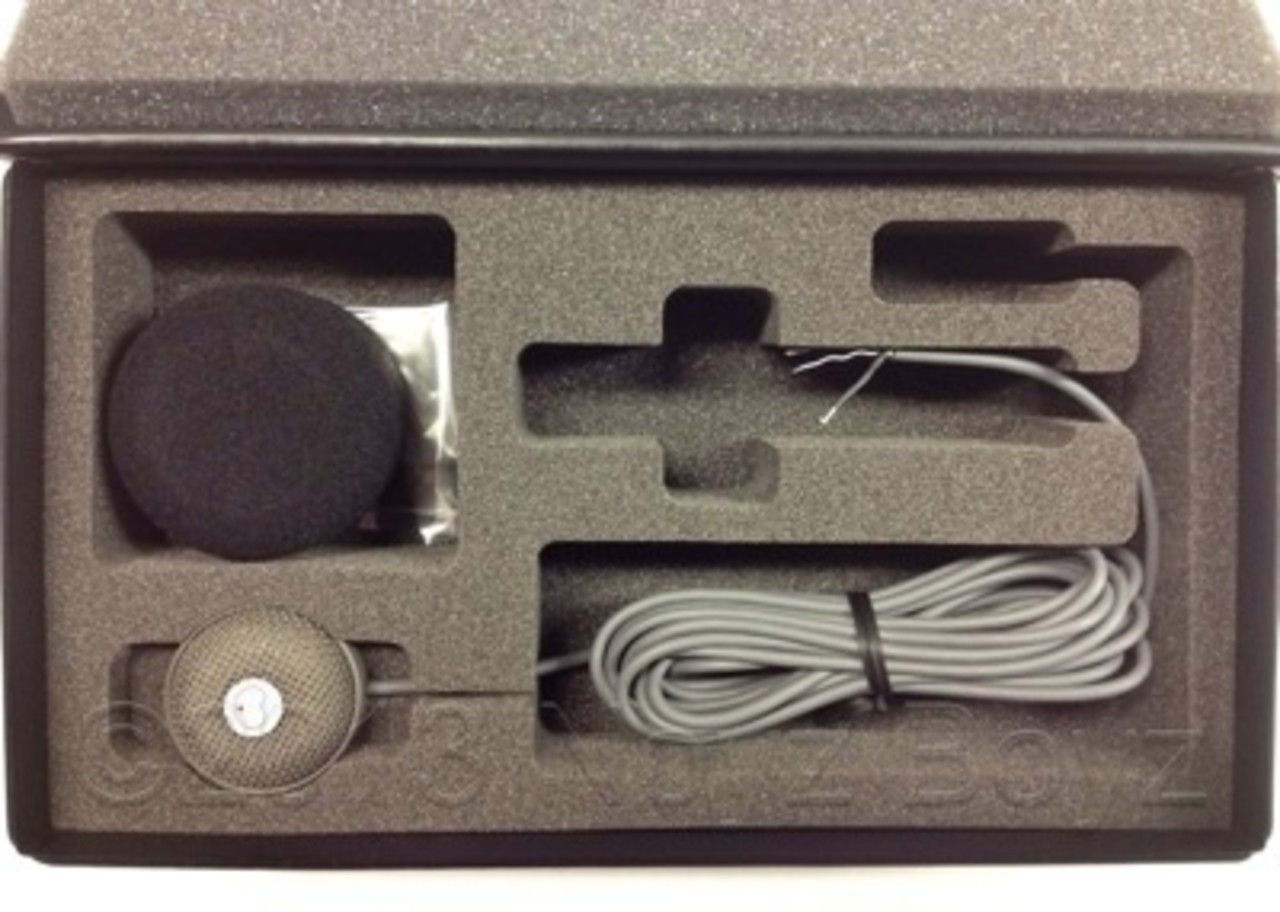

Included

• Sanken CUB-01 Boundary Microphone (selected color)
• XLR cable
• Protective packaging
