Sanken CUB-01PT

Sanken CUB-01PT Boundary Microphone

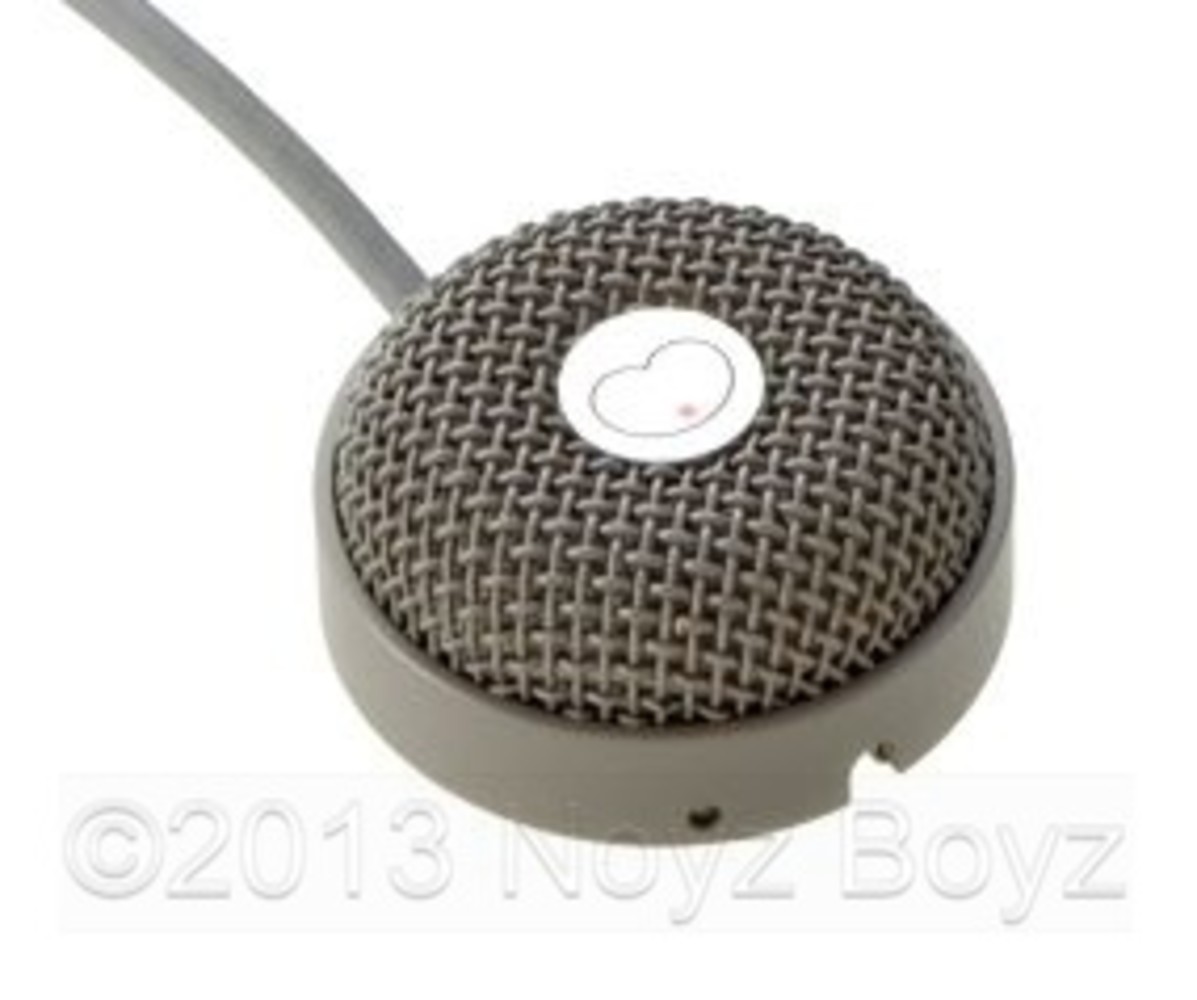

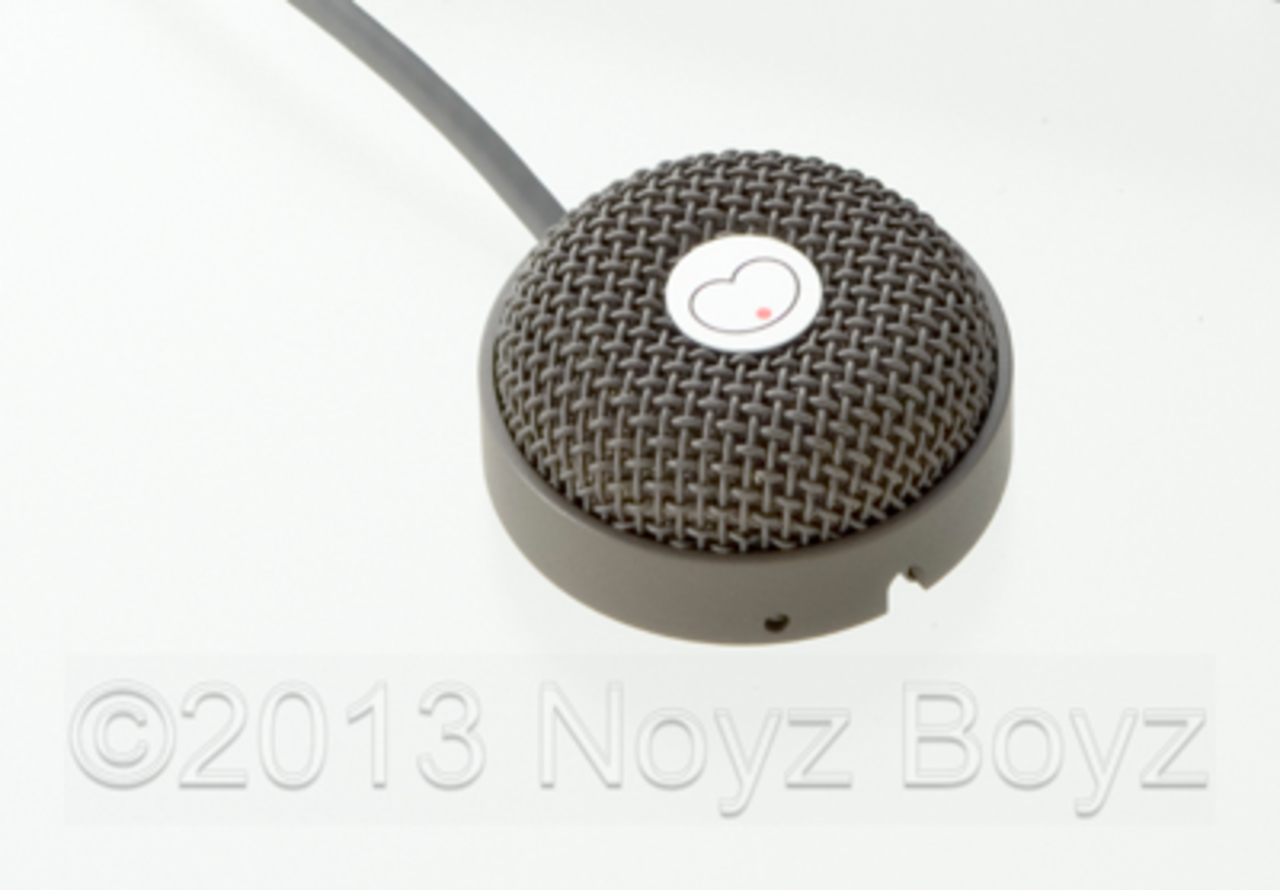

The Sanken CUB-01PT is a variant of the CUB-01 boundary microphone, supplied with a stripped cable end for direct connection to wireless transmitters. Like the standard CUB-01, it features a unique square capsule design with cardioid directivity at the front side of the hemisphere. This delivers a rich, full-bodied sound without the “thin” character common to conventional boundary microphones. With its compact size (32.5 mm diameter, 14 mm height, 45 g), the CUB-01PT is easy to conceal on set or stage.

Main Features

• Stripped cable end for direct connection to wireless transmitters
• Unique square capsule design with cardioid directivity
• Compact and lightweight: 32.5 mm diameter, 14 mm height, 45 g
• Rich and natural sound without thin character

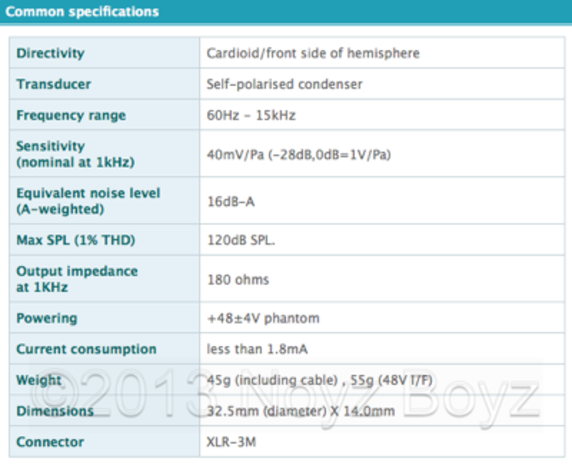

Specifications

• Type: Self-polarised condenser boundary microphone
• Polar pattern: Cardioid (front side of hemisphere)
• Frequency response: 60 Hz – 15 kHz
• Sensitivity (1 kHz): –28 dB (40 mV/Pa)
• Equivalent noise (A-weighted): 16 dB-A
• Max SPL (1% THD): 120 dB SPL
• Output impedance: 180 Ω
• Powering: +48 ± 4 V phantom
• Current consumption: < 1.8 mA
• Dimensions: Ø 32.5 mm × 14 mm
• Weight: 45 g (incl. cable)
• Connector: stripped cable end

Applications

• Film and television production
• Conference and meeting recording
• Theatre and stage applications
• Use with wireless transmitters on location

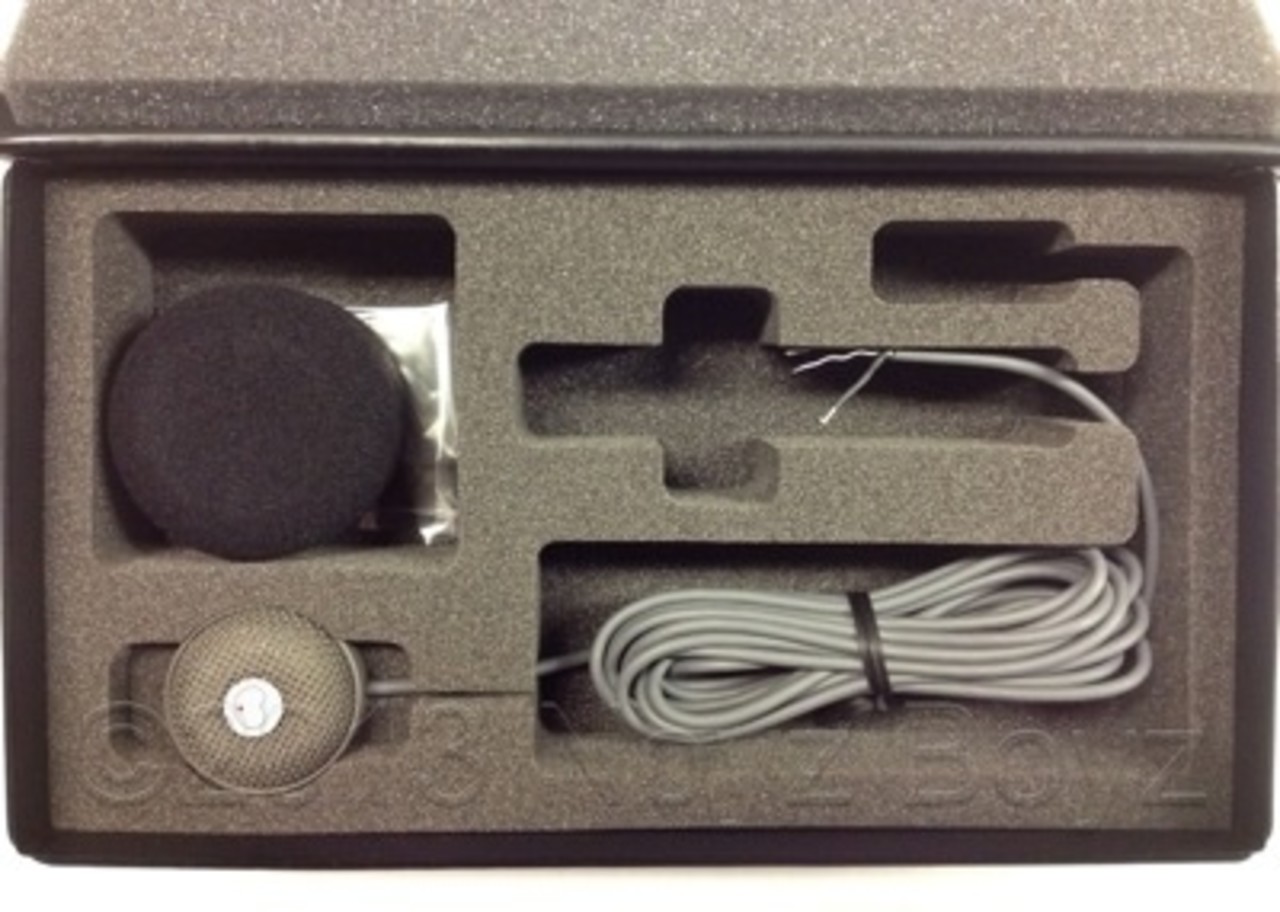

Included

• Sanken CUB-01PT Boundary Microphone
• Protective packaging
