Schoeps AK LU, Zaxcom

Schoeps AK LU, Zaxcom [152011]

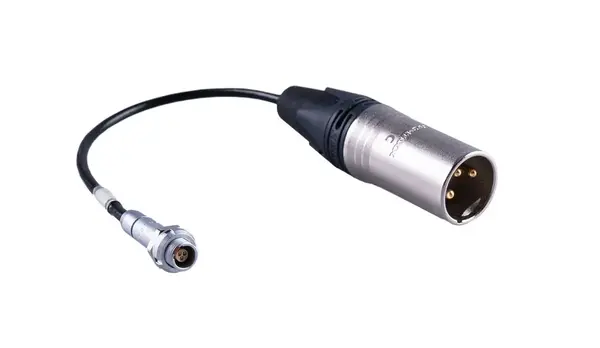

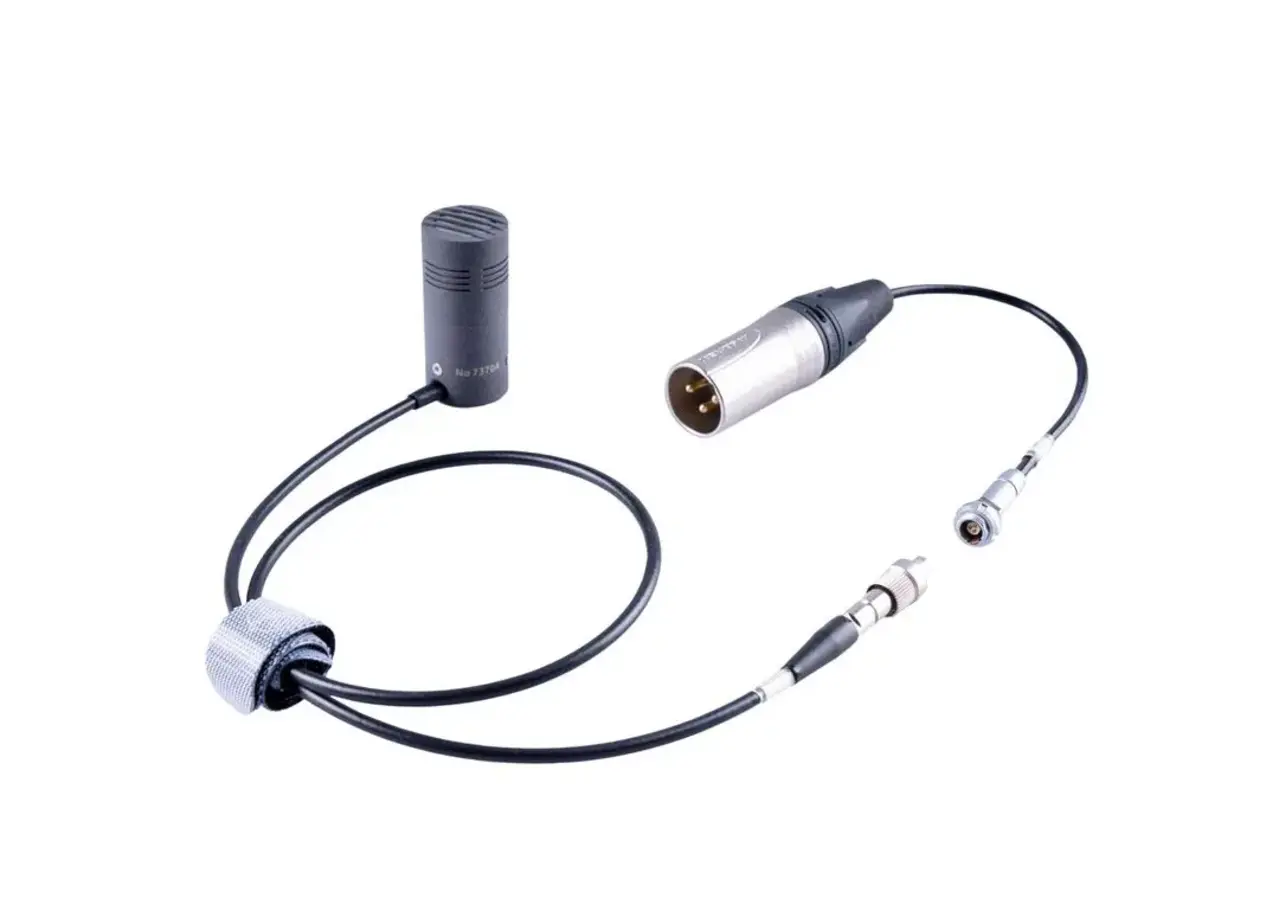

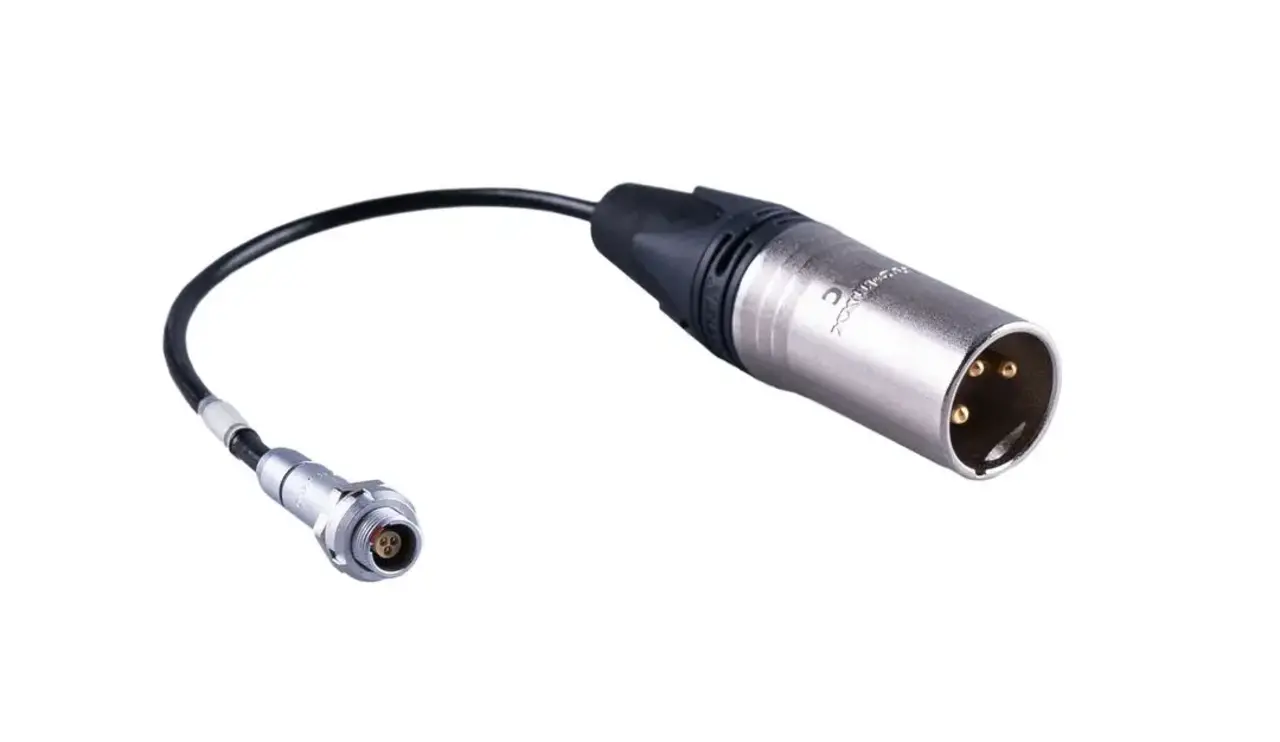

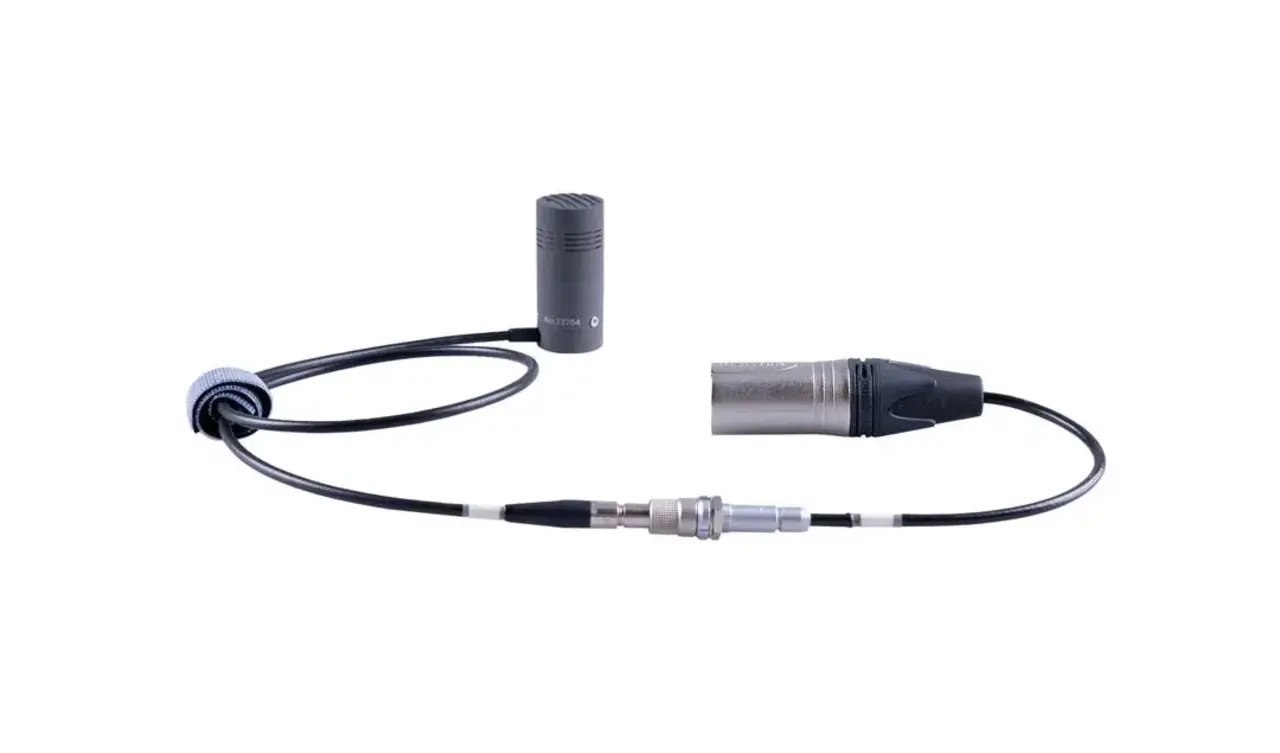

The Schoeps AK LU, Zaxcom is an adapter cable for the CMC 1 KV, LemoZaxcom [132020]. It connects the microphone amplifier’s permanently attached Lemo cable to an XLR3F microphone input on a mixer or recorder.

This allows the version with a Lemo connection wired for Zaxcom to be used through XLR. The connected microphone input must provide the P12 or P48 phantom power required by the CMC 1 KV.

Main Features

• Adapter for CMC 1 KV, LemoZaxcom.
• Lemo connection for the Zaxcom version of the microphone amplifier.
• XLR3M connector for connection to an XLR3F microphone input.
• For one microphone channel.

Included

• One AK LU, Zaxcom adapter cable.

Microphone, microphone amplifier and phantom power supply are not included.

Other version

For the CMC 1 KV with Sound Devices wiring, use the AK LU, Sound Devices [152012]. Select the adapter that matches the microphone amplifier’s Lemo version.
