Schoeps CCM 2XS K

Schoeps CCM 2XS K [121014]

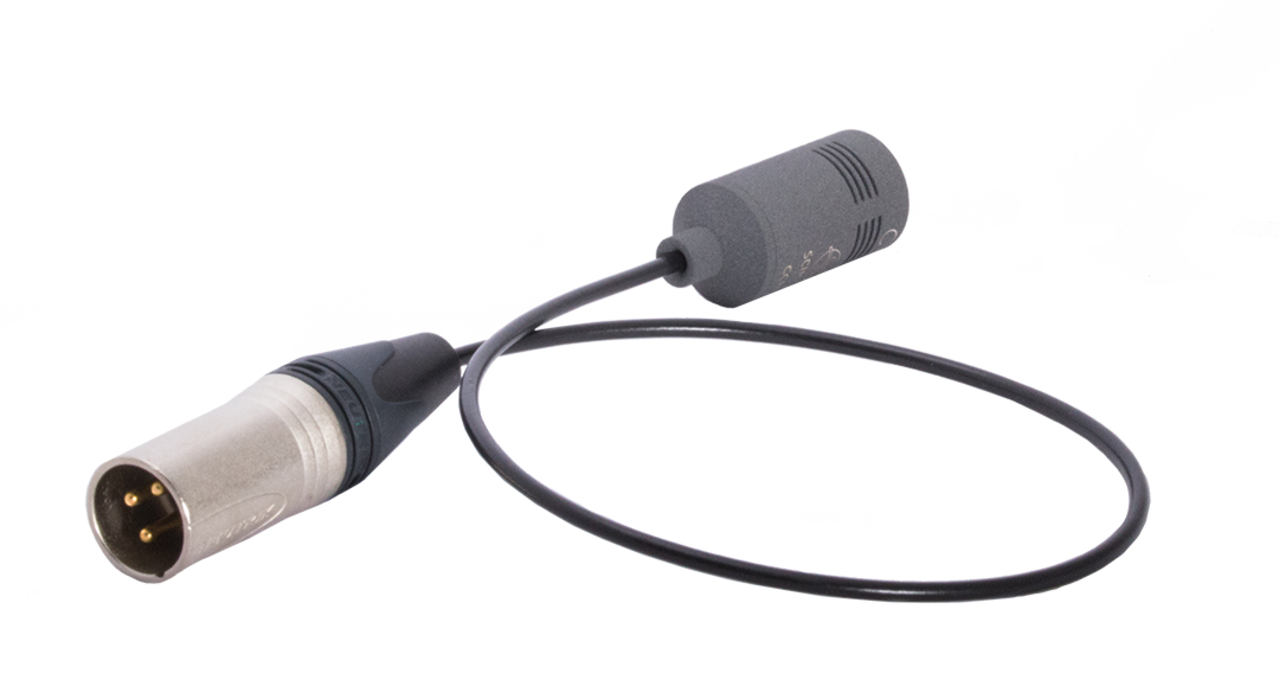

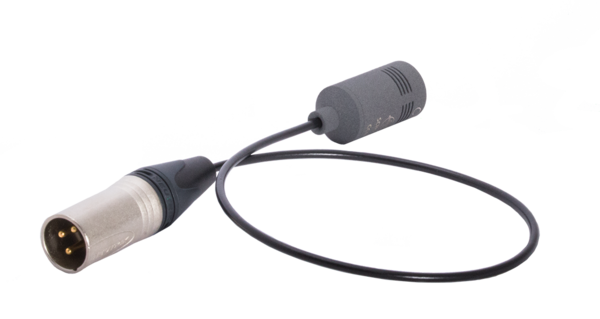

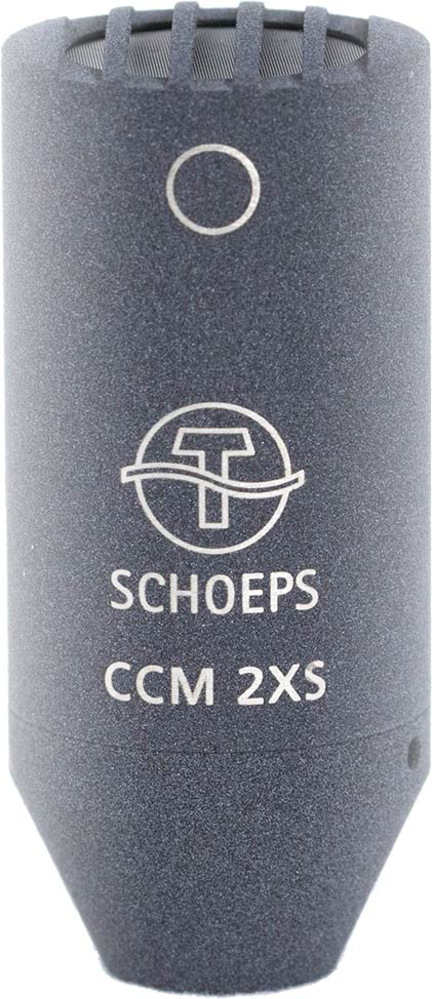

The Schoeps CCM 2XS K is a compact omnidirectional condenser microphone with an integrated capsule and microphone amplifier. The K version has a fixed 5 meter cable with an XLR-3M connector for connection to a microphone input supplying phantom power.

For greater recording distances

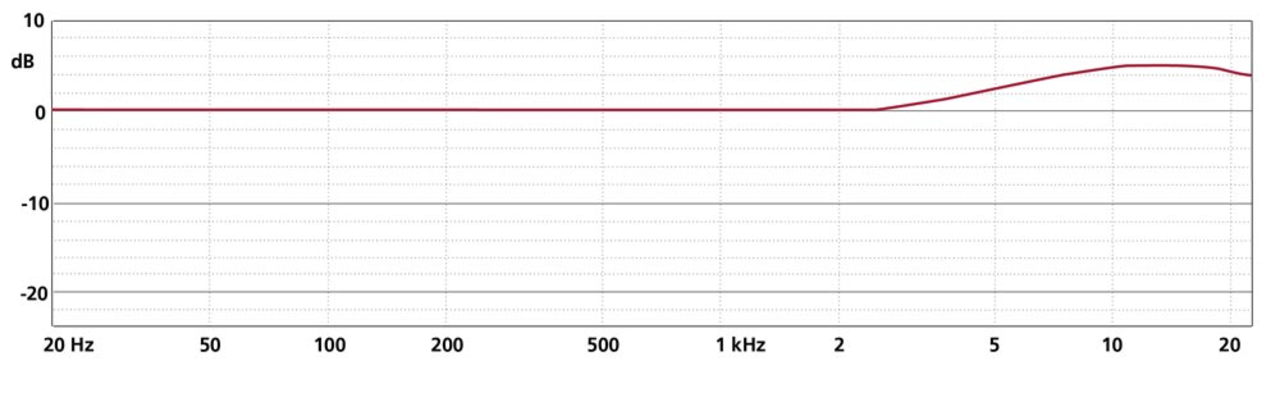

The CCM 2XS K is equalized for a diffuse sound field, where most sound arrives as reflections from different directions. Its high-frequency rise for frontal sound produces a balanced overall frequency response under these conditions.

Applications include room recording and spaced AB stereo or Decca Tree arrangements at relatively large distances in reverberant spaces. Close to a sound source, the high-frequency emphasis becomes clearly audible and may produce an overly bright recording.

Specifications

• Polar pattern: omnidirectional
• Acoustic tuning: diffuse-field equalization
• Frequency range: 20 Hz–30 kHz
• Sensitivity: 11 mV/Pa
• Maximum SPL at less than 0.5% THD: 138 dB SPL with P48; 130 dB SPL with P12
• Low-cut filter: 20 Hz, 12 dB/octave
• Output impedance: 90 Ω at 1 kHz
• Minimum recommended load impedance: 2 kΩ
• Powering: P12 or P48 phantom power
• Current consumption: 3.6 mA with P12; 4 mA with P48
• Connection: fixed 5 meter cable with XLR-3M connector
• Finish: matte gray

Included

• Schoeps CCM 2XS K microphone with fixed 5 meter connecting cable and XLR-3M connector

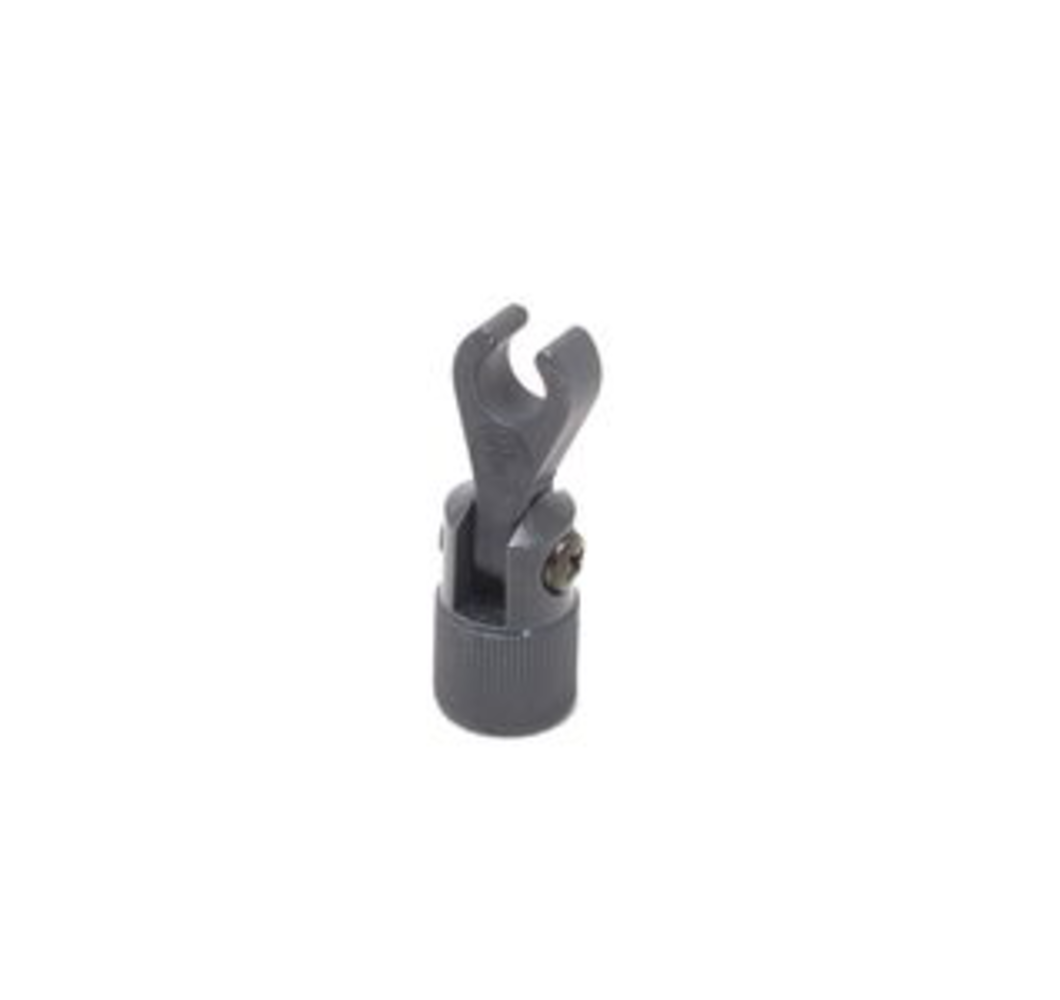

• SGC microphone clamp
• Wooden storage case

Other version

The CCM 2XS L offers the same acoustic performance with a detachable cable and Lemo connection.
