Schoeps CCM 4 L

Schoeps CCM 4 L

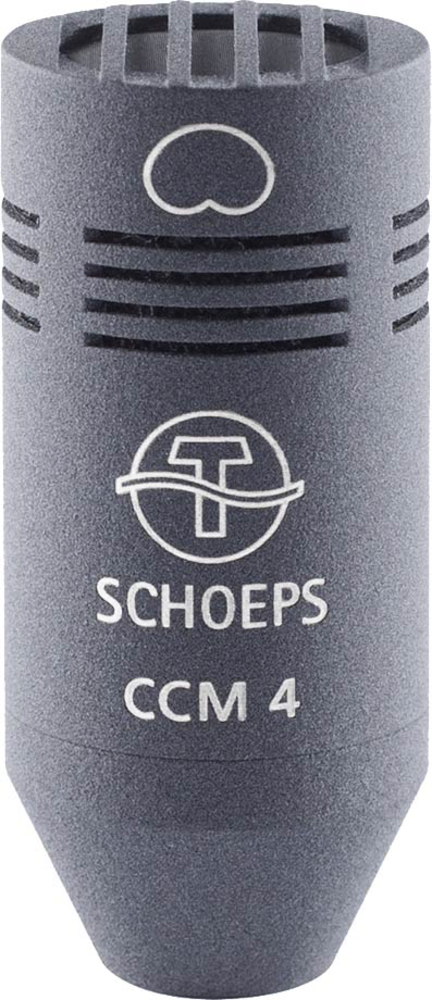

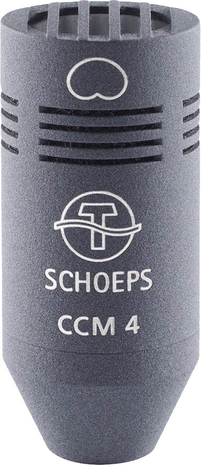

The Schoeps CCM 4 L is a compact cardioid condenser microphone, renowned for its high sound quality and consistent directional pattern across all frequencies. The "L" version is equipped with a detachable Lemo connector, offering flexibility with various cable lengths and accessories.

Key Features

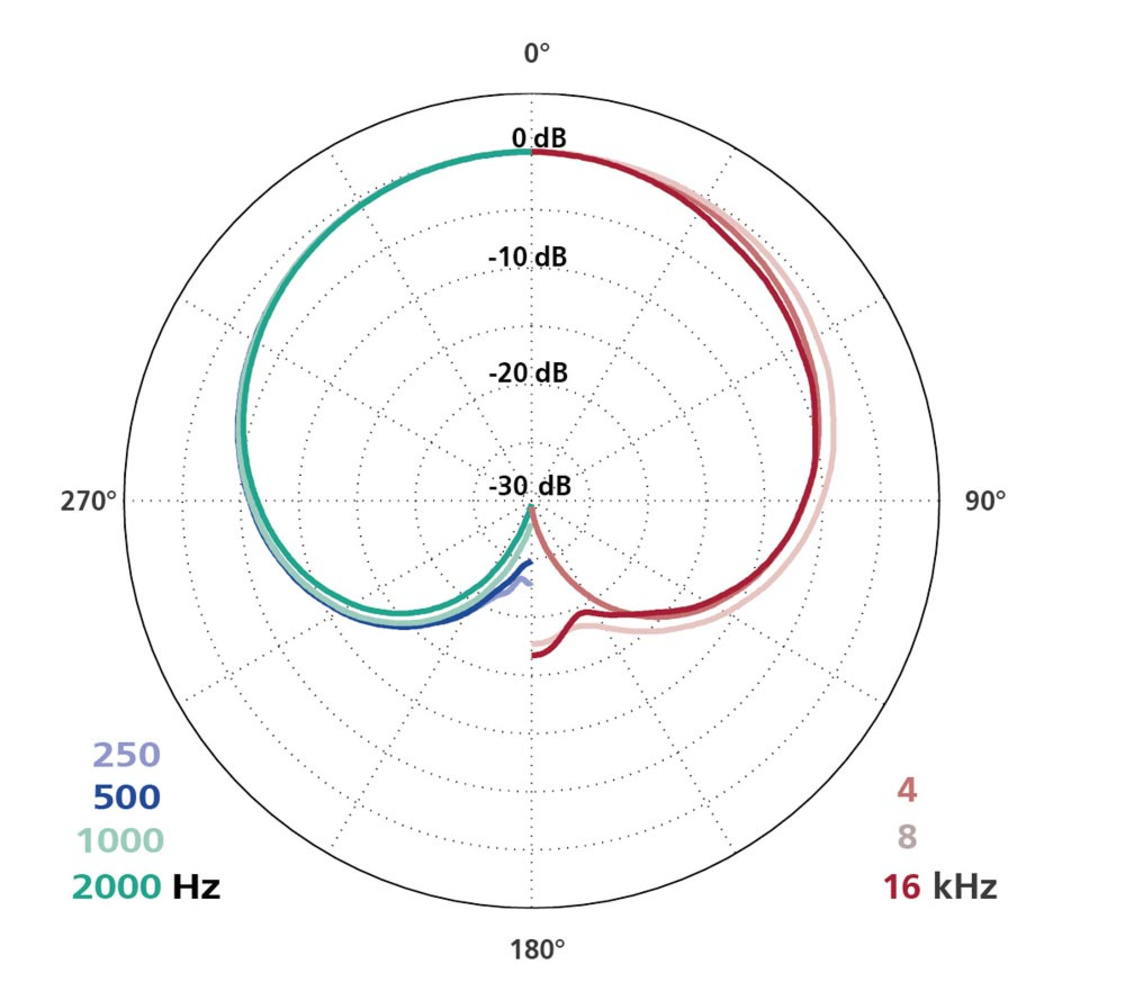

• Classic Cardioid Polar Pattern: Provides optimal rejection of rear-incident sound, making it versatile for various applications, including spot miking and stereo techniques such as coincident, ORTF, or M/S.
• Consistent Directionality: Maintains a uniform directional response across the entire frequency range, ensuring accurate sound capture with minimal off-axis coloration.
• Flat Frequency Response: Delivers a natural and uncolored sound, suitable for recording vocals, speech, and a wide range of instruments.
• Compact and Lightweight Design: Measuring 46 mm in length and 20 mm in diameter, it is ideal for situations where space is limited or discreet microphone placement is required.

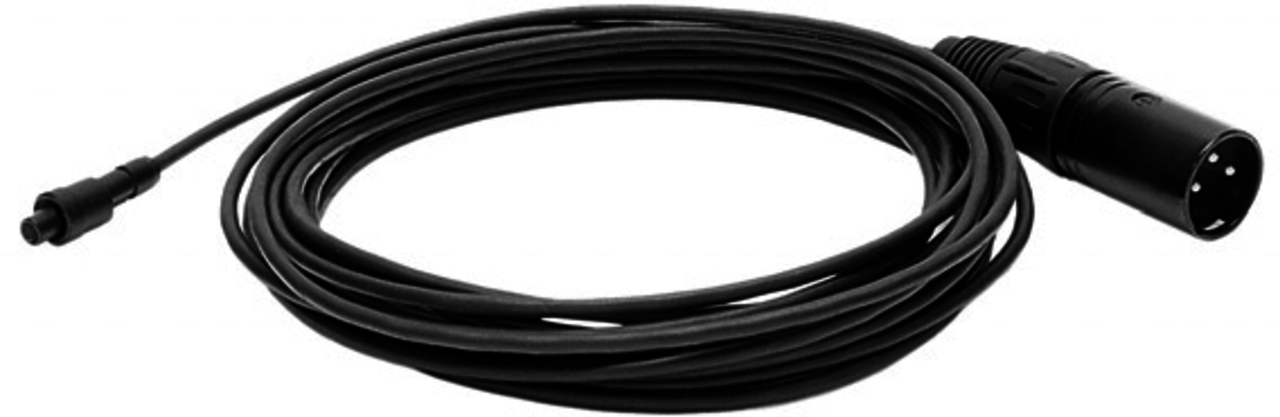

• Detachable Lemo Connector: Allows for the use of different cable lengths and facilitates easy integration with various accessories, enhancing setup flexibility.

Specifications

• Frequency Response: 40 Hz – 20 kHz
• Sensitivity: 13 mV/Pa
• Maximum SPL (THD < 0.5%): 136 dB SPL (P48); 128 dB SPL (P12)
• Equivalent Noise Level (A-weighted): 15 dB-A
• Output Impedance: 90 Ω at 1 kHz
• Recommended Load Impedance: 2 kΩ
• Power Supply: P48 (48V phantom power) or P12 (12V phantom power)
• Current Consumption: 4 mA (P48); 3.6 mA (P12)
• Dimensions: Length: 46 mm; Diameter: 20 mm
• Weight: 45 g
• Surface Finish: Matte grey

Applications

The CCM 4 L is suitable for a wide range of recording scenarios, including:

• Spot Miking: Effectively captures individual instruments or voices within an ensemble with clarity and focus.
• Stereo Recording: Suitable for various stereo techniques such as coincident (XY), ORTF, or M/S configurations, delivering precise stereo imaging.
• Broadcast and Speech: Its natural sound reproduction makes it excellent for dialogue and speech applications in broadcast environments.

With its exceptional audio quality, consistent directional characteristics, and compact form factor, the Schoeps CCM 4 L is a versatile tool for professionals seeking reliable performance in diverse recording environments.
