Schoeps CCM 41 L

Schoeps CCM 41 L [121017]

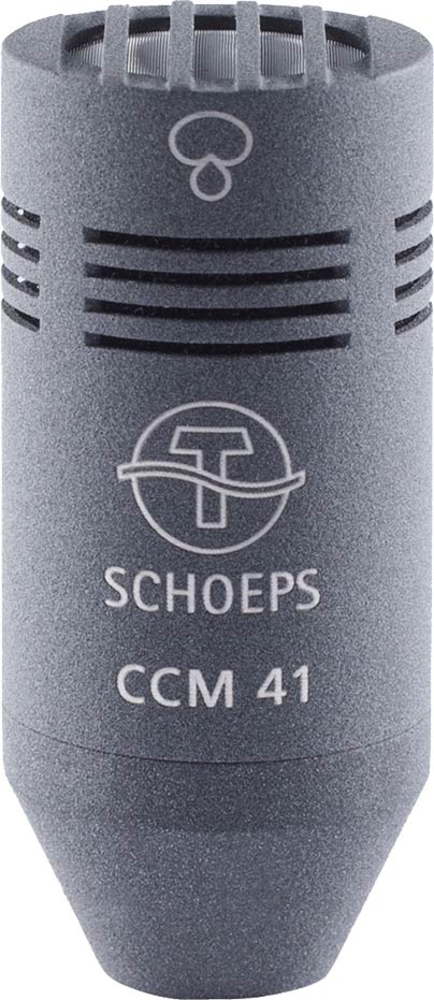

Compact supercardioid condenser microphone for dialogue and instrument recording. The CCM 41 L is addressed from the front. Its capsule and microphone amplifier are integrated into one housing.

Directivity and Connection

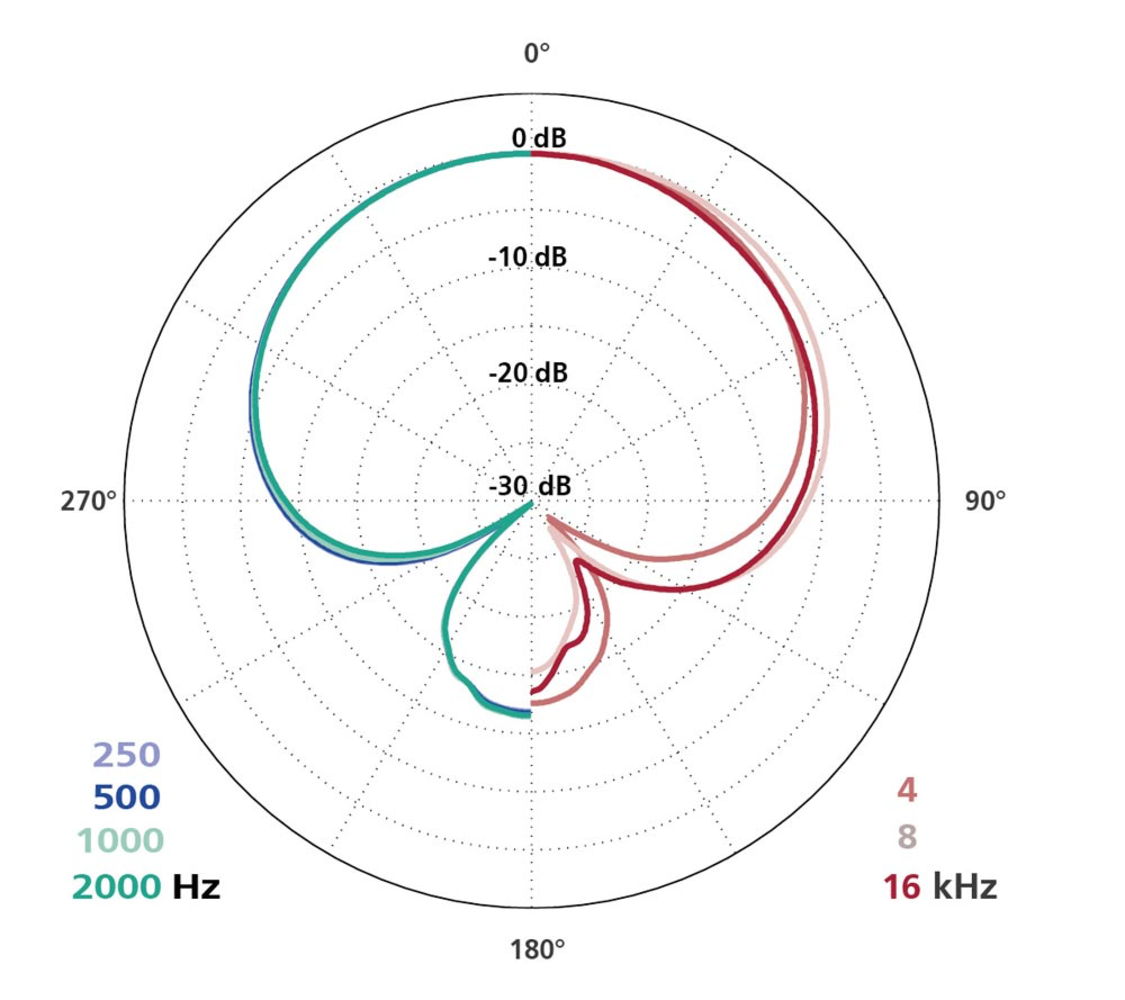

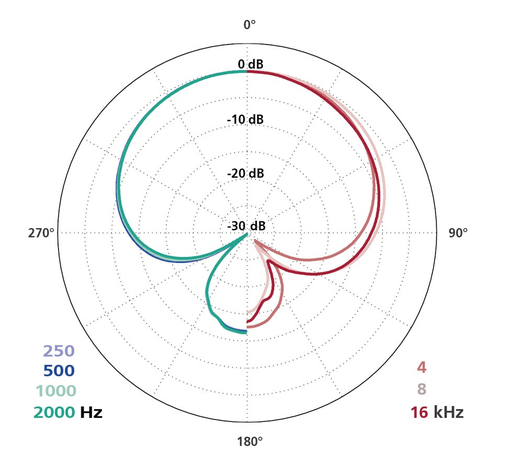

The supercardioid pickup pattern has a rear lobe, so consider sound sources behind the microphone when positioning it. The L version has a detachable Lemo connection; the included K 5 LU cable connects it to an XLR microphone input with phantom power.

Specifications

• Pickup pattern: supercardioid.

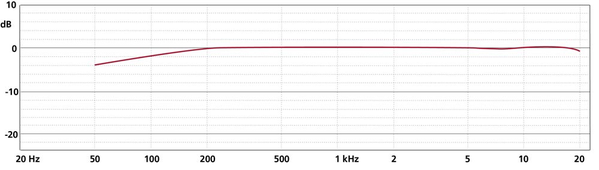

• Frequency range: 40 Hz – 26 kHz.
• Sensitivity: 16 mV/Pa.
• Equivalent noise level: 14 dB-A / 23 dB CCIR.
• Signal-to-noise ratio: 80 dB-A.
• Maximum SPL: 136 dB SPL at P48 / 128 dB SPL at P12, THD < 0.5%.
• Output impedance: 90 Ω at 1 kHz.
• Minimum recommended load impedance: 2 kΩ.
• Powering: P12 or P48.
• Current consumption: 3.6 mA at P12 / 4 mA at P48.
• Fixed low-cut filter: 20 Hz, 12 dB/octave.
• Length: 46 mm; diameter: 20 mm.
• Microphone weight: 45 g.
• Finish: matte gray.

Included

• 1 × Schoeps CCM 41 L microphone.

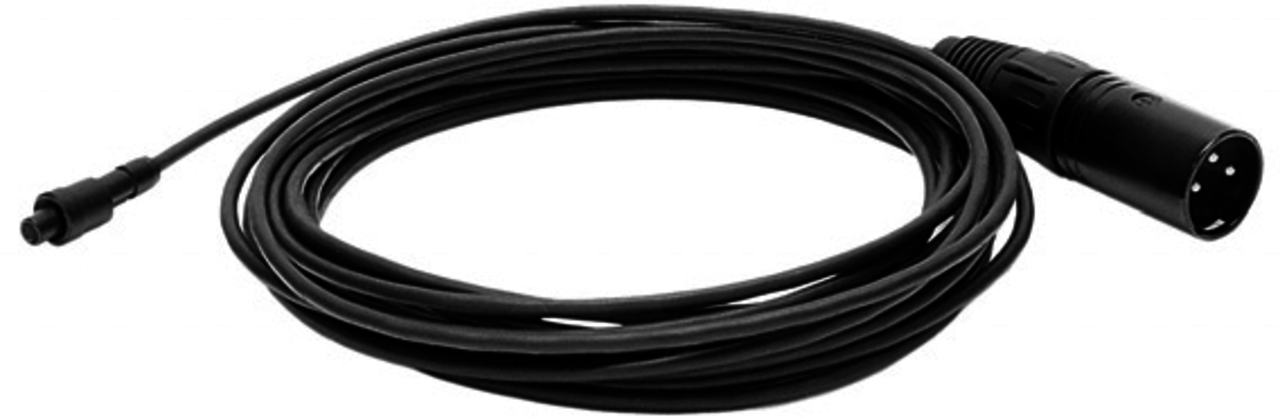

• 1 × Schoeps K 5 LU adapter cable, 5 meters, Lemo to XLR-3 male.

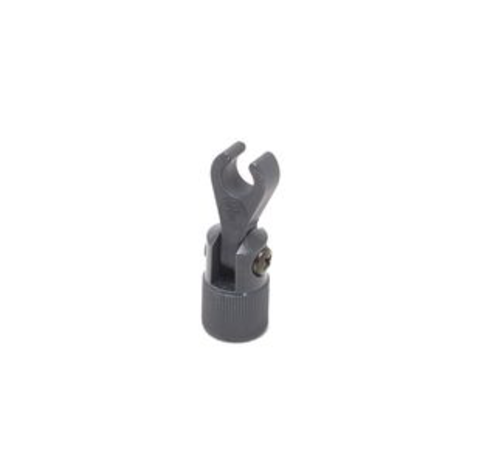

• 1 × Schoeps SGC microphone clamp.
• 1 × Wooden storage case.

Other Version

The Schoeps CCM 41 K [121018] has a permanently attached cable with an XLR-3 male connector instead of the detachable Lemo connection.
