Schoeps K Surround 20 M

Schoeps K Surround 20 M [152408]

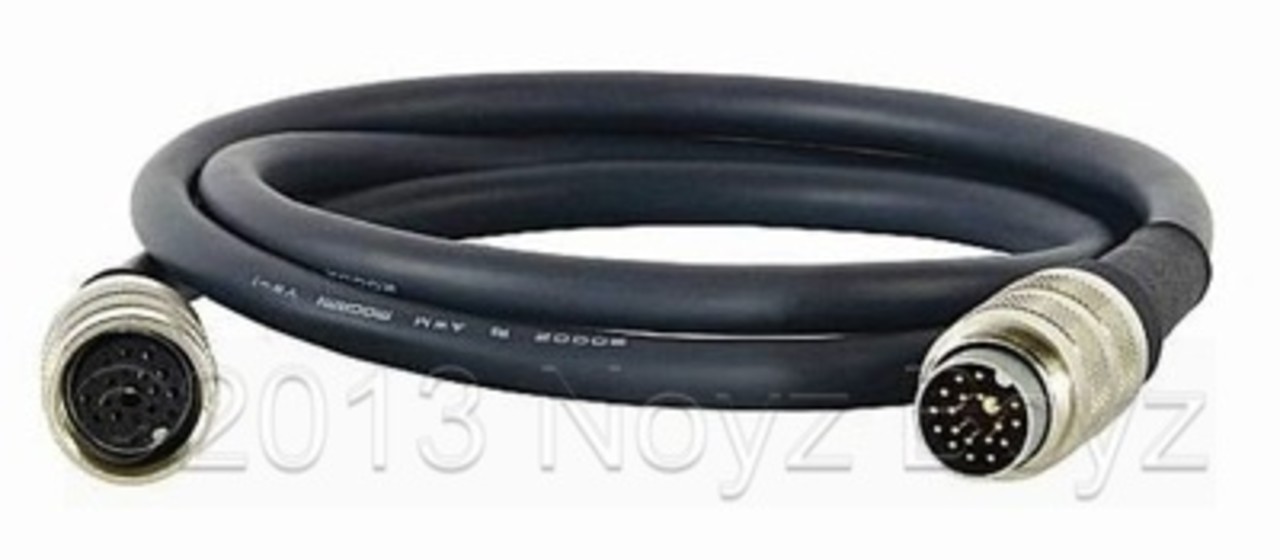

The Schoeps K Surround 20 M is a 20-meter multicore cable for surround arrays. It carries up to six microphone channels through miniature multipin Binder connectors conforming to AES65.

Connection

The microphone system and connected breakout cable determine how many channels are used. For connection to four XLR outputs, the AK Surround M/4U [152403] is available separately.

Specifications

• Product type: multicore cable for surround arrays
• Cable length: 20 meters
• Maximum number of channels: 6
• Connectors: miniature multipin Binder
• Connection standard: AES65
• Length tolerance: ±5%

Included

• K Surround 20 M multicore cable

Other Lengths

• K Surround 5 M [152407]: 5 meters
• K Surround 10 M [152411]: 10 meters
• K Surround 50 M [152409]: 50 meters, including cable reel
