Schoeps MAB 1000

Schoeps MAB 1000 [164006]

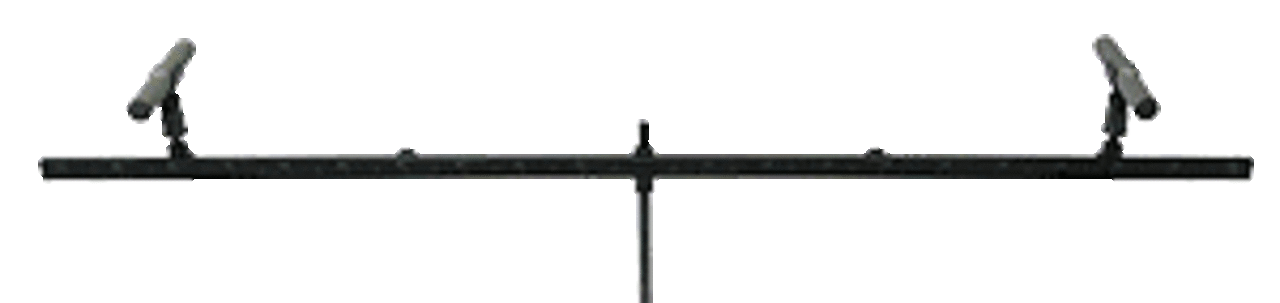

The Schoeps MAB 1000 is a 1 meter stereo mounting bar for AB and OCT microphone arrangements. Sliding mounting points allow adjustment of microphone spacing. A flexible 10 cm mounting arm accommodates a third, central microphone positioned slightly ahead of the other microphones.

Mounting and Expansion

The mounting points have 3/8-inch threads for suitable microphone clamps or shock mounts. The scale has markings at 2.5 cm intervals. Sliding suspension eyelets and cable clips assist with suspending the bar and routing microphone cables.

For expansion to five-channel OCT Surround, add a second MAB 1000 and a CB-MAB connecting rail [164004]. The connecting rail holds the two bars at an adjustable distance of 13 to 47 cm.

Specifications

• Product type: stereo mounting bar
• Recording techniques: AB and OCT; expandable to OCT Surround
• Length: 1000 mm
• Flexible central mounting arm: 100 mm
• Mounting point threads: 3/8 inch
• Scale markings: 2.5 cm intervals
• Color: black

Included

• MAB 1000 stereo mounting bar with central mounting arm
• Foam-lined transport case

Microphones, microphone clamps and shock mounts are not included. A second MAB 1000 and the CB-MAB connecting rail are available separately.
