Schoeps MK 2 matched pair

Schoeps MK 2 matched pair [131001mp]

The Schoeps MK 2 matched pair [131001mp] consists of two small-diaphragm condenser microphone capsules from the Colette series, with true pressure (omnidirectional) pickup pattern. These capsules are matched and delivered with a certificate. The capsules are free-field equalised and provide a flat frequency response for frontal sound, making them suitable for relatively close miking.

Even though these are omnis, orientation still matters at higher frequencies. The MK 2 is also long used for measurement applications due to its predictable response.

Main Features

• Matched pair with certificate: includes two matched capsules with documentation.
• Omnidirectional (pressure transducer): uniform pickup from all directions, free-field equalised.

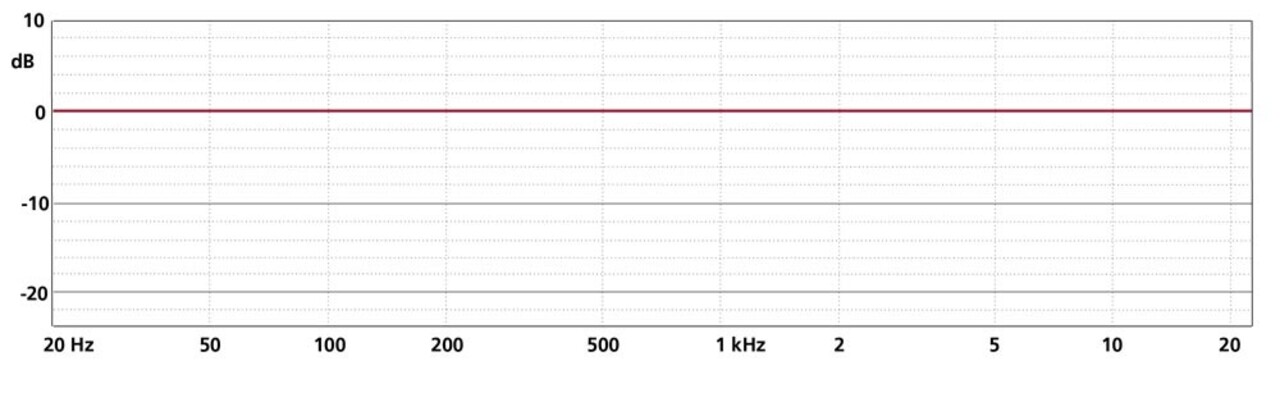

• Flat response for frontal sound: suitable for close placement without harshness.
• Colette series capsule: compatible with CMC/CMR microphone amplifiers.

Specifications

• Pickup pattern: omnidirectional
• Frequency range: 20 Hz – 28 kHz; 20 Hz – 40 kHz with CMC 6xt
• Sensitivity: -35.5 dB (V/Pa), 17 mV/Pa
• Equivalent noise (A-weighted): 10 dB
• Equivalent noise (CCIR): 23 dB
• Signal-to-noise ratio (A-weighted): 84 dB
• Max. SPL (THD < 0.5%): 130 dB SPL with CMC 6; 134 dB SPL with CMC 1
• Dimensions: length 22 mm; diameter 20 mm
• Weight: 17 g per capsule
• Finish: matte grey

Compatible microphone amplifiers

• Schoeps CMC 1
• Schoeps CMC 1U
• Schoeps CMC 6
• Schoeps CMC 6xt
• Schoeps CMR

Included

• 2 × Schoeps MK 2 capsule, matched pair with certificate [131001mp]

Also available as single capsule

• MK 2 single omnidirectional capsule

Other capsules in the Colette series

• MK 2H Omnidirectional capsule with HF lift
• MK 2S Omnidirectional capsule with moderate HF lift
• MK 2XS Omnidirectional capsule with diffuse-field equalisation
• MK 21 Wide cardioid capsule
• MK 22 Open cardioid capsule
• MK 4 Cardioid capsule
• MK 4P Cardioid capsule for close miking
• MK 4XP Cardioid capsule with modified response
• MK 4V Side-address cardioid capsule
• MK 4VP Side-address cardioid capsule for close miking
• MK 4VXP Side-address cardioid capsule with low-cut
• MK 41 Supercardioid capsule
• MK 41V Side-address supercardioid capsule
• MK 5 Switchable omni/cardioid capsule
• MK 8 Figure-8 capsule
• KMIT Interference tube capsule
