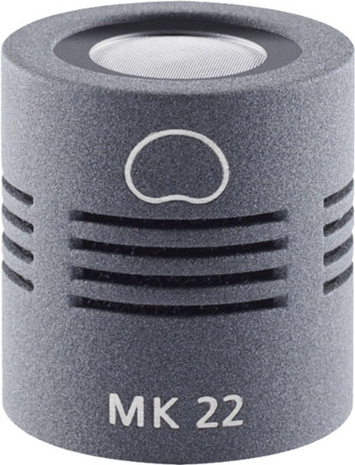

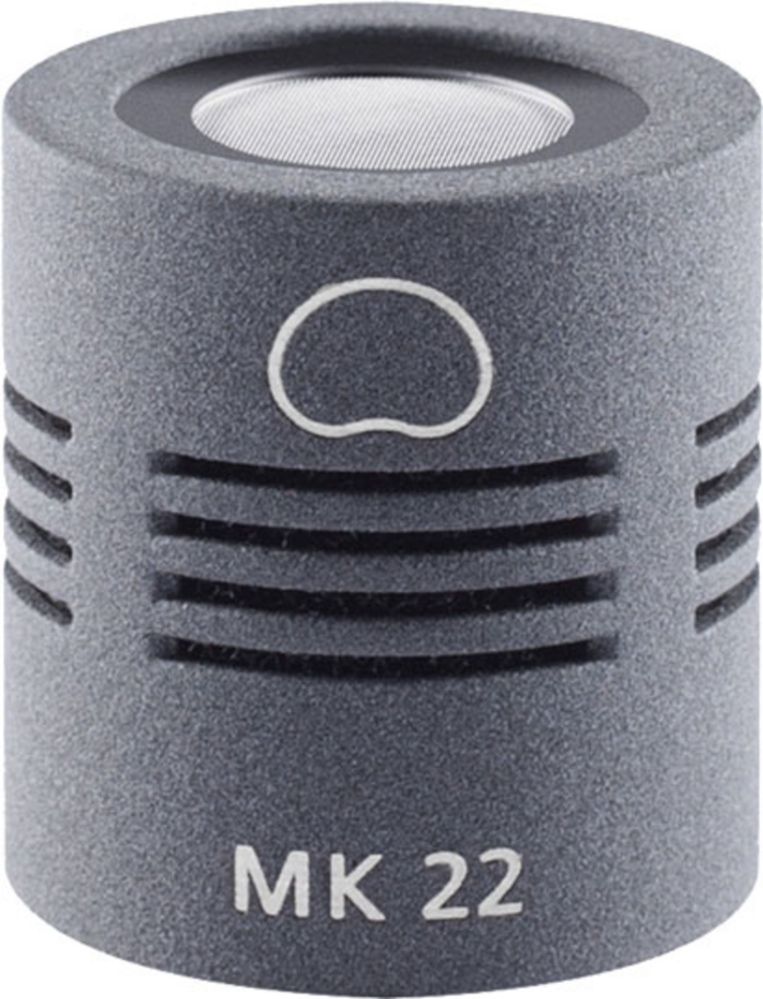

Schoeps MK 22 matched pair

Schoeps MK 22 matched pair [131007mp]

A matched pair of Schoeps MK 22 capsules for the modular Colette system, supplied with a matching certificate. The open cardioid pickup pattern lies between a conventional cardioid and a wide cardioid.

Main Features

• Two matched capsules for stereo applications.
• Wider pickup angle than a conventional cardioid.
• Suitable as a main pair or as separate spot microphones.
• Interchangeable capsules for Colette microphone amplifiers.

Specifications per Capsule

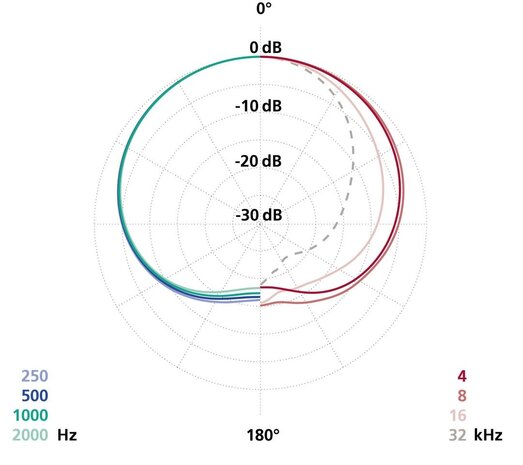

• Pickup pattern: open cardioid.

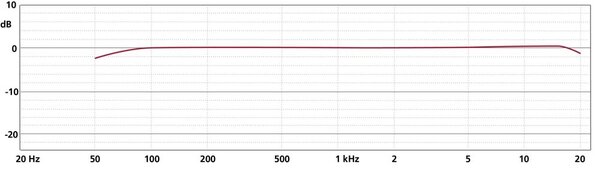

• Frequency range: 40 Hz – 28 kHz with CMC 6; 40 Hz – 42 kHz with CMC 6xt.
• Sensitivity with CMC 6: 15 mV/Pa.
• Equivalent noise level with CMC 6: 13 dB-A / 23 dB CCIR.
• Signal-to-noise ratio with CMC 6: 81 dB-A.
• Maximum SPL with CMC 6: 130 dB SPL, THD < 0.5%.
• Length: 22 mm; diameter: 20 mm.
• Weight: 17 g.
• Finish: matte gray.

Compatible Microphone Amplifiers

Each capsule requires its own Colette microphone amplifier, such as the CMC 1 U, CMC 1 L, CMC 6 U or CMC 6xt.

Included

• 2 × Schoeps MK 22 capsule, matched pair.
• 1 × Matching certificate.

Microphone amplifiers not included.

Single Capsule

The Schoeps MK 22 is also available individually.
