Schoeps MK 2S triple-pair

Schoeps MK 2S triple-pair [131011tp]

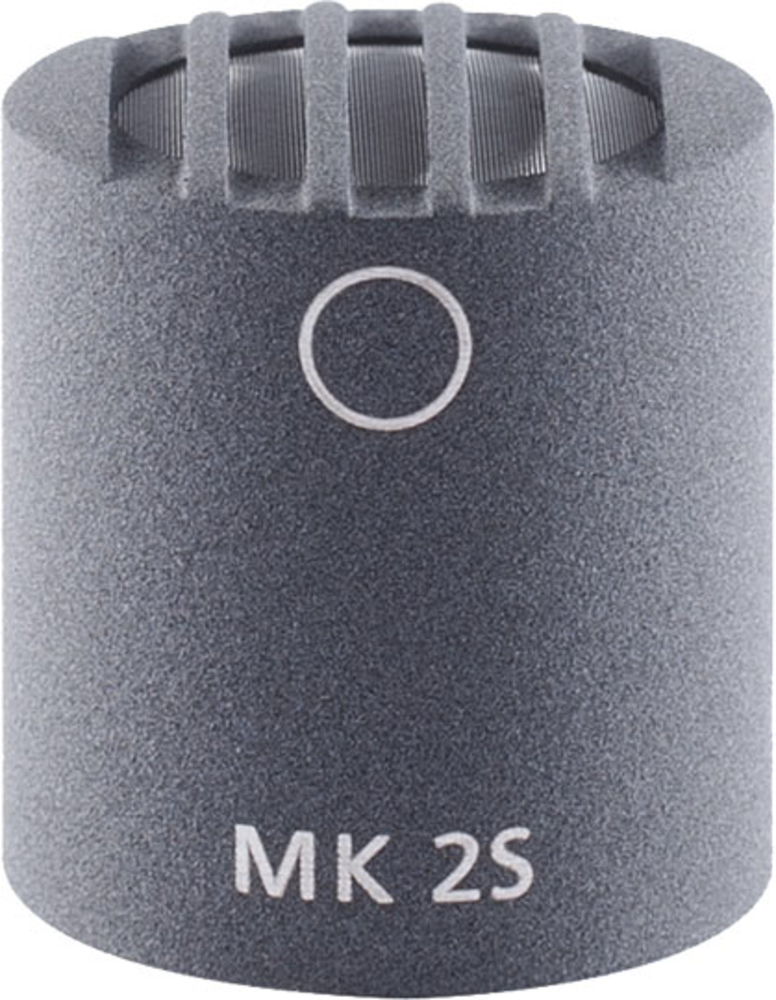

The Schoeps MK 2S triple-pair contains three matched omnidirectional condenser microphone capsules from the Colette series. The capsules have a moderate acoustic high-frequency rise and are suitable for Decca Tree, A/B arrays and room recording.

The high-frequency rise compensates for treble loss associated with a greater proportion of diffuse sound. The MK 2S is often positioned near the reverberation radius: the distance at which direct and reflected sound have approximately equal levels.

Main Features

• Three MK 2S capsules, matched in sensitivity and frequency response.
• Omnidirectional pressure transducers with moderate high-frequency rise.
• For use with Colette CMC microphone amplifiers or CMR.

Specifications (per capsule)

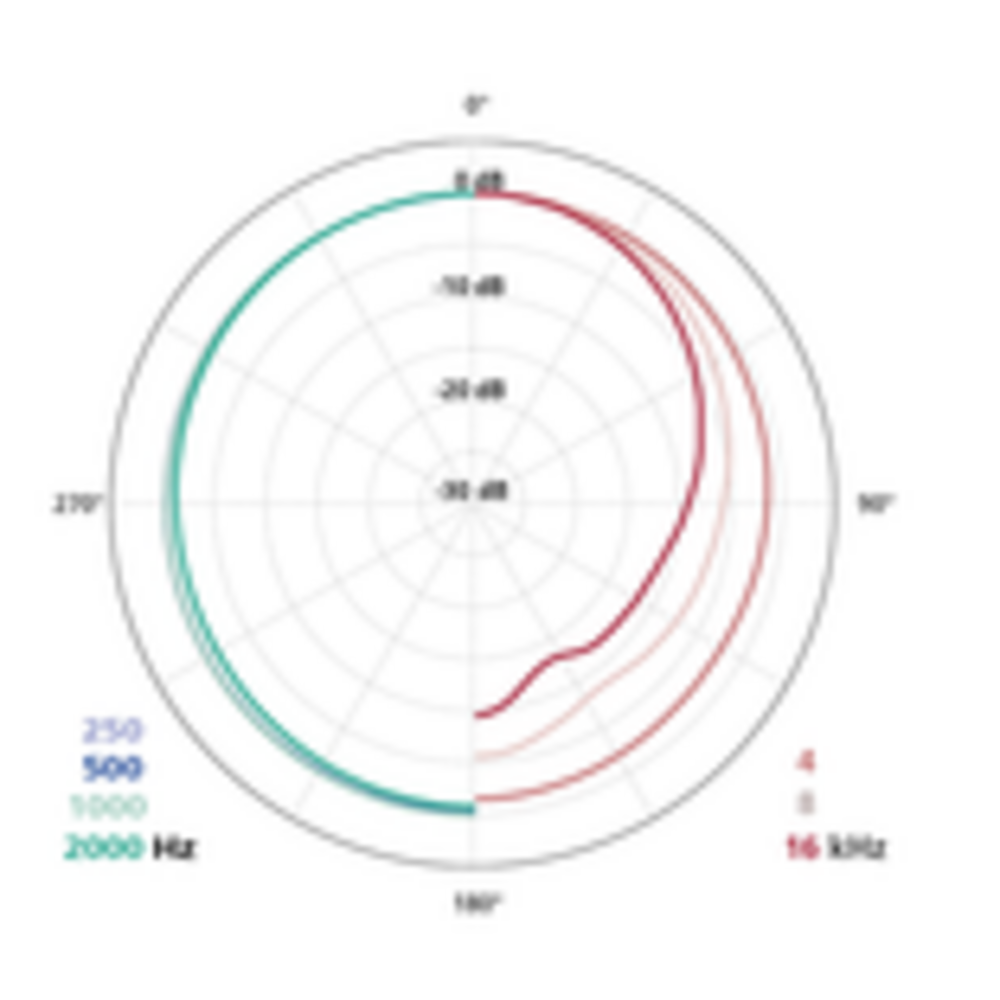

• Pickup pattern: omnidirectional.

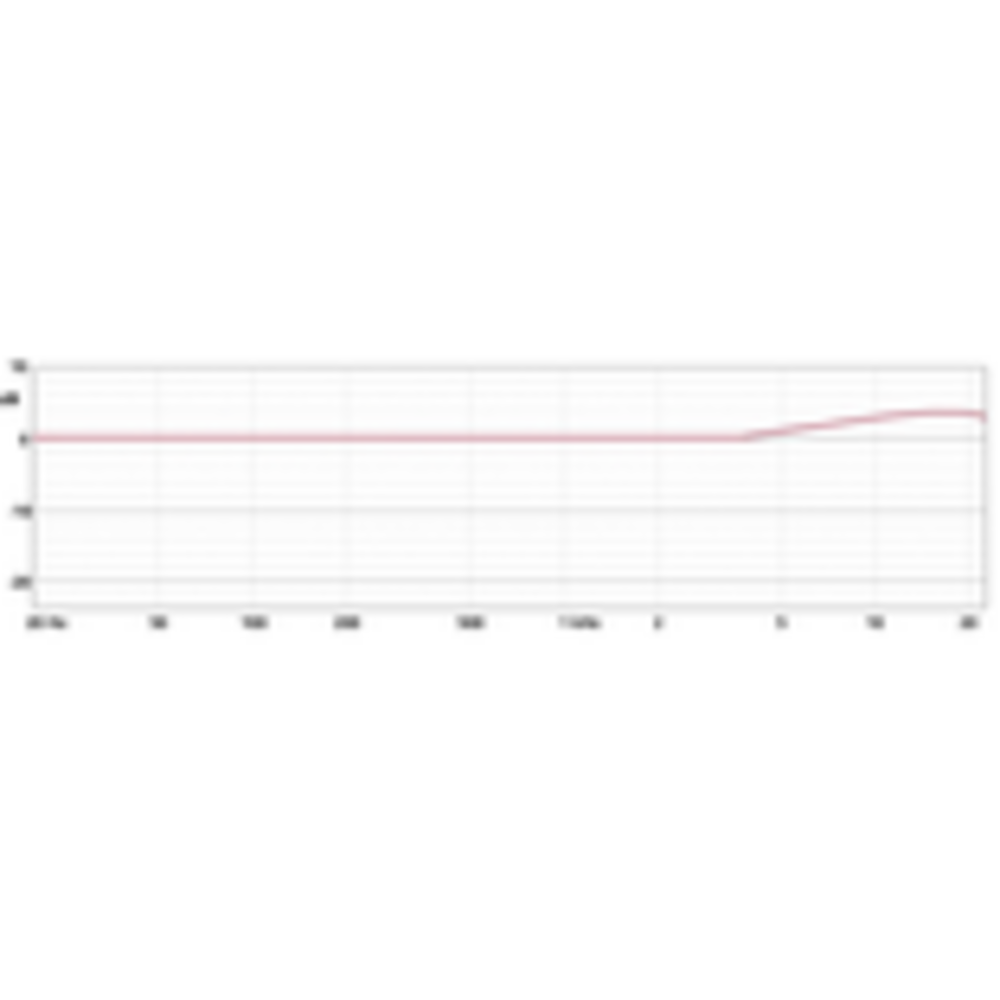

• Frequency range: 20 Hz – 29 kHz; 20 Hz – 43 kHz with CMC 6xt.
• Sensitivity: 14 mV/Pa (-37 dB V/Pa).
• Equivalent noise level: 12 dB(A); 23 dB CCIR.
• Signal-to-noise ratio: 82 dB(A).
• Maximum SPL at less than 0.5% distortion: 131 dB SPL with CMC 6; 135 dB SPL with CMC 1.
• Length: 22 mm.
• Diameter: 20 mm.
• Weight: 17 g.

Compatible Microphone Amplifiers

• CMC 1 U [132011]
• CMC 1 L [132012]
• CMC 1 K, XLR [132013]
• CMC 6 U [132005]
• CMC 6xt U [132007]
• CMR

Included

• 3 × Schoeps MK 2S capsules, matched to each other.
• 2 × matching certificates.

Microphone amplifiers are available separately.

Other MK 2S Versions

• MK 2S single capsule [131011]
• MK 2S matched pair [131011mp]

Other MK 2 Variants

• MK 2
• MK 2H
• MK 2XS
