Schoeps PAD 20 C

Schoeps PAD 20 C [133109]

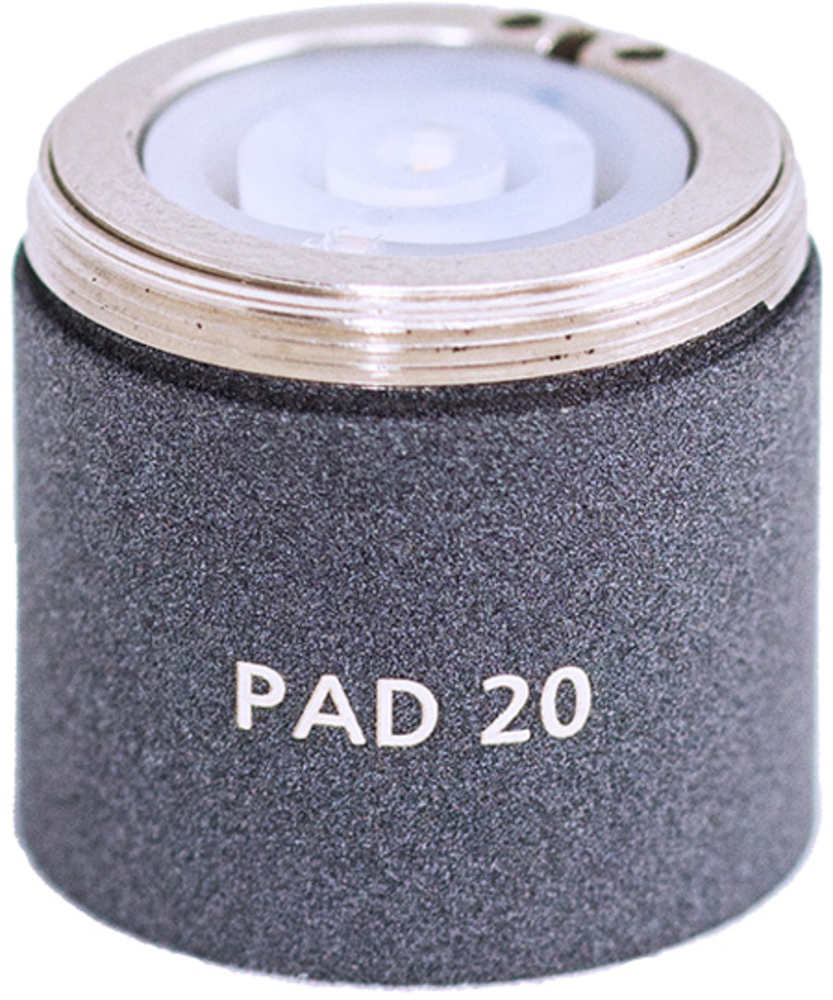

The Schoeps PAD 20 C is a passive attenuator for the modular Colette system. It fits between the MK capsule and the CMC microphone amplifier, reducing the capsule’s electrical signal by approximately 20 dB before it reaches the amplifier.

This is useful at very high sound pressure levels when the microphone amplifier is the limiting factor. The maximum sound pressure level the system can handle then increases by approximately 20 dB. The PAD can also be fitted between the capsule and an active Colette accessory.

Main Features

• Approximately 20 dB of fixed signal attenuation.
• Attenuates before the microphone amplifier input.
• Passive, capacitive operation.
• Mounts using the Colette threaded connection.

Specifications

• Attenuation: approximately 20 dB.
• Length: 18 mm.
• Diameter: 20 mm.
• Weight: 14 g.
• Finish: matte gray.

Included

• One PAD 20 C attenuator.

Compatibility

For Colette configurations with an MK capsule and an amplifier such as the CMC 1 U, CMC 1 L or CMC 6 U.

Other attenuation option

If approximately 10 dB of attenuation is sufficient, choose the PAD 10 C [133107]. Two PAD 10 C elements provide approximately 15 dB together; use this PAD 20 C when approximately 20 dB is required.

The PAD 20 C was previously called DZC 20. Schoeps changed the product name in 2025.
