Schoeps RC 700

Schoeps RC 700 [133505]

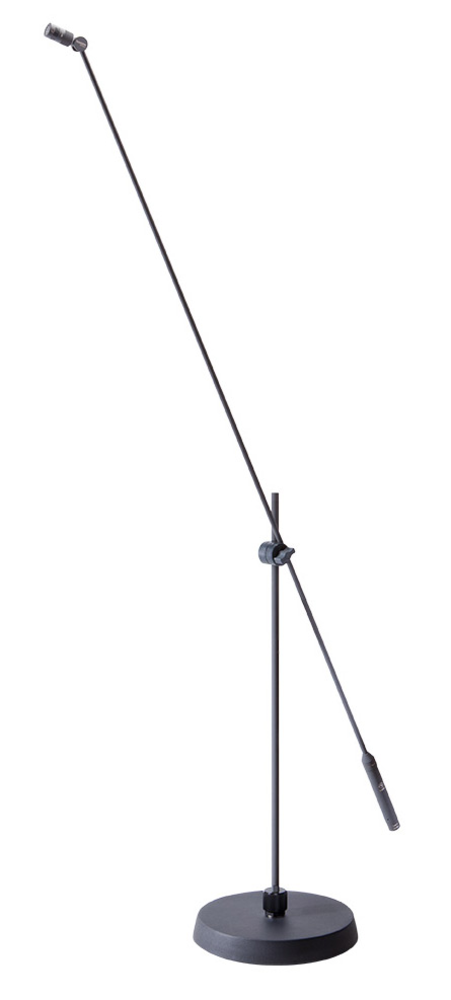

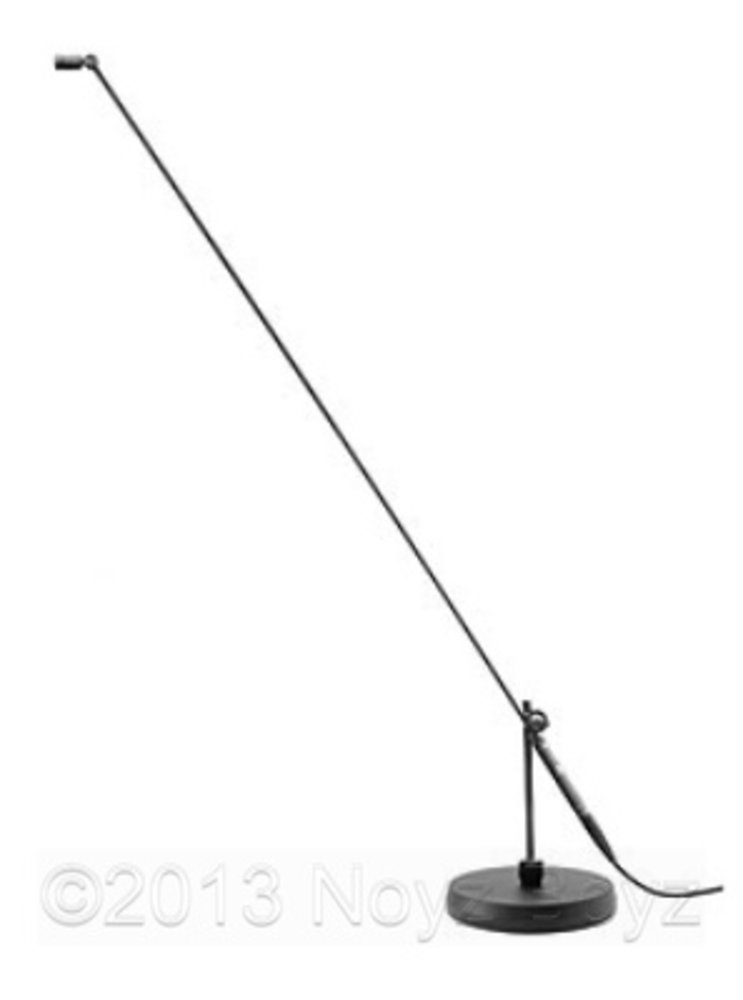

The Schoeps RC 700 is a 700 mm active extension tube for the Colette system. The MK capsule mounts at the top, while the CMC microphone amplifier screws directly onto the connection at the bottom.

The slim tube keeps the microphone setup visually unobtrusive, for example when placed between orchestral instruments. The joint at the upper end allows the capsule to be aimed at an angle from 0° to 120°.

Main Features

• Active extension tube between an MK capsule and a CMC amplifier.
• Direct amplifier mounting at the bottom of the tube.
• Continuously adjustable capsule angle from 0° to 120°.
• Includes an RG 8 swivel mount for mounting and positioning.

Specifications

• Tube length: 700 mm.
• Tube diameter: 8 mm.
• Capsule connection: Schoeps Colette, for MK capsules.
• Amplifier connection: direct Colette screw connection.
• Finish: matte gray.

Included

• 1 × Schoeps RC 700 active extension tube.
• 1 × RG 8 swivel mount.

MK capsule, CMC microphone amplifier, stand rod and base are available separately.

Alternative Versions

• RC 700 KC 0,5 [133506]: the same tube length, with a 50 cm cable for separate placement of the CMC amplifier.
• RC 350 [133503]: shorter 350 mm tube with a direct amplifier connection.
