Schoeps Stereo-Set CMC 1 U, MK 2

Schoeps Stereo-Set CMC 1 U, MK 2 [139201]

The Schoeps Stereo-Set CMC 1 U, MK 2 contains two compact Colette microphones with matched MK 2 omnidirectional capsules and CMC 1 U microphone amplifiers. It comes with a matching certificate, two stand clamps, two foam pop screens and a wooden storage case.

Applications

The MK 2 capsules are free-field equalized, providing a flat frequency response for frontally arriving sound. They suit instrument recording at relatively short distances.

For A/B stereo, the microphones are placed apart. Microphone spacing and distance from the sound source help determine stereo width and the balance between direct sound and room acoustics. Although the capsules are omnidirectional, their orientation still matters at high frequencies.

Features

• Two MK 2 capsules, matched as a pair and supplied with a certificate.
• Omnidirectional pressure capsules with free-field equalization.
• Two compact CMC 1 U amplifiers with separate balanced XLR outputs.
• Modular Colette system with interchangeable capsules.
• Operates on P12 or P48 phantom power per microphone.

Technical specifications

The following values apply to each microphone.

• Microphone type: small-diaphragm condenser microphone.

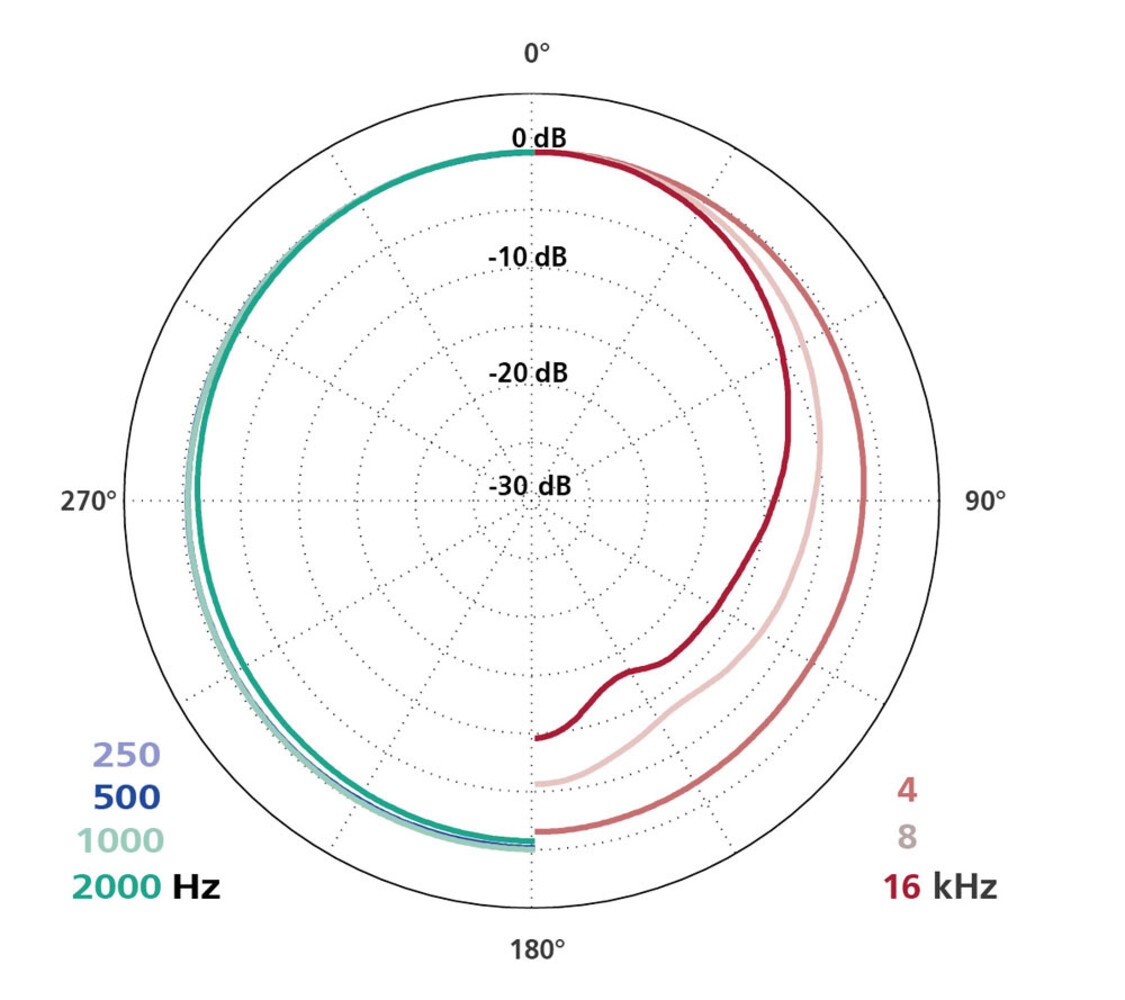

• Polar pattern: omnidirectional.
• Frequency range: 20 Hz–28 kHz.
• Sensitivity: 17 mV/Pa, -35.5 dBV/Pa.
• Equivalent noise level: 10 dB(A); 23 dB CCIR.
• Signal-to-noise ratio: 84 dB(A).
• Maximum sound pressure level: up to 134 dB SPL at THD < 0.5%.

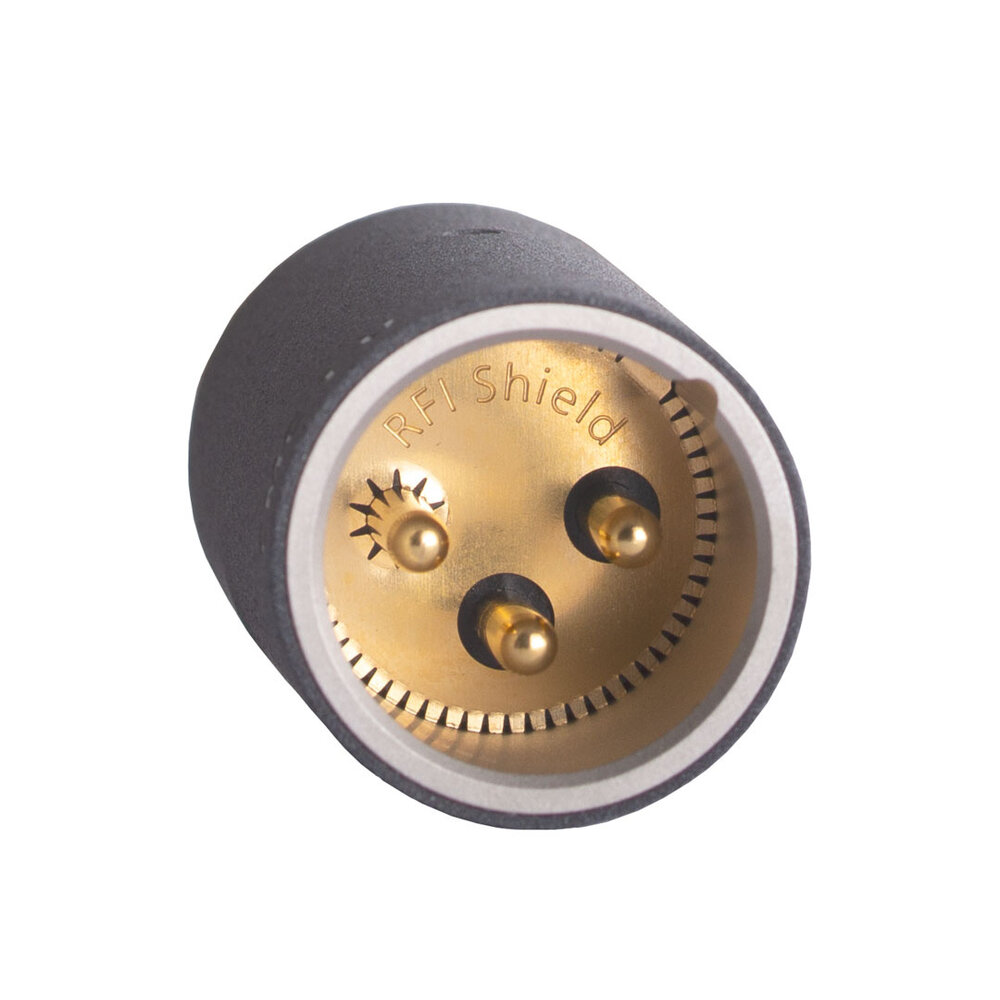

• Output: XLR-3M, analog, one channel.
• Phantom power: P12 or P48.
• Current consumption: 3 mA at P12; 2 mA at P48.
• Output impedance: 50 Ω.
• Minimum recommended load impedance: 1 kΩ.
• CMC 1 U maximum output voltage: 1.8 V into a 1 kΩ load.
• Fixed low-cut filter: 20 Hz, 12 dB/octave.

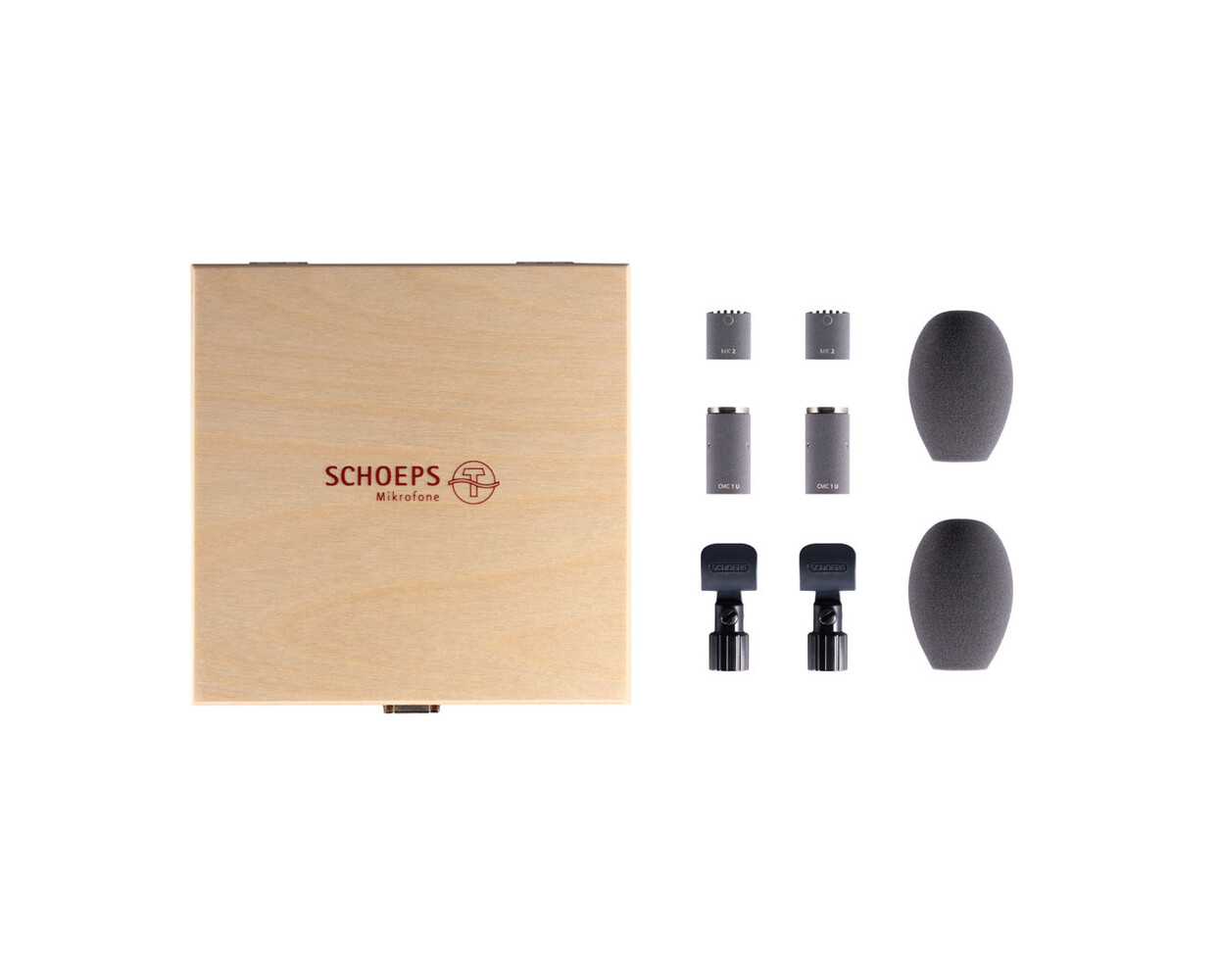

Included

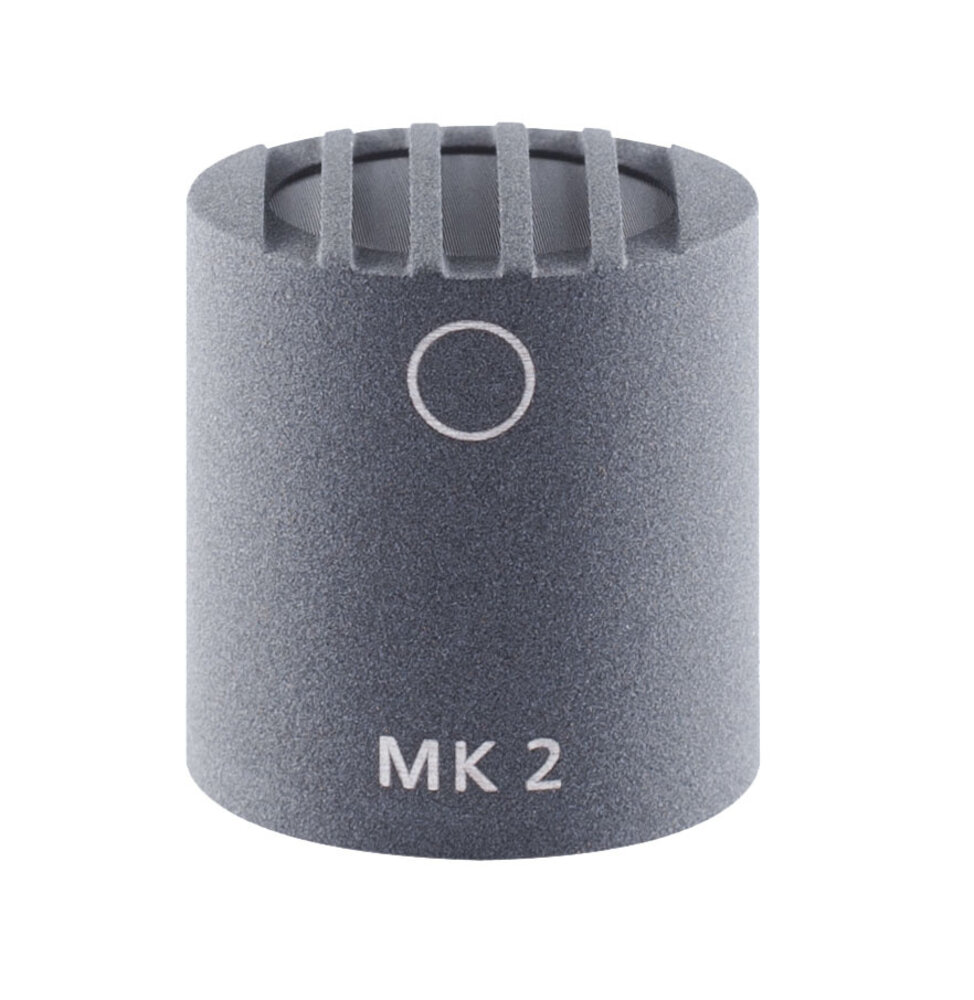

• 2 × MK 2 omnidirectional capsule, matched as a pair.
• Matching certificate.

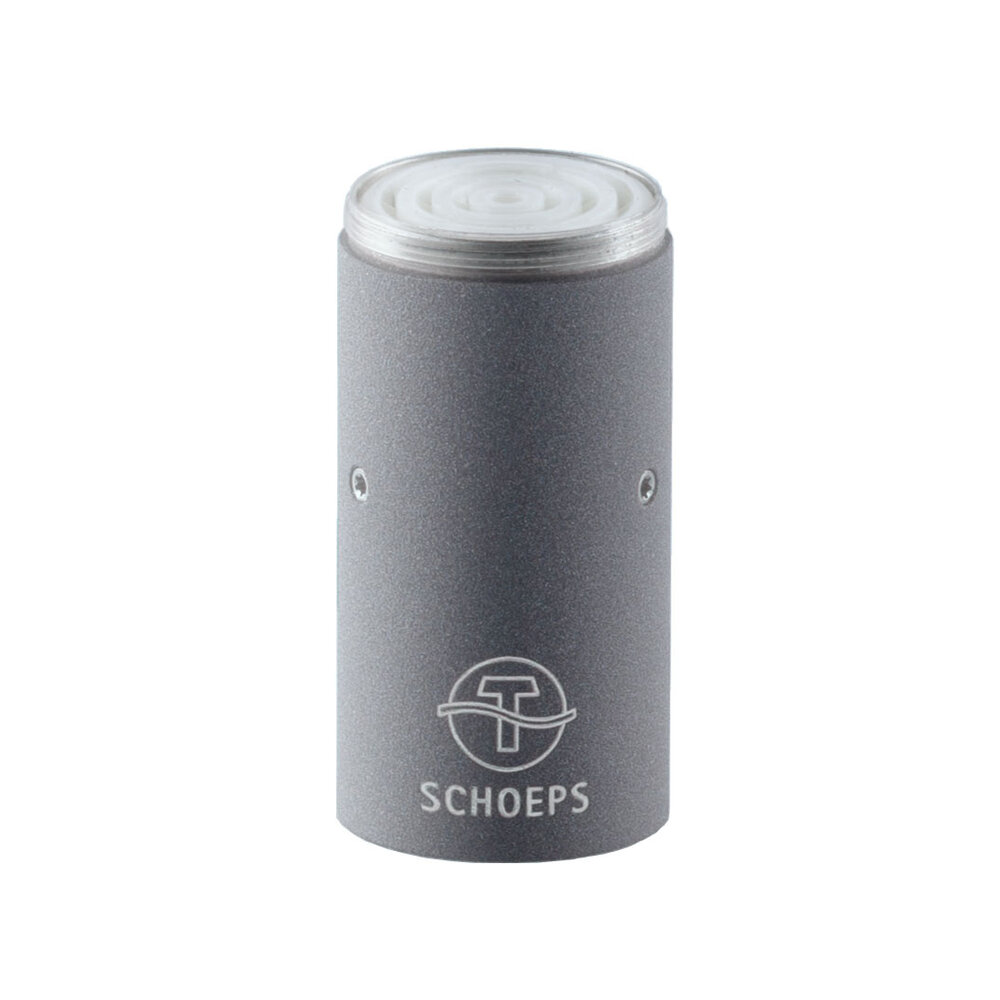

• 2 × CMC 1 U microphone amplifier.

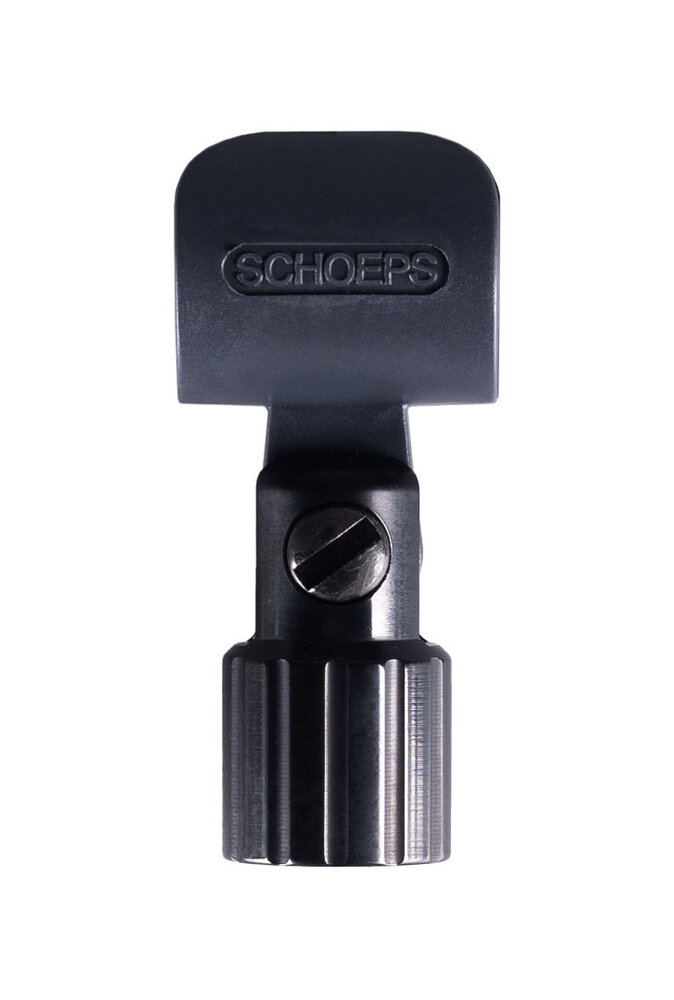

• 2 × SG 20 stand clamp, 2026 version.

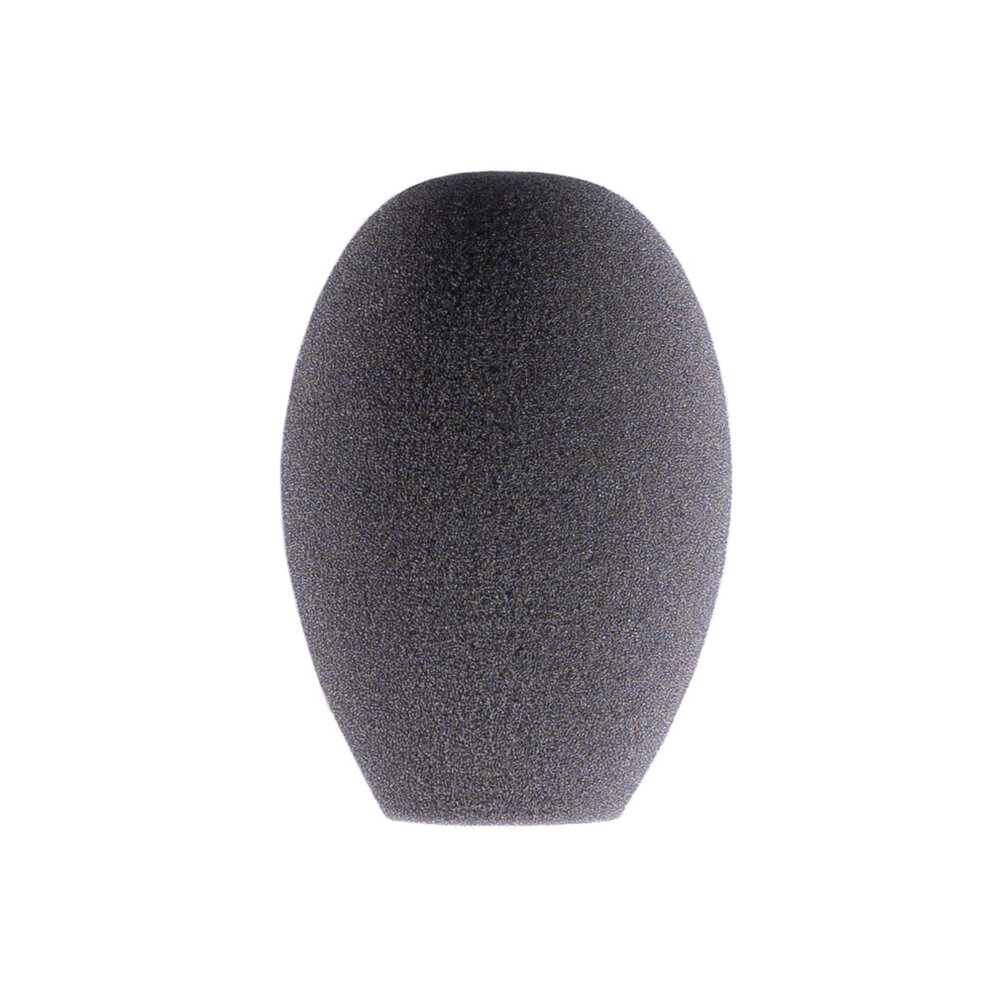

• 2 × B 5 foam pop screen.
• Schoeps hook-and-loop cable strap.

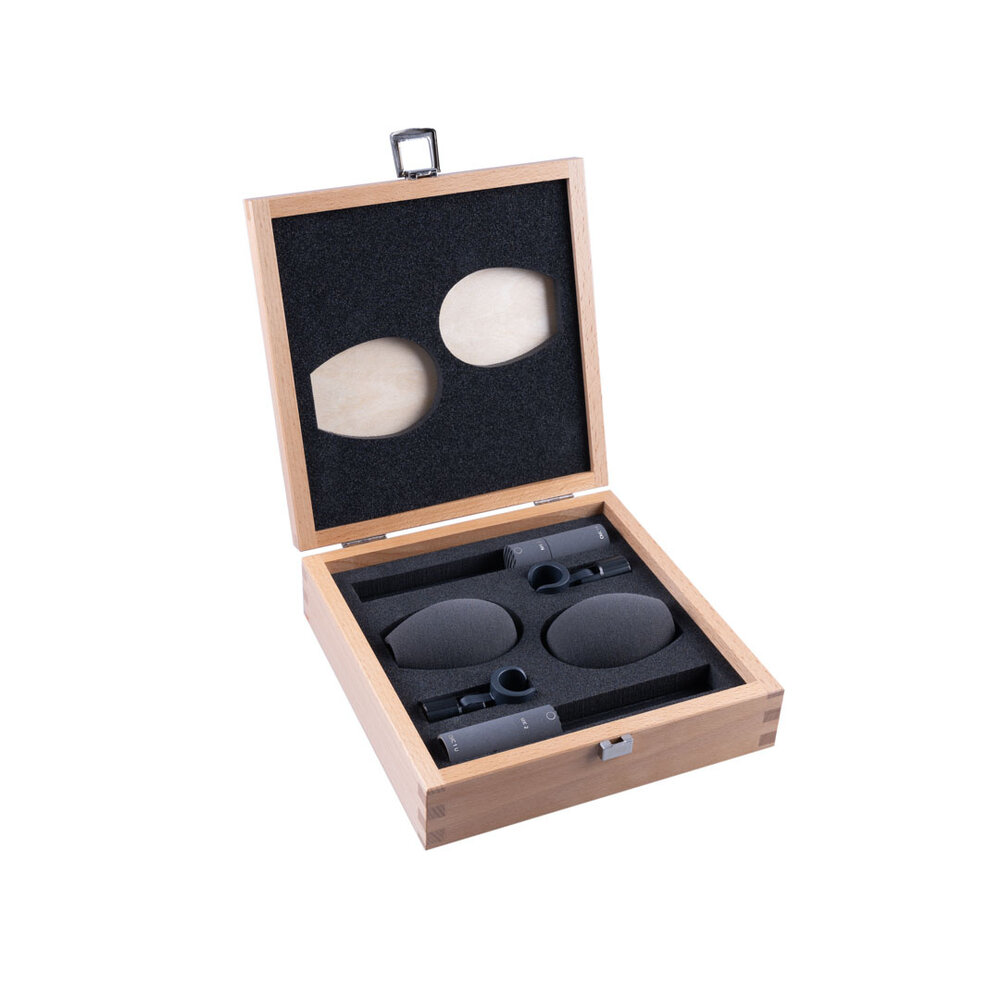

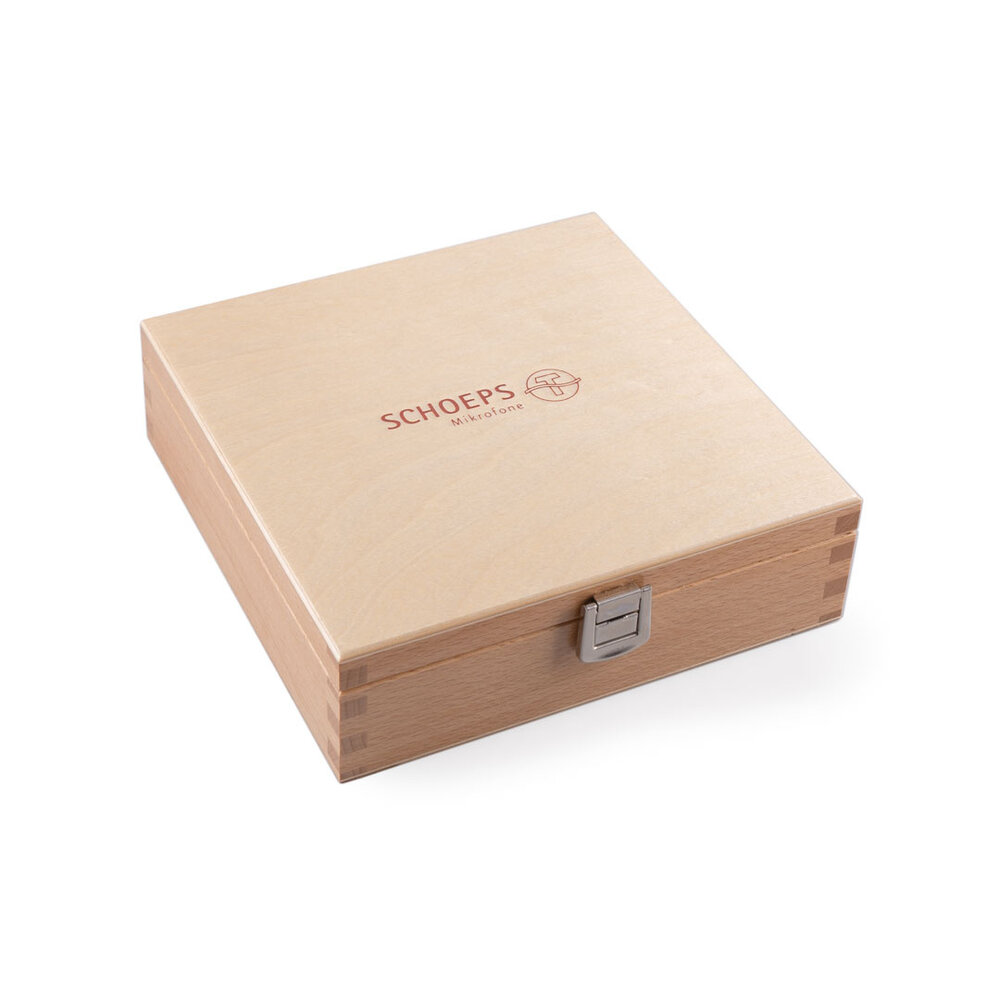

• Wooden storage case for the stereo set.

Related mono set

For one microphone with the same capsule and amplifier, choose the Mono-Set CMC 1 U, MK 2 [138201].
