Schoeps Stereo-Set CMC 1 U, MK 4

Schoeps Stereo-Set CMC 1 U, MK 4 [139205]

Colette stereo set with two CMC 1 U microphone amplifiers and a matched pair of MK 4 cardioid capsules. The capsules are selected as a pair by Schoeps and supplied with a matching certificate.

Use and connection

Suitable for stereo techniques such as XY and ORTF. Microphone spacing and angle are set using separate stands or a suitable stereo bar. Each microphone has a balanced XLR output and requires P12 or P48 phantom power.

Specifications per microphone

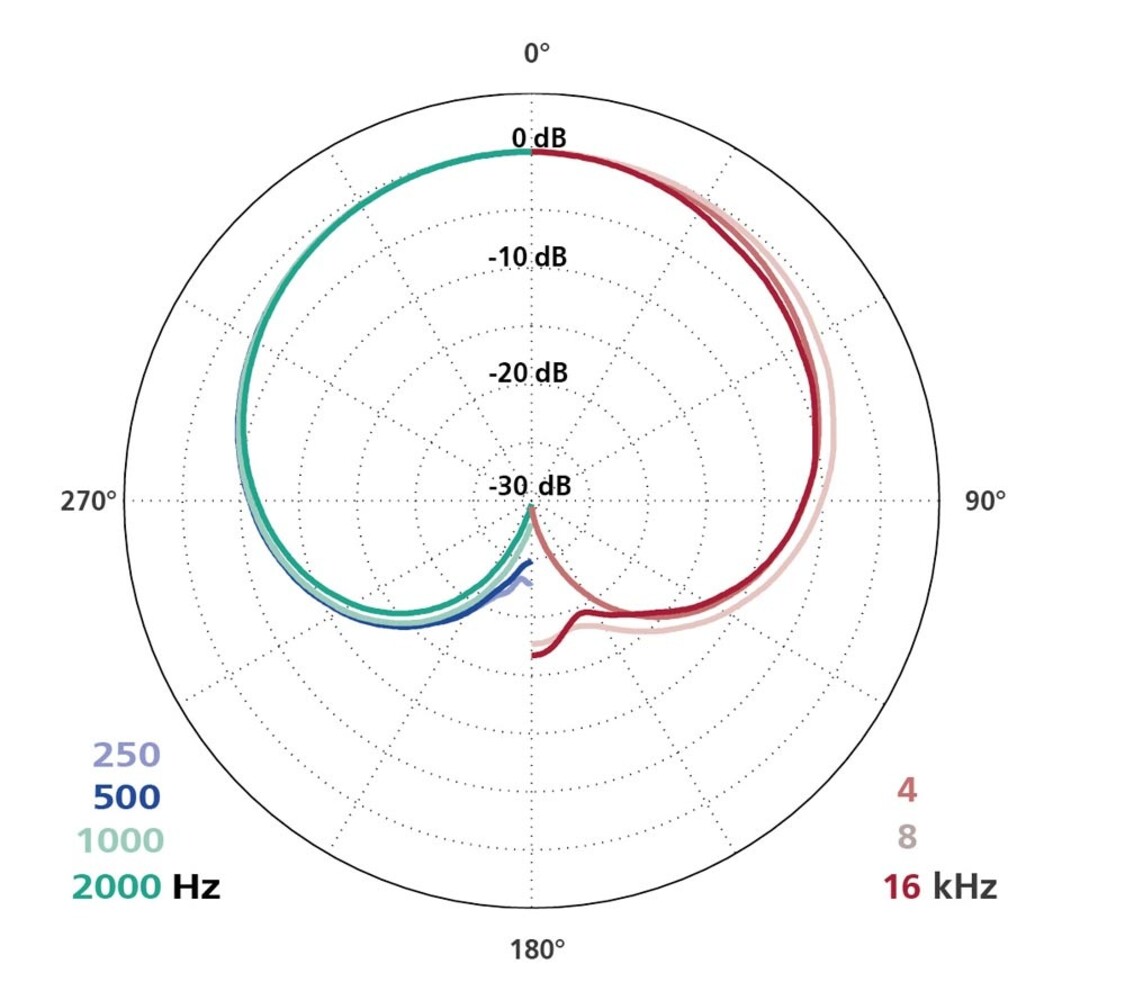

• Polar pattern: cardioid

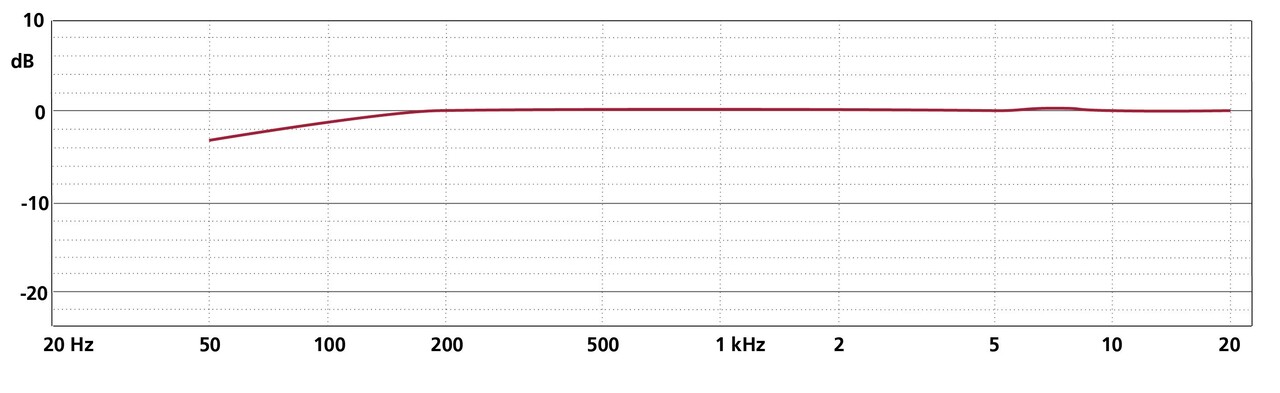

• Frequency range: 40 Hz–26 kHz
• Sensitivity: 15 mV/Pa
• Equivalent noise level: 14 dB-A; 24 dB CCIR
• Signal-to-noise ratio: 80 dB-A
• Maximum SPL with CMC 1: 135 dB SPL at THD < 0.5%
• Power supply: P12 / P48
• Current consumption: 3 mA at P12; 2 mA at P48

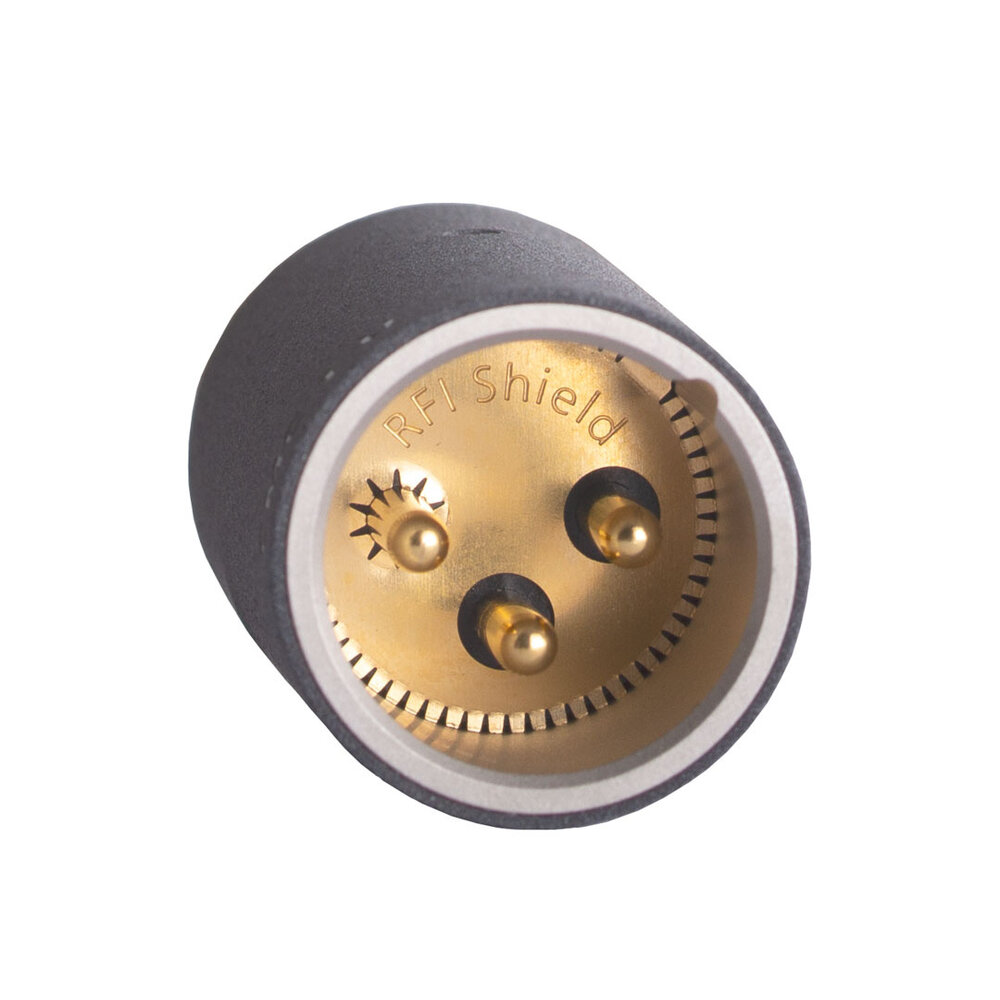

• Output: balanced, XLR-3M
• Output impedance: 50 Ω
• Finish: matte gray

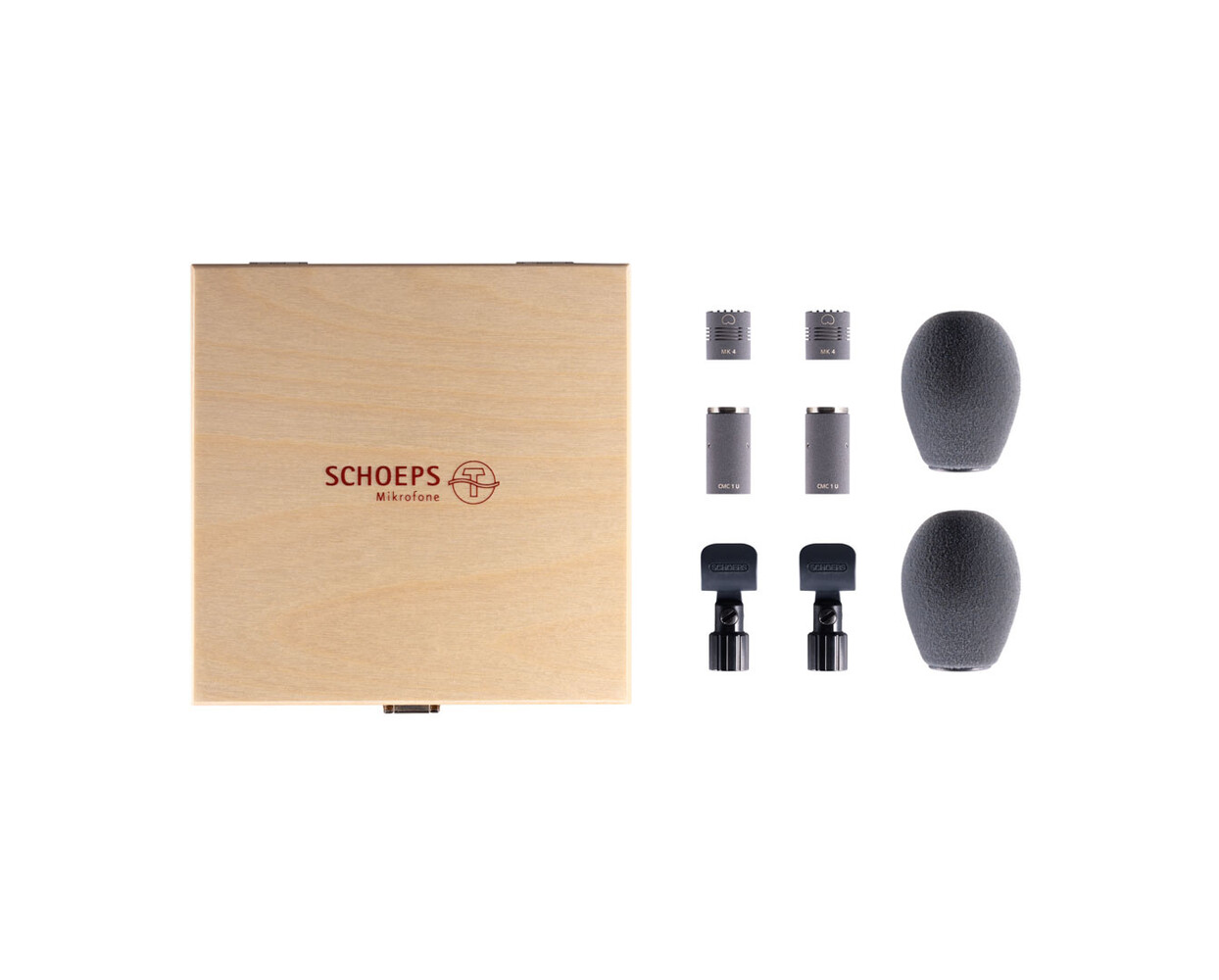

Included

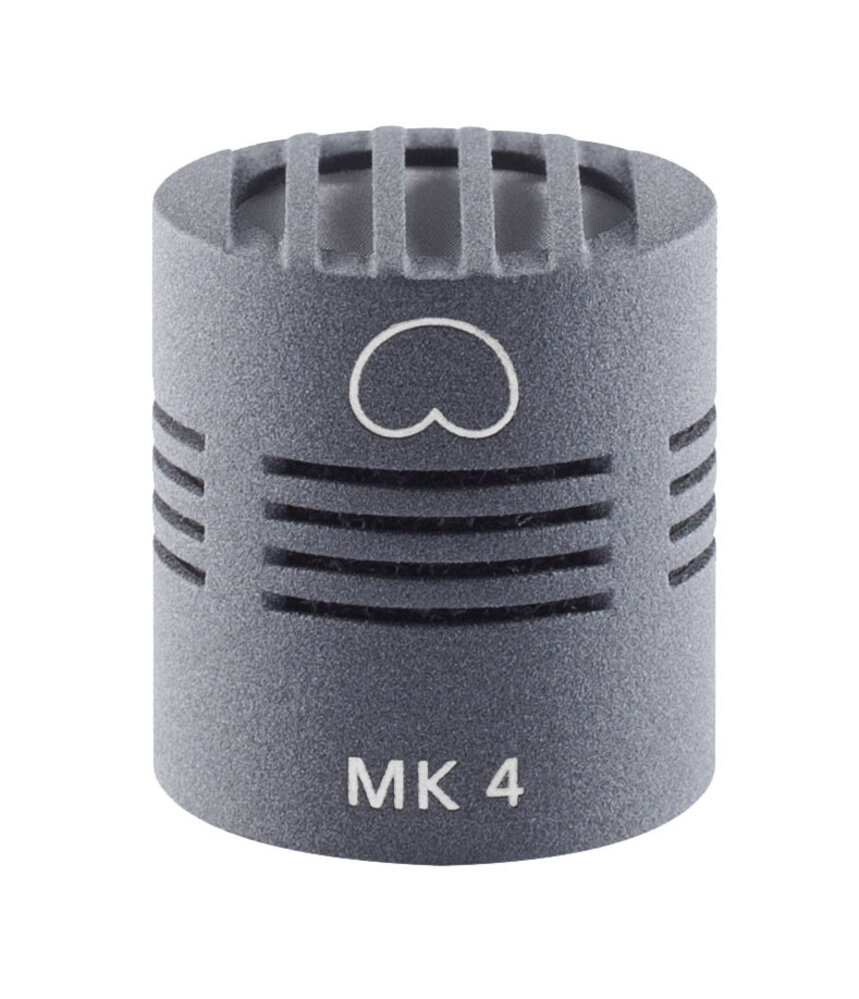

• 2 × MK 4 microphone capsule, matched pair
• Matching certificate

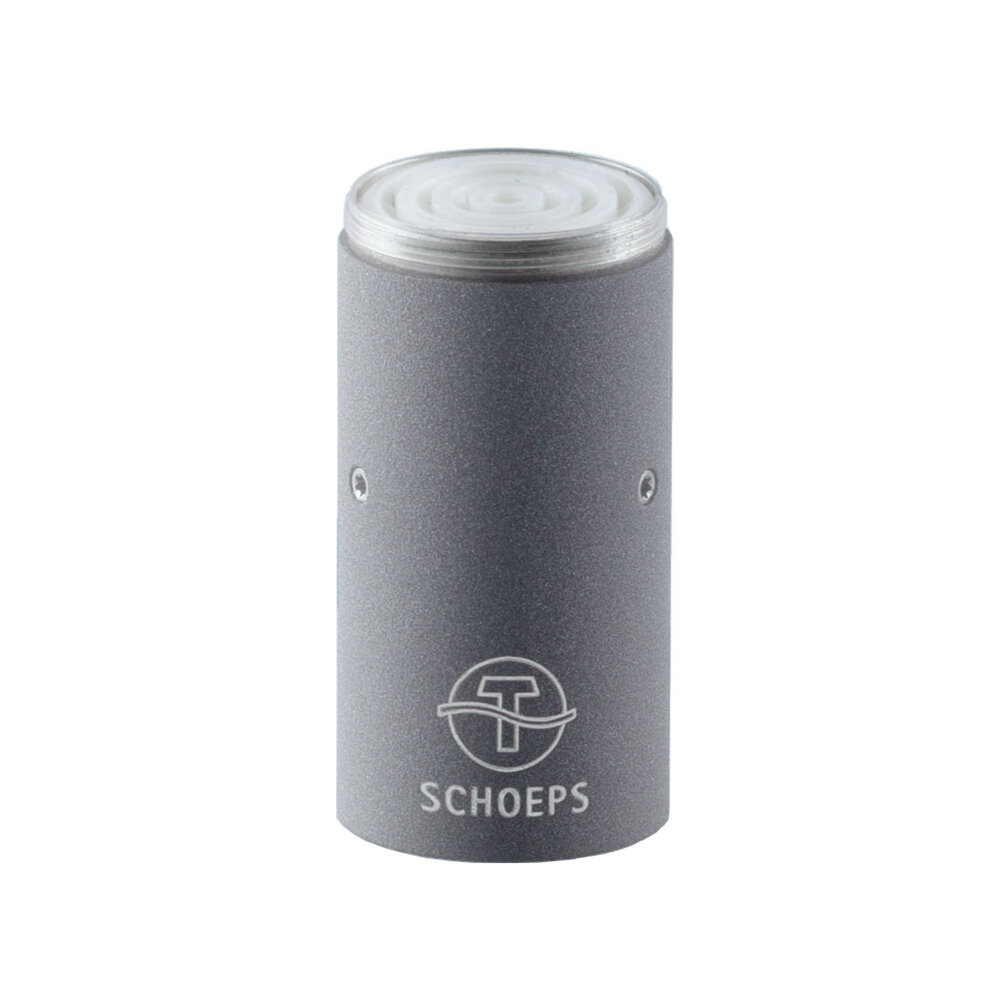

• 2 × CMC 1 U microphone amplifier

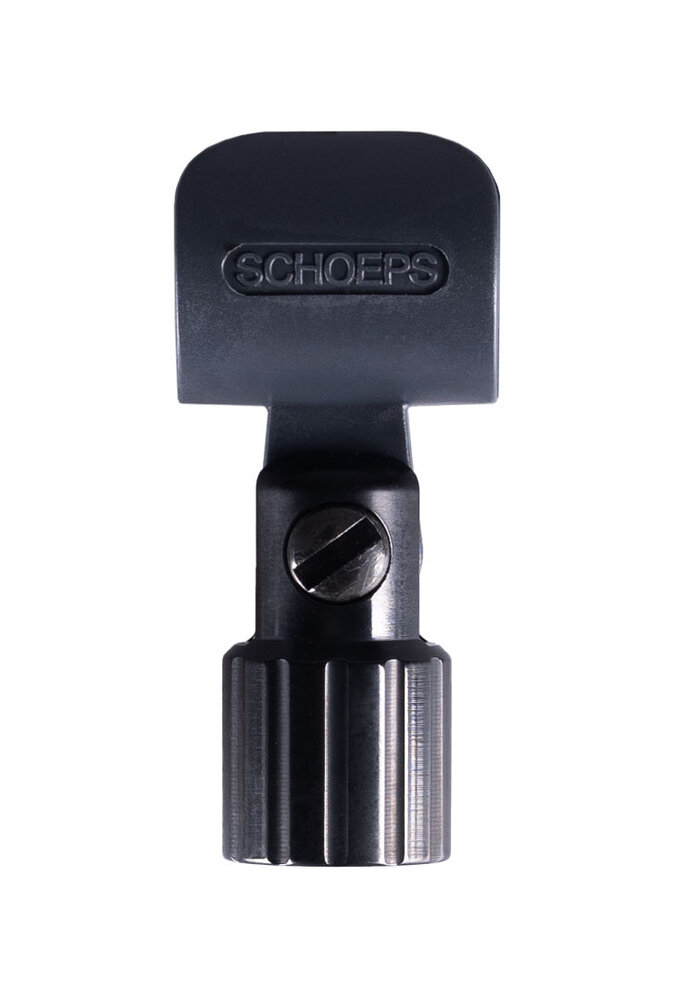

• 2 × SG 20 microphone clamp, 2026 version

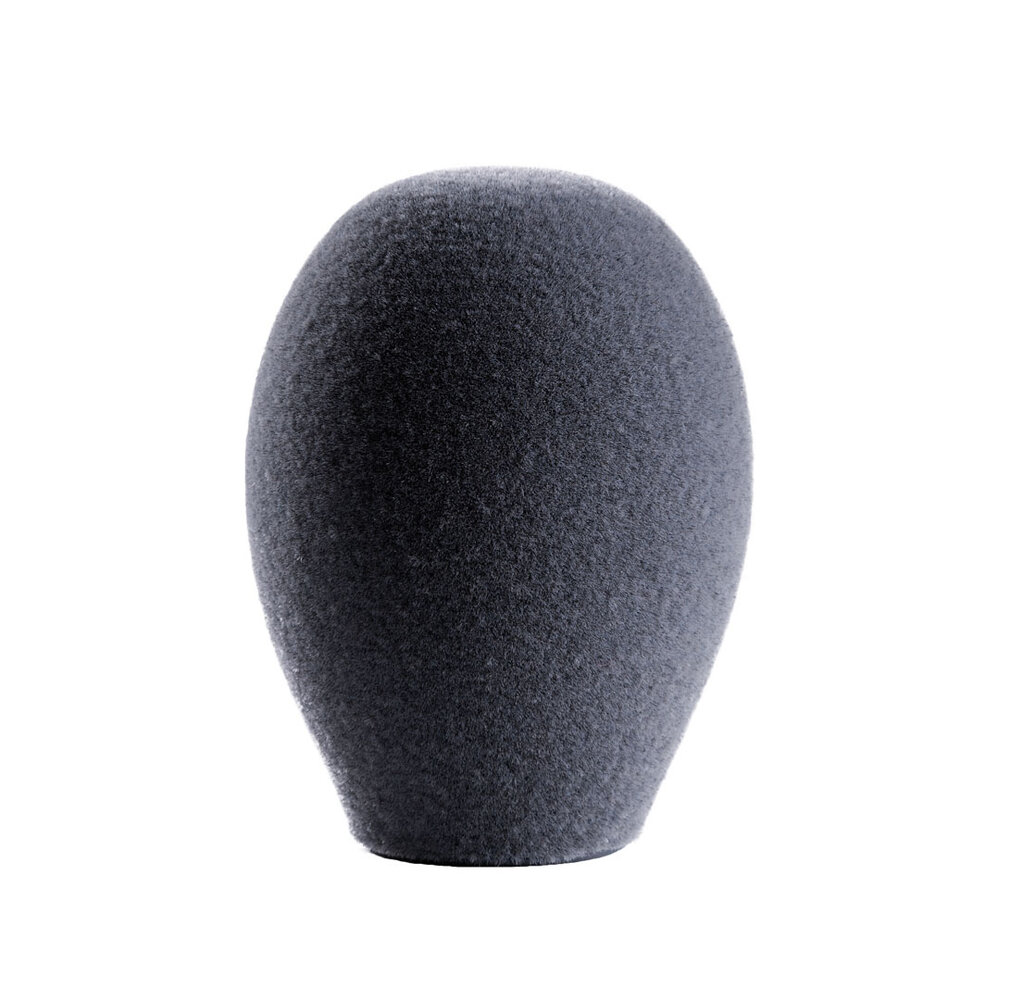

• 2 × B 5 D hollow foam screen
• Schoeps hook-and-loop cable strap

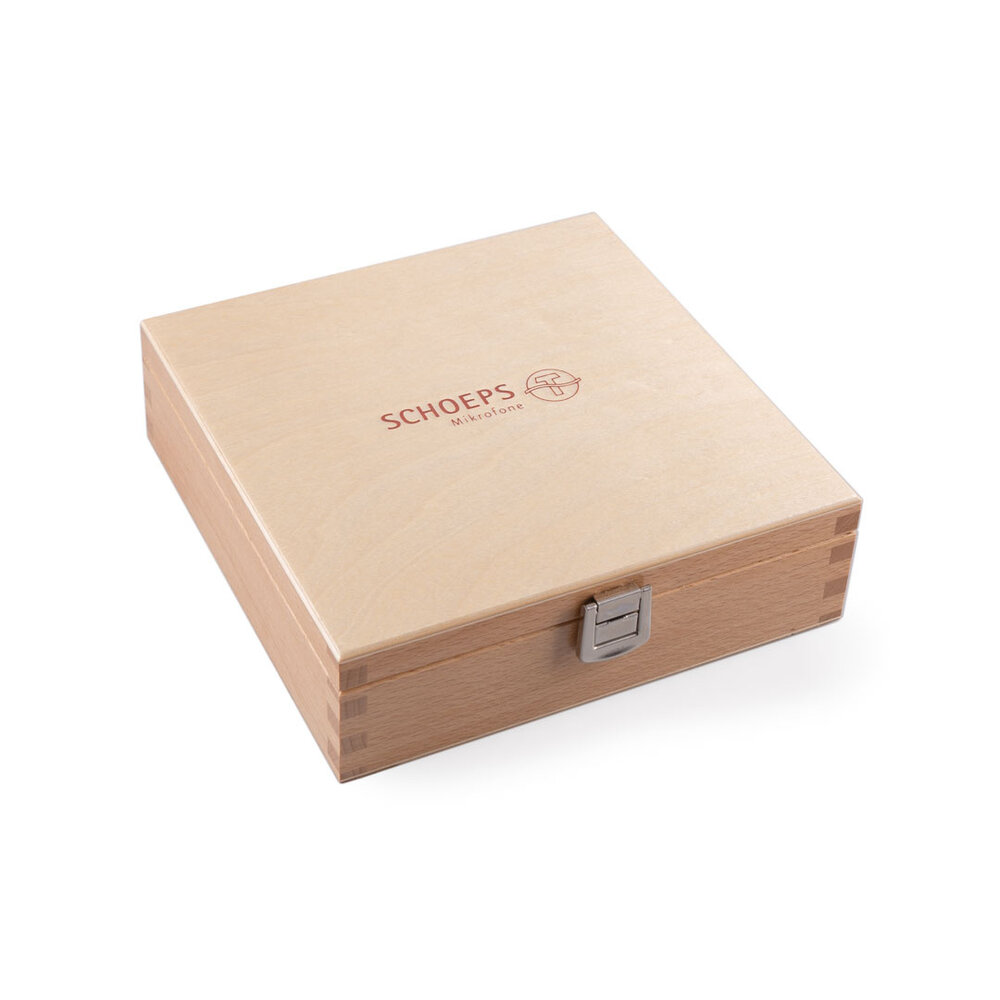

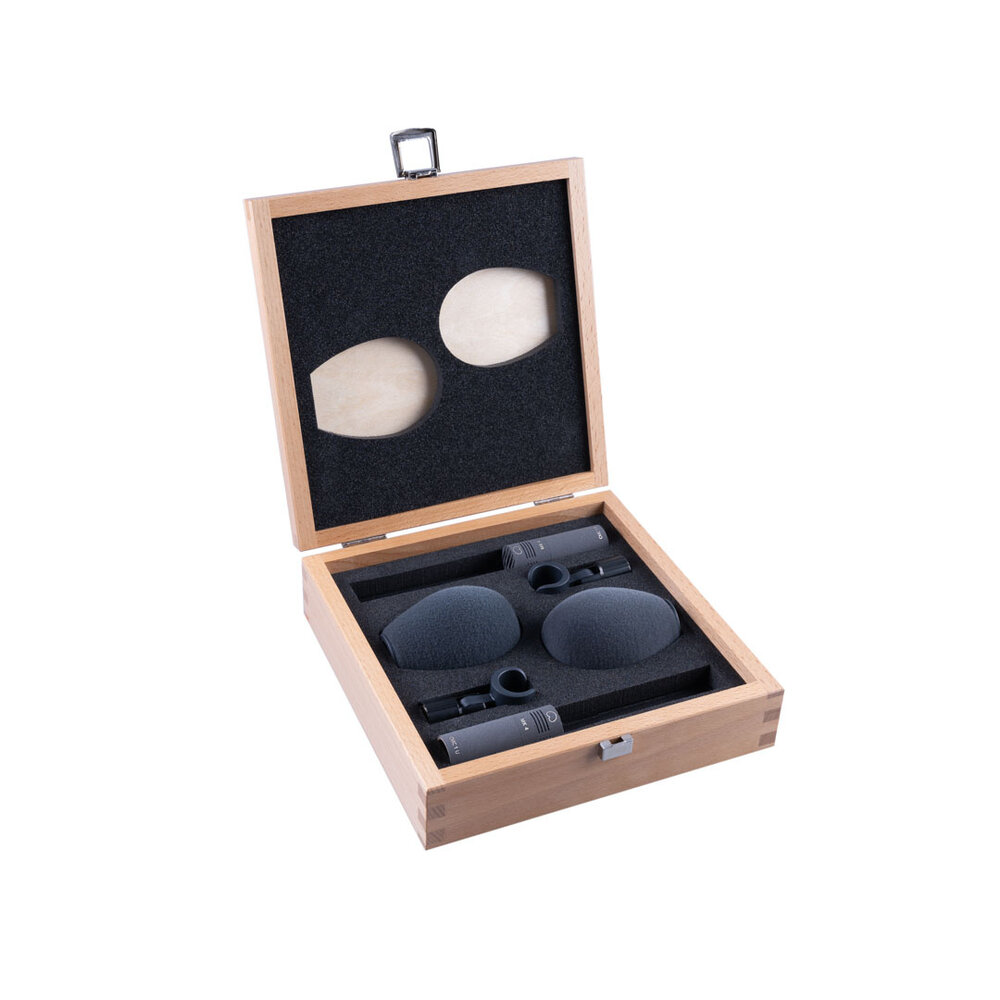

• Wooden storage case for the Stereo Set

XLR cables, microphone stands and stereo bar not included.

Corresponding mono set

For one microphone with the same capsule and amplifier, choose the Mono-Set CMC 1 U, MK 4 [138215].
