Schoeps Stereo-Set CMC 6, MK 22

Schoeps Stereo-Set CMC 6, MK 22 [139004]

The Schoeps Stereo-Set CMC 6, MK 22 contains two complete Colette microphones with matched MK 22 open cardioid capsules and CMC 6 U microphone amplifiers. It comes with a matching certificate, two stand clamps, two windscreens and a wooden storage case.

Applications

The open cardioid polar pattern lies between the MK 4 cardioid and the MK 21 wide cardioid. The set suits main-pair ensemble recording and separate spot microphone applications.

For stereo recording, Schoeps gives an example arrangement with 21 cm capsule spacing and an included angle of 110°. Final placement depends on the width of the ensemble, recording distance and room acoustics.

Features

• Two MK 22 capsules, matched as a pair and supplied with a certificate.
• Two CMC 6 U amplifiers with separate balanced XLR outputs.
• Modular Colette system with interchangeable capsules.
• Operates on P12 or P48 phantom power per microphone.

Technical specifications

The following values apply to each microphone.

• Microphone type: small-diaphragm condenser microphone.

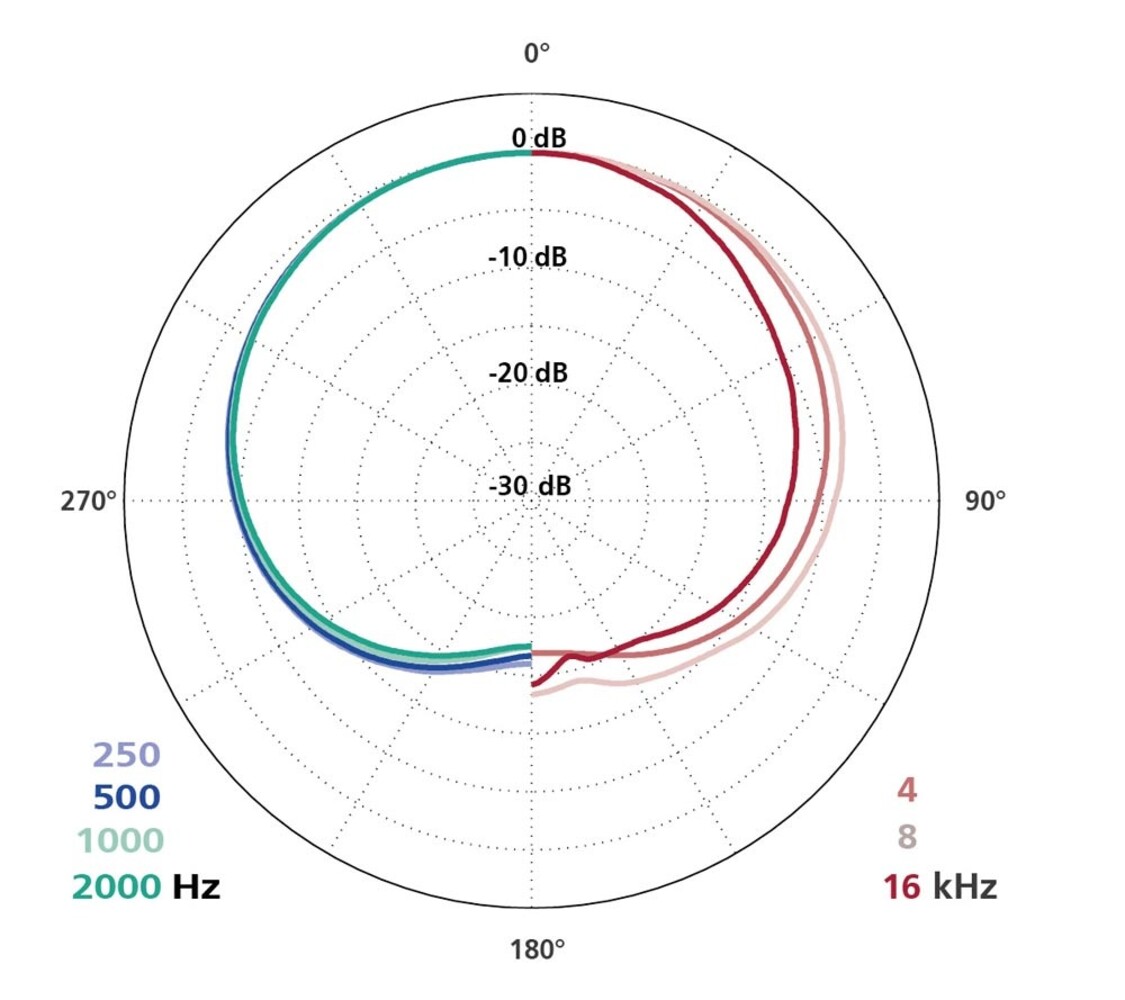

• Polar pattern: open cardioid.

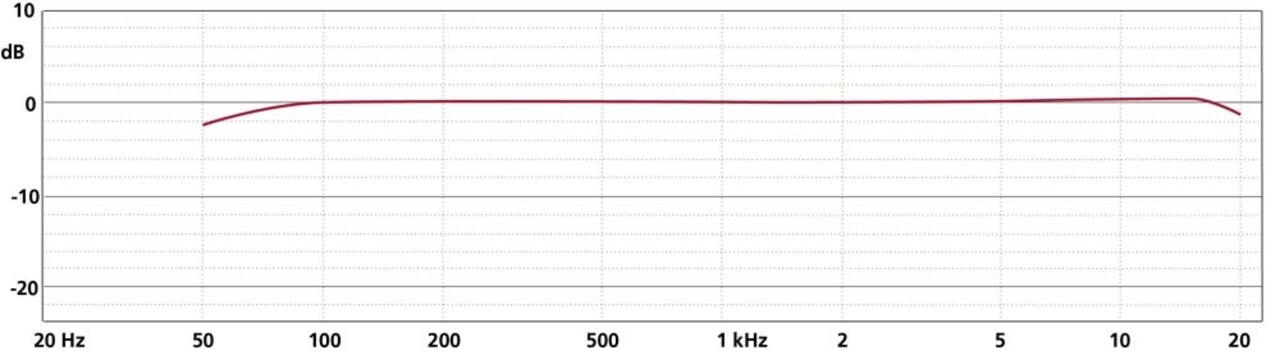

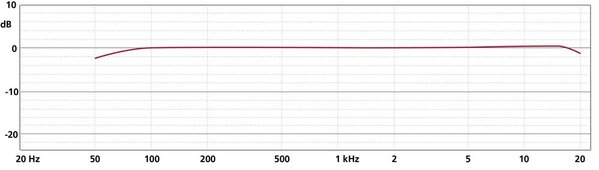

• Frequency range: 40 Hz–28 kHz.
• Sensitivity: 15 mV/Pa, -36.5 dBV/Pa.
• Equivalent noise level: 13 dB(A); 23 dB CCIR.
• Signal-to-noise ratio: 81 dB(A).
• Maximum sound pressure level: 130 dB SPL at THD < 0.5%.
• Output: XLR-3M, analog, one channel.
• Phantom power: P12 or P48.
• Current consumption: 8 mA at P12; 4 mA at P48.
• Output impedance: 42 Ω.
• Minimum recommended load impedance: 1 kΩ.
• Maximum output voltage: 1 V into a 1 kΩ load.
• Fixed low-cut filter: 20 Hz, 12 dB/octave.

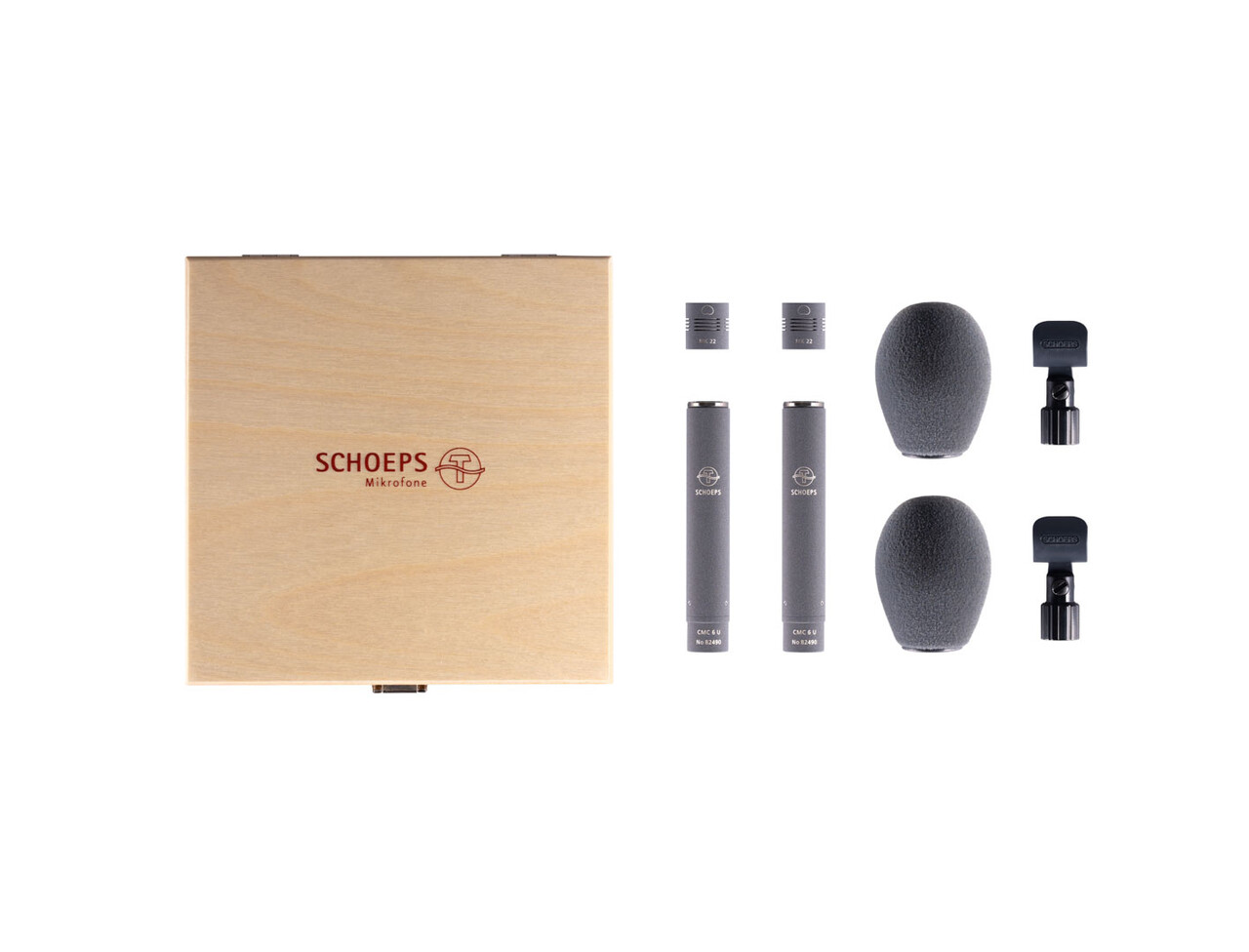

Included

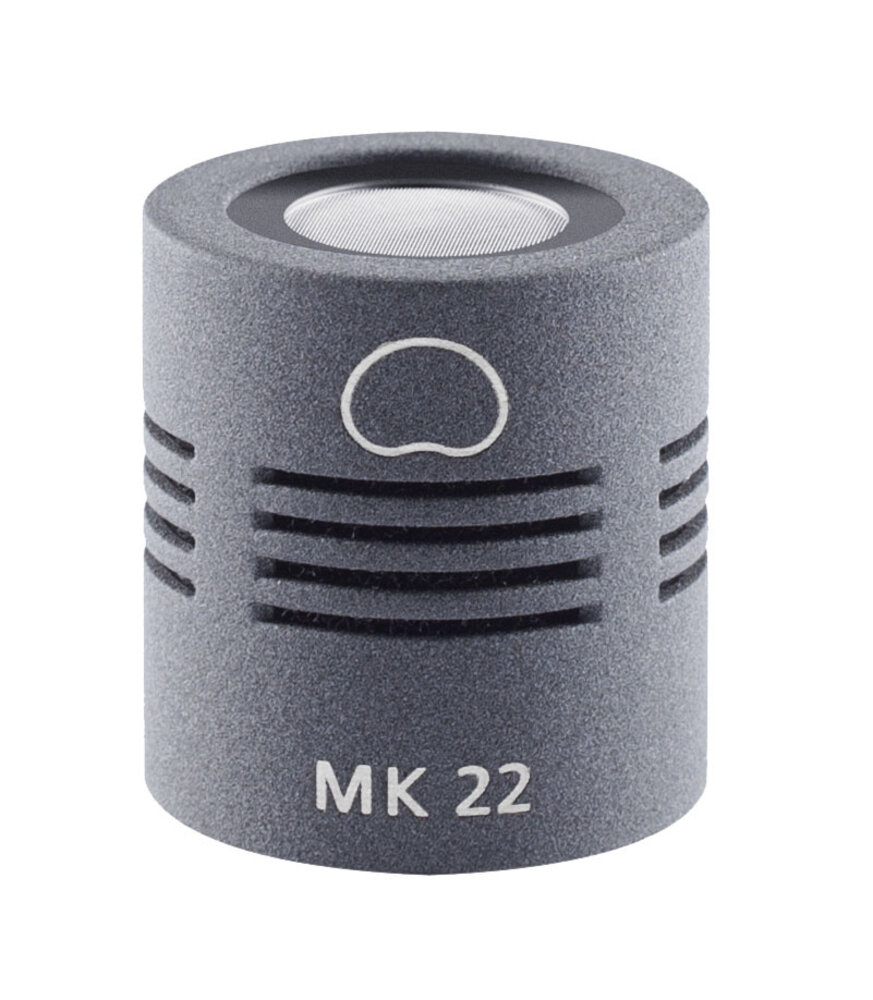

• 2 × MK 22 open cardioid capsule, matched as a pair.
• Matching certificate.

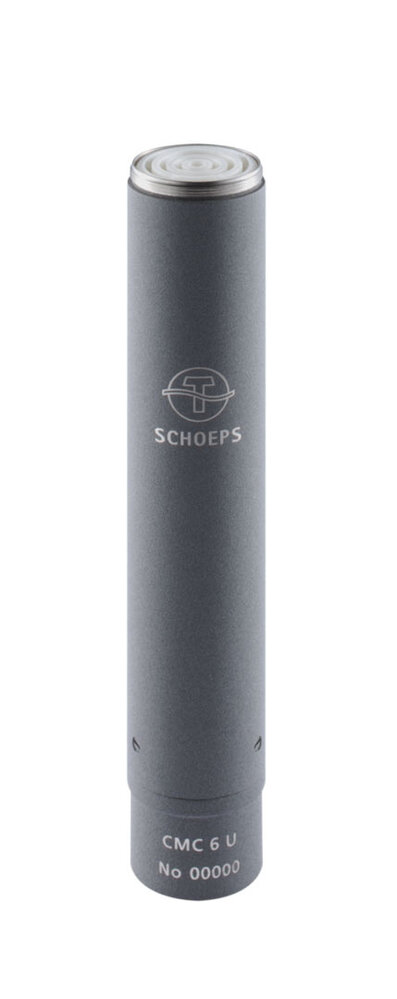

• 2 × CMC 6 U microphone amplifier.

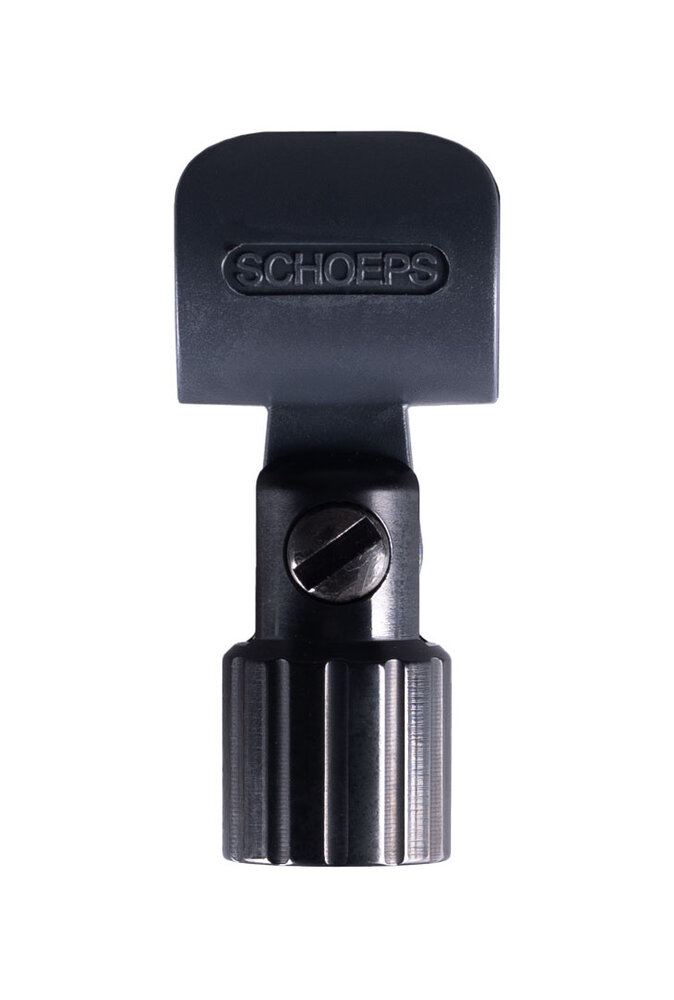

• 2 × SG 20 stand clamp, 2026 version.

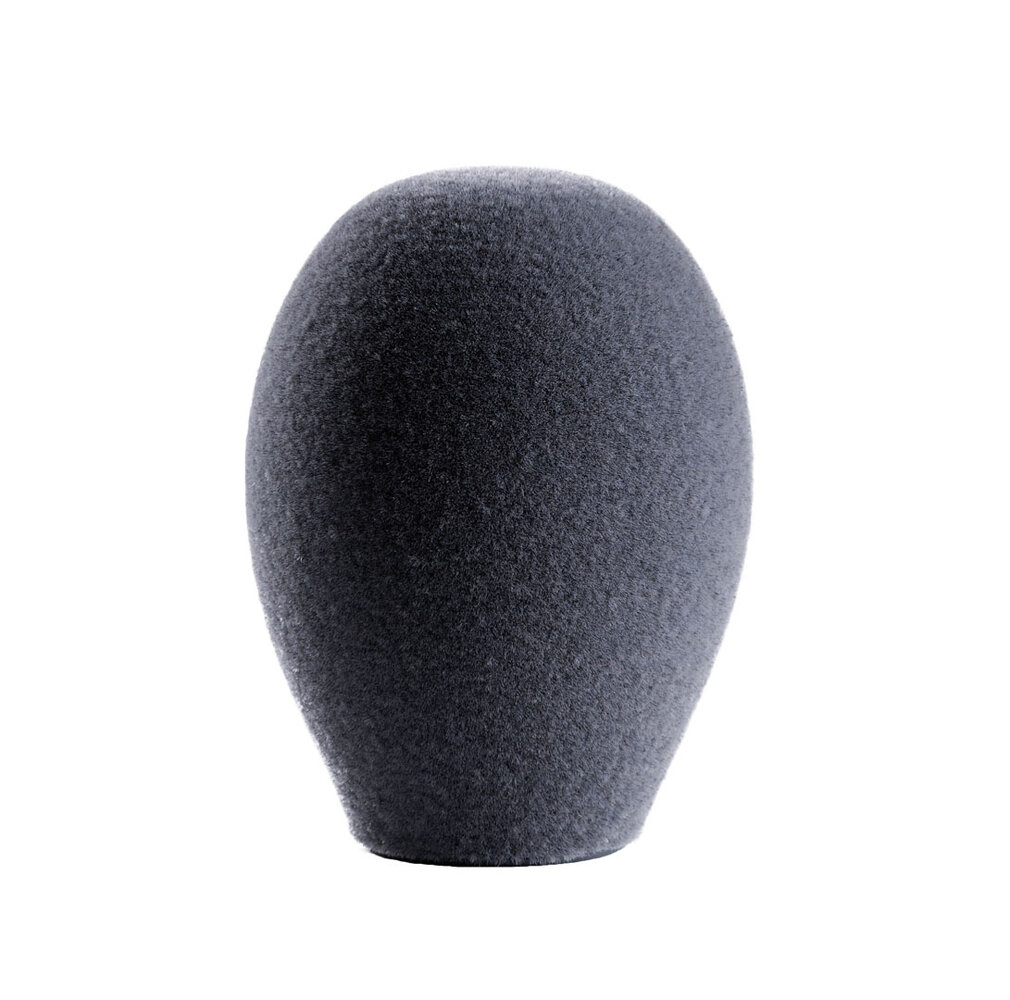

• 2 × B 5 D hollow foam windscreen and pop filter.
• Schoeps hook-and-loop cable strap.

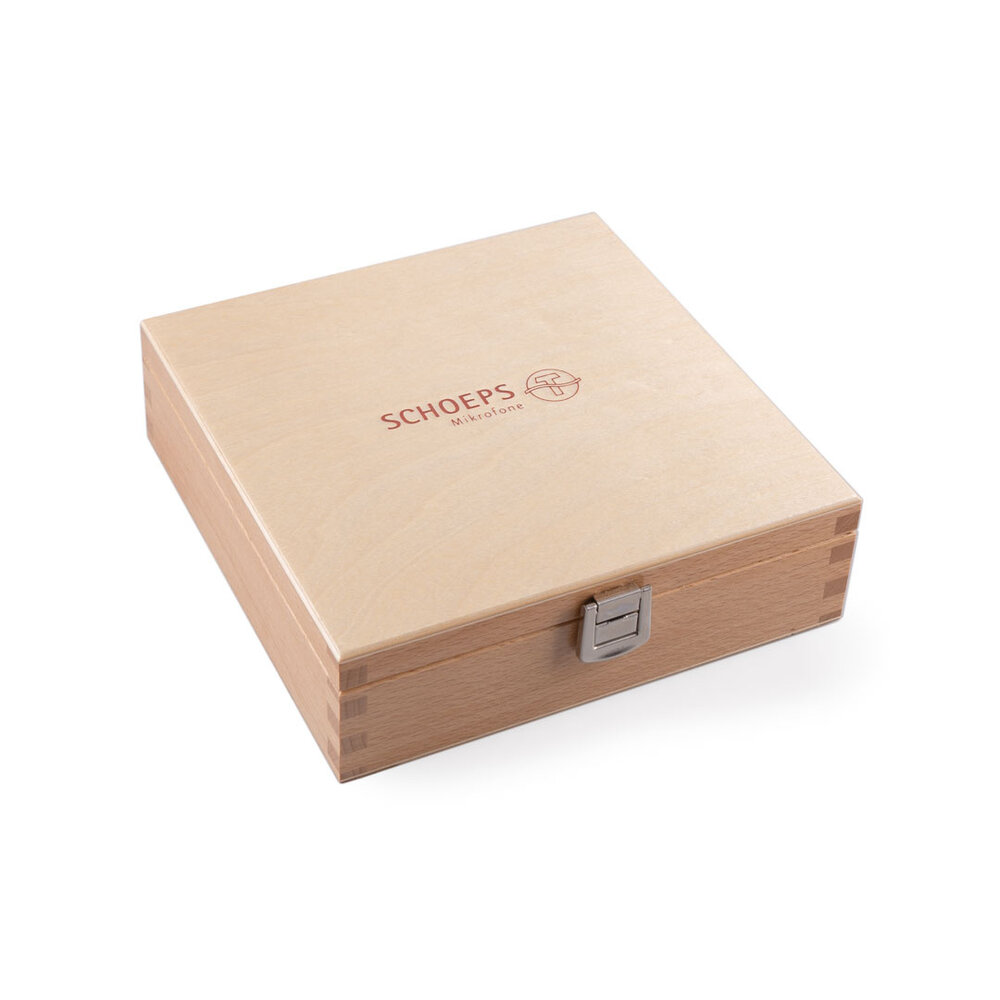

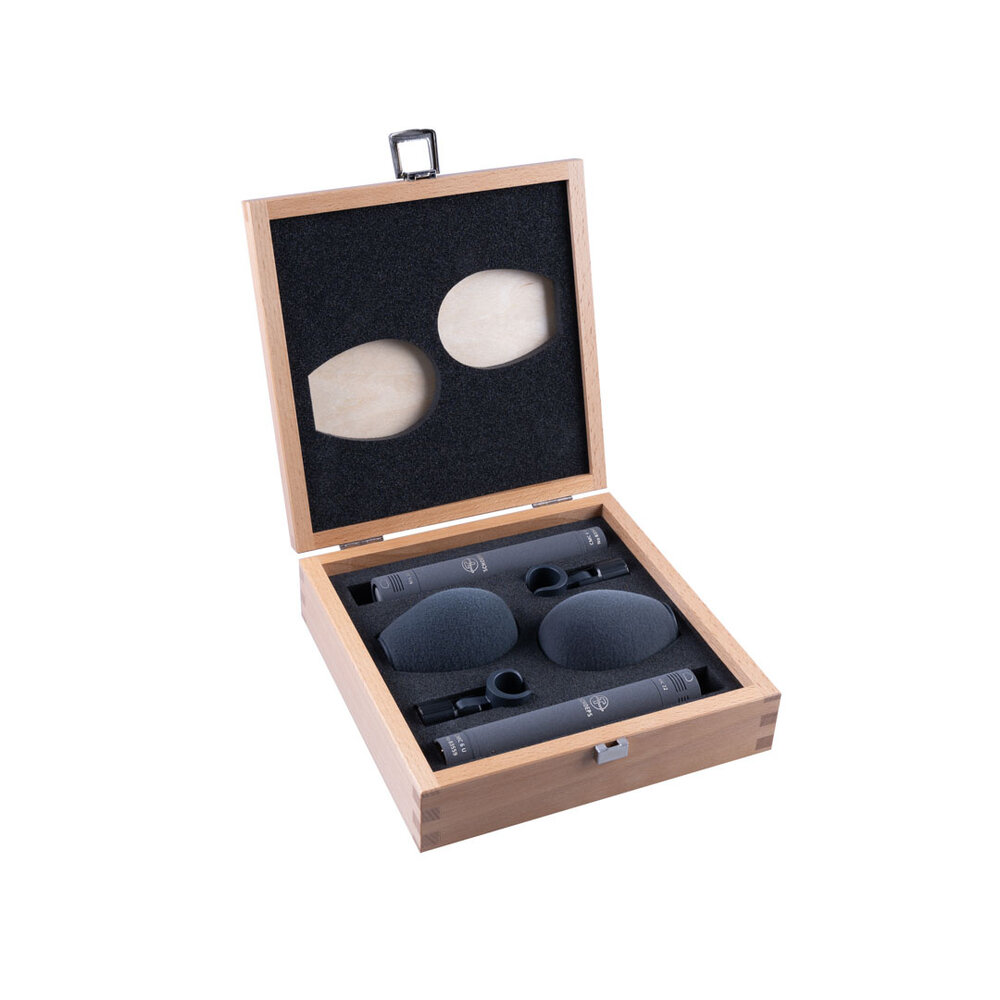

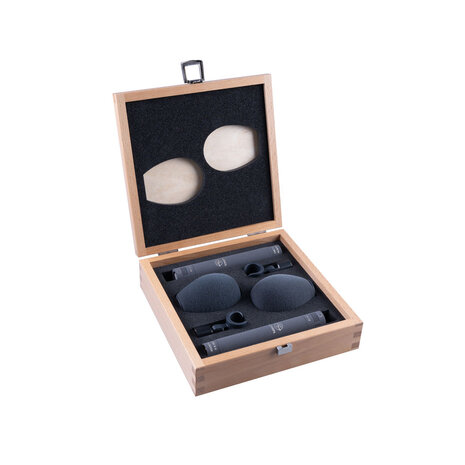

• Wooden storage case for the stereo set.
