Schoeps TC Set CMC 1 U, MK 4

Schoeps TC Set CMC 1 U, MK 4 [133891]

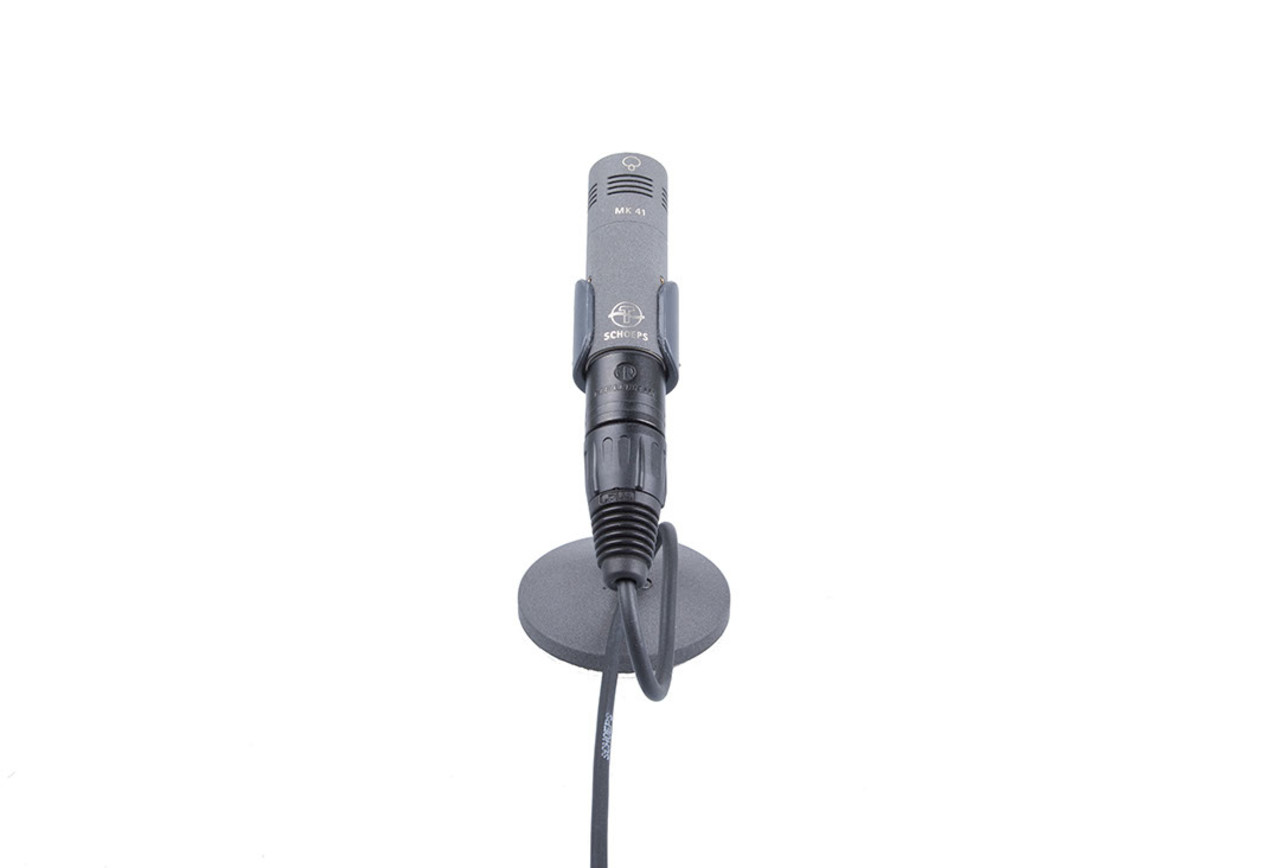

Compact desktop microphone set for meetings and video conferences, combining an MK 4 cardioid capsule, CMC 1 U microphone amplifier and table stand with an SG 20 microphone clamp.

Placement and connection

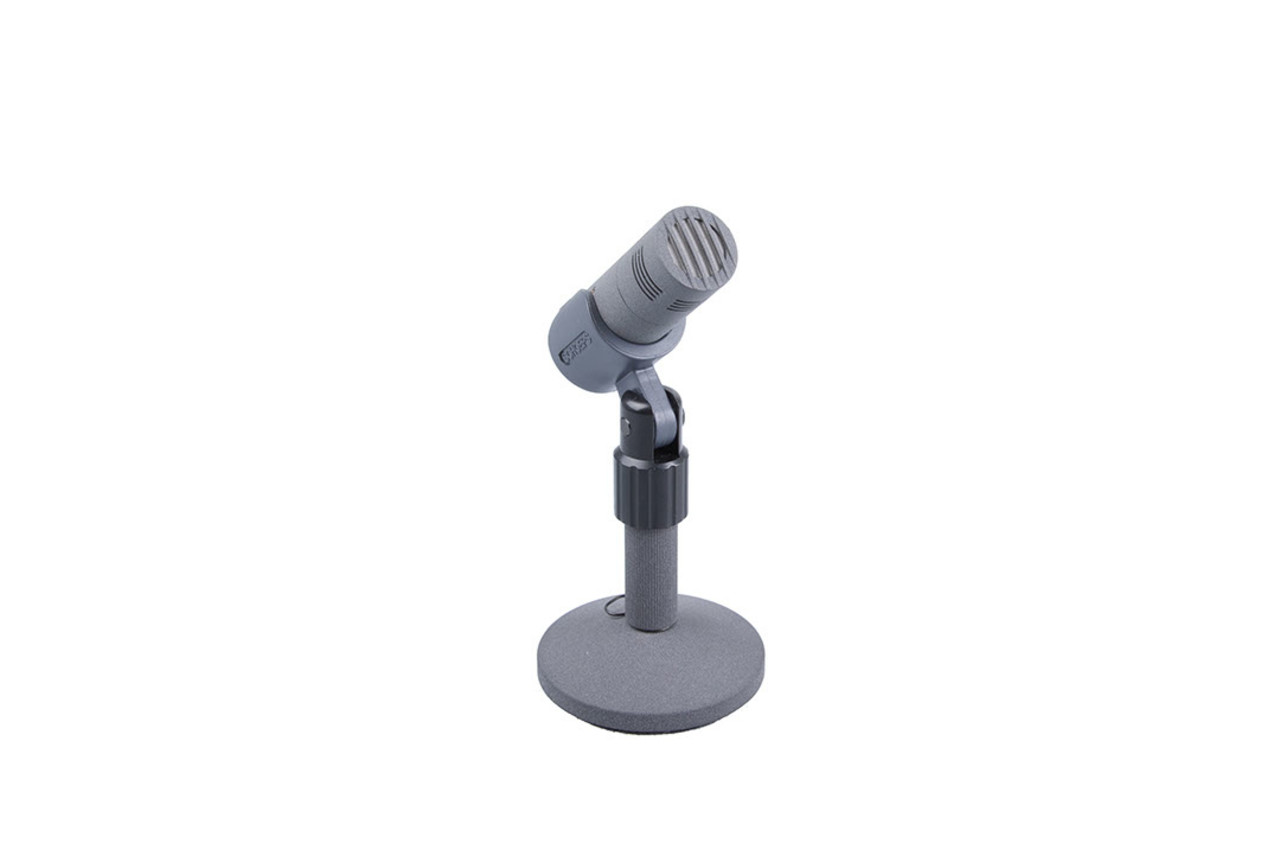

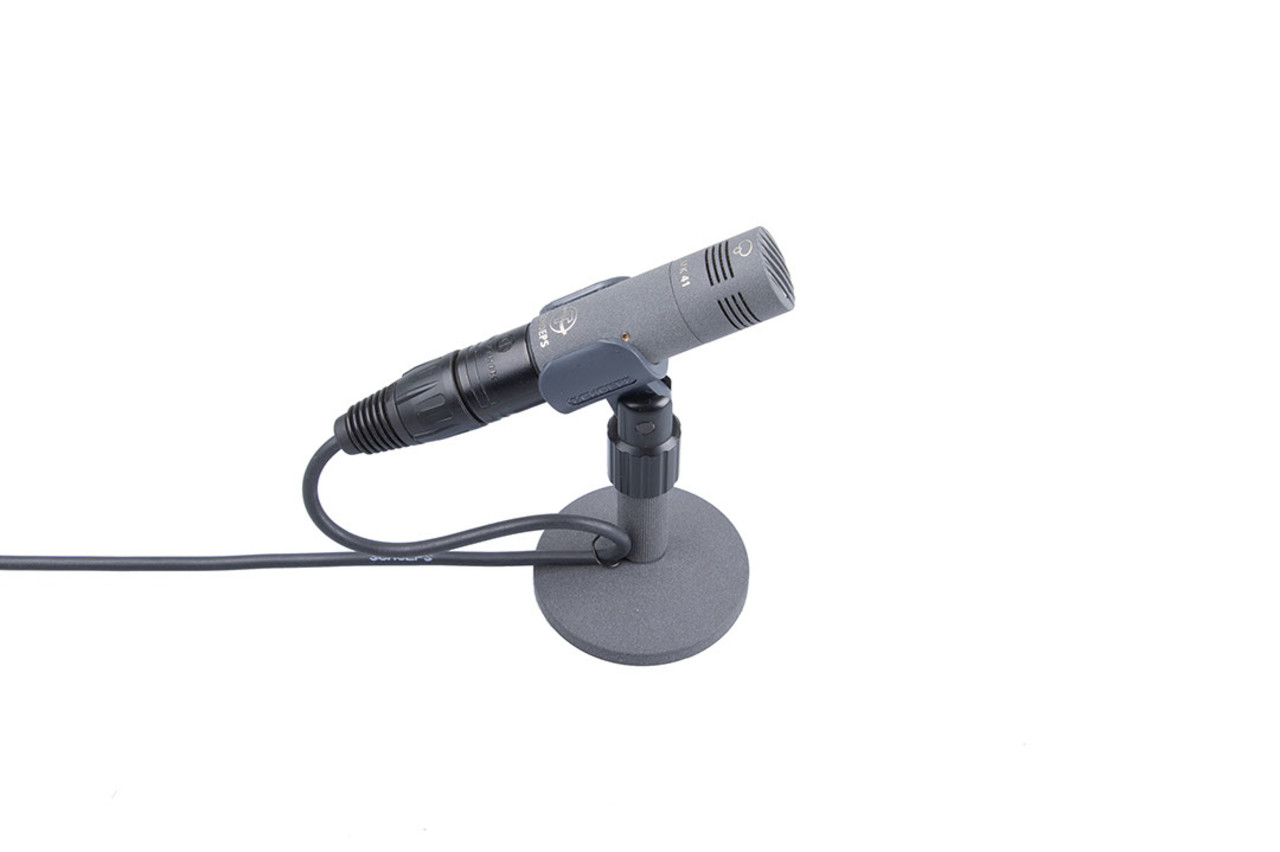

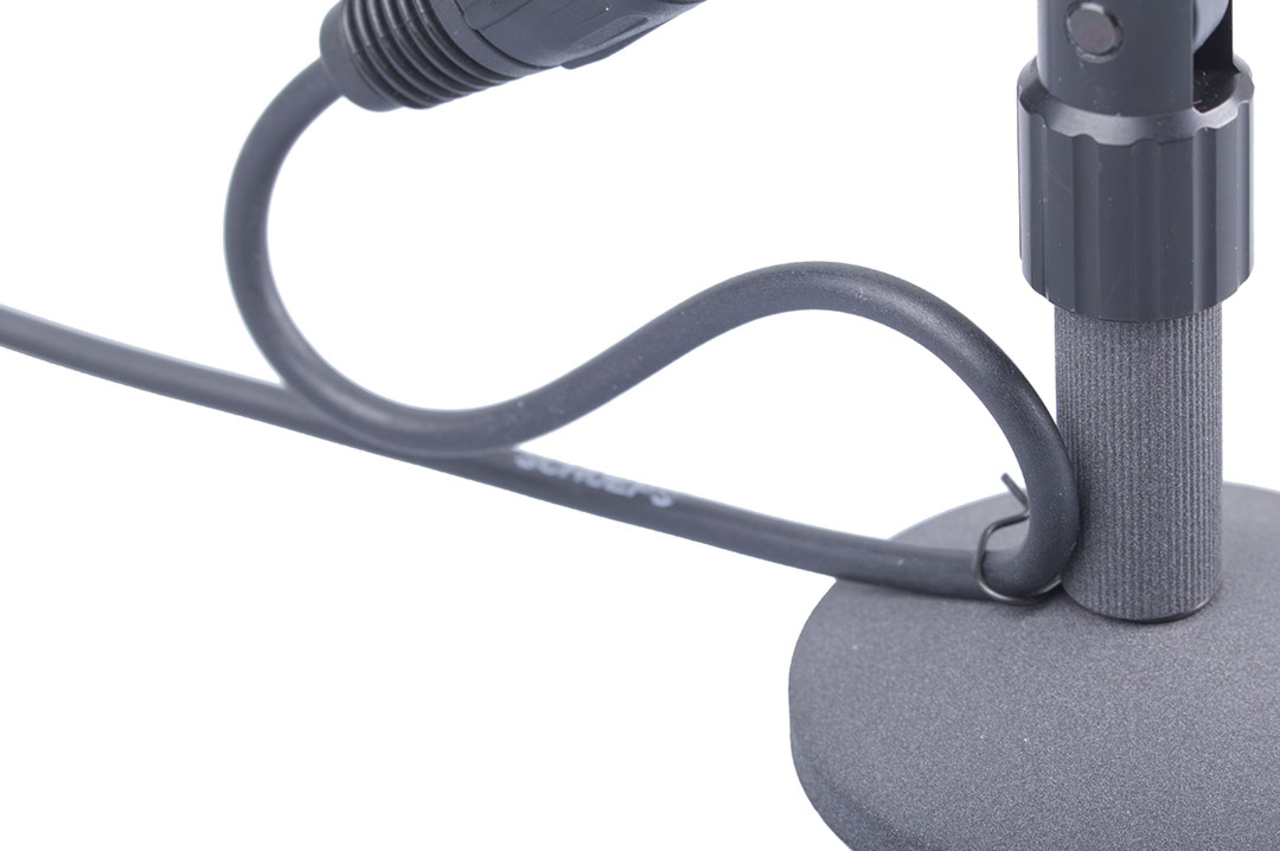

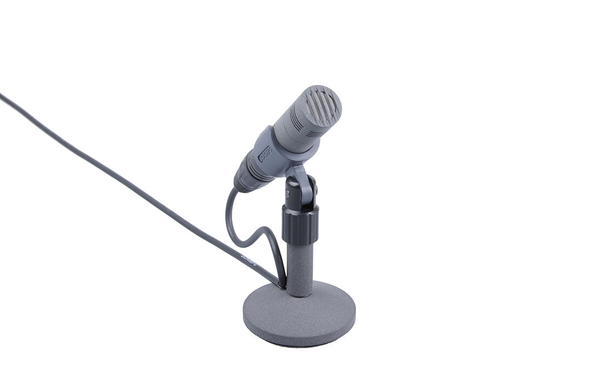

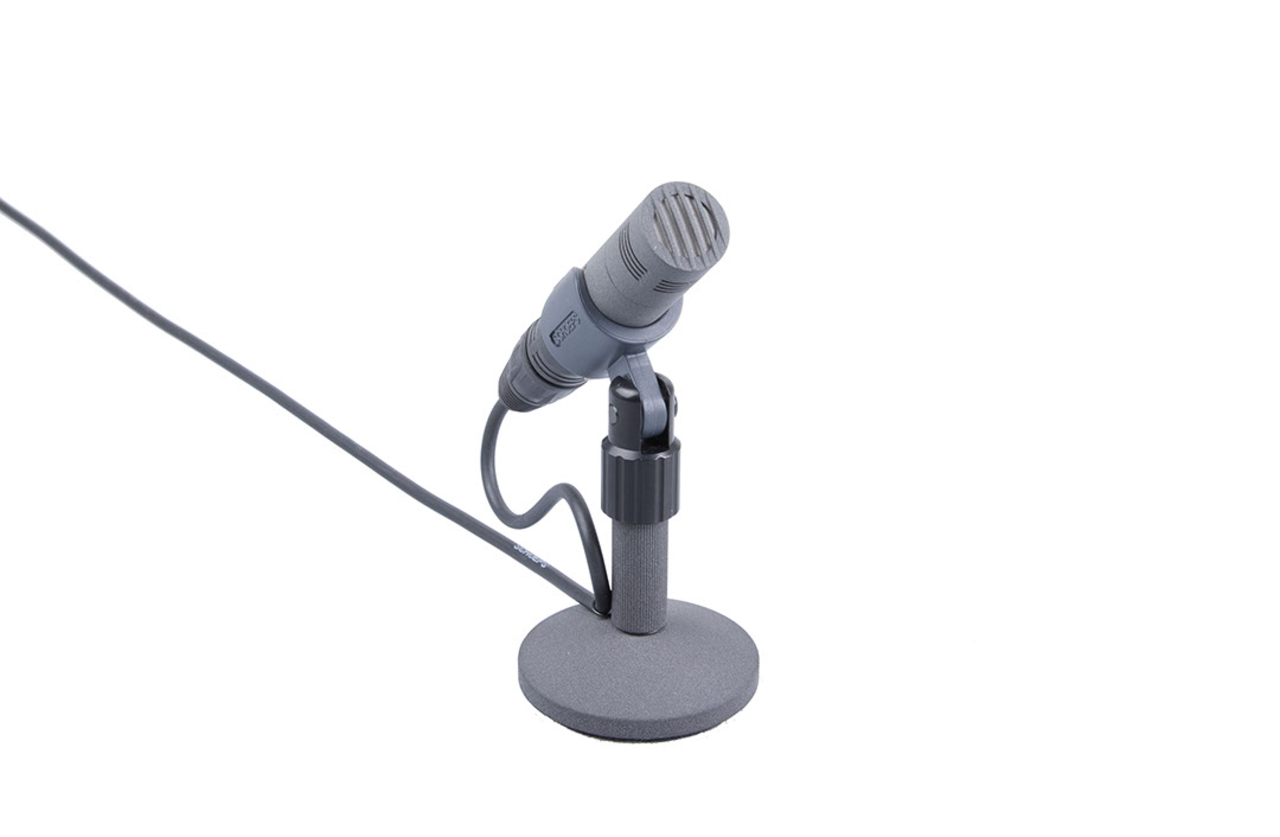

The adjustable table stand allows the microphone to be aimed toward the speaker. The base provides isolation from structure-borne noise and cable routing. The base and SG 20 combination is also available separately as the T 20.

The CMC 1 U has a balanced XLR output and operates on P12 or P48 phantom power. Connection to a computer requires an audio interface with a suitable microphone input and phantom power.

Specifications

• Polar pattern: cardioid
• Frequency range: 40 Hz–26 kHz
• Sensitivity: 15 mV/Pa
• Equivalent noise level: 14 dB-A; 24 dB CCIR
• Signal-to-noise ratio: 80 dB-A
• Maximum SPL with CMC 1: 135 dB SPL at THD < 0.5%
• Power supply: P12 / P48
• Connector: XLR-3M
• Microphone finish: matte gray

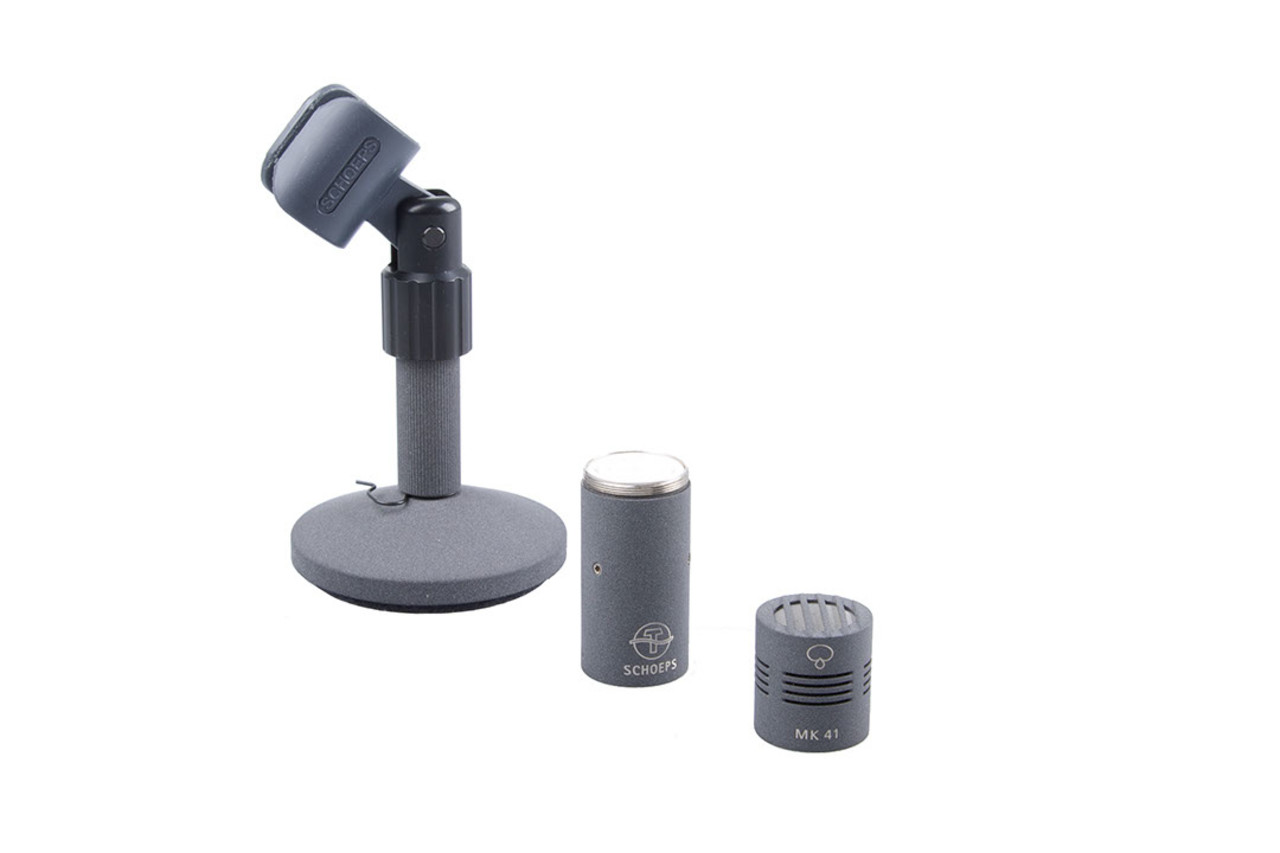

Included

• 1 × MK 4 microphone capsule
• 1 × CMC 1 U microphone amplifier
• 1 × table base
• 1 × SG 20 microphone clamp, 2026 version
• Wooden storage case

Optional pop protection

The B 1 D and larger B 5 D are available separately for speech applications. A pop shield, XLR cable and audio interface are not included.
