Sonosax R4+ 4ch Option Card

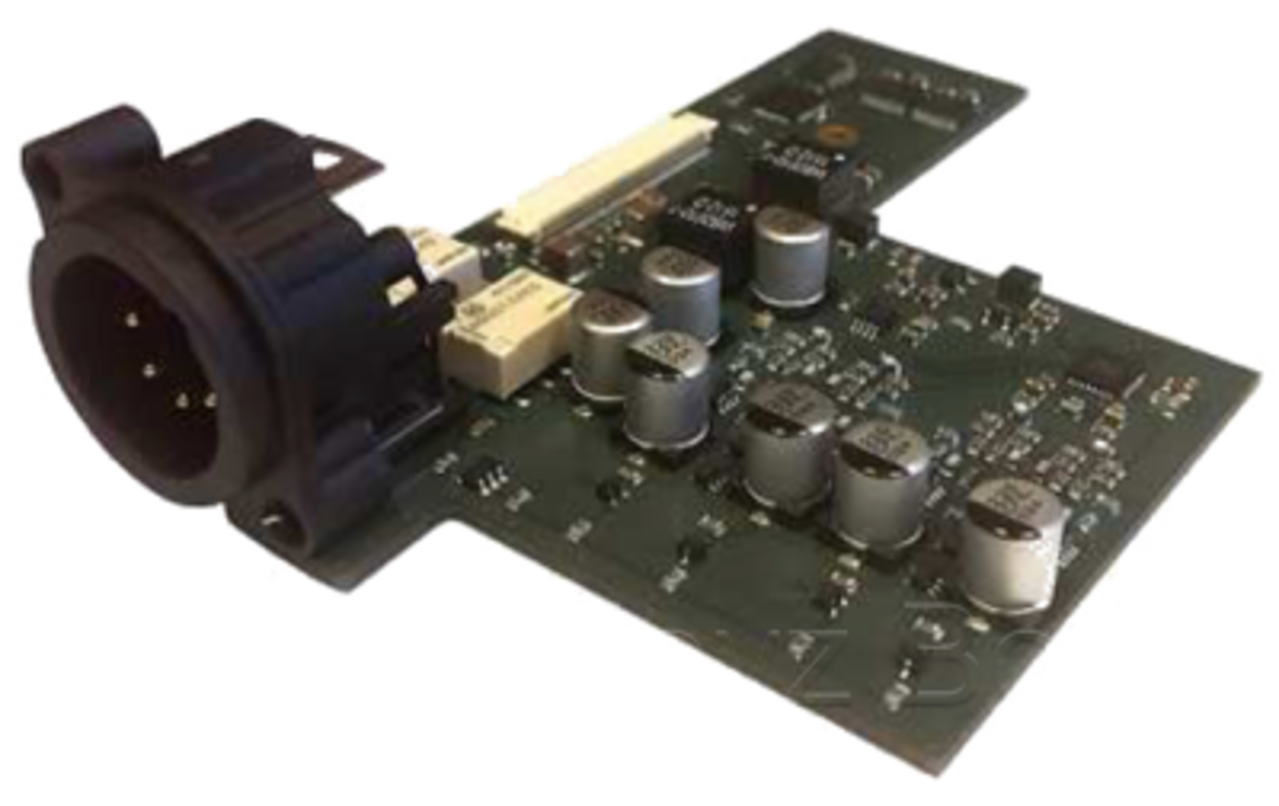

Sonosax 4CH OUT on XLR-5M option card [024281]

The Sonosax 4CH OUT on XLR-5M option card is an expansion card for the Sonosax SX-R4+ recorder, providing four additional output channels via a single XLR-5M connector. The card supports both analog and AES3 digital outputs and can be configured per application.

The XLR-5M pinout allows flexible use, including balanced and unbalanced analog outputs as well as AES3 digital outputs. The card supports sampling rates up to 192 kHz.

Main Features

• Option card for Sonosax SX-R4+.
• Four additional output channels via XLR-5M.
• Support for analog and AES3 digital outputs.
• 24-bit audio with sampling rates up to 192 kHz.

Specifications

• Connector: XLR-5M.
• Sampling rate: up to 192 kHz.

Pinout

• Pin 1: Ground (GND).
• Pin 2: Channel 1 HI (balanced) / channel 1 (unbalanced) / AES1-2 HI.
• Pin 3: Channel 1 LO (balanced) / channel 2 (unbalanced) / AES1-2 LO.
• Pin 4: Channel 2 HI (balanced) / channel 3 (unbalanced) / AES3-4 HI.
• Pin 5: Channel 2 LO (balanced) / channel 4 (unbalanced) / AES3-4 LO.

Analog outputs

• Output voltage: ±4.2 VRMS (balanced), 4.2 VRMS (unbalanced).
• Signal-to-noise ratio: 114 dB balanced, 110 dB unbalanced (A-weighted).

AES outputs

• 24-bit resolution.
• AES3 transformer-balanced outputs.

Included

• Sonosax 4CH OUT on XLR-5M option card [024281].
