Cinela PIANI-3-MKH30-2x8040

Cinela PIANI-3-MKH30-2x8040 Windshield System

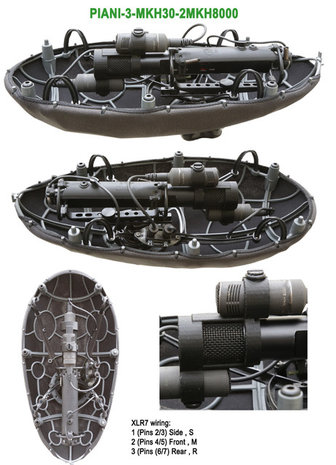

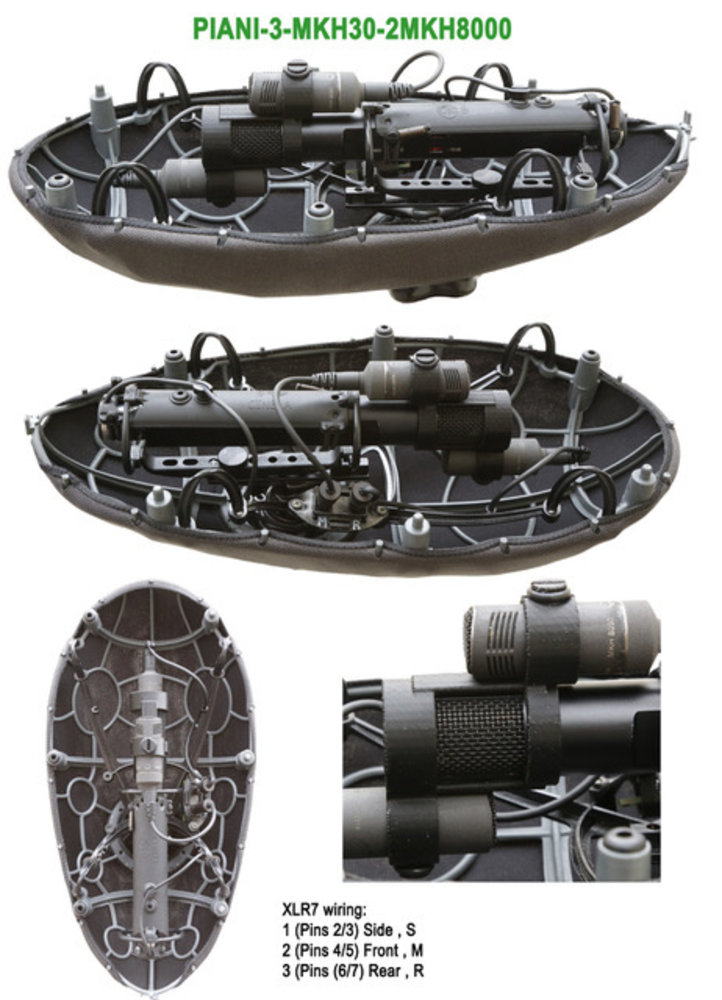

The Cinela PIANI-3-MKH30-2x8040 is a PIANISSIMO windshield system for a Double MS setup with a Sennheiser MKH 30 and two MKH 8040 or MKH 8050 microphones. The internal suspension and wiring are adapted to this combination.

In Double MS, two directional microphones face forwards and backwards. The figure-eight MKH 30 provides the shared side channel. The three signals remain separately available through the XLR7M output and can be decoded after recording.

Main features

• PIANISSIMO basket with internal suspension for three microphones.
• 3D fabric and synthetic fur windshield for wind protection.
• Suspension to reduce transmitted handling noise.
• 7-pin XLR output carrying the three microphone signals.

Compatibility

• Sennheiser MKH 30 for the figure-eight side channel.
• Two Sennheiser MKH 8040 or MKH 8050 microphones for the front and rear channels.

Specify the exact microphone combination when ordering so that the suspension and wiring can be matched to it.

Specifications

• Model: PIANI-3-MKH30-2x8040.
• Product series: PIANISSIMO.
• Configuration: Double MS, three microphone channels.
• Output: 7-pin XLR male.

Included

• 1 × complete PIANISSIMO windshield system with suitable suspension, internal wiring and 3D fabric.
• 1 × synthetic fur windshield; version and color as ordered.
• 1 × polycarbonate protective transport shell.

Microphones, external extension cable and breakout cable not included.
