AudioRoot eSMART QUAD

AudioRoot eSMART QUAD

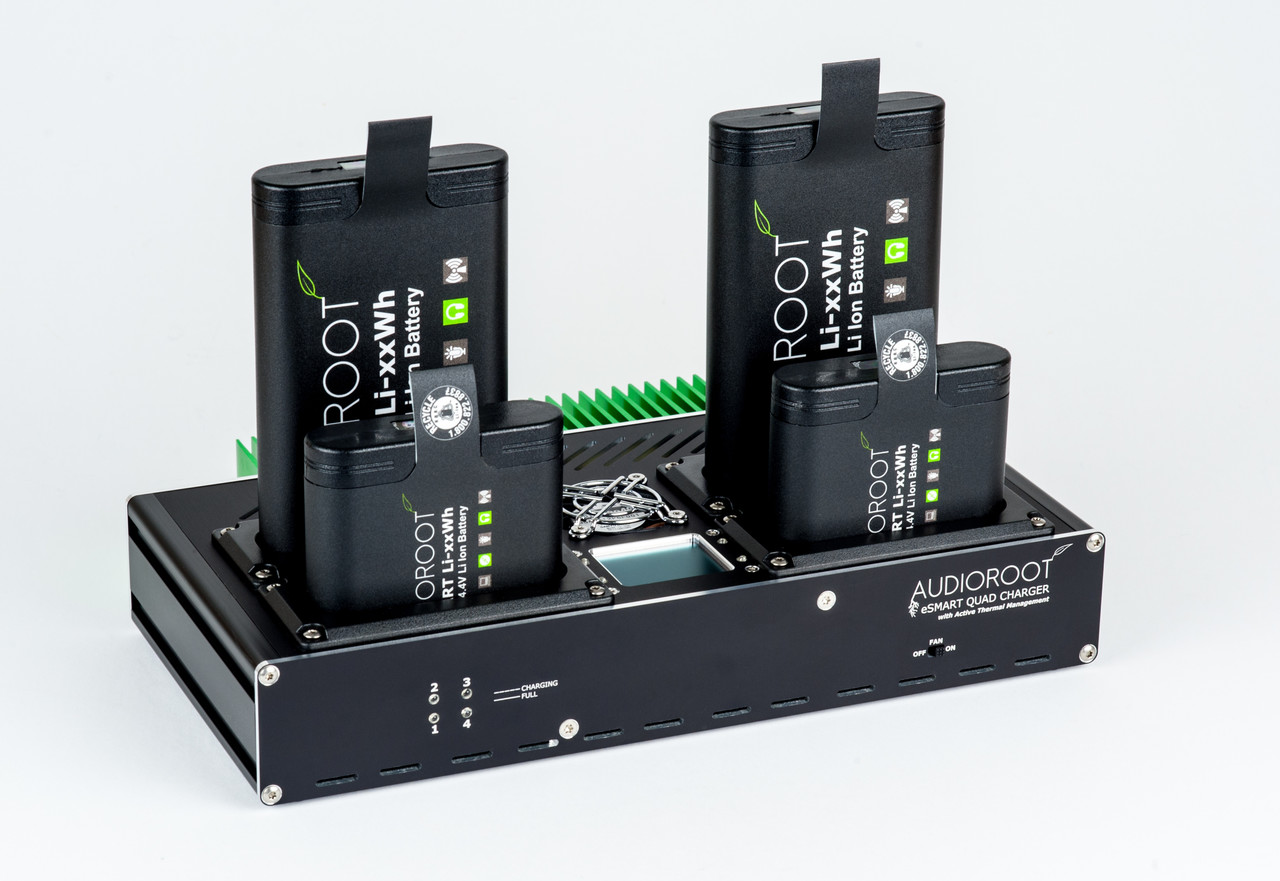

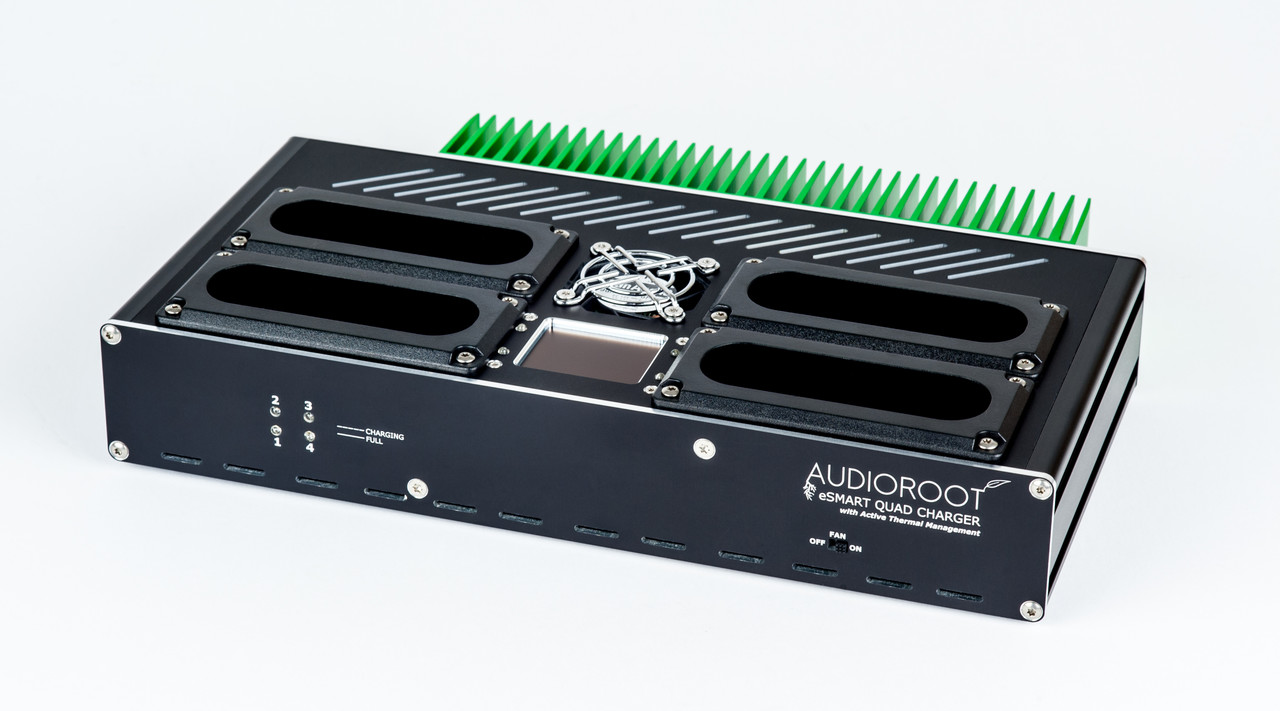

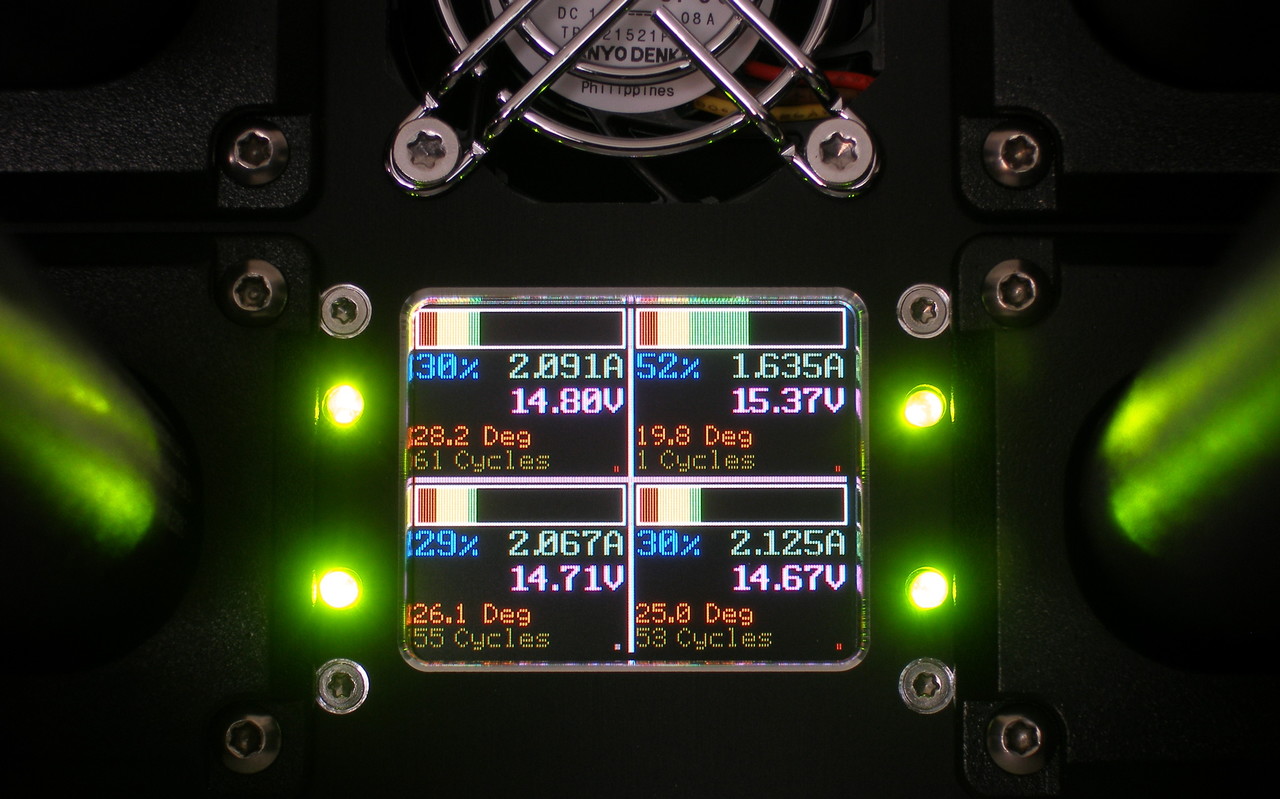

The AudioRoot eSMART QUAD is a four-bay desktop charger for eSMART lithium-ion batteries. All four batteries can charge simultaneously at up to 2 A per bay. The colour OLED displays each battery's capacity, charging current, voltage, temperature and cycle count.

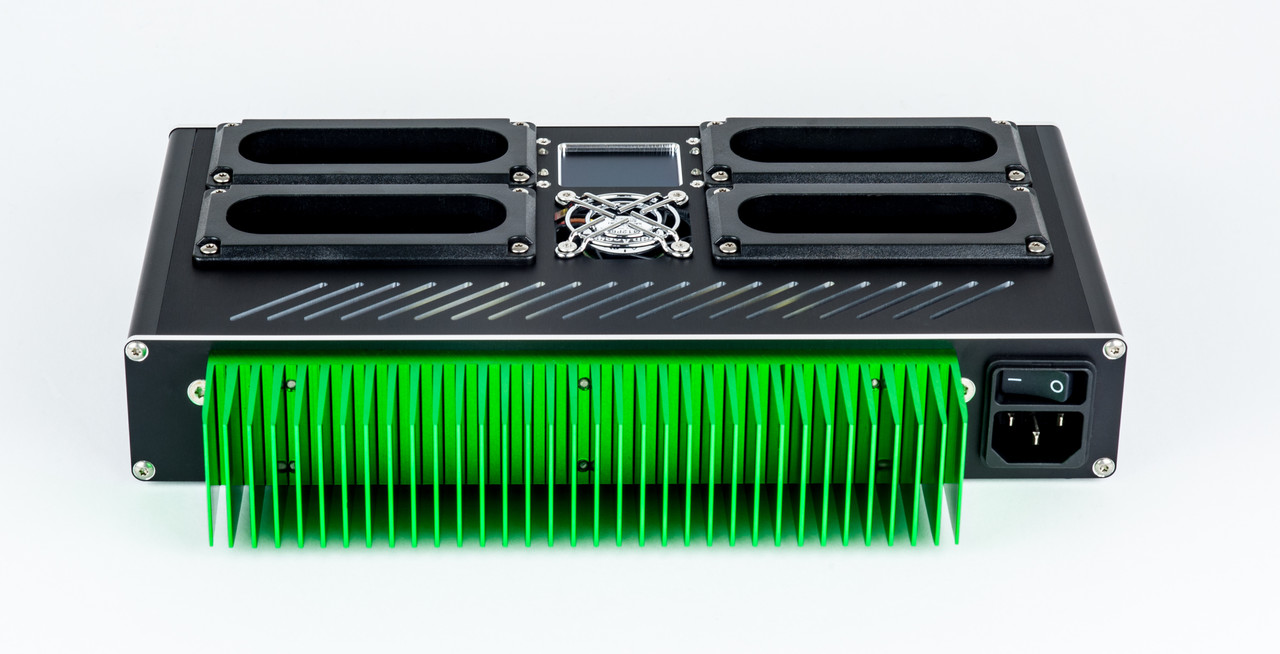

Its thermal management system combines a PWM-controlled fan with automatic charging-current adjustment. The fan can be switched off when fan noise is undesirable. The charger then limits charging current when necessary to prevent overheating, which can increase charging time.

Main Features

• Four bays for simultaneous charging.
• Charging current up to 2 A per bay.
• 160 × 128-pixel colour OLED.
• Separate charging-status LED for each battery.
• Switchable fan and adaptive thermal management.
• Anodised aluminium housing.

Specifications

• AC input: 90–240 V.
• Power: 150 W.
• Mains inlet: IEC C14.
• Dimensions: 270 × 176 × 53 mm.
• Weight: 1.6 kg.

Included

• AudioRoot eSMART QUAD desktop charger.
• AC power cable.
• User manual.

Batteries are not included.

Compatibility and Other Chargers

For the eSMART lithium-ion battery range: Li-48neo, Li-49Wh, Li-96neo and Li-98Wh.

The eSMART DUAL charges two batteries simultaneously, while the eSMART MONO provides one bay with an OLED display. Portable single-battery options are the mains-powered eLC-SMB and USB-C-powered TINY-C.
