PSC FCPII

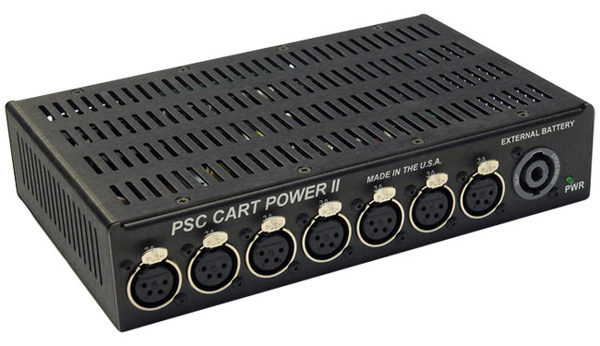

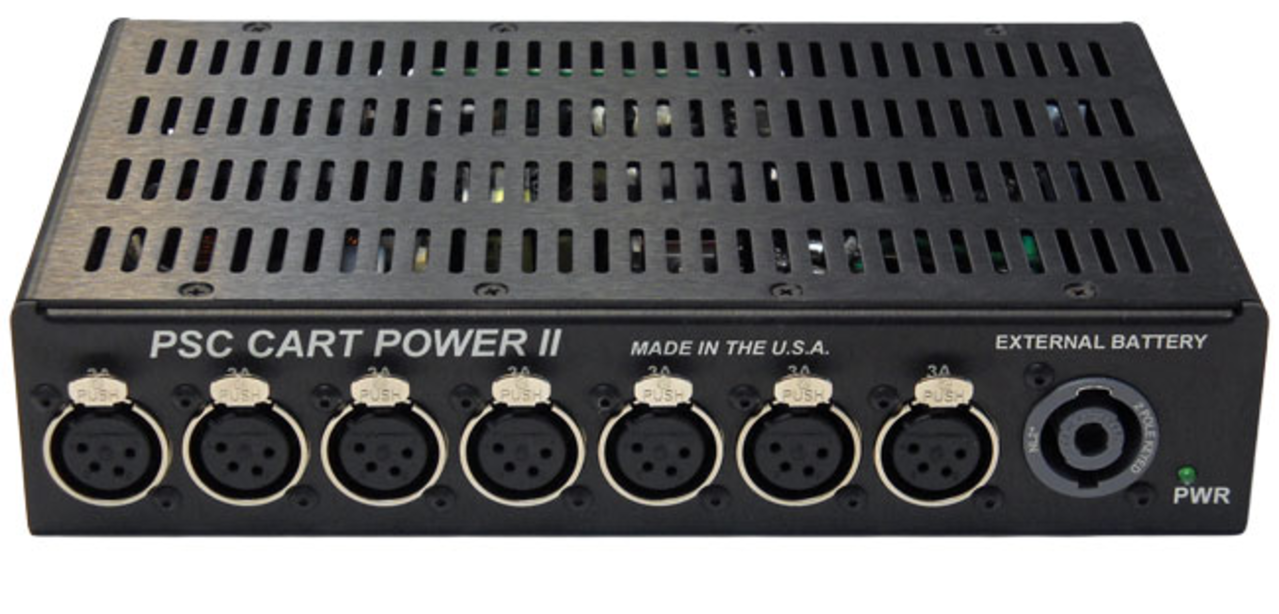

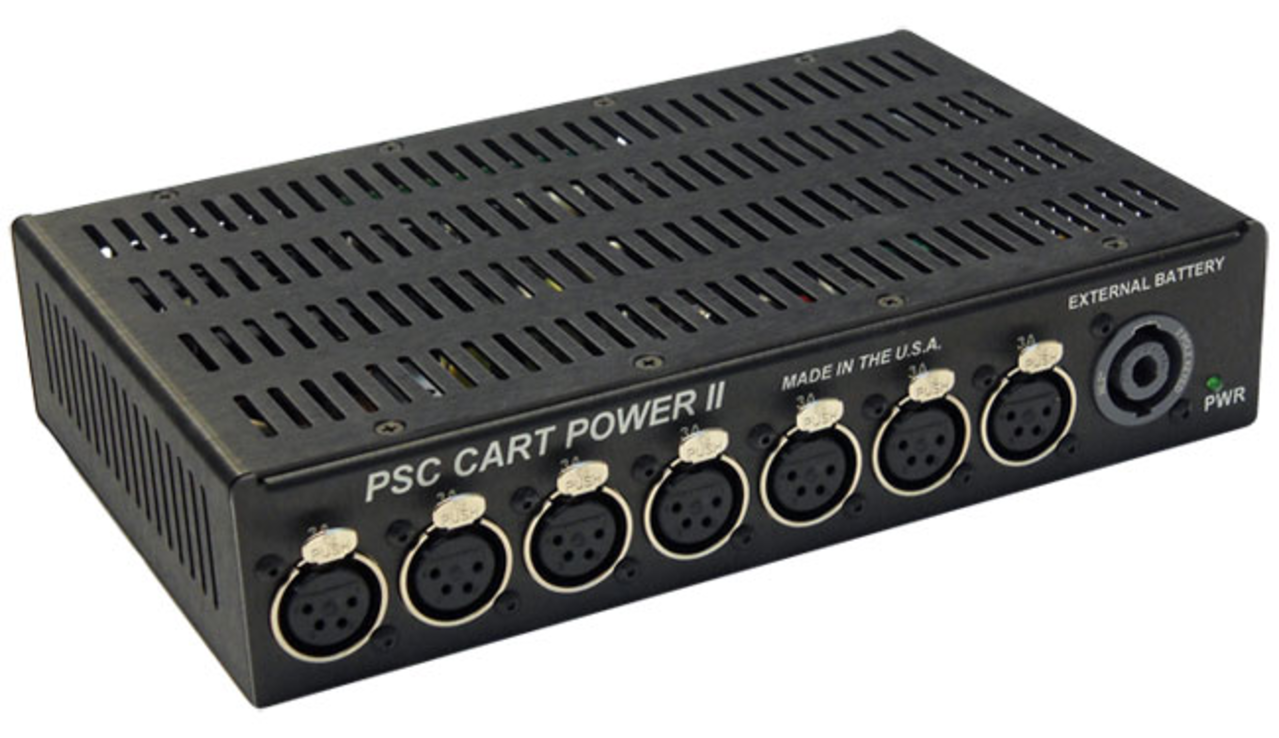

PSC FCPII – Cart Power II Power Distribution Unit

The Cart Power II is a 12V power distribution system for sound carts, designed to run on AC mains power or external 12V batteries. When both sources are connected, it functions as an uninterruptible power supply. It delivers up to 10 amps via seven independently protected XLR outputs. Each output is equipped with a resettable Polyfuse and PSC Quiet Power Technology™ EMI/RFI filter. In the event of power loss, the unit switches silently to battery operation.

Main Features

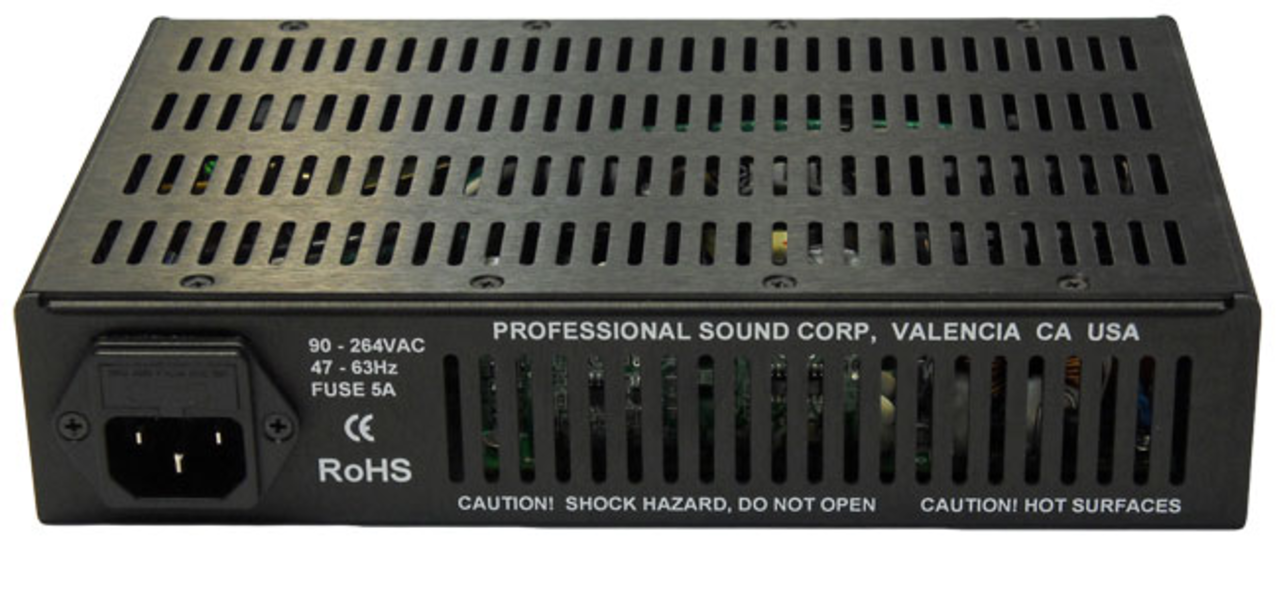

• Operates on 90–264 Vac (47–63 Hz) or 12V DC (LiFe, Li-ion, SLA)
• Automatic failover to battery power when AC is lost
• Seven 4-pin XLR outputs, each protected by Polyfuse
• Total output current: 10 amps
• Individual output current: 3 amps
• PSC Quiet Power Technology™ with EMI/RFI filters per output
• No charging function – does not charge external batteries

Specifications

• Dimensions: 21.6 × 14 × 4.4 cm
• Weight: 1 kg (2.2 lbs)
• DC output voltage: 13.8 Vdc (via AC input)
• DC input: SpeakOn, 2-pole
• Output connectors: 7 × XLR, female, 4-pin
• Output pinout: Pin 1 = –, Pin 4 = +

Included

• PSC Cart Power II FCPII unit
