Schoeps AC 20

Schoeps AC 20 [161006]

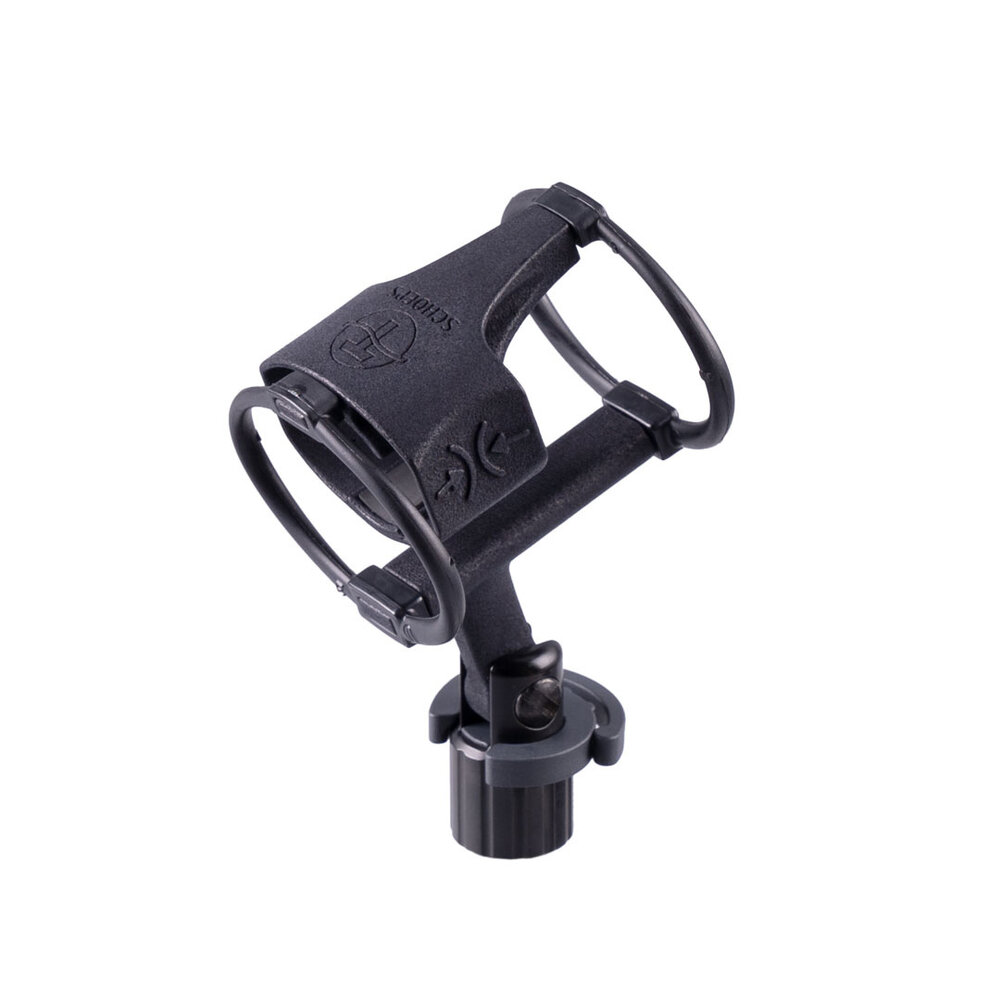

The Schoeps AC 20 is a microphone shock mount with CINELA isolators for microphones with a diameter of 20 mm. It reduces vibration transmitted from the stand to the microphone and is intended for studio and stage use.

Insert or remove the microphone by squeezing the sides of the holder. The microphone’s tilt angle is adjustable. The included cable clip secures the microphone cable at the suspension.

Main Features

• CINELA isolators for mechanical isolation.
• For microphones with a diameter of 20 mm.
• Interchangeable soft and hard isolators for different microphone configurations.
• Adjustable tilt angle.
• Cable clip and thread adapters included.

Specifications

• Microphone diameter: 20 mm.
• Isolators: E0, soft; E1, hard.
• Stand connection: 5/8"-27 NS female thread.
• Included adapters: for 3/8" and 1/2" stand threads.

Choosing isolators

The interchangeable isolators allow the suspension to be adapted to the microphone and its accessories. Different stiffnesses can be used at the front and rear.

• CMC 1 U with an MK capsule: Schoeps recommends E0.
• CMC 6 with an MK capsule: Schoeps recommends E0 or E1.

Included

• AC 20 microphone shock mount.
• Cable clip.
• Two pairs of isolators: one soft pair and one hard pair.
• Thread adapters for 3/8" and 1/2".

Microphone and stand are not included.

Compatibility

Schoeps lists microphone configurations using the CMC 1 U, CMC 6 U and CMD 42. Choose the isolators to suit the complete configuration, including any accessories.
