Schoeps BL CCM 3

Schoeps BL CCM 3 [121501]

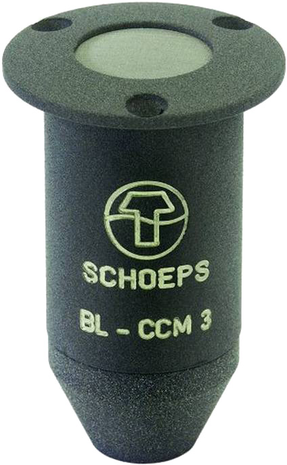

The Schoeps BL CCM 3 is a compact boundary layer microphone for permanent installation in a table or lectern. This special version of the CCM 2XS L includes a mounting flange for installing the microphone flush with the surface.

When correctly installed, the microphone picks up sound from the half-space above the tabletop. Placement at the boundary avoids the comb filtering caused by the difference in path length between direct sound and the reflection from that surface. Schoeps also identifies backup microphone use in speaker tables as an application.

Main Features

• Boundary layer microphone with a hemispherical pickup pattern.
• Mounting flange for flush installation in tables and lecterns.
• Integrated microphone electronics; no separate Colette amplifier required.
• Lemo connection with an included cable to XLR3M.
• Operates on P12 or P48 phantom power.
• Matte gray finish.

Specifications

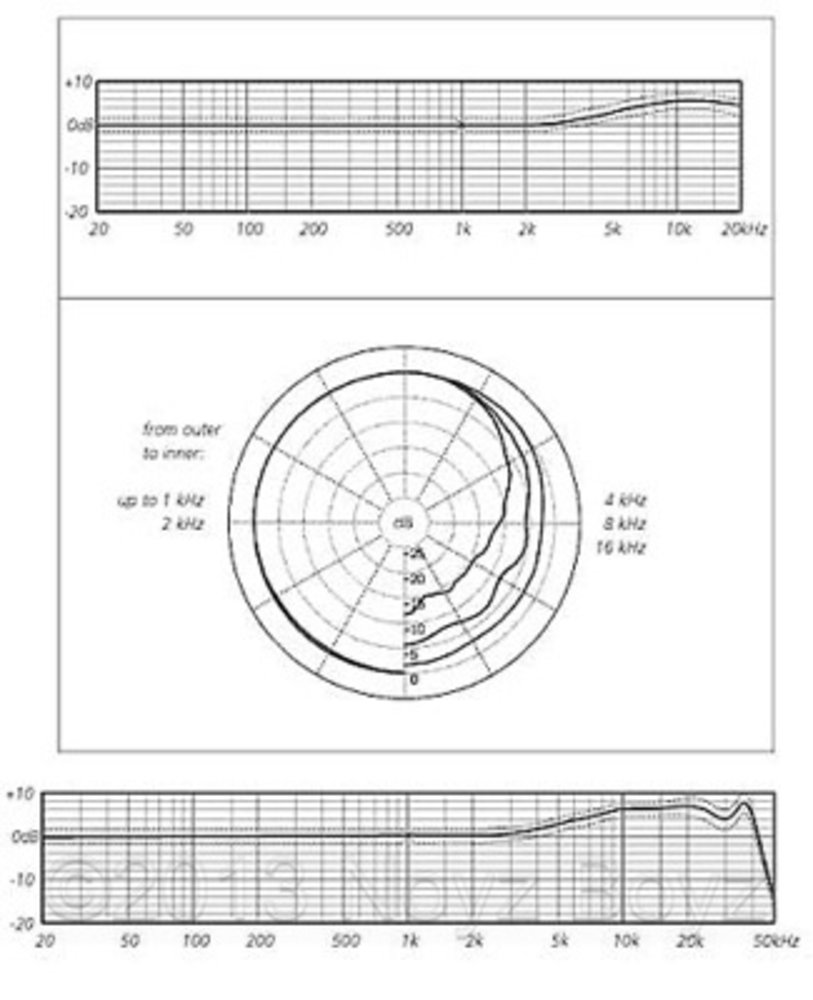

• Pickup pattern when installed: hemispherical.
• Signal: analog, single channel.
• Microphone connection: Lemo.
• Connection through the included cable: XLR3M.
• Maximum SPL: 138 dB SPL on P48; 130 dB SPL on P12, at less than 0.5% distortion.
• Maximum output voltage: 2.6 V into a 2 kΩ load.
• Output impedance: 90 Ω at 1 kHz.
• Minimum recommended load impedance: 2 kΩ.
• Low-cut filter: 20 Hz, 12 dB per octave.
• Current consumption: 4 mA on P48; 3.6 mA on P12.
• Included cable length: 5 m.

Included

• BL CCM 3 installation microphone with mounting flange.
• K 5 LU [152004], 5 m connection cable from Lemo to XLR3M.

Connection and installation

Connect the included cable to an XLR3F microphone input providing P12 or P48 phantom power. Refer to the dedicated Schoeps BL CCM 3 dimensional drawing for the cutout and mounting requirements.
