Schoeps BLM 03 C

Schoeps BLM 03 C [131501]

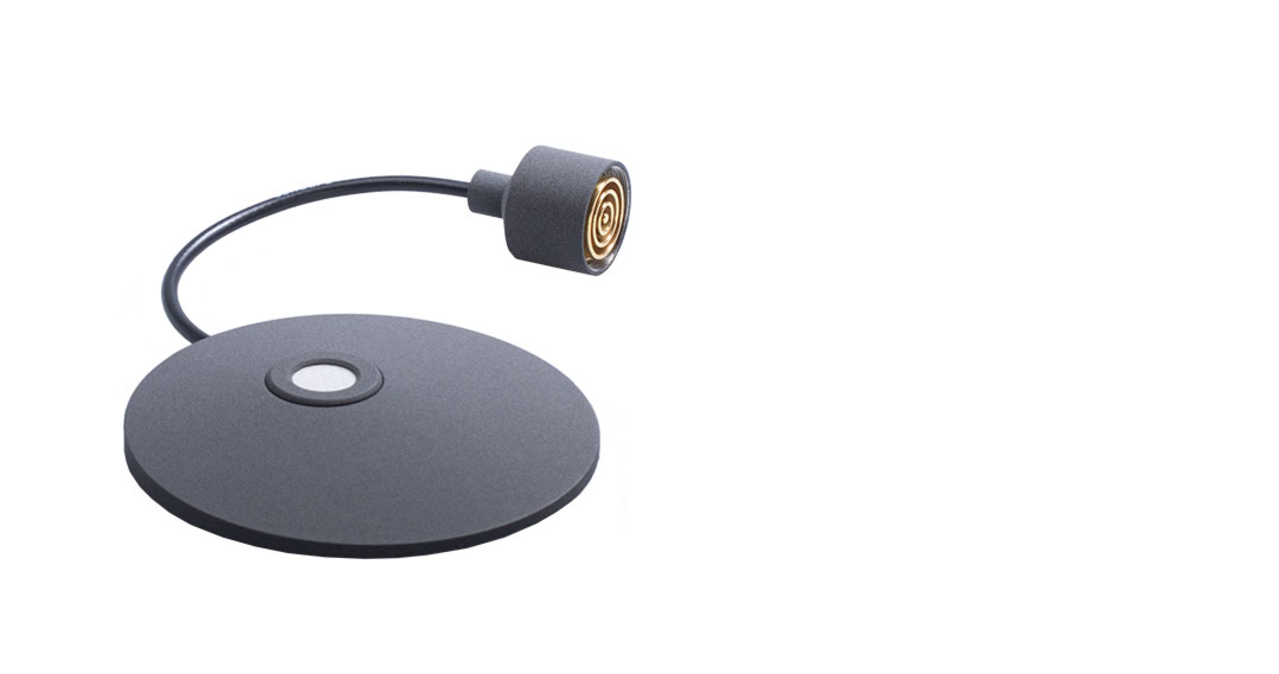

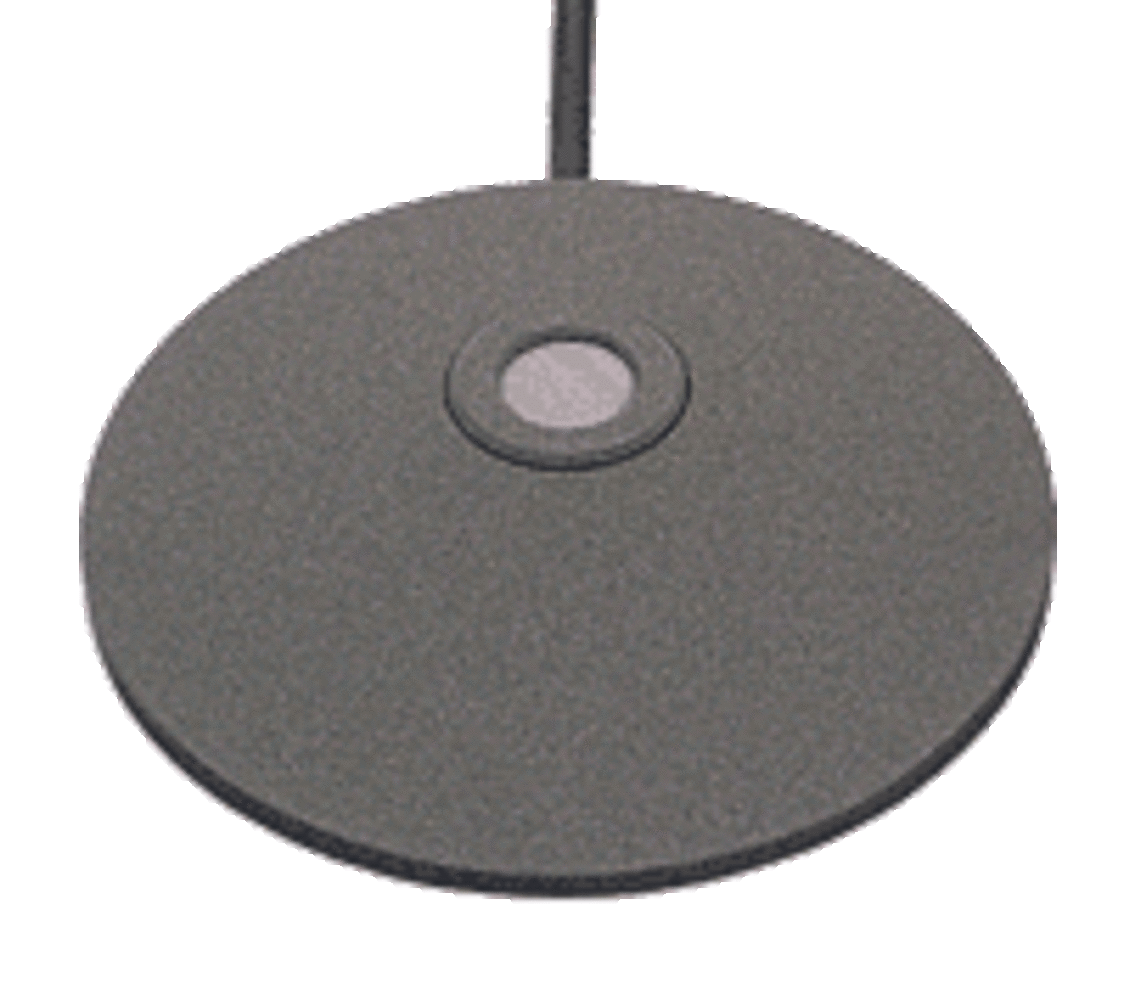

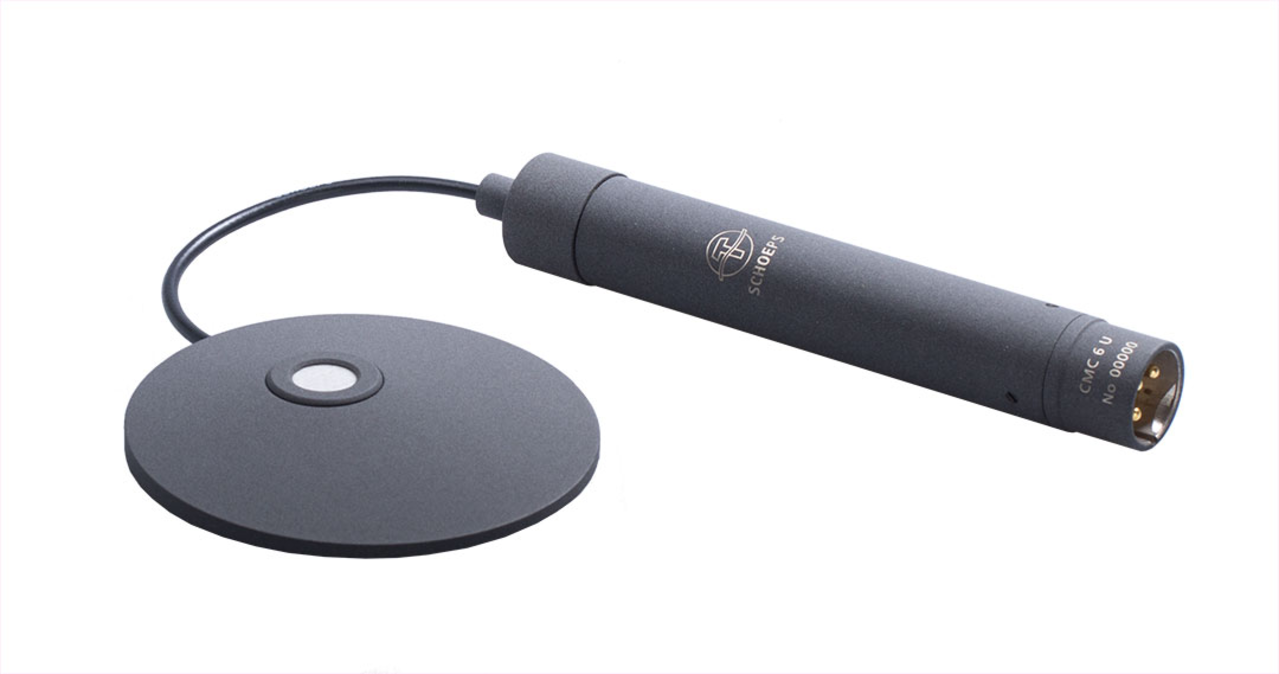

The Schoeps BLM 03 C is a miniature boundary layer microphone capsule for the modular Colette system. Its fixed 5 m cable connects to a separate CMC microphone amplifier. Together, these components form a complete microphone.

Measuring 80 mm in diameter and 8.6 mm in height, the BLM 03 C can be placed unobtrusively on a conference table, on an altar or inside a grand piano. The capsule picks up sound from the half-space above its mounting surface.

Main Features

• Compact boundary layer microphone capsule with a hemispherical pickup pattern.
• Fixed 5 m cable for connection to a Colette CMC microphone amplifier.
• Suitable for speech, grand piano and room recording.
• Low-profile housing with a matte gray Nextel finish.

Placement

Place the BLM 03 C on a sufficiently large, sound-reflecting surface. A table may be sufficient for a panel discussion; Schoeps recommends a larger surface for most music recordings. Inside a grand piano, it can be used with the lid open or closed.

Specifications

• Pickup pattern: hemispherical.
• Frequency range: 20 Hz – 26 kHz; 20 Hz – 43 kHz with CMC 6xt.
• Sensitivity with CMC 6: 16 mV/Pa (-36 dB V/Pa).
• Equivalent noise level: 12 dB(A); 23 dB CCIR.
• Signal-to-noise ratio: 82 dB(A).
• Maximum SPL with CMC 6: 130 dB SPL at less than 0.5% distortion.
• Cable length: 5 m, permanently attached.
• Diameter: 80 mm.
• Height: 8.6 mm.
• Weight: 233 g.
• Finish: matte gray.

Included

• BLM 03 C boundary layer microphone capsule with fixed 5 m connection cable.

The CMC microphone amplifier is supplied separately.

Compatibility

• CMC 1 U: compact microphone amplifier with XLR output.
• CMC 1 L: compact microphone amplifier with Lemo connection.
• CMC 6 U: Colette microphone amplifier with XLR output.
• CMC 6xt: microphone amplifier for extended high-frequency response.

The BLM 03 C contains active electronics and cannot be combined with other active Colette accessories, such as KC cables and RC tubes. Its fixed cable connects directly to the CMC amplifier’s capsule connection.
