Schoeps CCM 2 K

Schoeps CCM 2 K [121002]

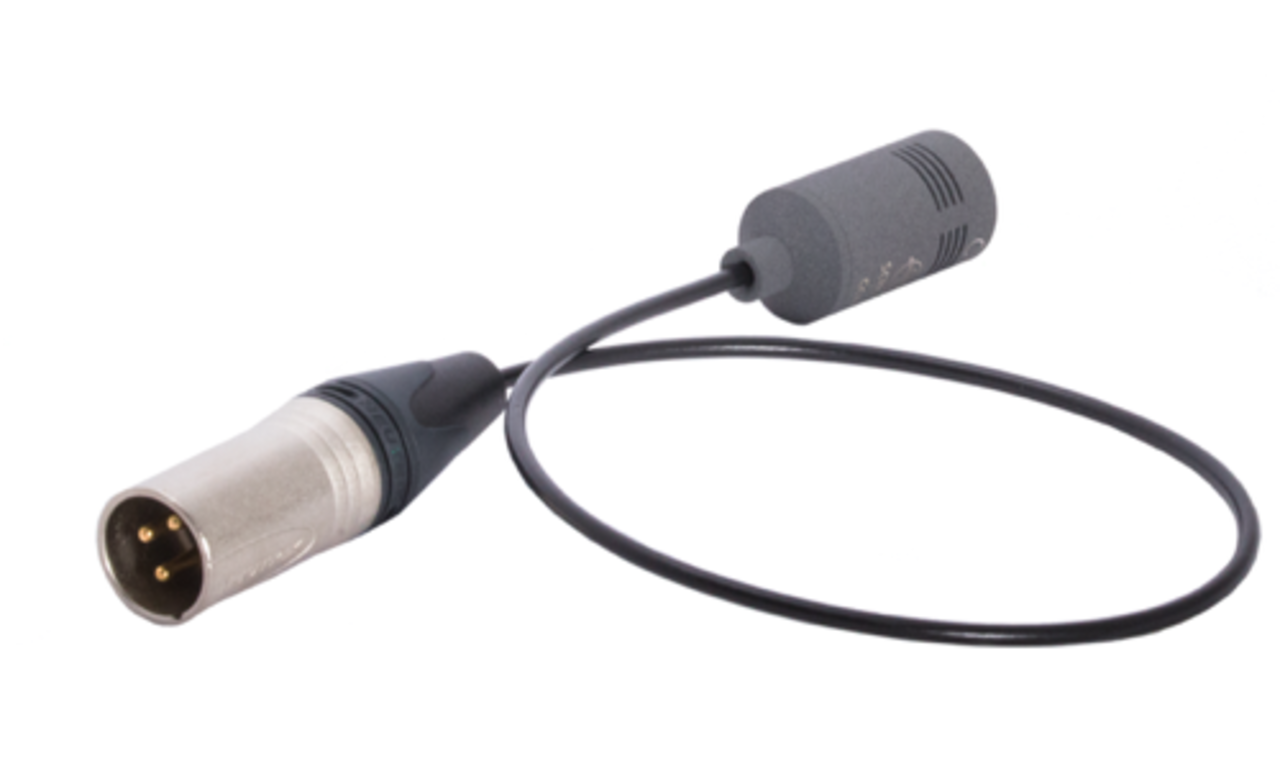

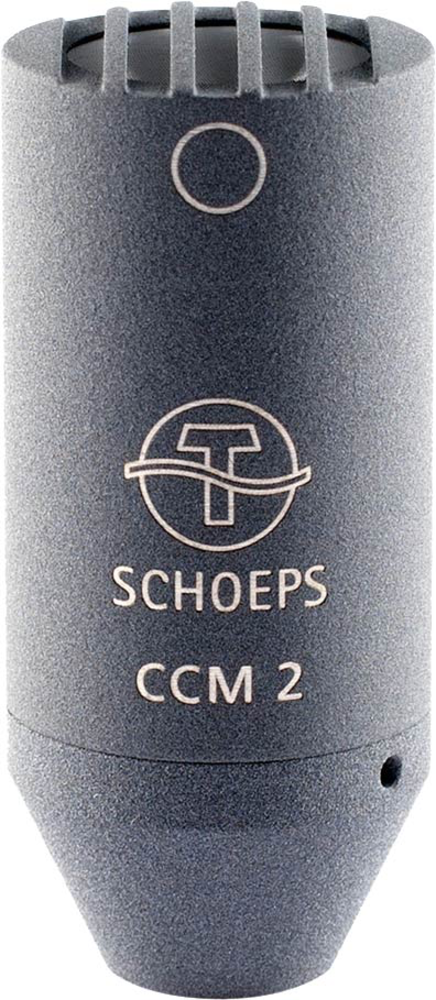

The Schoeps CCM 2 K is a compact omnidirectional condenser microphone with an integrated capsule and microphone amplifier. The K version has a fixed 5 meter cable with an XLR-3M connector for connection to a microphone input supplying phantom power.

Designed for direct sound

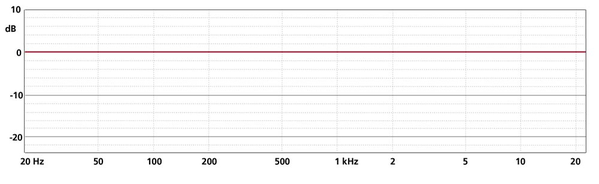

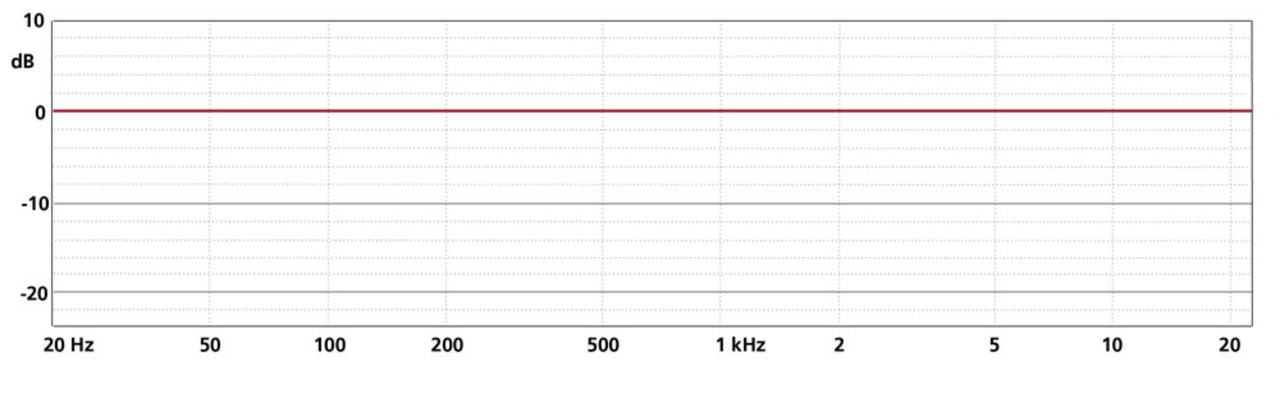

The CCM 2 K has a flat frequency response for sound arriving directly from the front of the capsule. This free-field equalization suits situations dominated by direct sound, such as close recordings of singers or instruments, or recordings in acoustically dry rooms.

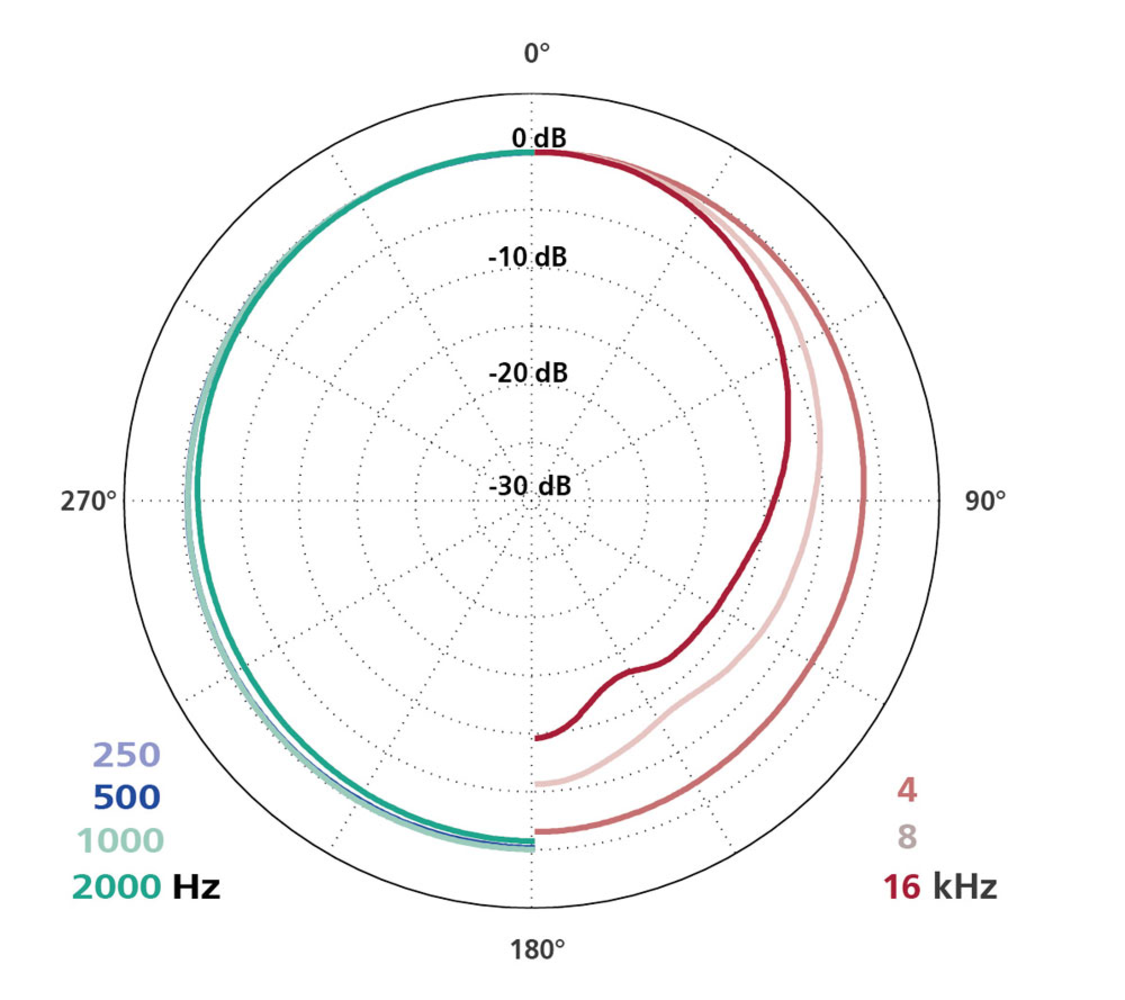

At high frequencies, even an omnidirectional microphone becomes somewhat directional. Capsule orientation therefore still affects the sound.

Specifications

• Polar pattern: omnidirectional
• Frequency range: 20 Hz–28 kHz
• Sensitivity: 17 mV/Pa
• Maximum SPL at less than 0.5% THD: 135 dB SPL with P48; 127 dB SPL with P12
• Low-cut filter: 20 Hz, 12 dB/octave
• Output impedance: 90 Ω at 1 kHz
• Minimum recommended load impedance: 2 kΩ
• Powering: P12 or P48 phantom power
• Current consumption: 3.6 mA with P12; 4 mA with P48

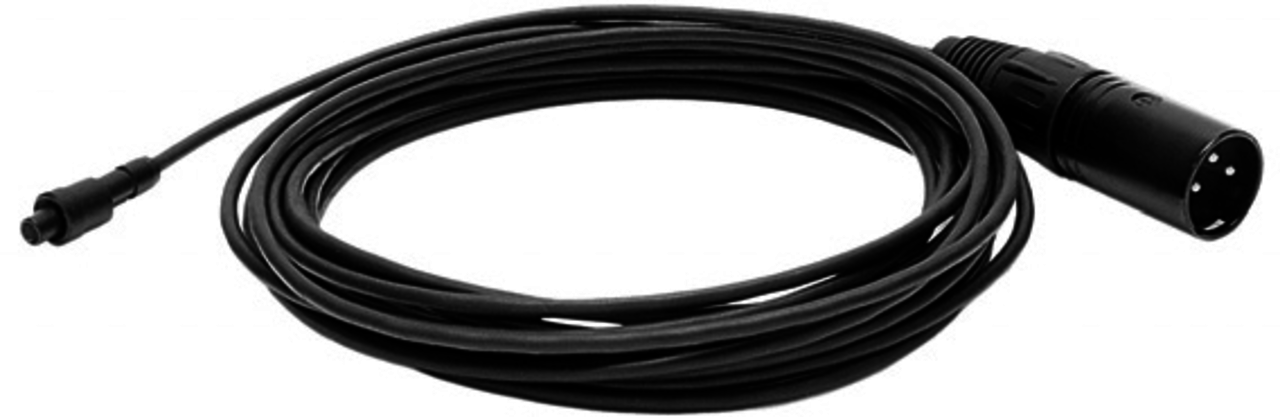

• Connection: fixed 5 meter cable with XLR-3M connector
• Finish: matte gray

Included

• Schoeps CCM 2 K microphone with fixed 5 meter connecting cable and XLR-3M connector

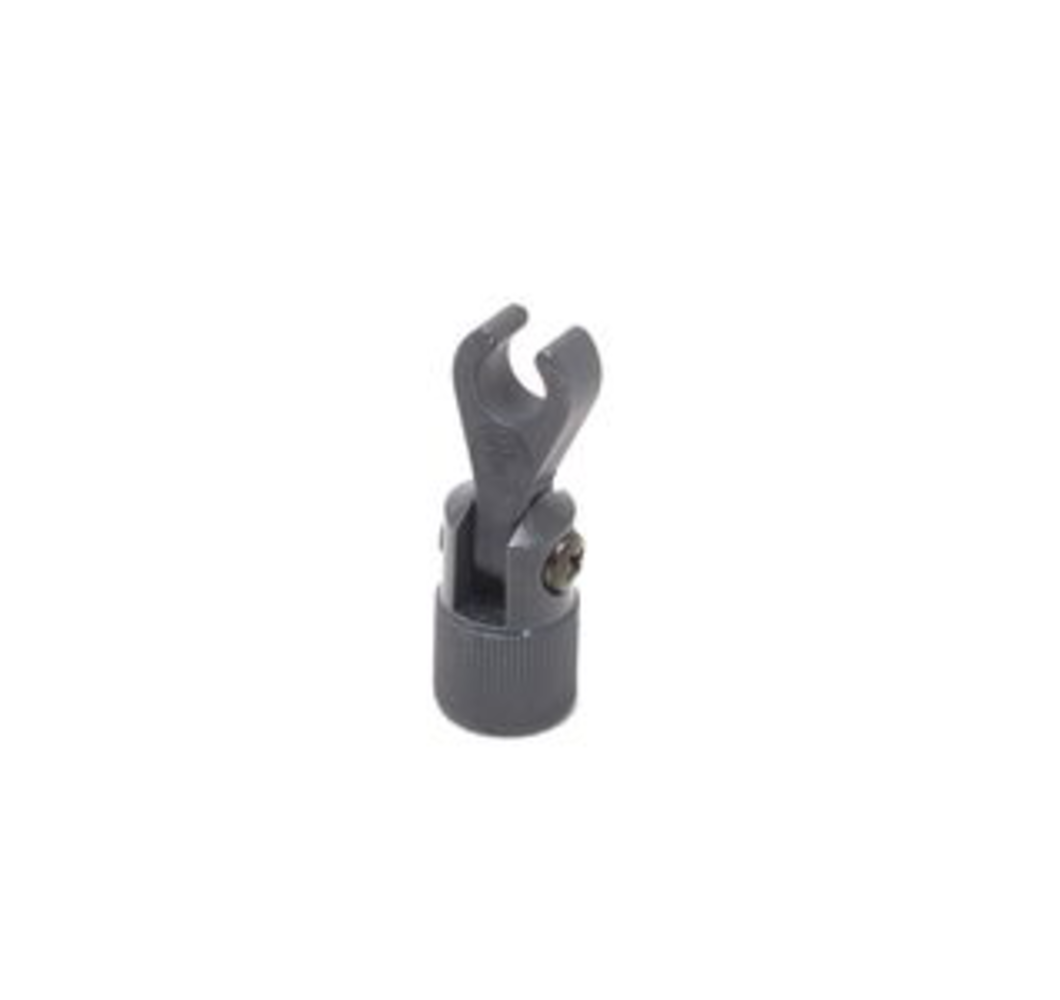

• SGC microphone clamp
• Wooden storage case

Other version

The CCM 2 L offers the same acoustic performance with a detachable cable and Lemo connection.
