Schoeps CCM 22 K

Schoeps CCM 22 K [121008]

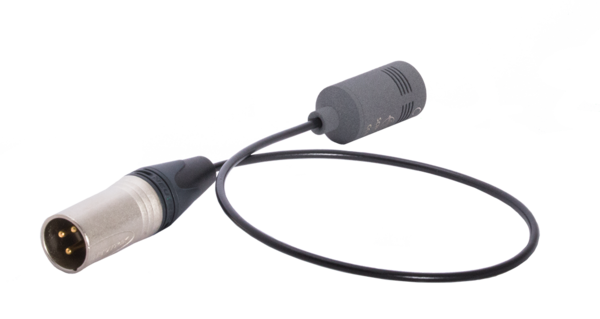

The Schoeps CCM 22 K is a compact condenser microphone with an open cardioid polar pattern. The capsule and microphone amplifier are integrated into one housing. The K version has a fixed 5 meter cable with an XLR-3M connector for connection to a microphone input supplying phantom power.

Open cardioid for spot pickup

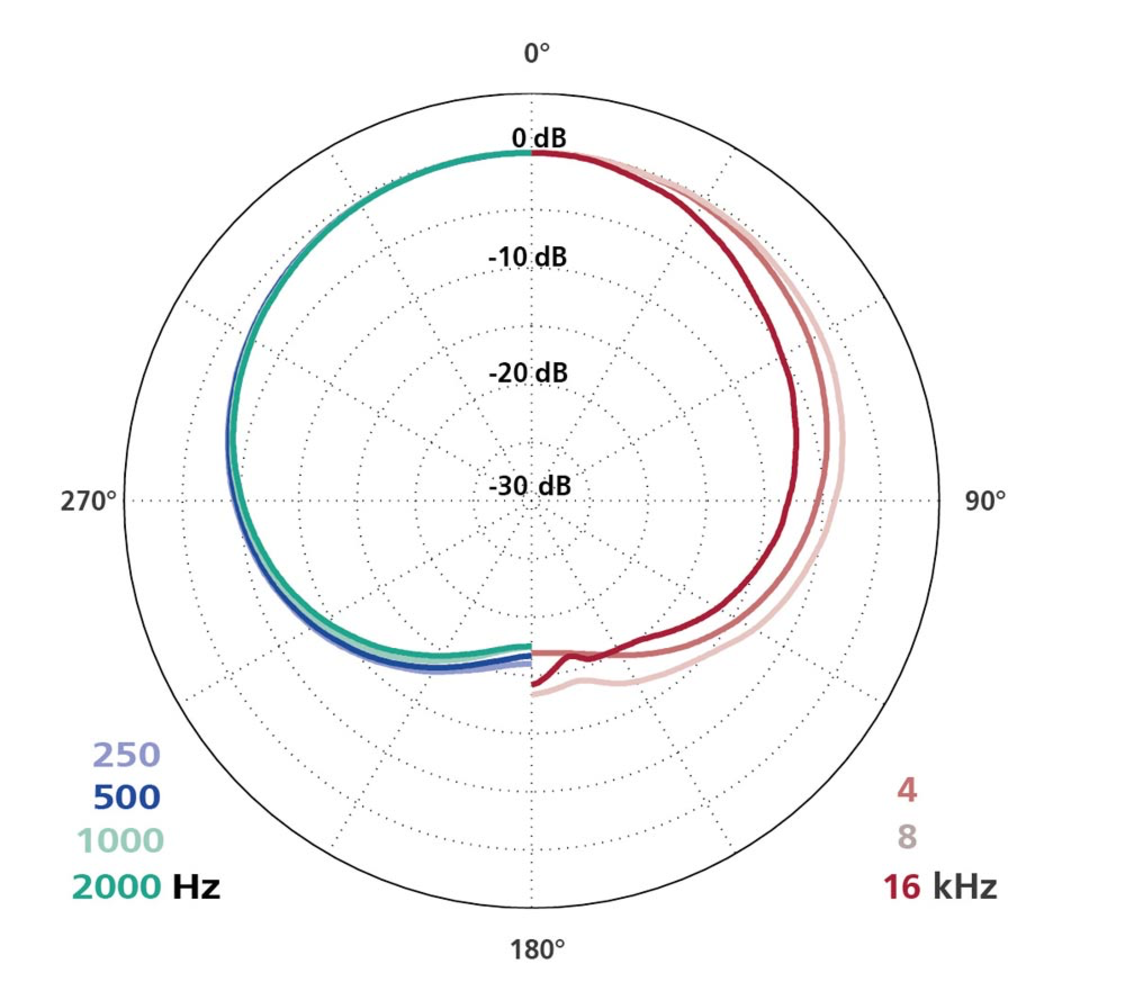

The CCM 22 K combines slightly broader coverage than a conventional cardioid with attenuation of sound arriving from the rear. Its polar pattern lies between those of the CCM 4 and CCM 21 and remains consistent across a broad frequency range.

This tuning suits spot pickup of individual instruments and instrument groups. Compared with the CCM 4, its bass response is somewhat more pronounced and its proximity effect is less strong. At close distances, placement still affects the amount of bass.

Specifications

• Polar pattern: open cardioid

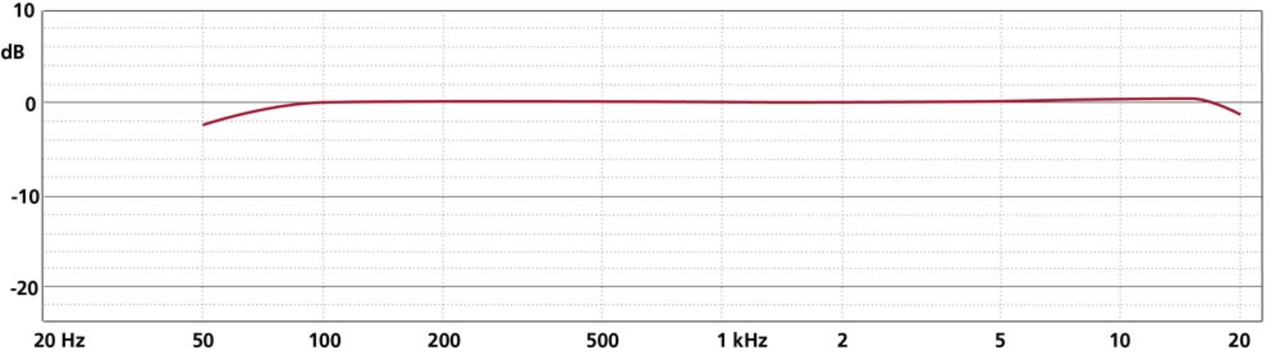

• Frequency range: 40 Hz–28 kHz
• Sensitivity: 15 mV/Pa
• Maximum SPL at less than 0.5% THD: 135 dB SPL with P48; 127 dB SPL with P12
• Low-cut filter: 20 Hz, 12 dB/octave
• Output impedance: 90 Ω at 1 kHz
• Minimum recommended load impedance: 2 kΩ
• Powering: P12 or P48 phantom power
• Current consumption: 3.6 mA with P12; 4 mA with P48
• Connection: fixed 5 meter cable with XLR-3M connector
• Finish: matte gray

Included

• Schoeps CCM 22 K microphone with fixed 5 meter connecting cable and XLR-3M connector

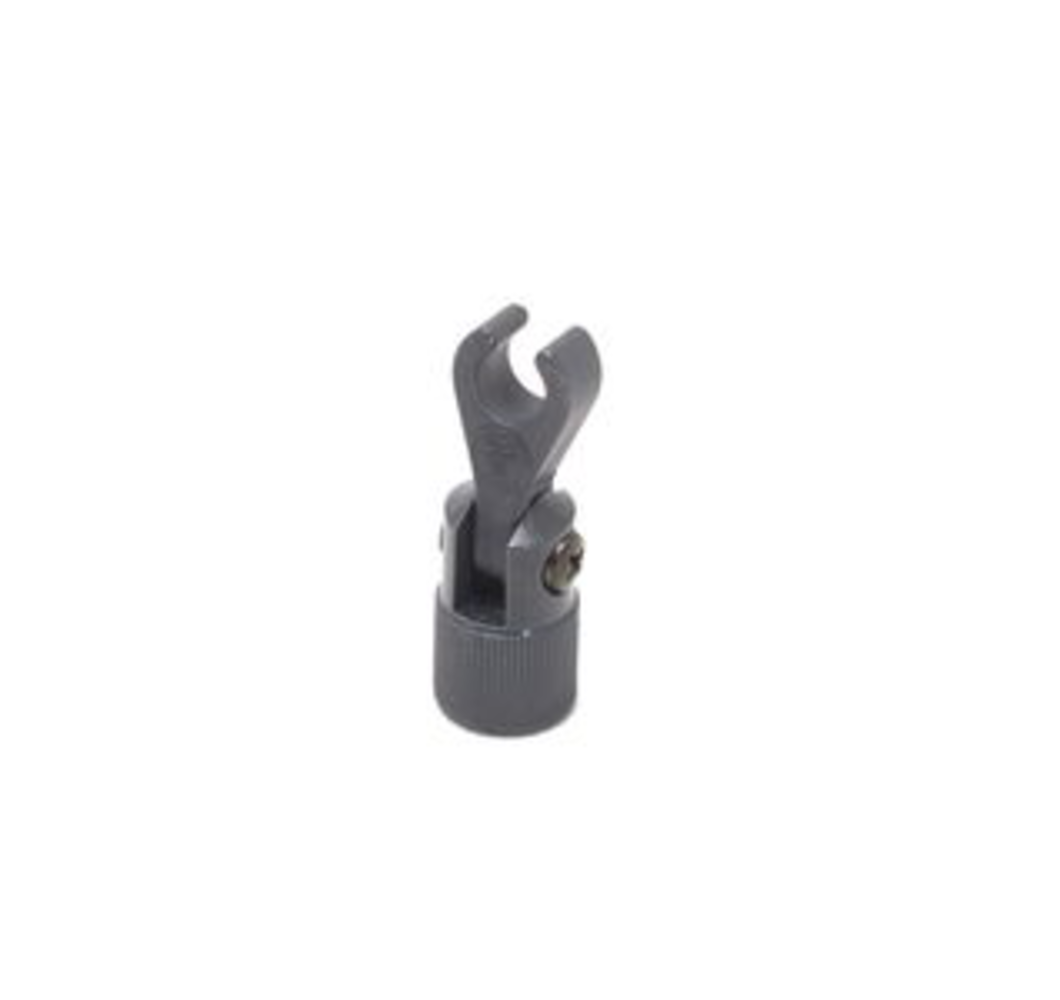

• SGC microphone clamp
• Wooden storage case

Other version

The CCM 22 L offers the same acoustic performance with a detachable cable and Lemo connection.
