Schoeps CCM 41V L

Schoeps CCM 41V L

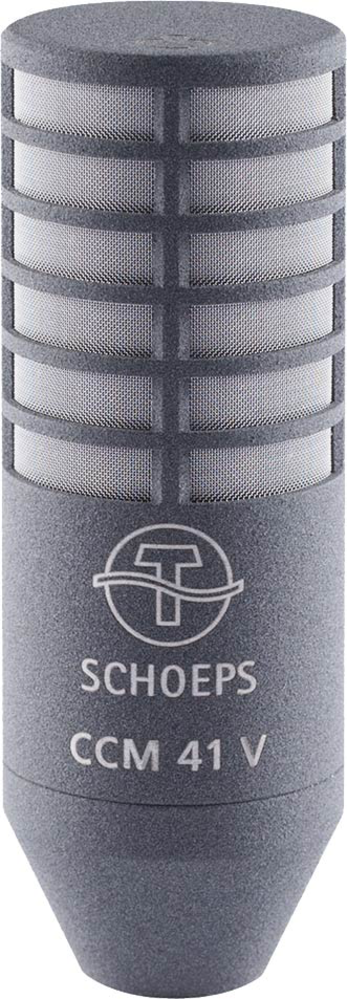

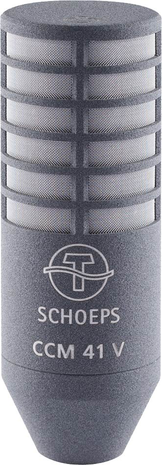

The Schoeps CCM 41V L is a compact supercardioid condenser microphone for music and speech recording. Its capsule and microphone amplifier are integrated into a single body. The side-address design facilitates placement in compact stereo arrays by reducing interference between the microphone bodies.

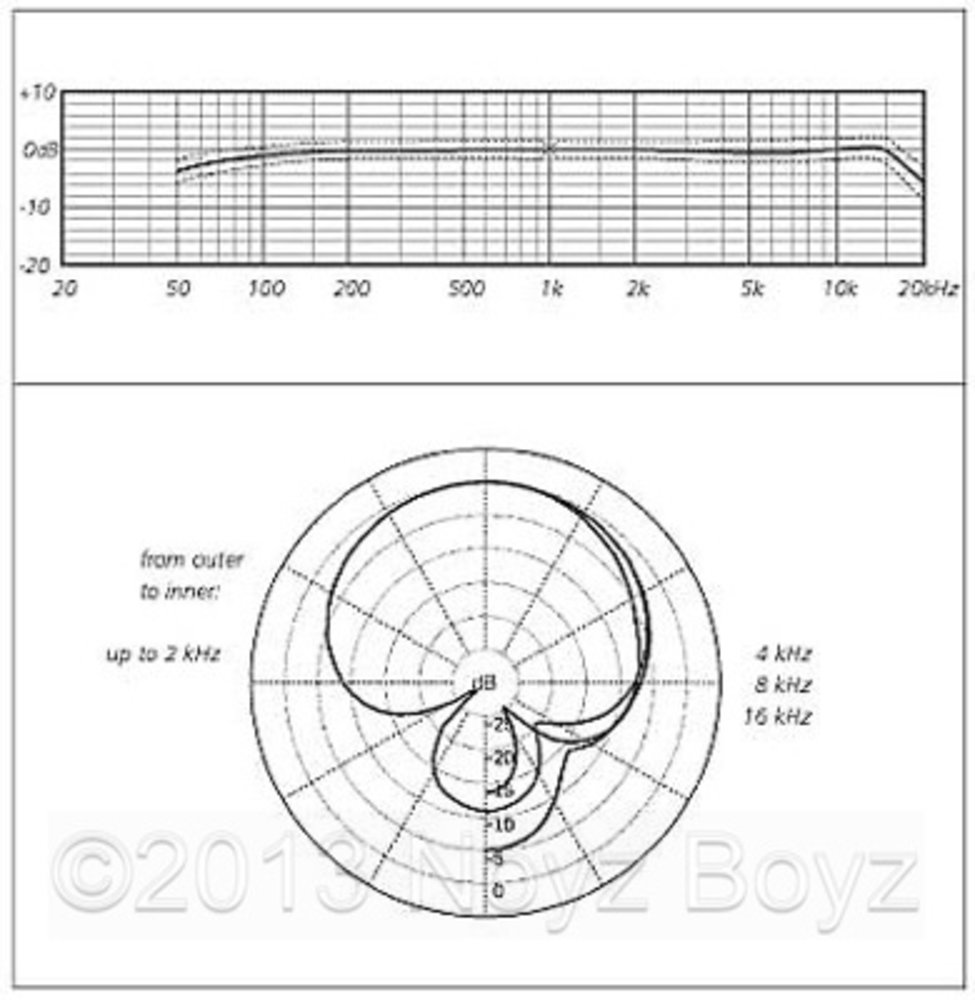

The polar pattern remains consistent across a broad frequency range, helping preserve tonal balance as a sound source moves off axis. The CCM 41V L can serve as a spot microphone or main microphone, including the sideways-facing supercardioid channels in OCT arrays.

Main Features

• Supercardioid polar pattern with side-address pickup
• Integrated capsule and amplifier in a compact body
• Consistent directionality with low off-axis coloration
• Balanced analog output via a Lemo connection
• Detachable K 5 LU cable terminating in XLR3M
• Operates on P12 or P48 phantom power
• Built-in low-cut filter to reduce the effects of infrasonic interference

Specifications

• Microphone type: condenser
• Polar pattern: supercardioid
• Pickup orientation: side-address

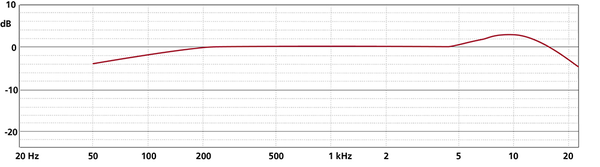

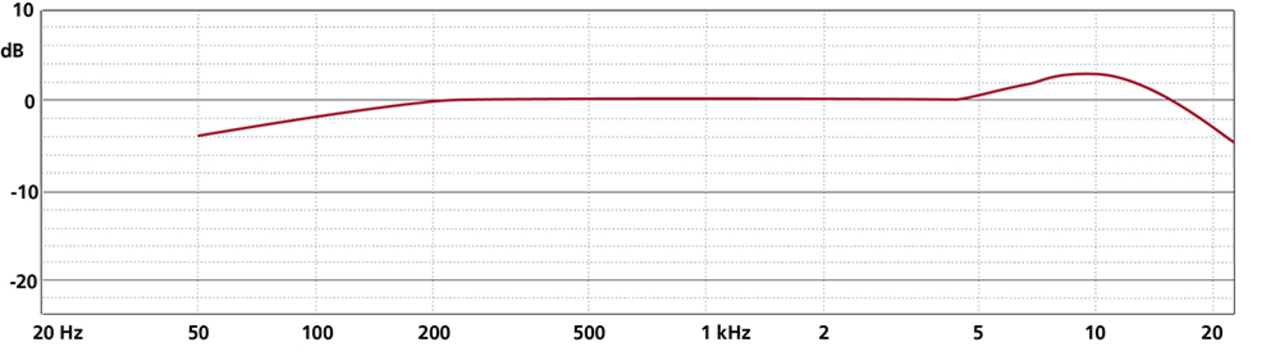

• Frequency range: 20 Hz – 20 kHz
• Sensitivity: -36.5 dB (V/Pa)
• Low-cut filter: 20 Hz, 12 dB/octave
• Output: analog, balanced, single channel
• Output impedance: 90 Ω at 1 kHz
• Minimum recommended load impedance: 2 kΩ
• Maximum output voltage: 2.6 V into a 2 kΩ load
• Powering: P12 or P48
• Current consumption: 3.6 mA at P12; 4 mA at P48
• Length: 58 mm
• Diameter: ø20 mm
• Finish: matte gray

Included

• Schoeps CCM 41V L microphone

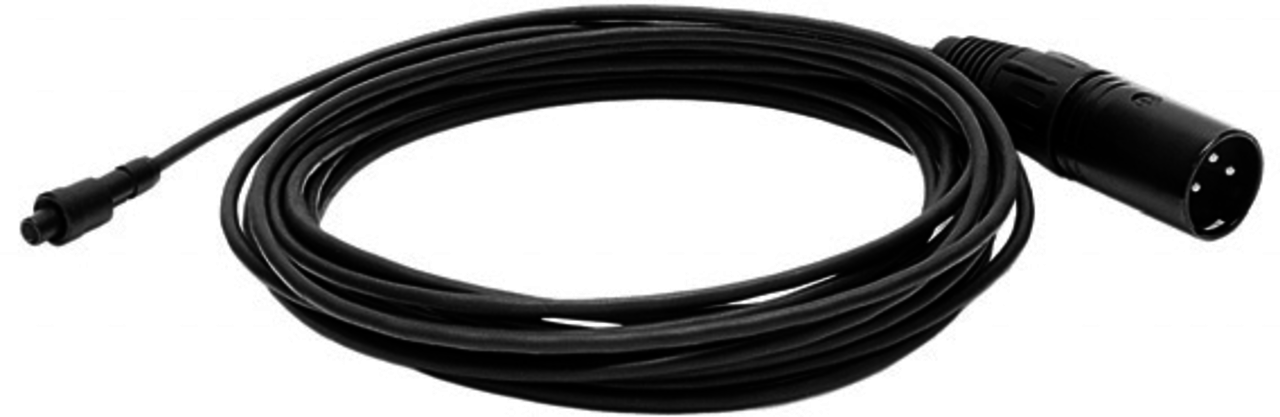

• K 5 LU cable, 5 m, Lemo to XLR3M

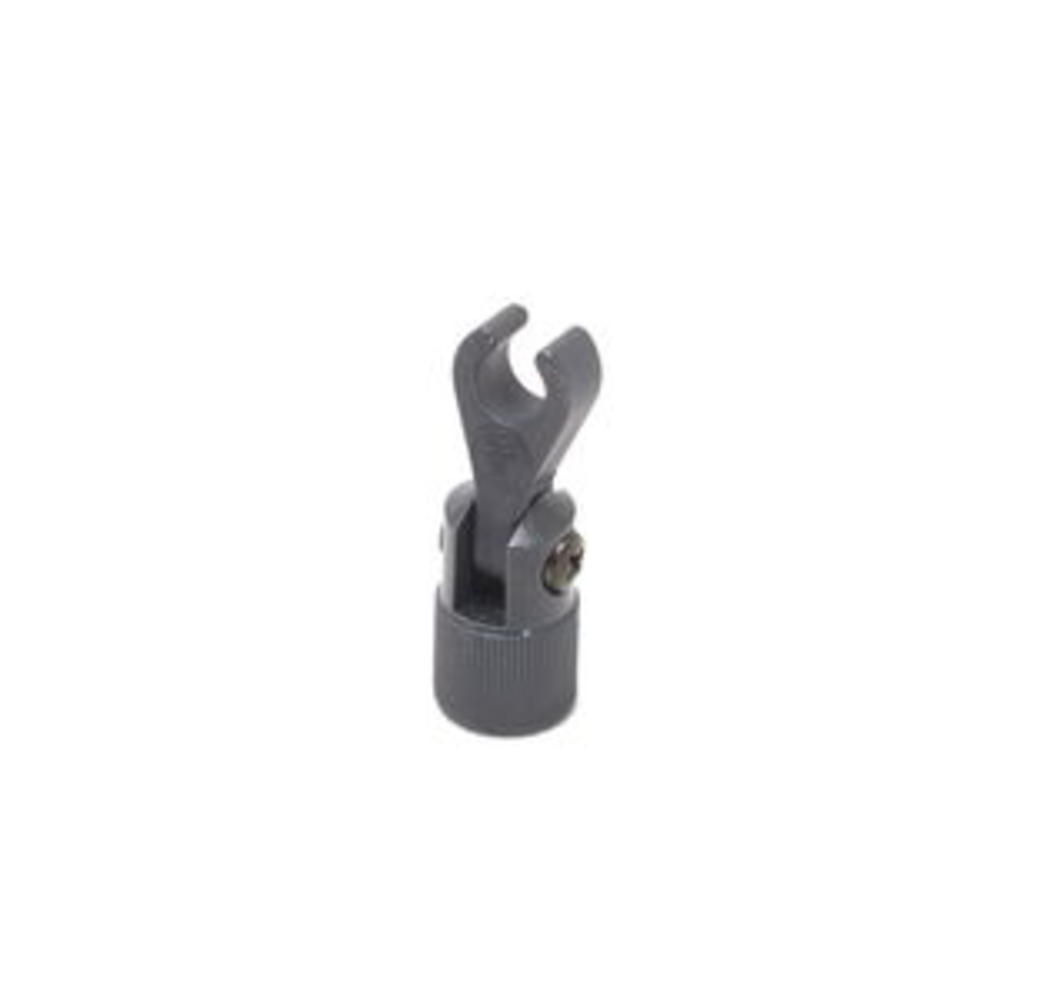

• SGC swivel microphone mount
• Premium case

Connection and Powering

The supplied K 5 LU connects the microphone to an input on a recorder, mixer or preamplifier providing P12 or P48 phantom power. The detachable Lemo connection is secured by a screw locking mechanism. P12 and P48 are separate powering standards; the microphone is not designed for arbitrary supply voltages between 12 and 48 V.

Alternative Version

The CCM 41V K offers the same supercardioid pattern and side-address orientation with a permanently attached 5 m cable terminating in XLR3M. The CCM 41V L described here uses a detachable Lemo cable.
