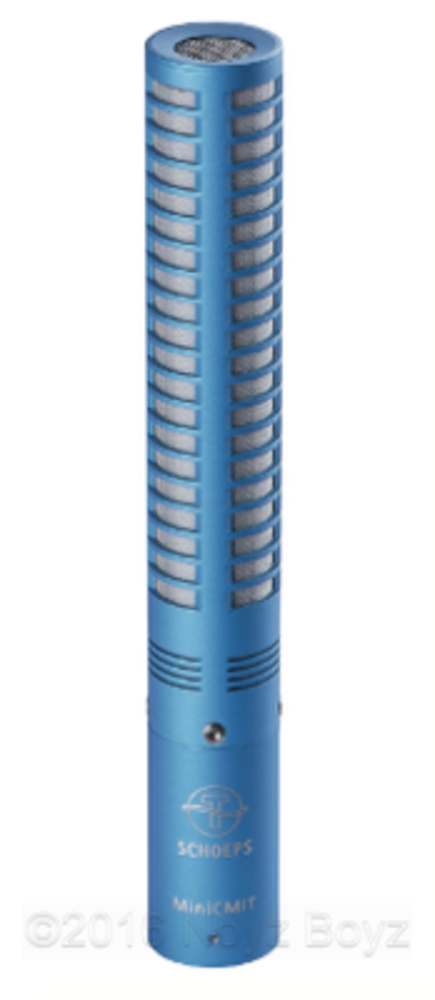

Schoeps MiniCMIT blue

Schoeps MiniCMIT blue [140103]

Compact shotgun microphone in blue for dialogue recording. The MiniCMIT has an analog XLR output and a fixed low-cut filter. Its 151 mm length and 78 g weight suit boom pole use.

Main Features

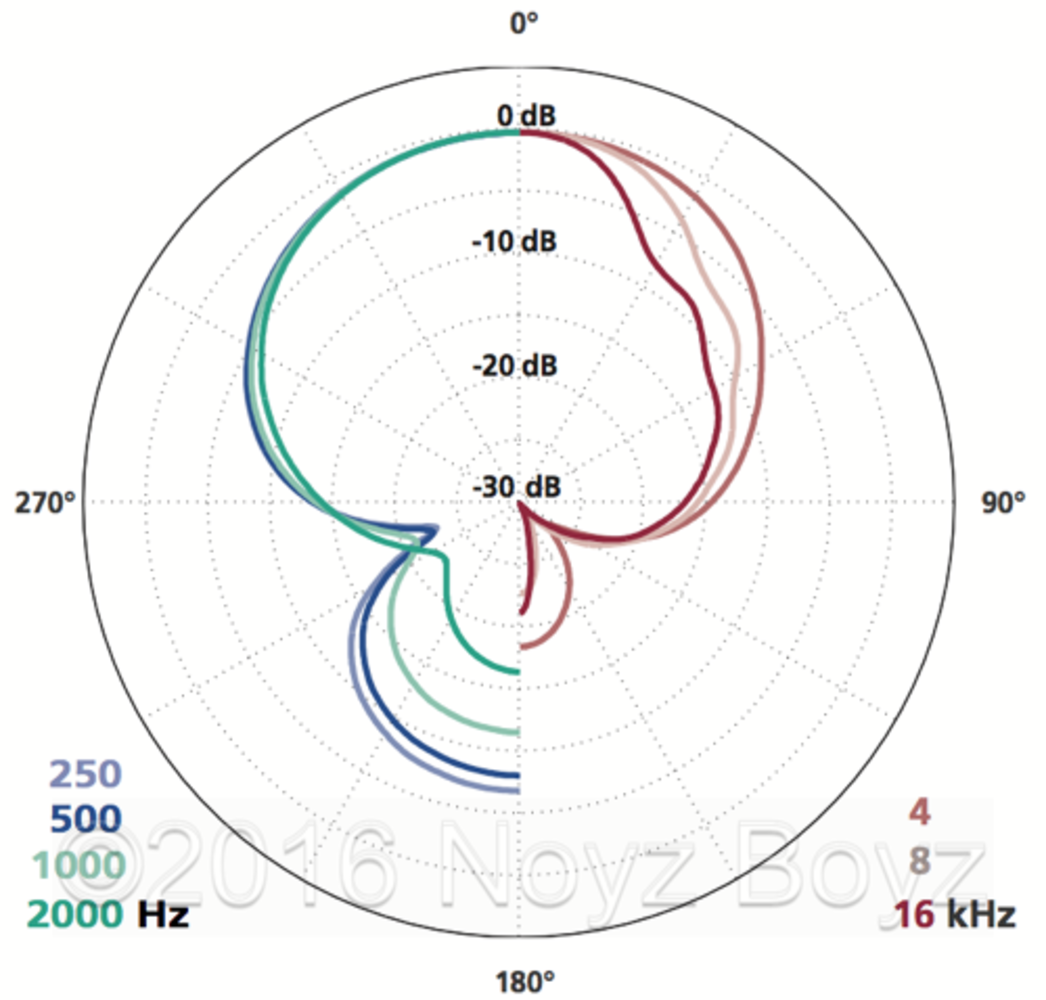

• Supercardioid/lobar pickup pattern.

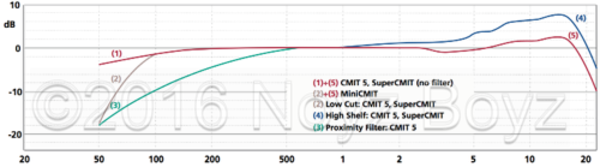

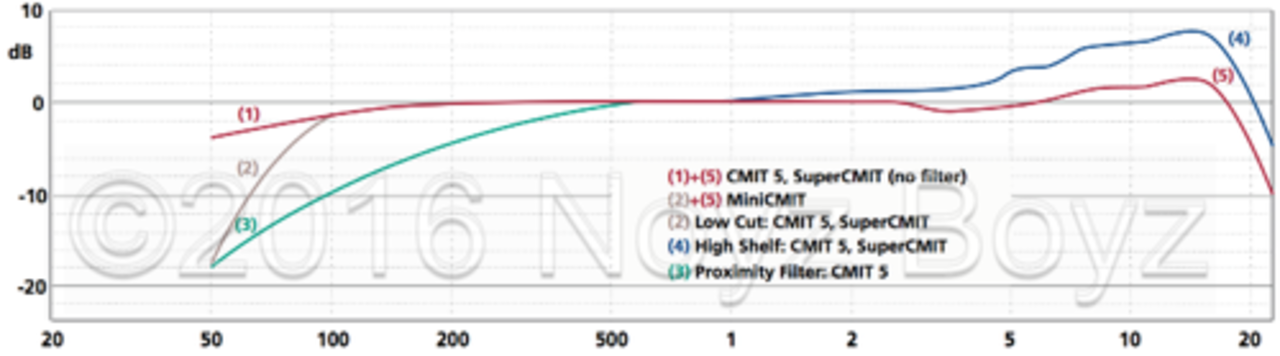

• Fixed low-cut filter: 70 Hz, 24 dB/octave.
• P12 and P48 phantom powering.
• Schoeps RFI Shield against radio-frequency interference.

Specifications

• Frequency range: 60 Hz – 20 kHz.
• Sensitivity: 17 mV/Pa.
• Equivalent noise level: 14 dB-A / 24 dB CCIR.
• Signal-to-noise ratio: 80 dB-A.
• Maximum SPL: 130 dB SPL at P48 / 115 dB SPL at P12, THD < 0.5%.
• Output: XLR-3 male, analog.
• Output impedance: 100 Ω; minimum load: 2 kΩ.
• Current consumption at P48: 2.3 mA.
• Length: 151 mm; diameter: 21 mm; weight: 78 g.

Included

• 1 × Schoeps MiniCMIT blue.
• 1 × Schoeps SG 20 microphone clamp.
• 1 × Schoeps W 140 foam windscreen.
• 1 × Wooden storage case.

Other Version

Also available as the Schoeps MiniCMIT, anthracite-grey [140104], with the same technical specifications.
