Schoeps MK 22

Schoeps MK 22 [131007]

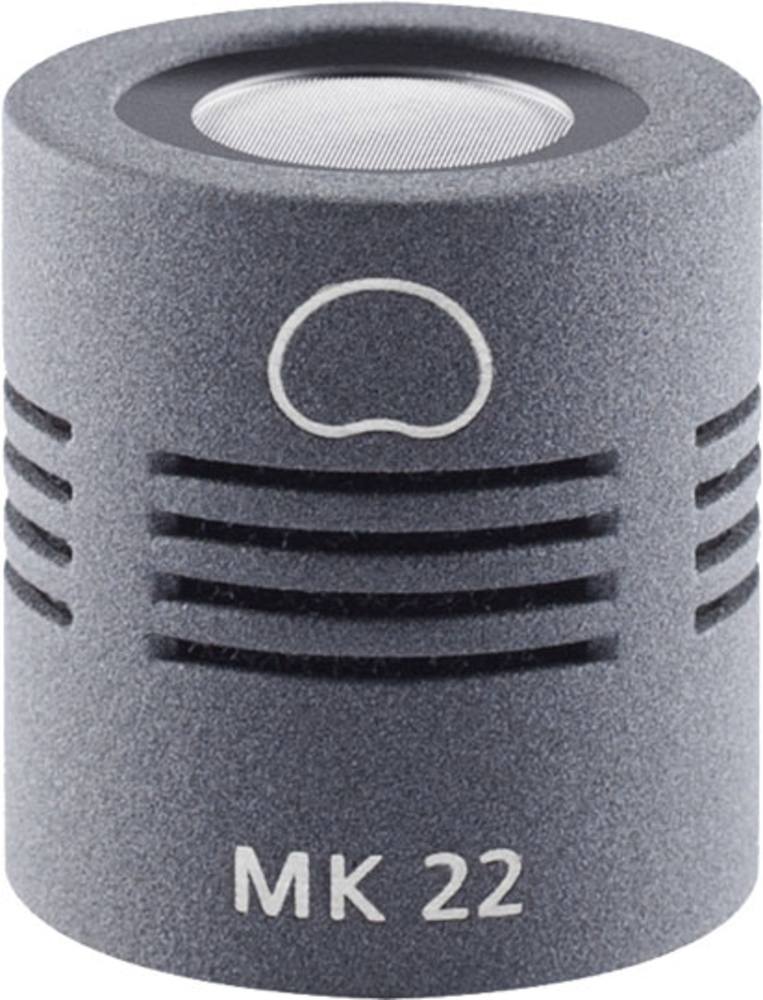

The Schoeps MK 22 [131007] is a small-diaphragm condenser microphone capsule from the Colette series with an open cardioid pickup pattern. This pattern sits between omni and cardioid and is often chosen when you want to retain natural spaciousness while keeping more control over side and rear pickup.

The MK 22 is intended for situations where both direct sound and reflections should remain natural, without the stronger proximity effect of a classic cardioid. This makes it useful for stereo applications, ensembles, and acoustically complex rooms.

Main Features

• Open cardioid: balance between omni spaciousness and cardioid control.
• Consistent tonal balance: predictable behaviour for direct sound and reflections.
• Colette system: capsule for use with CMC/CMR microphone amplifiers.

Specifications

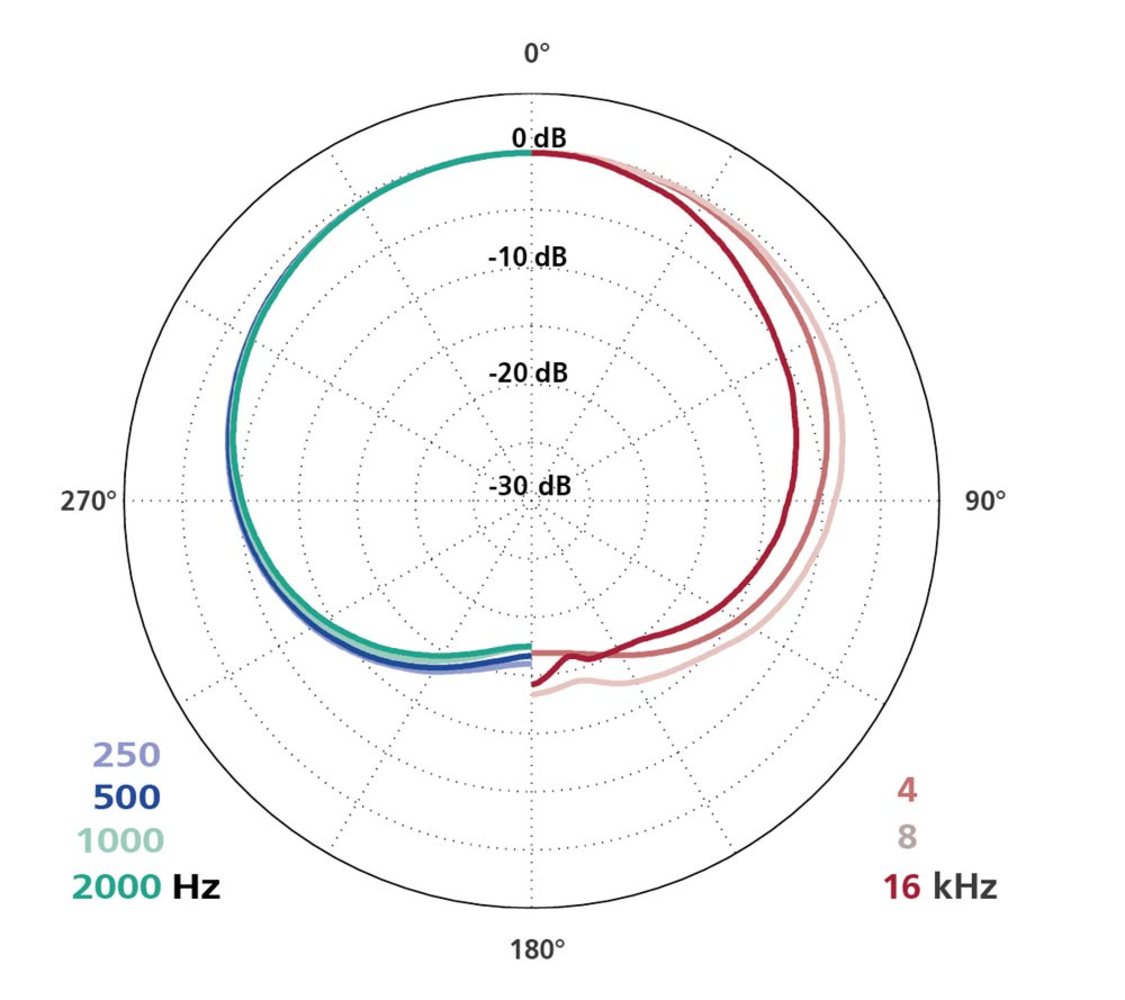

• Pickup pattern: open cardioid

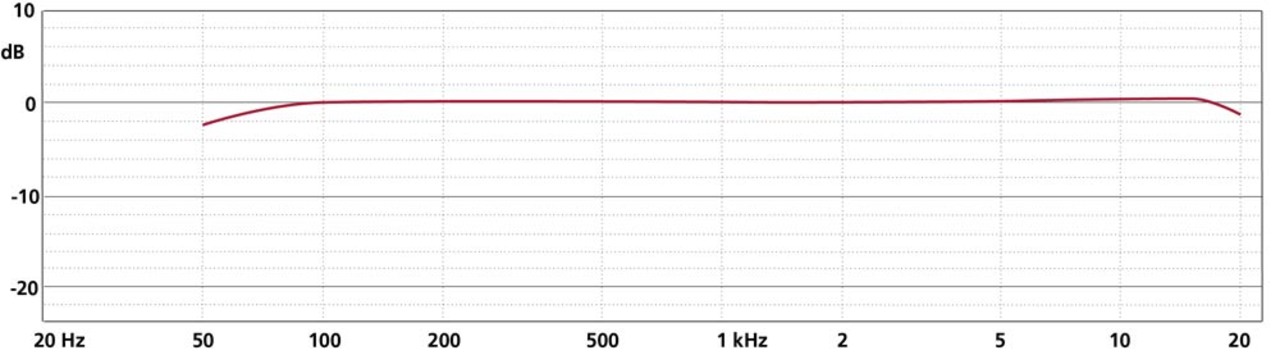

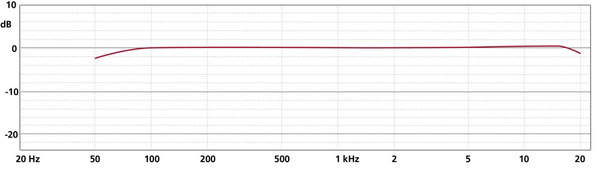

• Frequency range: 40 Hz – 28 kHz with CMC 6 / CMR; 40 Hz – 42 kHz with CMC 6xt
• Sensitivity: -36.5 dB (V/Pa), 15 mV/Pa with CMC 6
• Equivalent noise (A-weighted): 13 dB with CMC 6
• Equivalent noise (CCIR): 23 dB with CMC 6
• Signal-to-noise ratio (A-weighted): 81 dB with CMC 6
• Maximum SPL (THD < 0.5%): 130 dB SPL with CMC 6
• Dimensions: length 22 mm; diameter 20 mm
• Weight: 17 g
• Finish: matte grey (custom colours available)

Compatible microphone amplifiers

• Schoeps CMC 1
• Schoeps CMC 1U
• Schoeps CMC 6
• Schoeps CMC 6xt
• Schoeps CMR

Included

• Schoeps MK 22 capsule [131007].

Matched pair available

Also available as a matched pair with certificate for use in stereo-critical applications.

Other capsules in the Colette series

• MK 2 Omnidirectional capsule
• MK 2H Omnidirectional capsule with HF lift
• MK 2S Omnidirectional capsule with moderate HF lift
• MK 2XS Omnidirectional capsule with diffuse-field equalisation
• MK 21 Wide cardioid capsule
• MK 4 Cardioid capsule
• MK 4P Cardioid capsule for close miking
• MK 4XP Cardioid capsule with modified response
• MK 4V Side-address cardioid capsule
• MK 4VP Side-address cardioid capsule for close miking
• MK 4VXP Side-address cardioid capsule with low-cut
• MK 41 Supercardioid capsule
• MK 41V Side-address supercardioid capsule
• MK 5 Switchable omni/cardioid capsule
• MK 8 Figure-8 capsule
• KMIT Interference tube capsule
