Schoeps MK 2XS

Schoeps MK 2XS [131013]

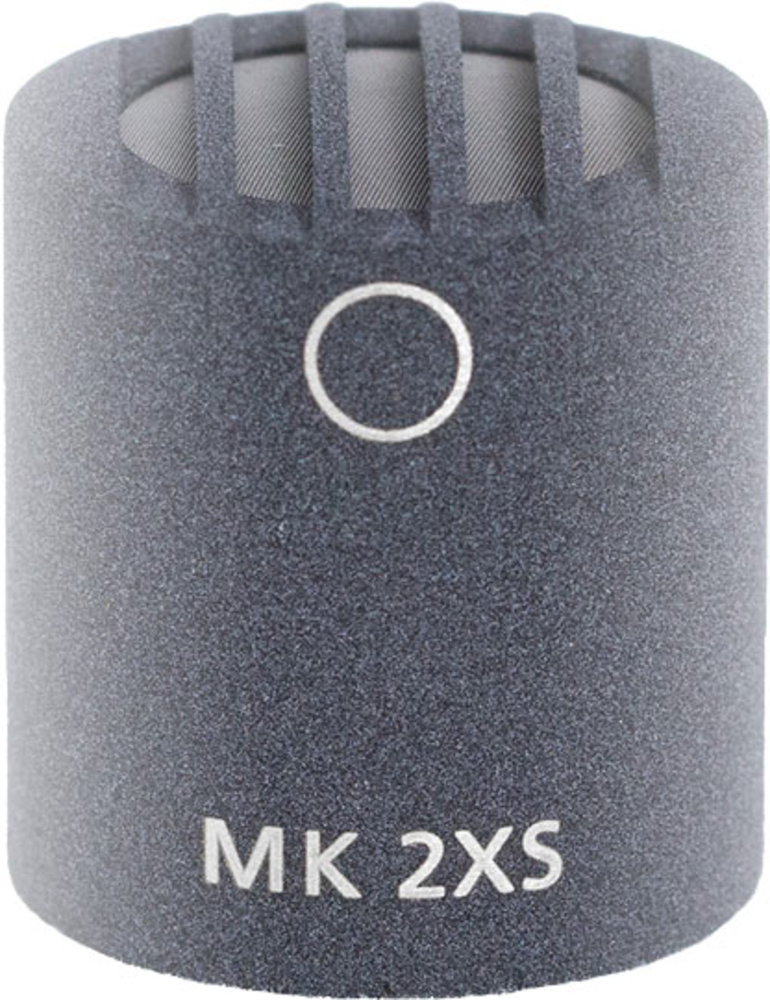

The Schoeps MK 2XS [131013] is an omnidirectional condenser microphone capsule from the Colette series, designed as a true pressure transducer with diffuse-field equalisation. It is intended for recording at relatively large distances where the diffuse (reverberant) sound field plays a major role.

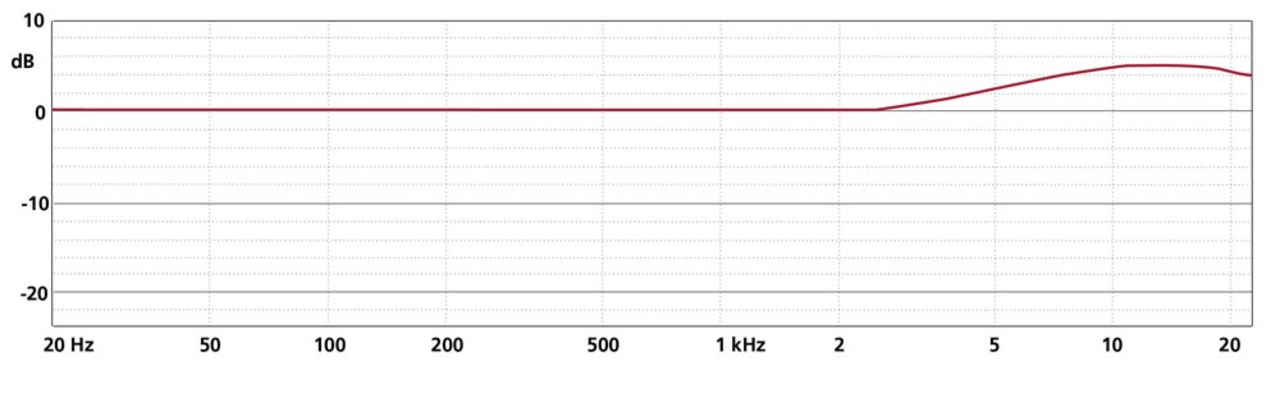

With diffuse-field equalisation, the overall response remains natural and balanced at greater distances. When used close to the source, the sound can become brighter than with a flat near-field omni because the correction is then not required.

Main Features

• True pressure transducer with omnidirectional pickup pattern.
• Diffuse-field equalisation for use at greater distance and as a room microphone.
• Colette series capsule, used with CMC amplifiers.
• Commonly used as an ambience/room microphone beyond the reverberation radius.

Specifications

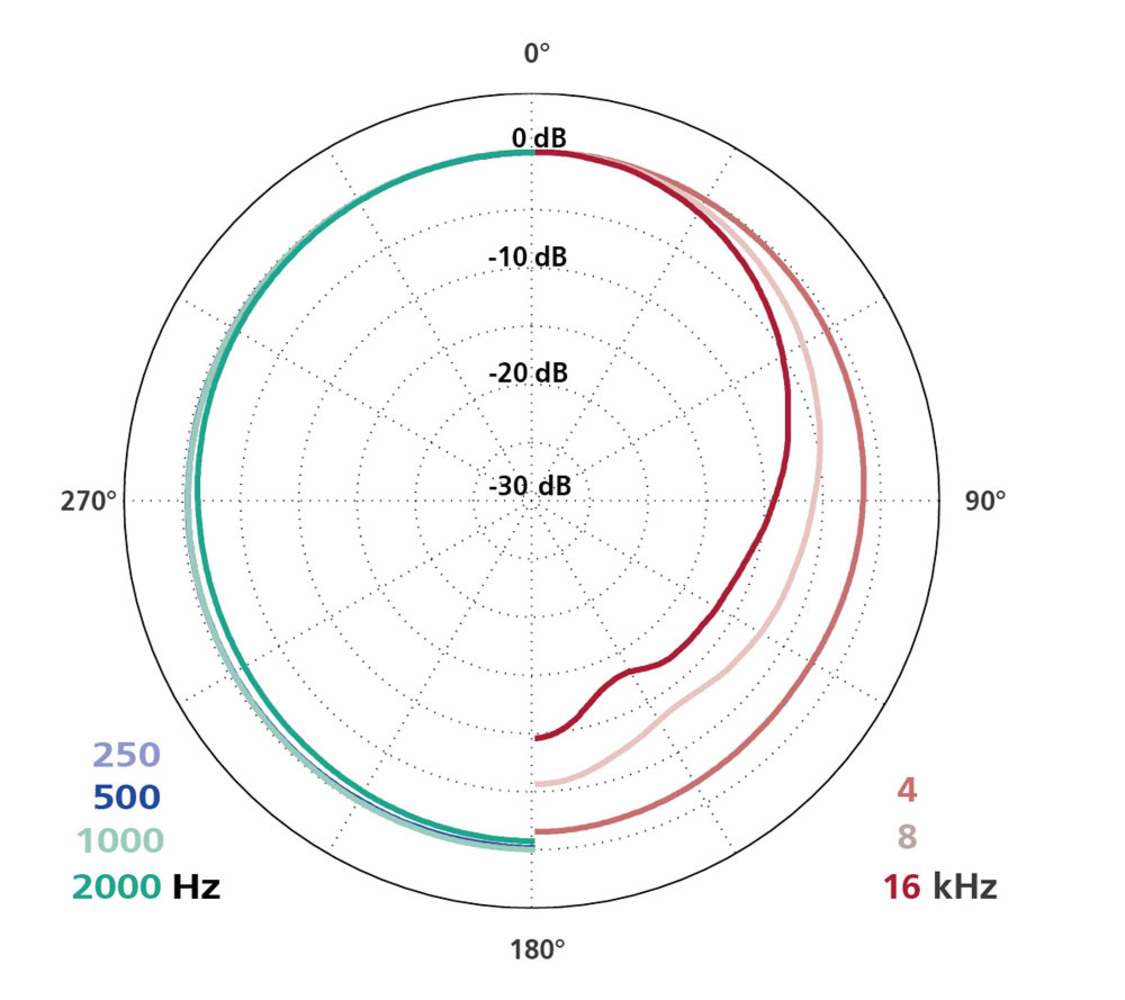

• Pickup pattern: omnidirectional (pressure).
• Frequency range: 20 Hz – 30 kHz; 20 Hz – 44 kHz with CMC 6xt.
• Sensitivity: 11 mV/Pa (-39 dB V/Pa).
• Equivalent noise (A-weighted): 13 dB.
• Equivalent noise (CCIR): 25 dB.
• Signal-to-noise ratio (A-weighted): 81 dB.
• Max SPL (THD < 0.5%): 133 dB SPL (CMC 6), 137 dB SPL (CMC 1).
• Dimensions: length 22 mm; diameter 20 mm.
• Weight: 17 g.
• Finish: matte grey.

Compatible microphone amplifiers

• Schoeps CMC 1 U
• Schoeps CMC 1 L
• Schoeps CMC 1 K
• Schoeps CMC 6
• Schoeps CMC 6xt
• Schoeps CMR

Included

• Schoeps MK 2XS capsule [131013].

Other capsules in the Colette series

• MK 2 Omnidirectional capsule
• MK 2H Omnidirectional capsule with HF lift
• MK 2S Omnidirectional capsule with moderate HF lift
• MK 21 Wide cardioid capsule
• MK 22 Open cardioid capsule
• MK 4 Cardioid capsule
• MK 4P Cardioid capsule for close miking
• MK 4XP Cardioid capsule with modified response
• MK 4V Side-address cardioid capsule
• MK 4VP Side-address cardioid capsule for close miking
• MK 4VXP Side-address cardioid capsule with low-cut
• MK 41 Supercardioid capsule
• MK 41V Side-address supercardioid capsule
• MK 5 Switchable omni/cardioid capsule
• MK 8 Figure-8 capsule
• KMIT Interference tube capsule
