Schoeps Mono-Set CMC 1 L, MK 41

Schoeps Mono-Set CMC 1 L, MK 41 [138417]

Compact Colette microphone set combining an MK 41 supercardioid capsule with a CMC 1 L microphone amplifier. Suitable for dialogue and focused instrument recording, with an interchangeable capsule and miniature Lemo output.

Use and connection

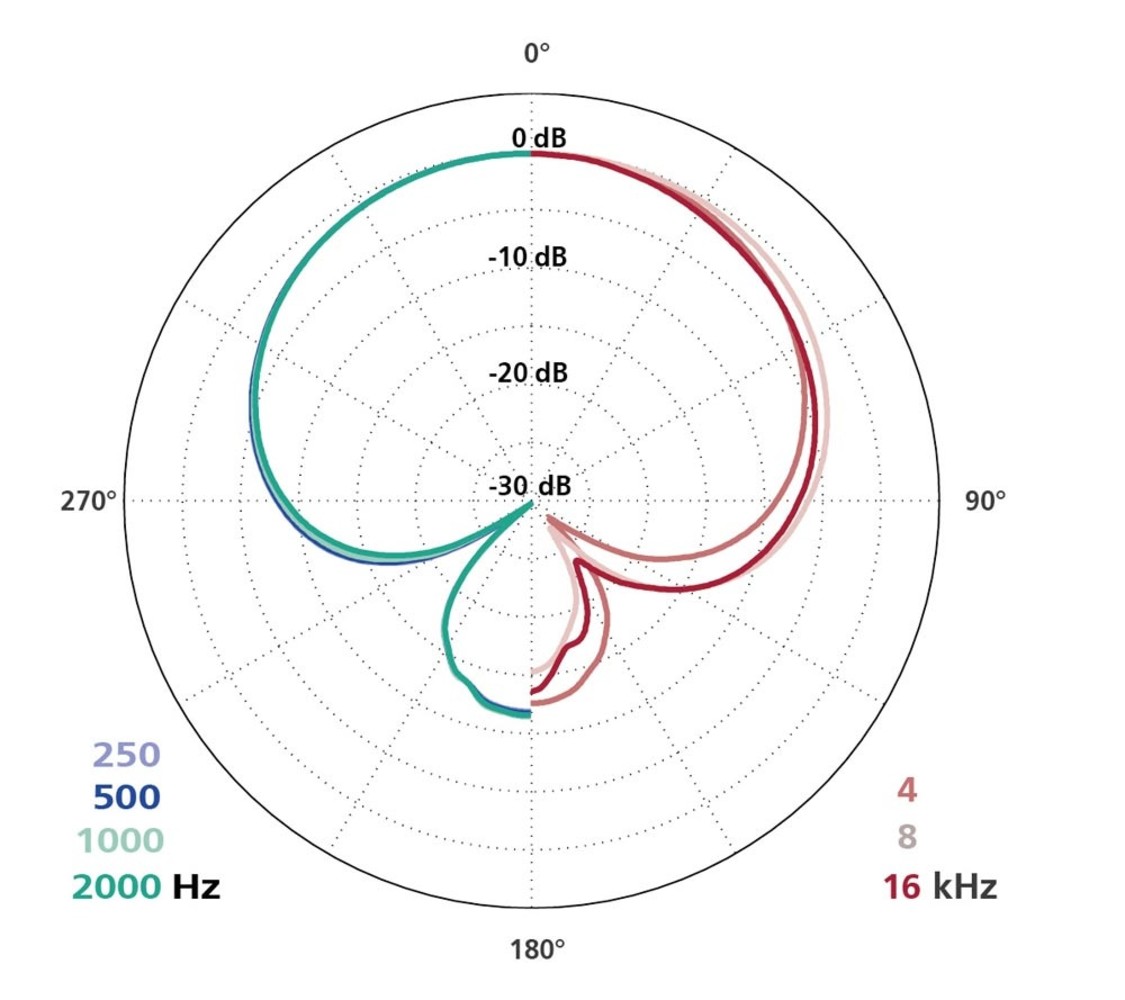

The supercardioid capsule has a rear pickup lobe, with maximum rejection at approximately 125° from the front axis. Consider this when positioning loudspeakers and unwanted sound sources.

The included K 5 LU cable, 5 meters long, connects the microphone to an XLR input with P12 or P48 phantom power. The SGC clamp provides stand mounting, while the B 5 D foam screen offers pop protection.

Specifications

• Polar pattern: supercardioid
• Frequency range: 40 Hz–26 kHz
• Sensitivity: 16 mV/Pa
• Equivalent noise level: 14 dB-A; 23 dB CCIR
• Signal-to-noise ratio: 80 dB-A
• Maximum SPL with CMC 1: up to 135 dB SPL at THD < 0.5%
• Power supply: P12 / P48
• Current consumption: 3 mA at P12; 2 mA at P48
• Output impedance: 50 Ω
• Microphone connector: Lemo
• Included cable: 5 m, Lemo to XLR-3M
• Finish: matte gray

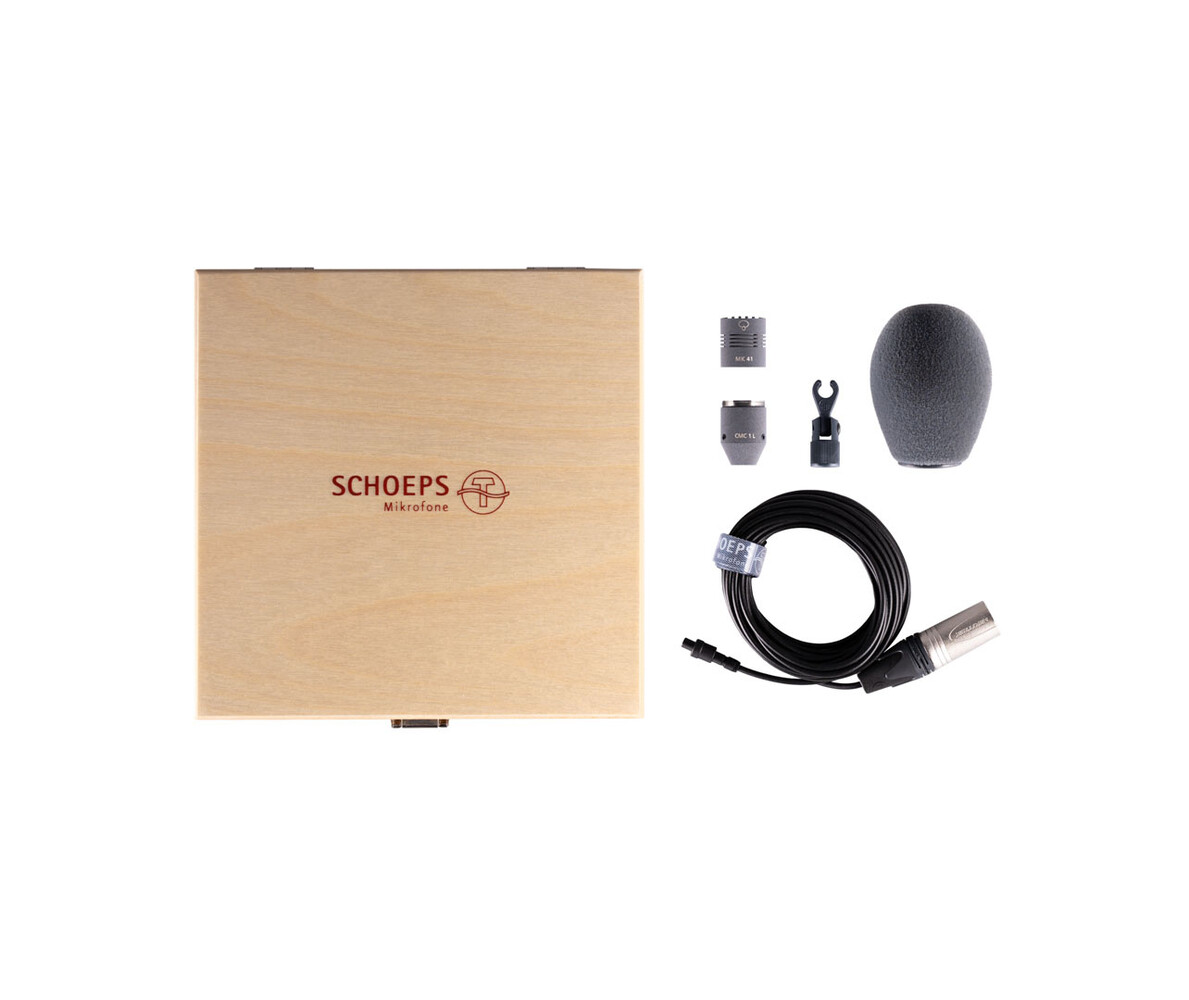

Included

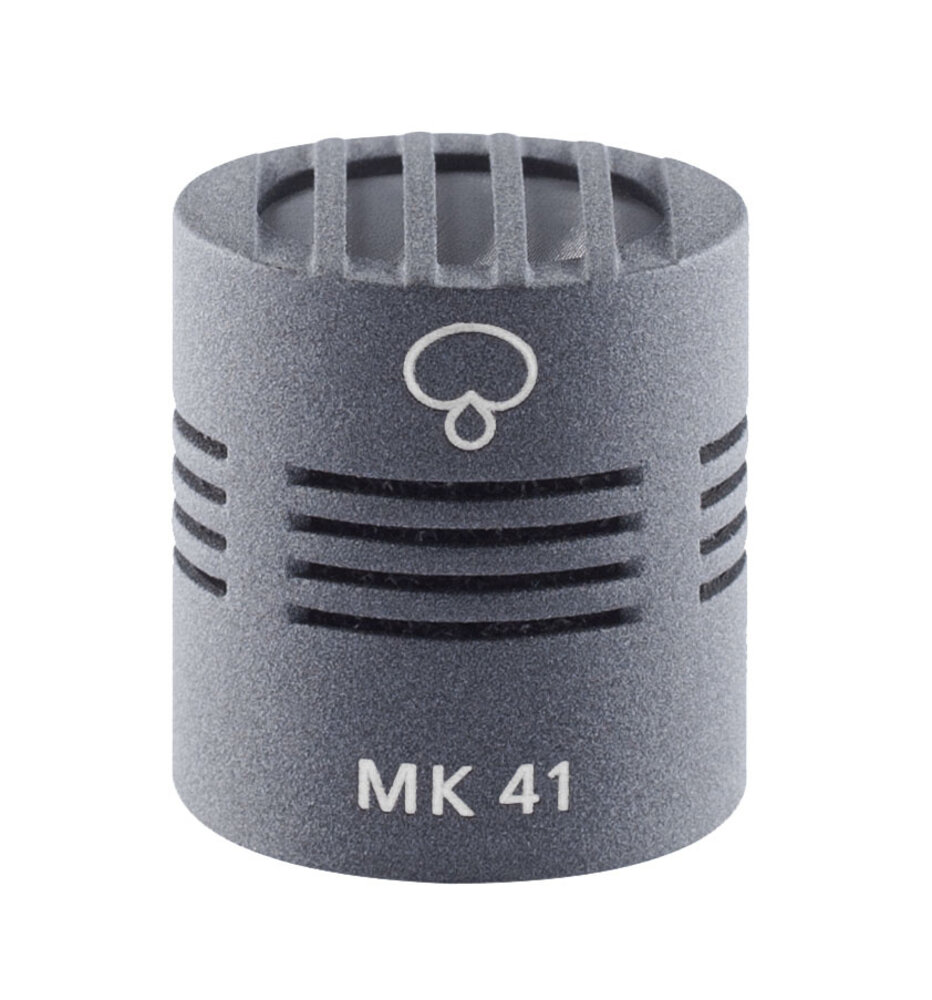

• 1 × MK 41 microphone capsule

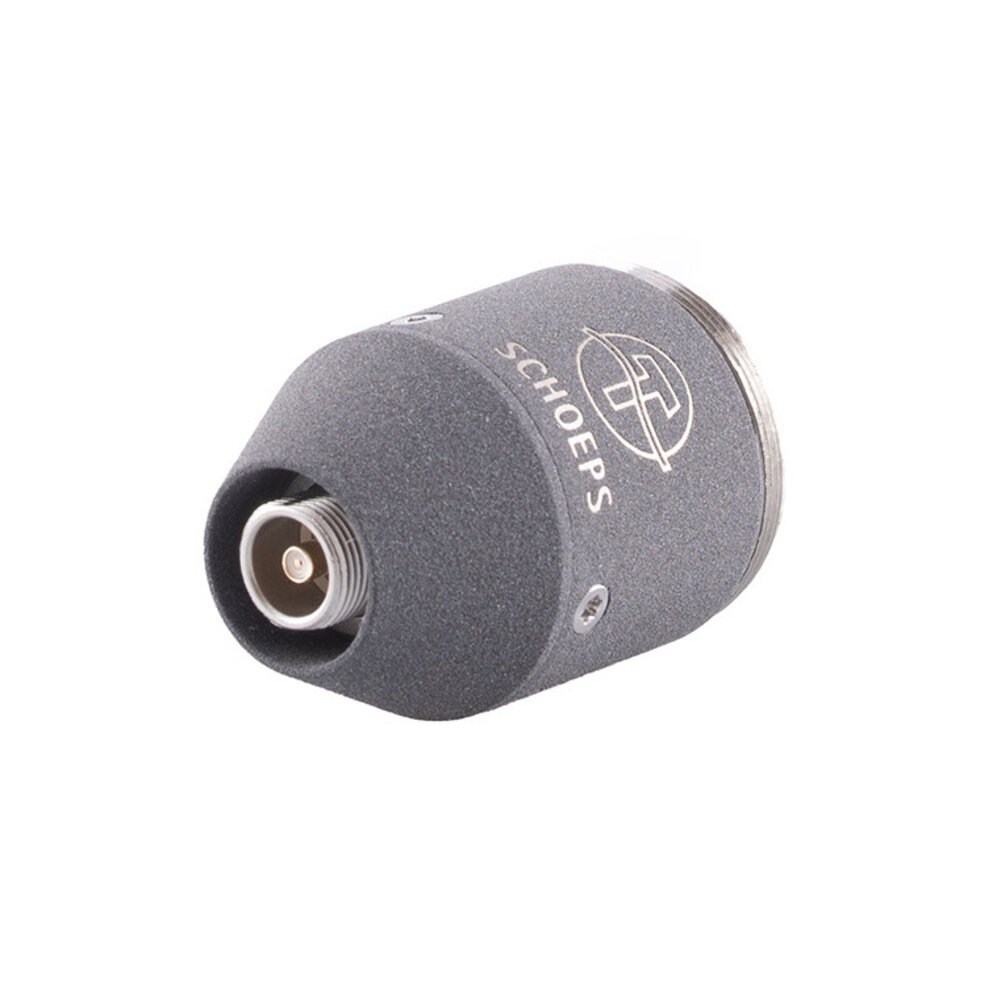

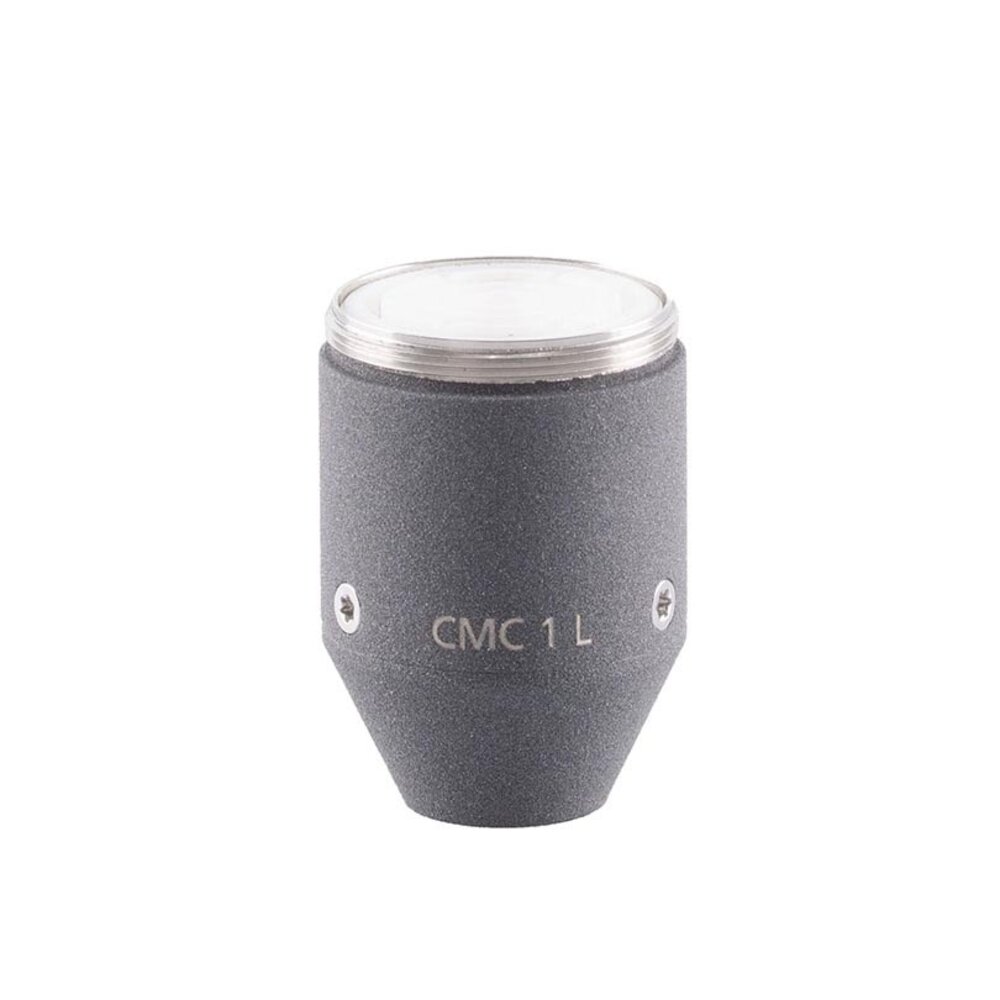

• 1 × CMC 1 L microphone amplifier

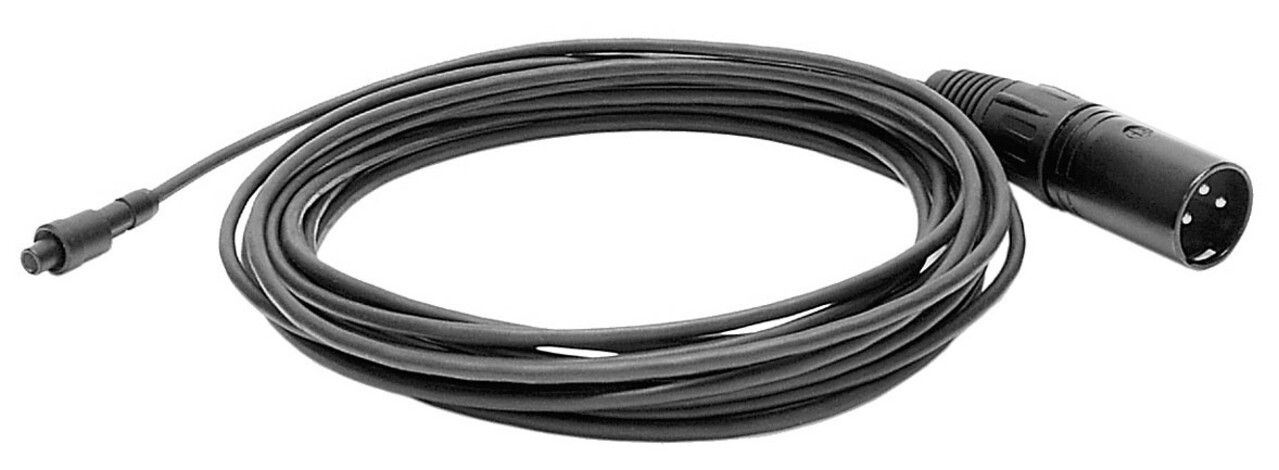

• 1 × K 5 LU cable, 5 meters

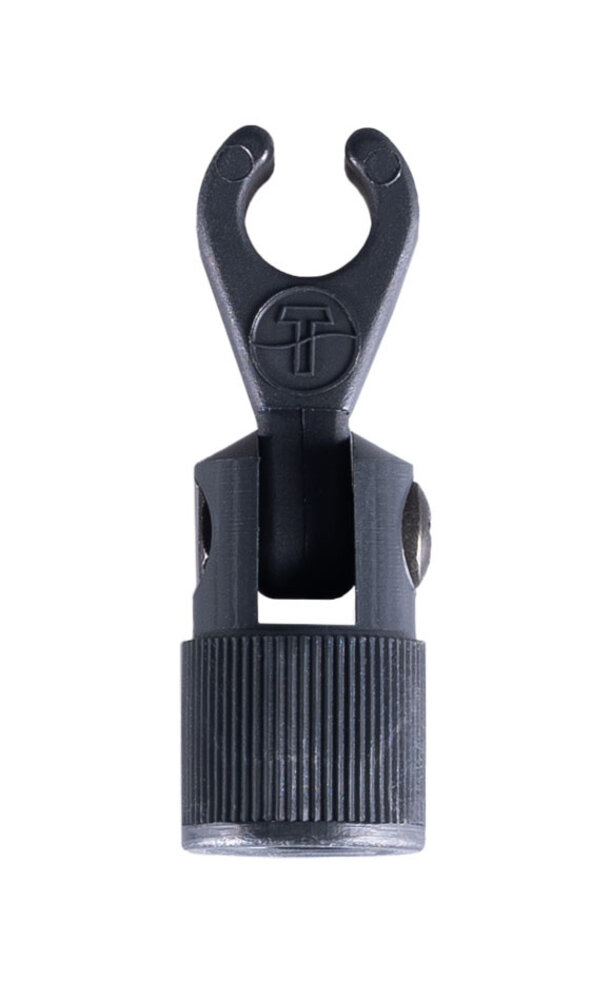

• 1 × SGC microphone clamp

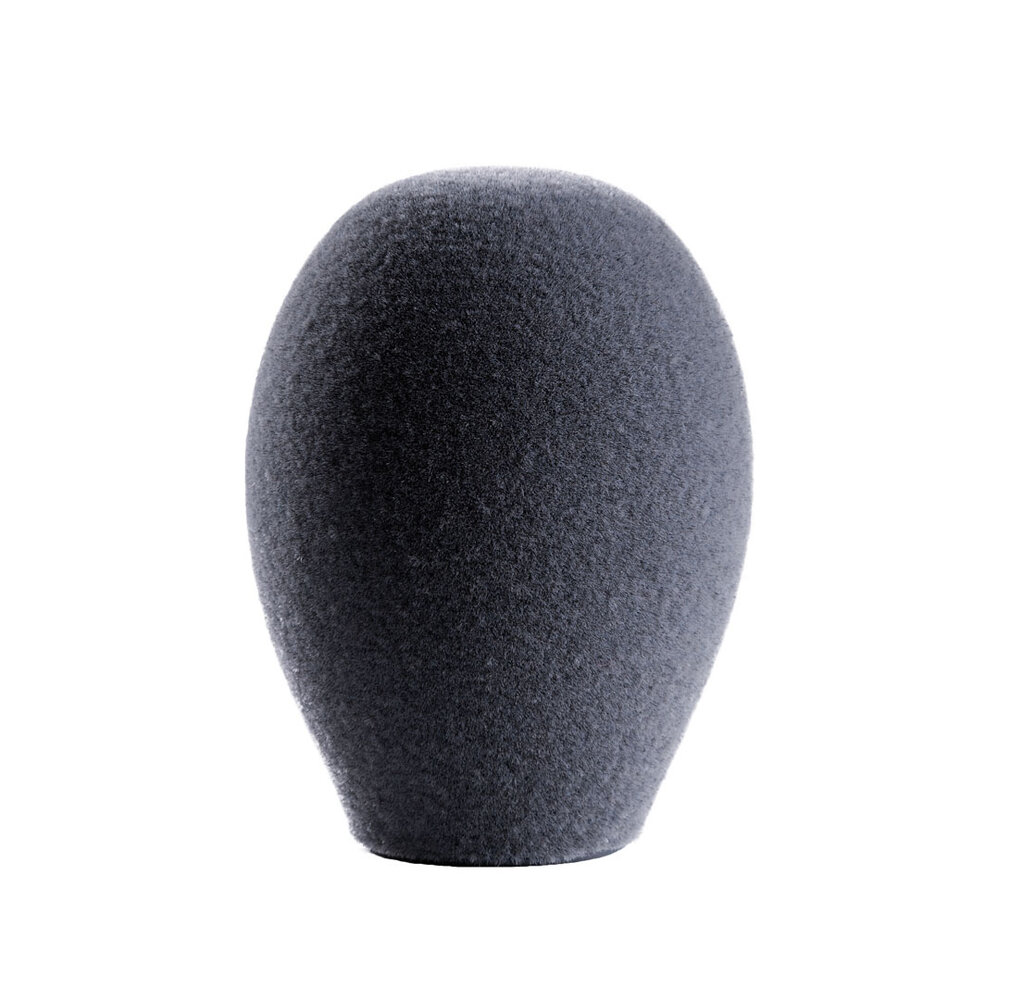

• 1 × B 5 D hollow foam screen
• Schoeps hook-and-loop cable strap

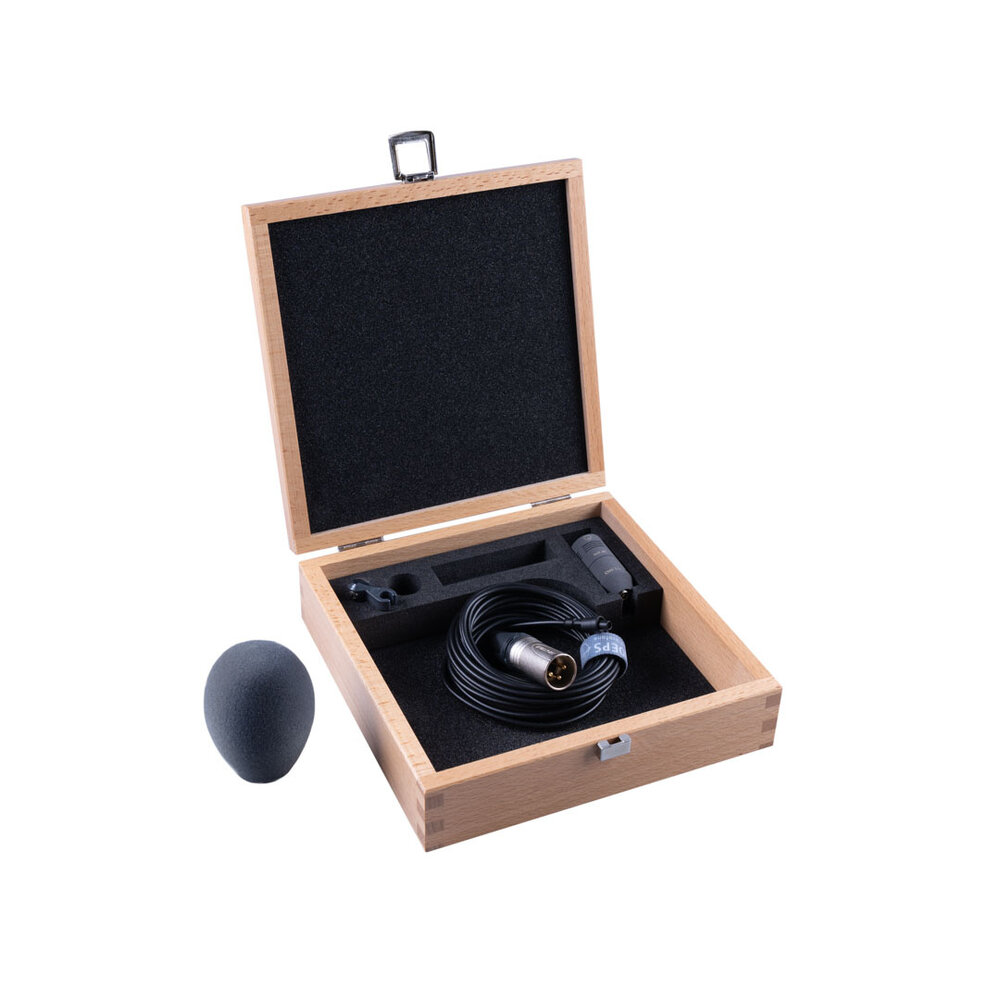

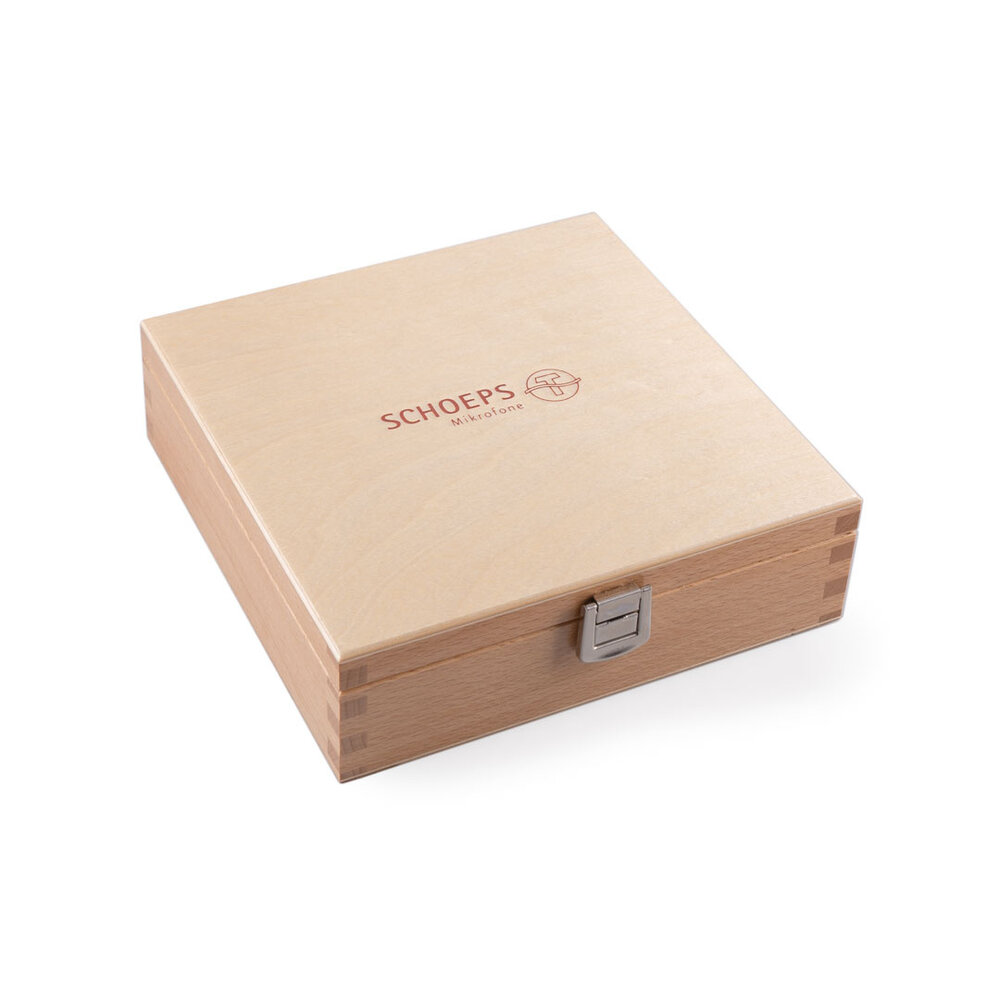

• Wooden storage case

Microphone stand not included.

Corresponding stereo set

For two microphones with matched capsules and a matching certificate, choose the Stereo-Set CMC 1 L, MK 41 [139306].
