Schoeps Mono-Set CMC 1 U, MK 5

Schoeps Mono-Set CMC 1 U, MK 5 [138219]

The Schoeps Mono-Set CMC 1 U, MK 5 combines the MK 5 switchable capsule with the compact CMC 1 U microphone amplifier. The microphone has a balanced XLR output and operates on P12 or P48 phantom power.

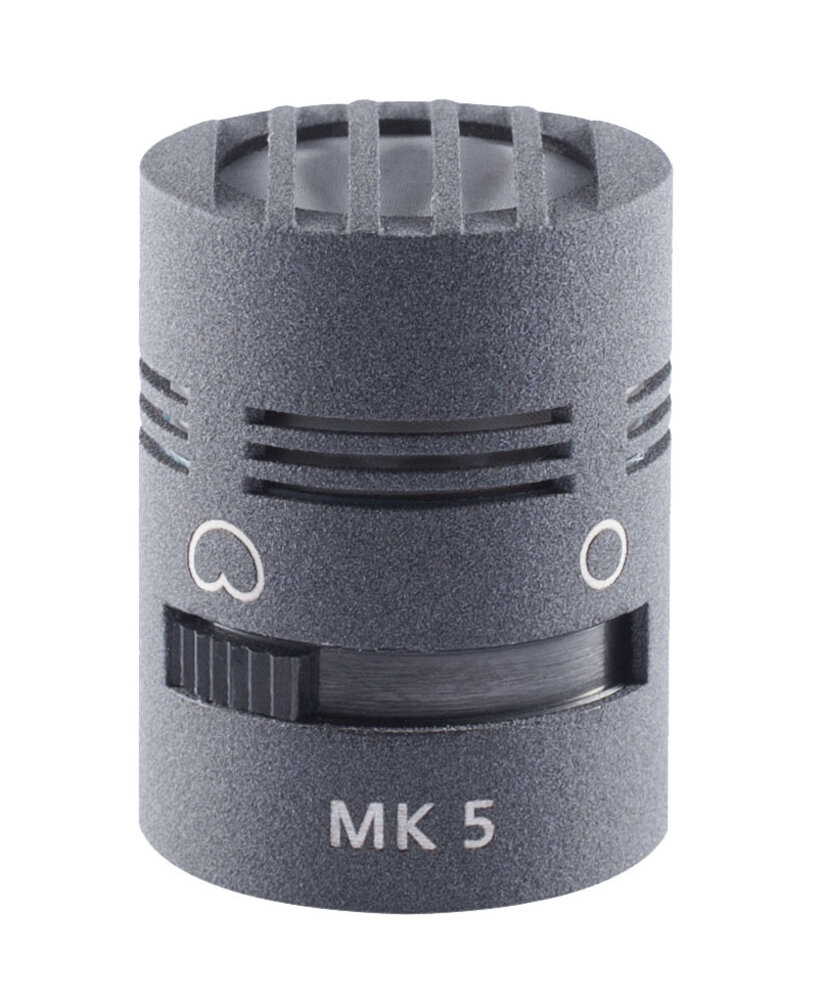

A mechanical sliding switch on the capsule selects omnidirectional or cardioid operation. In omni mode, the MK 5 operates as a true pressure transducer without proximity effect. In cardioid mode, it provides directional pickup and attenuates sound from the rear. This allows the microphone to accommodate instruments, vocals, speech and different recording distances without changing the capsule.

Main features

• Compact Colette microphone with two selectable polar patterns.
• Mechanical selection between omnidirectional and cardioid.
• One diaphragm for both polar patterns.
• Modular design with an interchangeable MK capsule.
• CMC 1 U amplifier with balanced XLR output.
• Includes an SG 20 clamp, B 5 D windscreen and wooden storage case.

Using the pattern switch

Set the switch fully to either omni or cardioid. Intermediate positions do not provide a defined polar pattern.

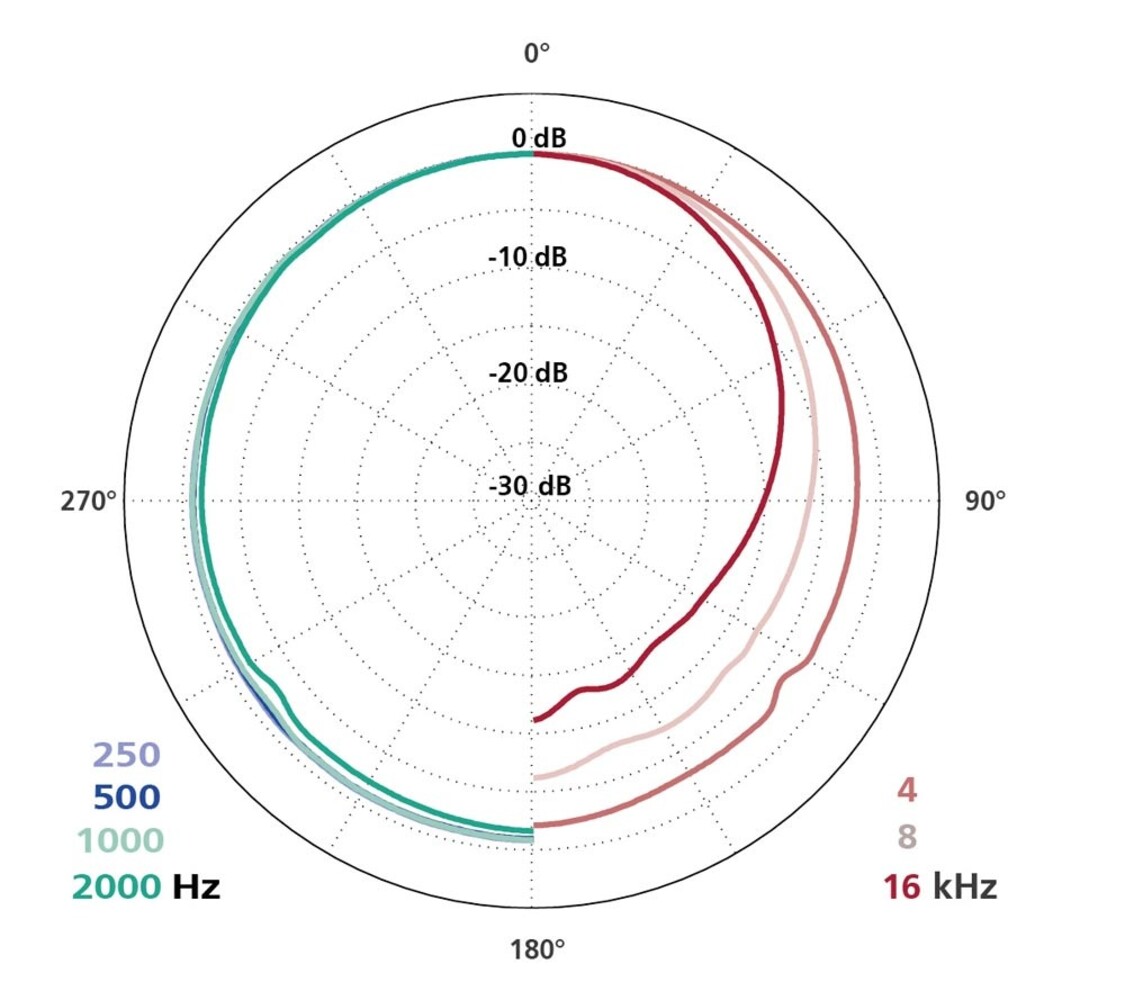

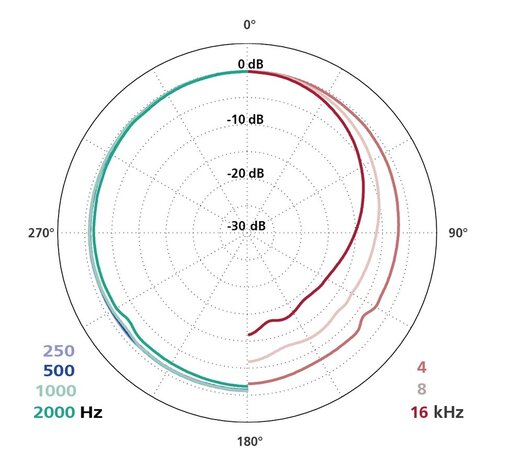

Specifications — omnidirectional

• Frequency range: 20 Hz – 28 kHz.
• Sensitivity: 12 mV/Pa.
• Equivalent noise level: 12 dB-A / 24 dB CCIR.
• Signal-to-noise ratio: 82 dB-A.
• Maximum sound pressure level: up to 136 dB SPL with CMC 1, at less than 0.5% THD.

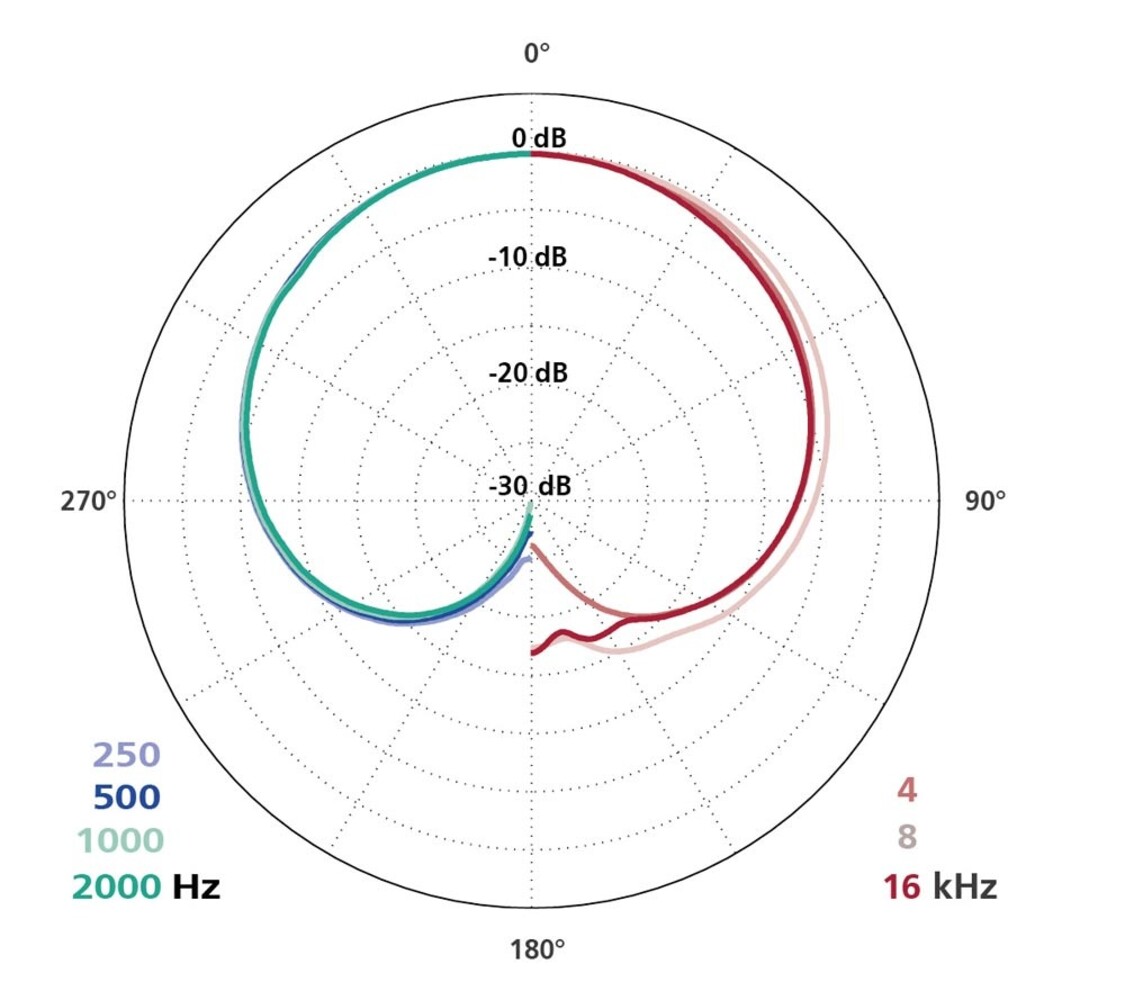

Specifications — cardioid

• Frequency range: 40 Hz – 26 kHz.
• Sensitivity: 14 mV/Pa.
• Equivalent noise level: 13 dB-A / 23 dB CCIR.
• Signal-to-noise ratio: 81 dB-A.
• Maximum sound pressure level: up to 135 dB SPL with CMC 1, at less than 0.5% THD.

Connection and power

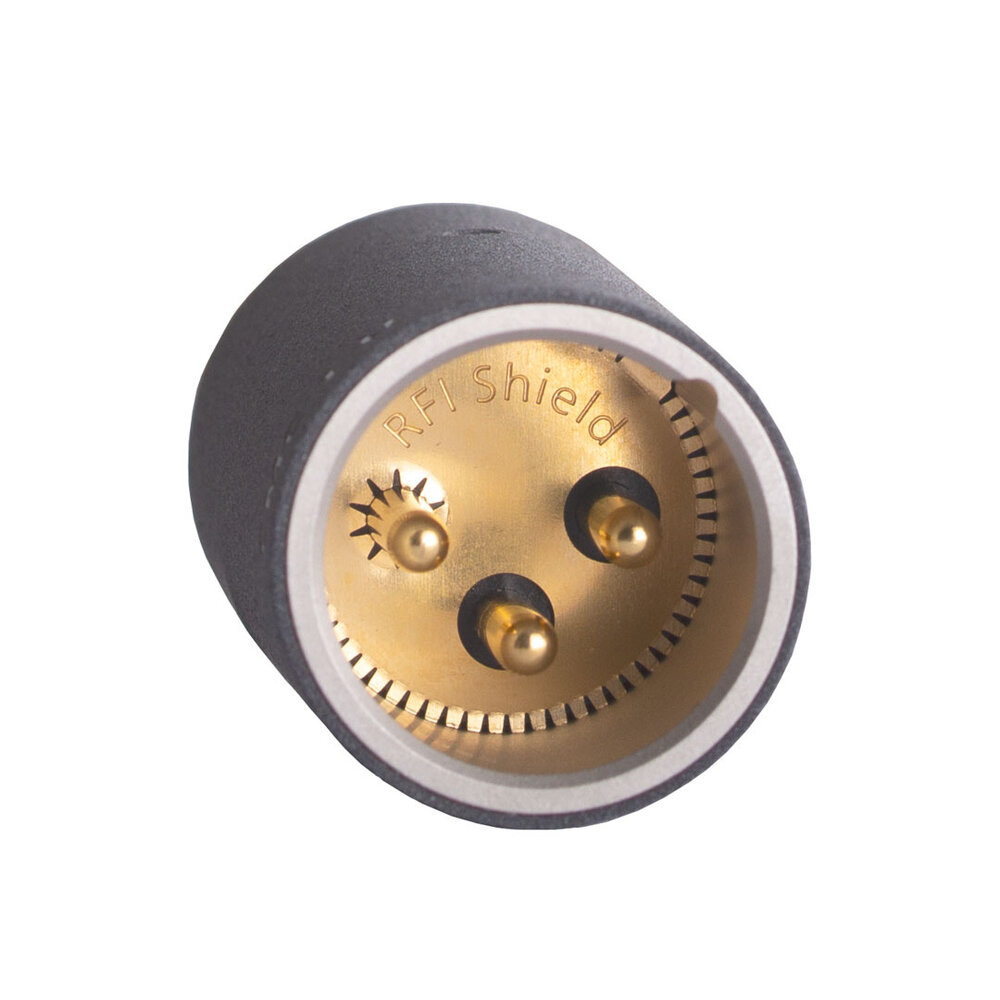

• Output: balanced, XLR-3 male.
• Output impedance: 50 Ω.
• Minimum recommended load impedance: 1 kΩ.
• Maximum output voltage: 1.8 V into a 1 kΩ load.
• Power supply: P12 or P48.
• Current consumption: 3 mA at P12 / 2 mA at P48.
• Fixed amplifier low-cut filter: 20 Hz, 12 dB/octave.

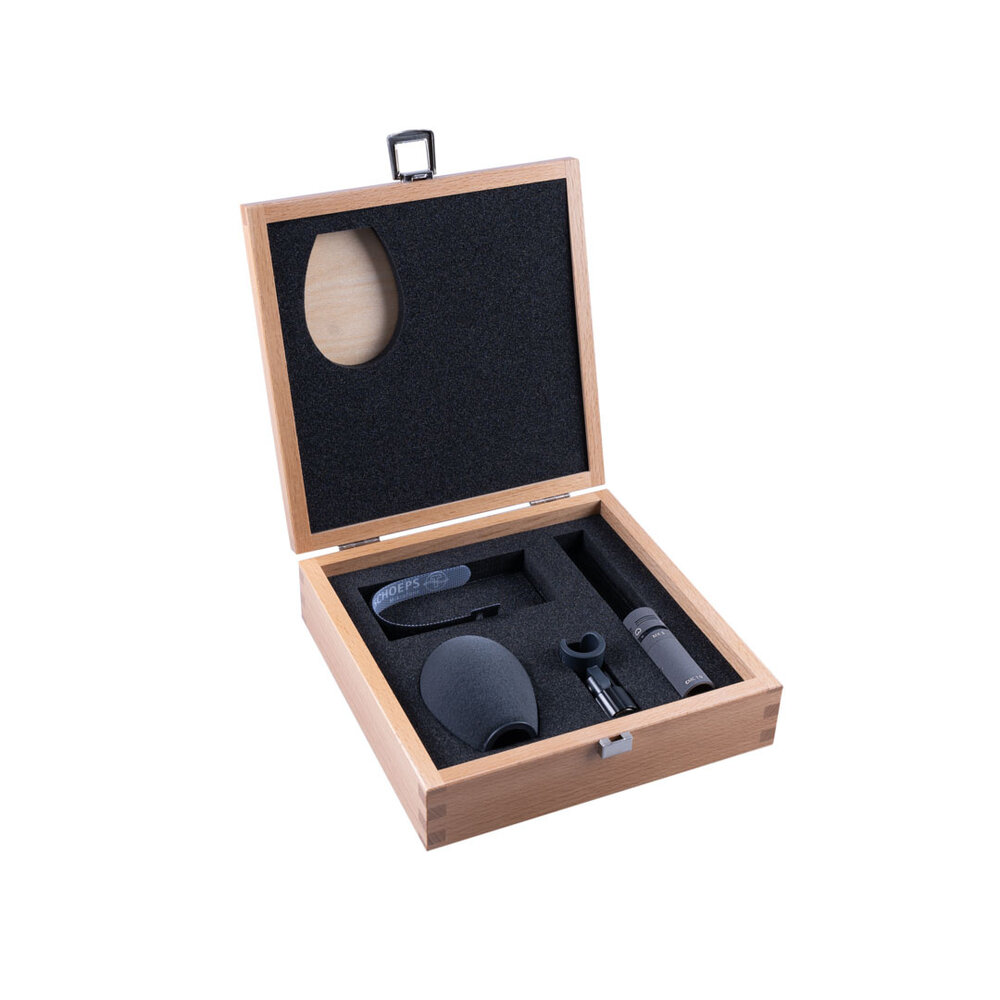

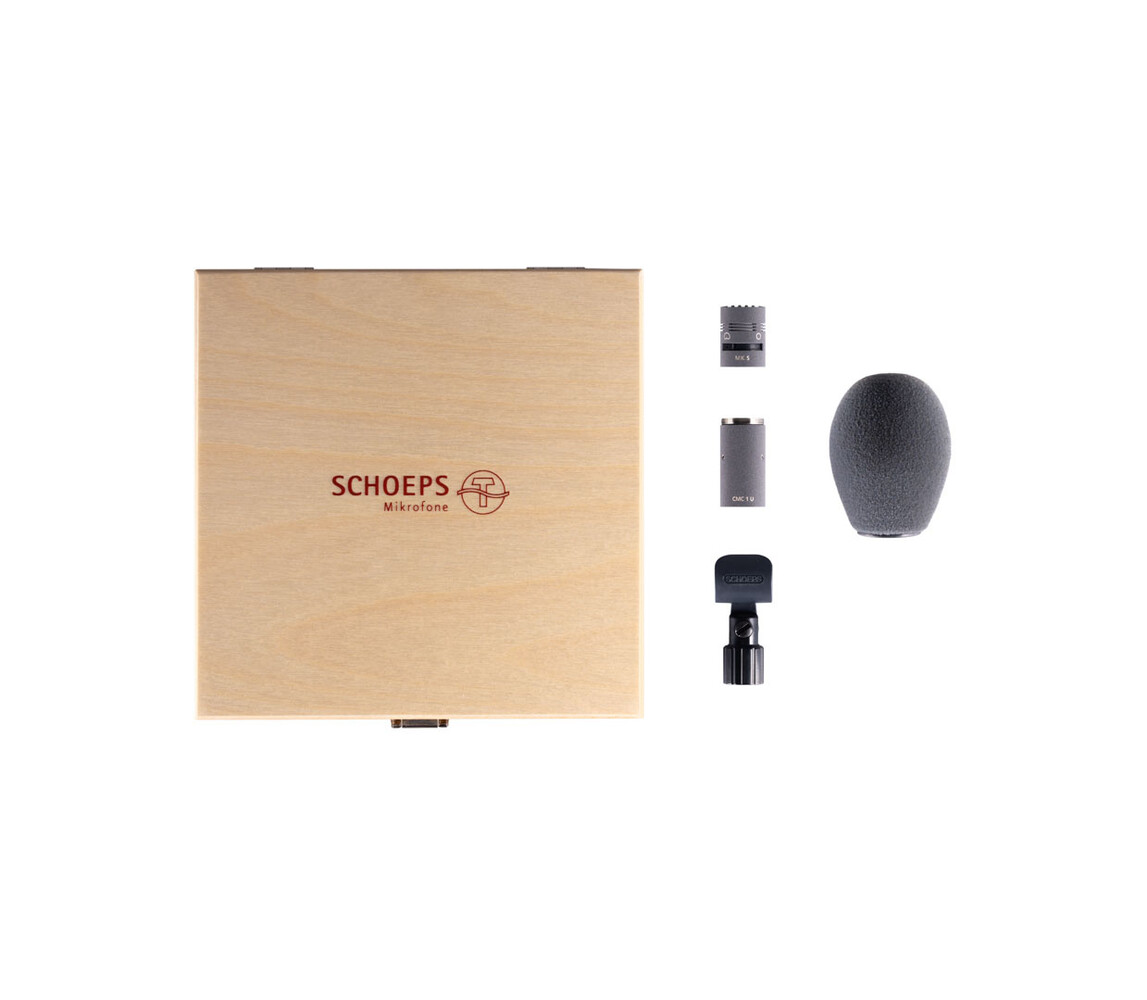

Included

• 1 × Schoeps MK 5 capsule.

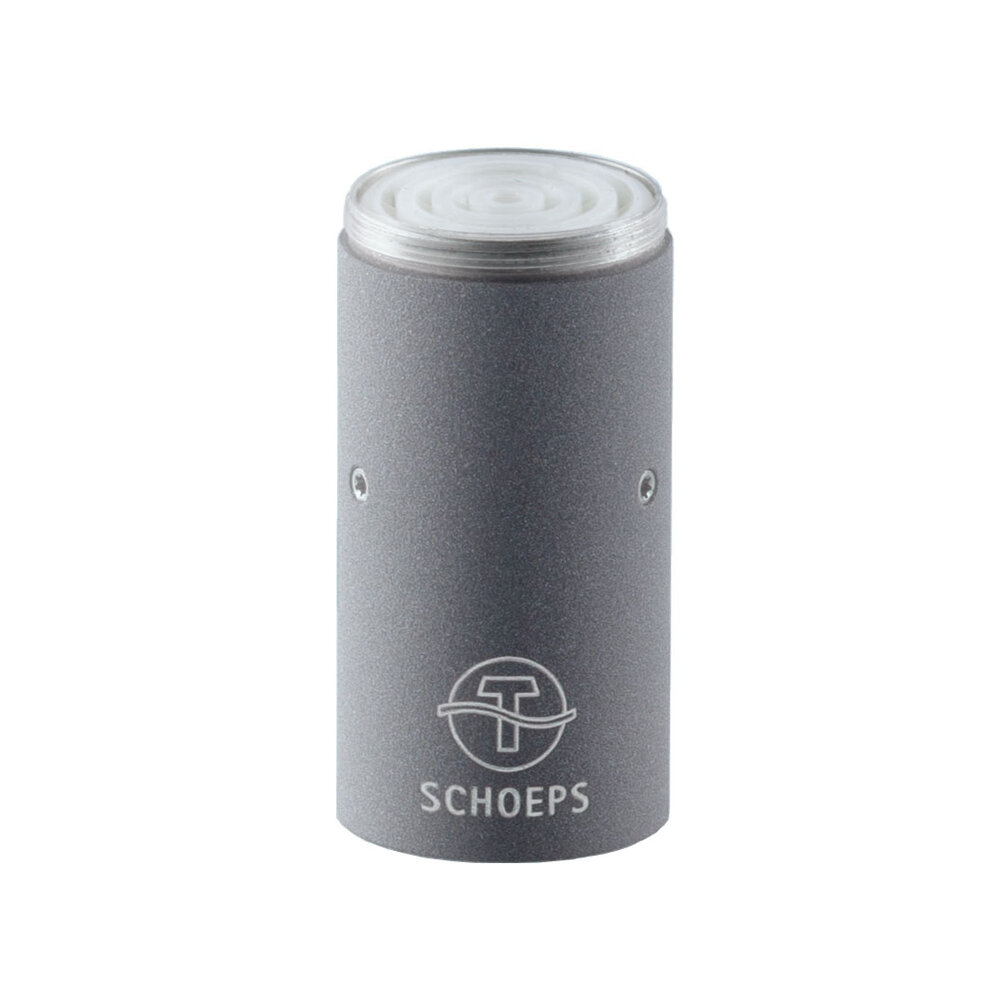

• 1 × Schoeps CMC 1 U microphone amplifier.

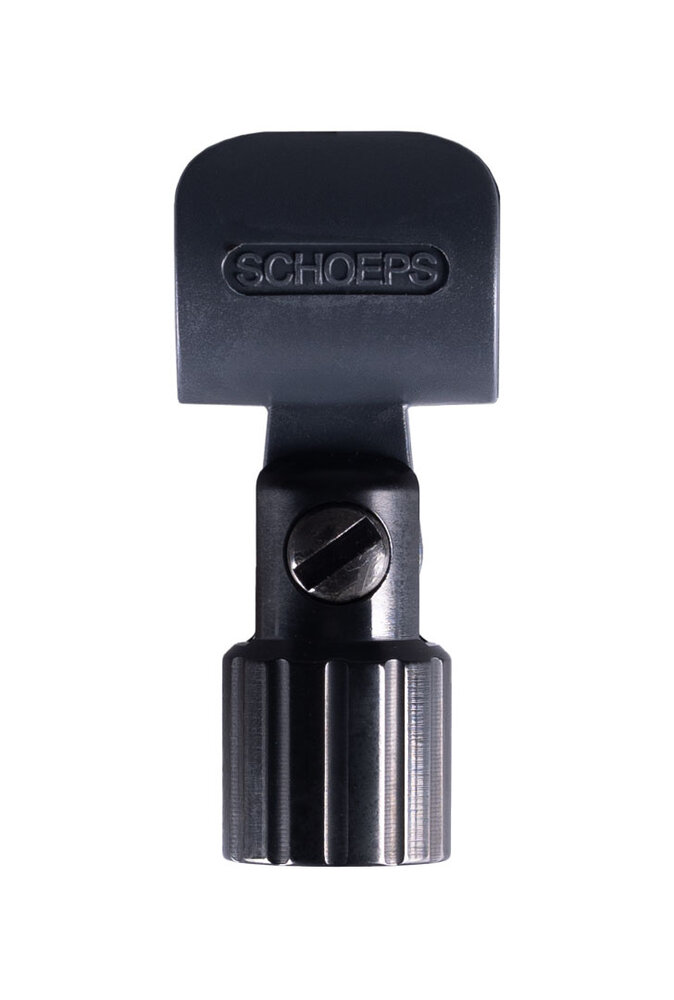

• 1 × Schoeps SG 20 stand clamp, 2026 version.

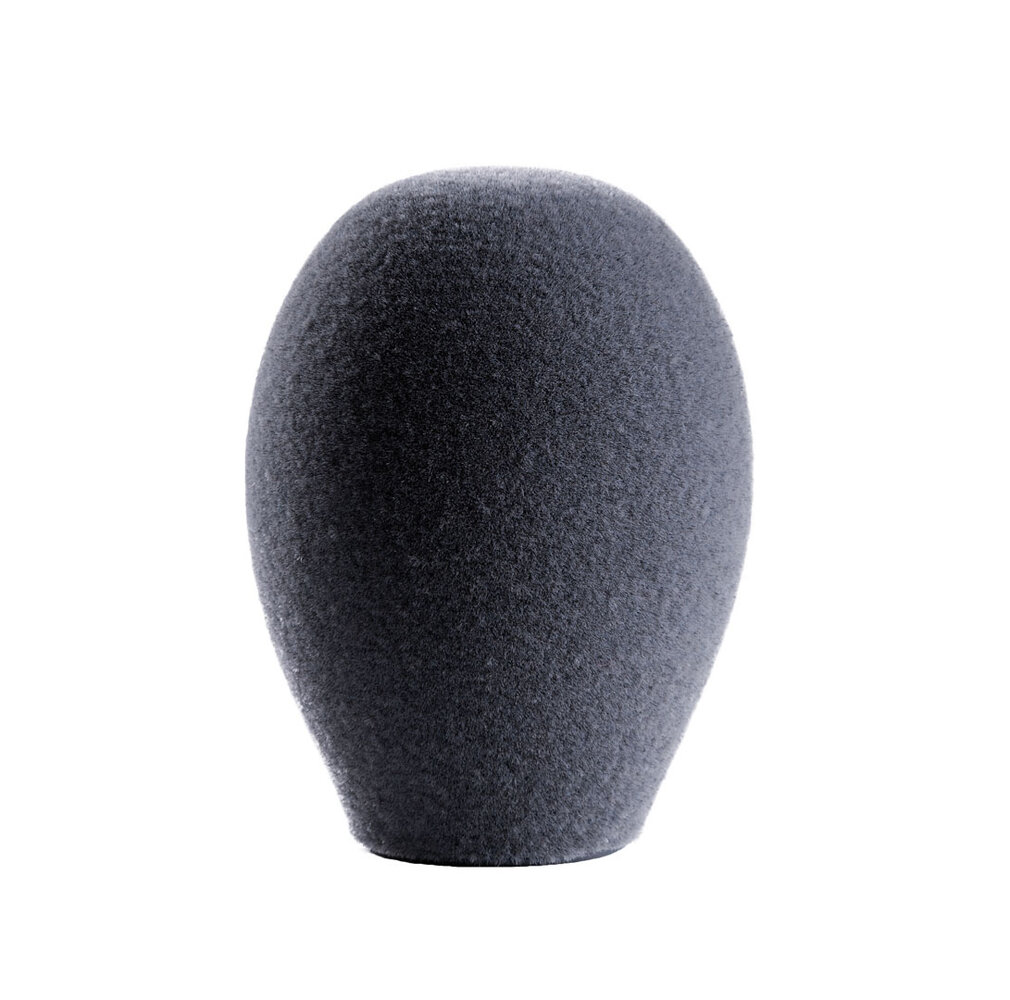

• 1 × Schoeps B 5 D hollow foam windscreen.
• 1 × Schoeps hook-and-loop cable strap.

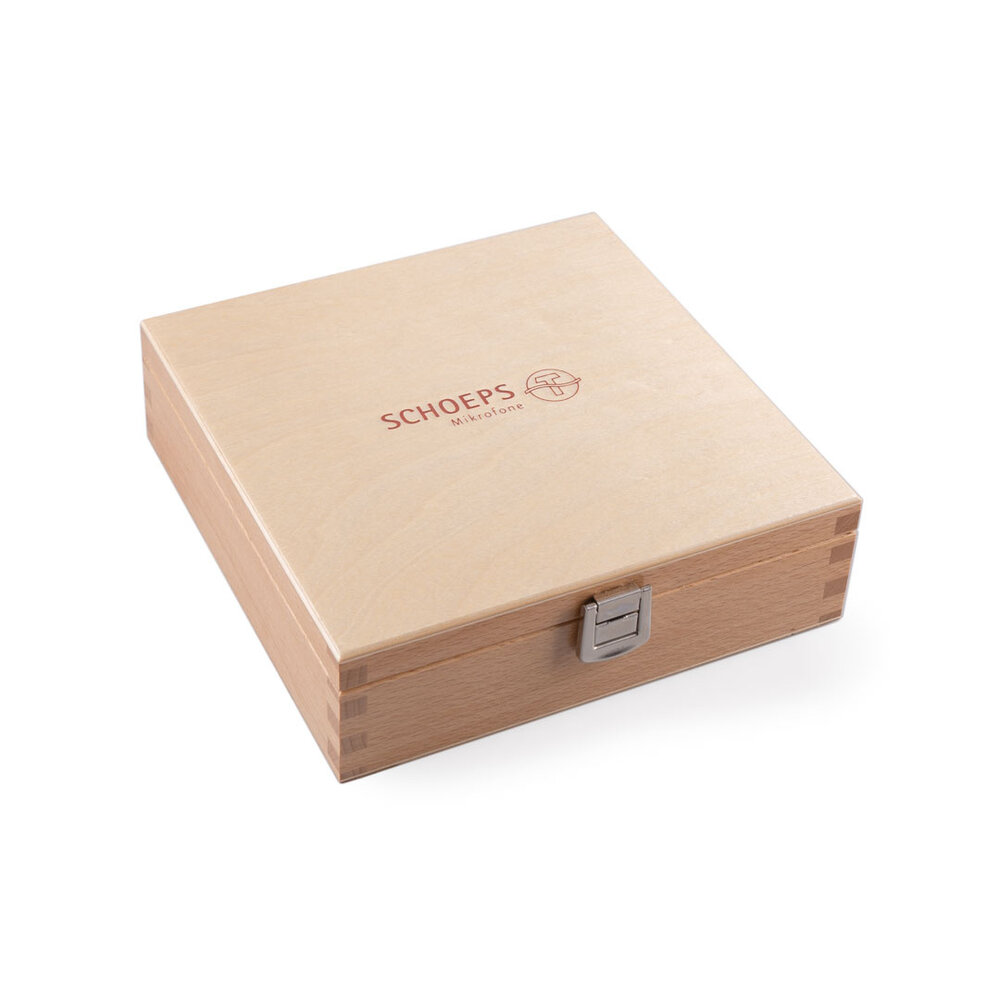

• 1 × Wooden storage case.
