Schoeps Mono-Set CMC 1 U, MK 8

Schoeps Mono-Set CMC 1 U, MK 8 [138305]

Compact Colette microphone set combining an MK 8 figure-eight capsule with a CMC 1 U microphone amplifier with XLR output. Supplied with a stand clamp, foam screen and wooden storage case.

Application and placement

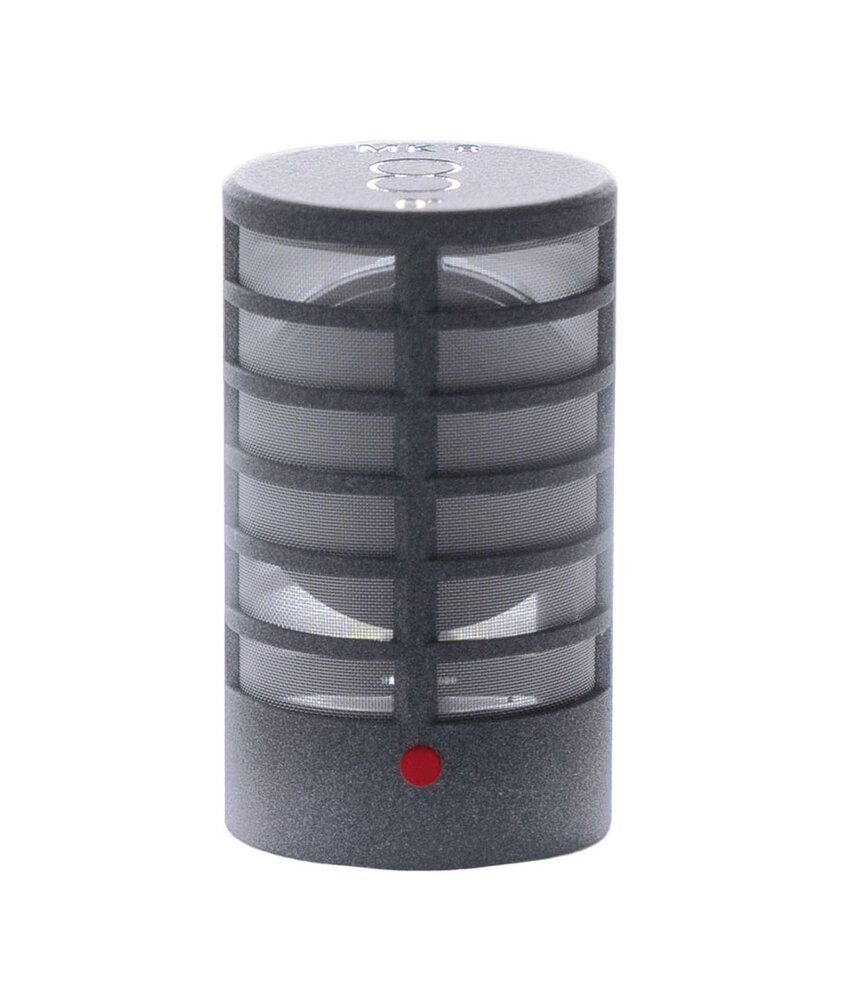

The MK 8 is side-addressed, with two opposing pickup directions. A red dot marks the 0° side. Suitable as the side microphone in an M/S setup or as part of a Blumlein pair; these configurations require an additional microphone.

Connection

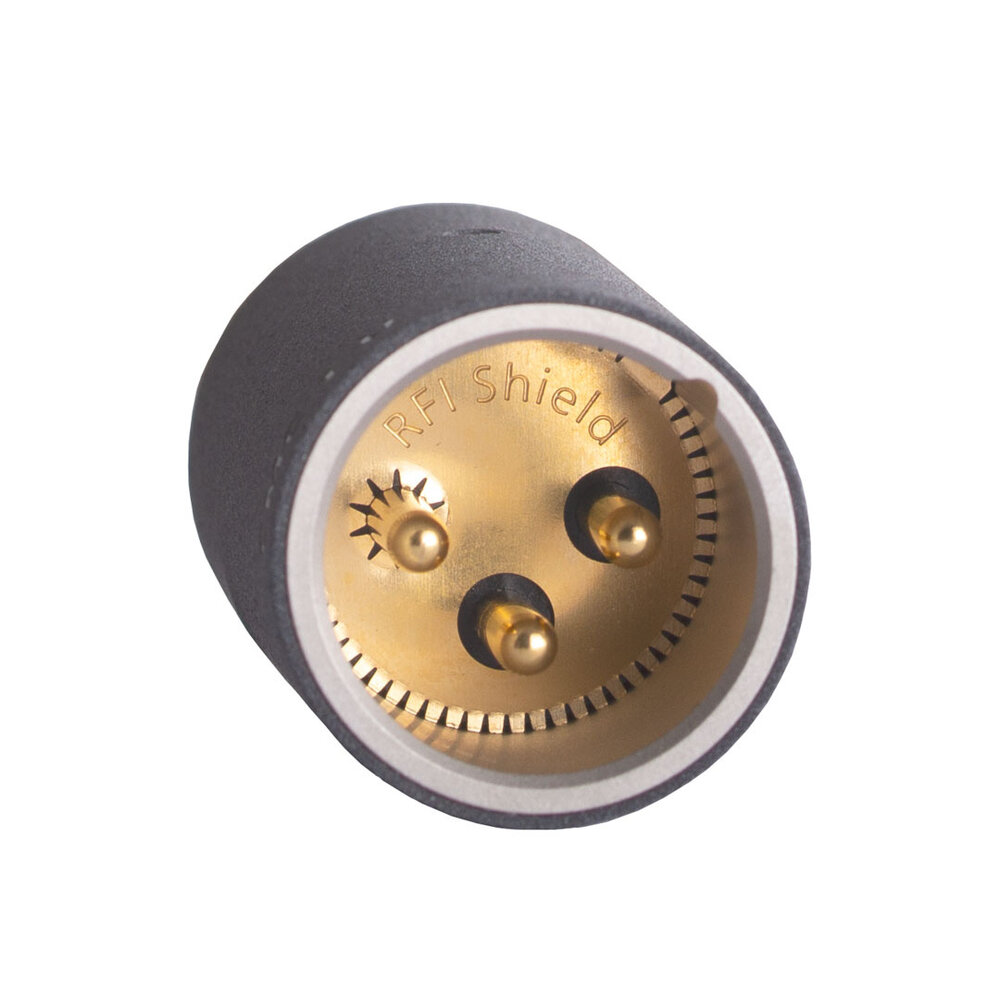

The CMC 1 U has a balanced 3-pin XLR output and operates on P12 or P48 phantom power. The included O-rings allow radial alignment of the capsule.

Specifications

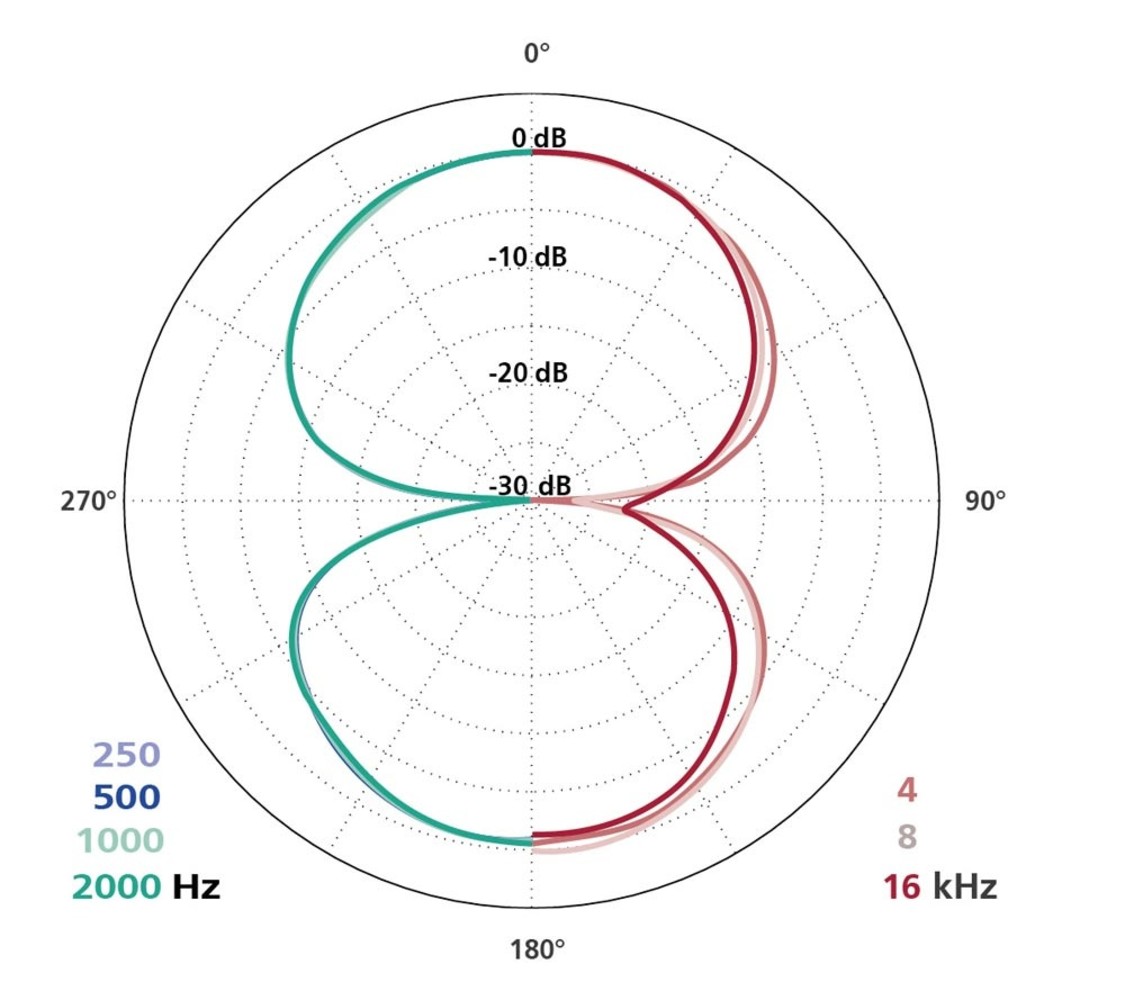

• Polar pattern: figure-eight
• Frequency range: 40 Hz–15 kHz
• Sensitivity: 12 mV/Pa
• Equivalent noise level: 17 dB-A; 26 dB CCIR
• Signal-to-noise ratio: 77 dB-A
• Maximum SPL with CMC 1: 137 dB SPL at THD < 0.5%
• Power supply: P12 / P48
• Current consumption: 3 mA at P12; 2 mA at P48
• Output impedance: 50 Ω
• Connector: XLR-3M
• Microphone finish: matte gray

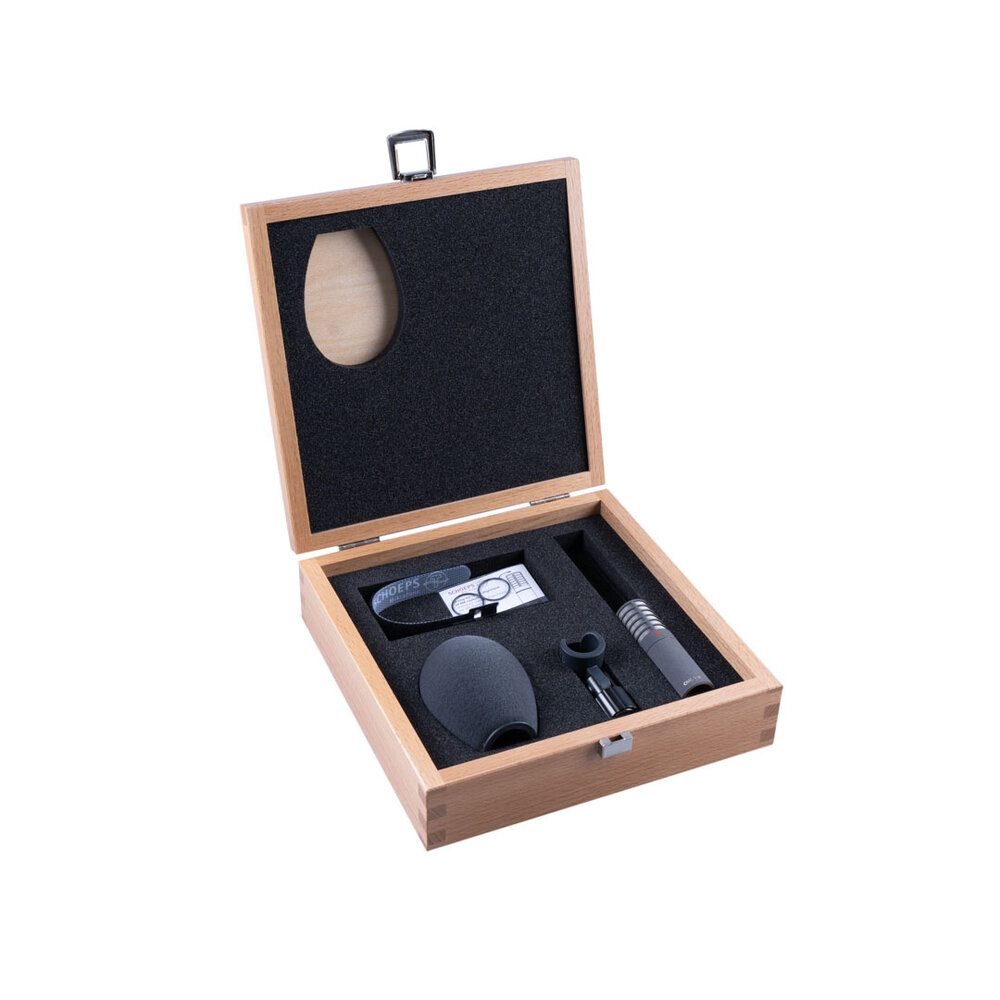

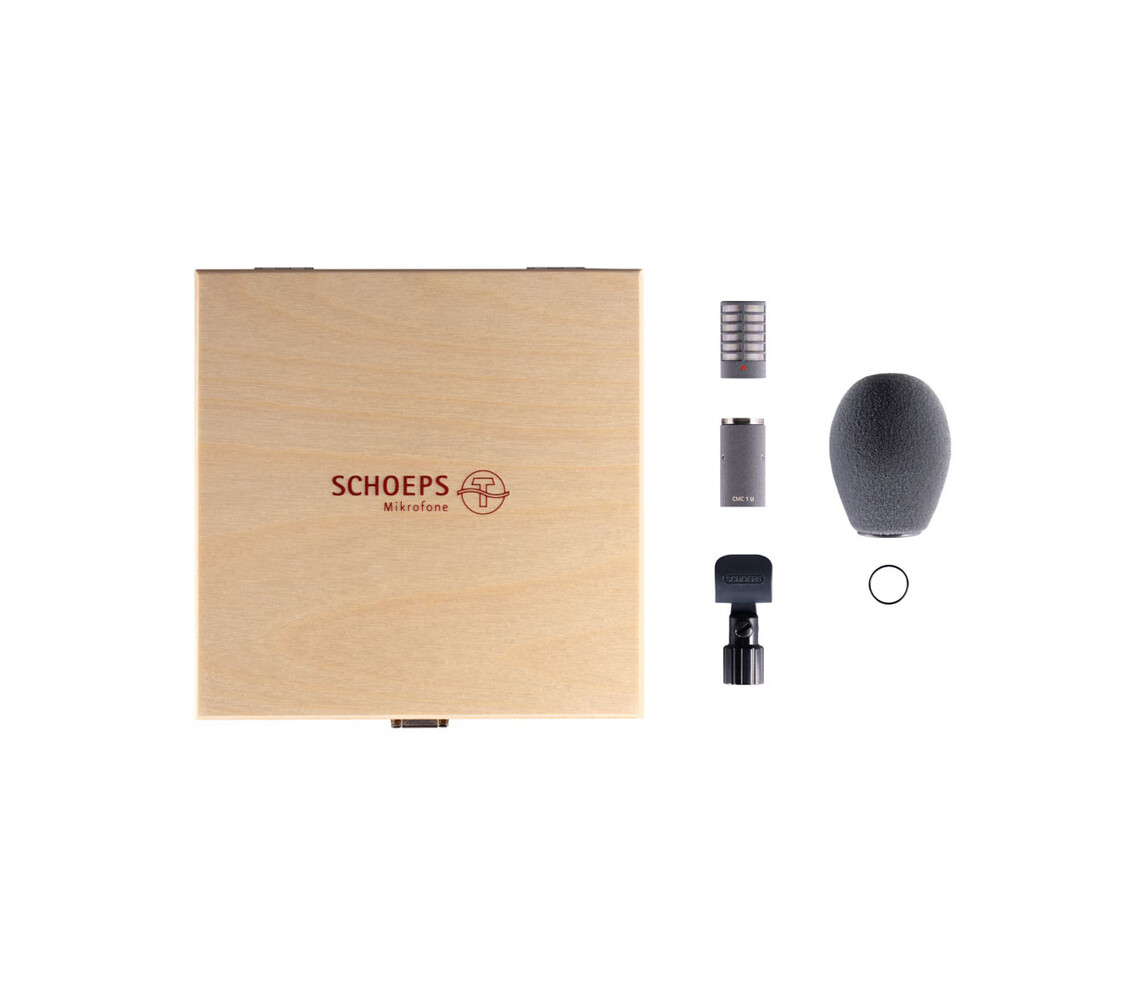

Included

• 1 × MK 8 microphone capsule

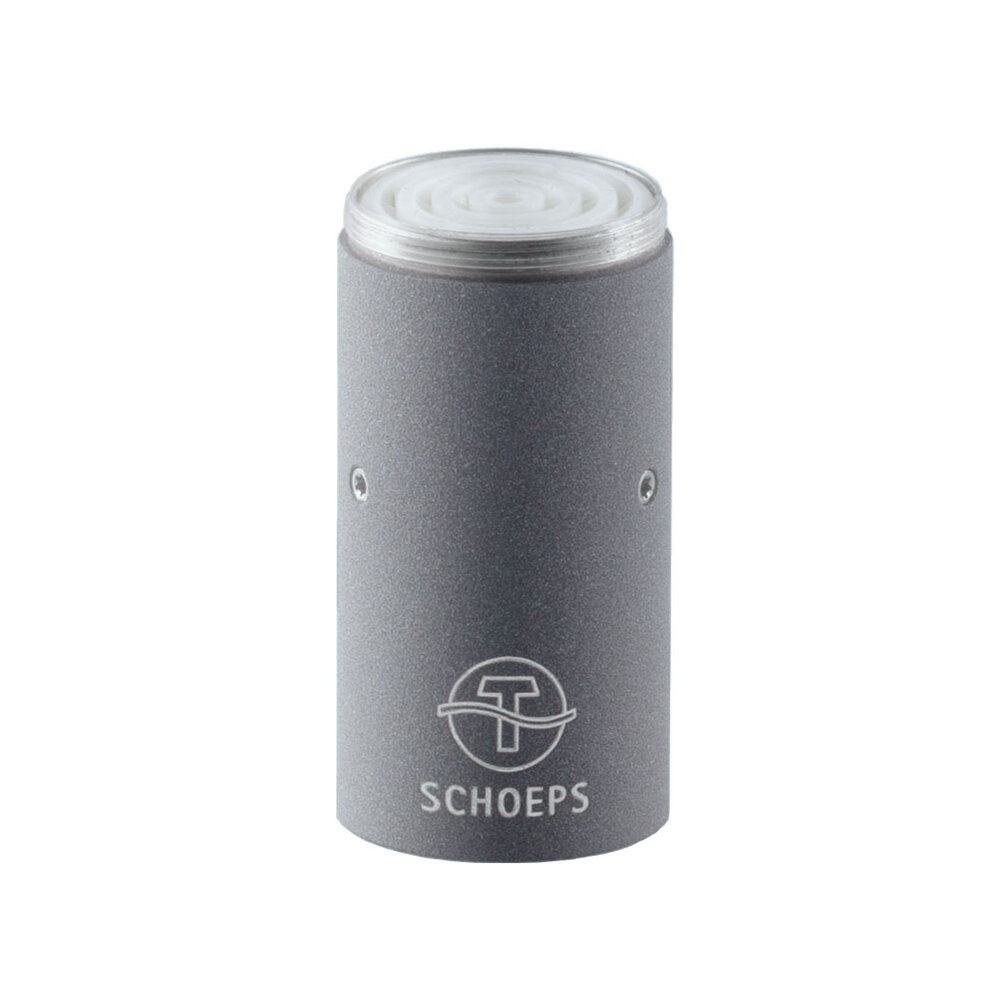

• 1 × CMC 1 U microphone amplifier

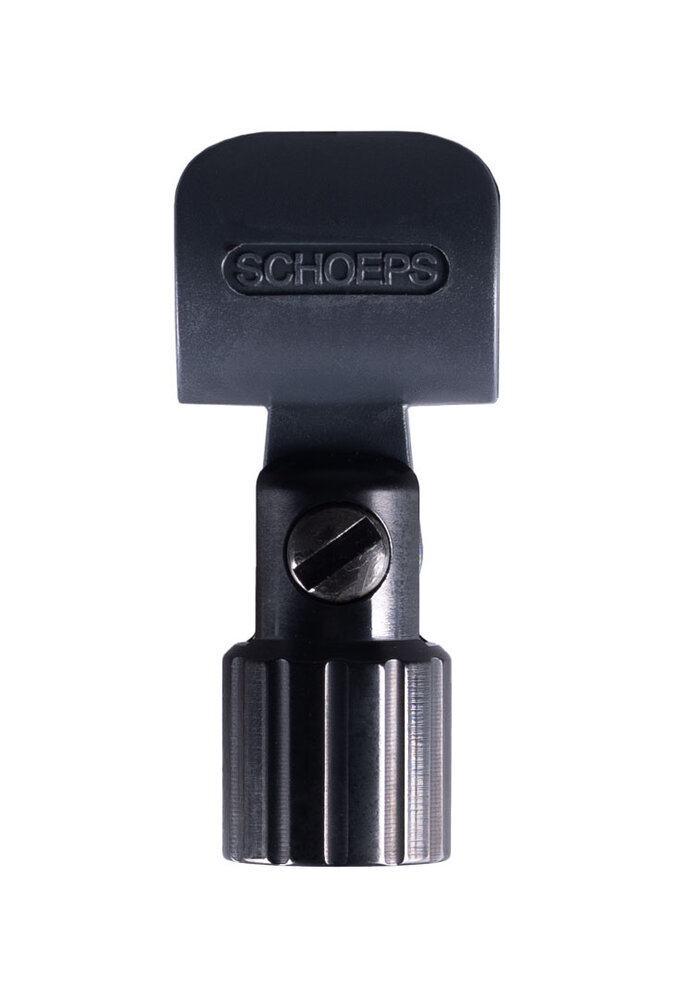

• 1 × SG 20 microphone clamp, 2026 version

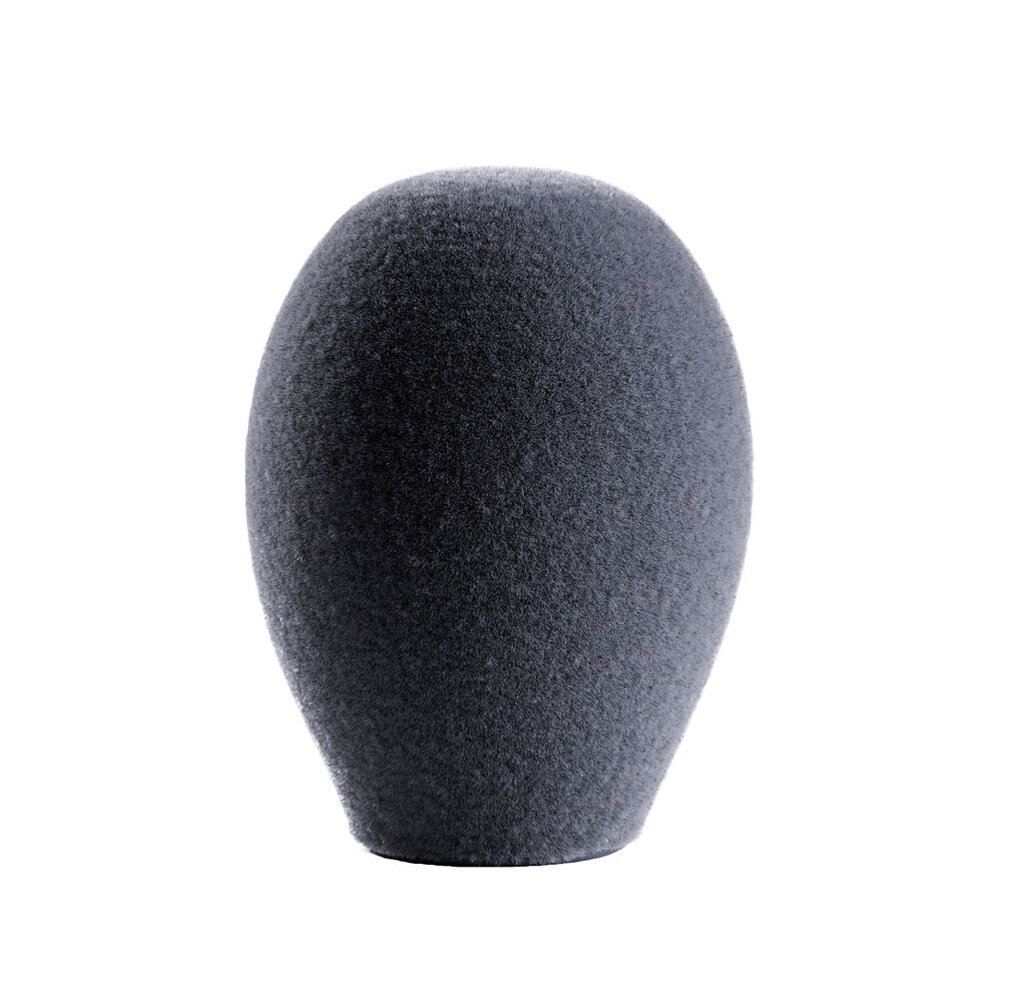

• 1 × B 5 D hollow foam screen

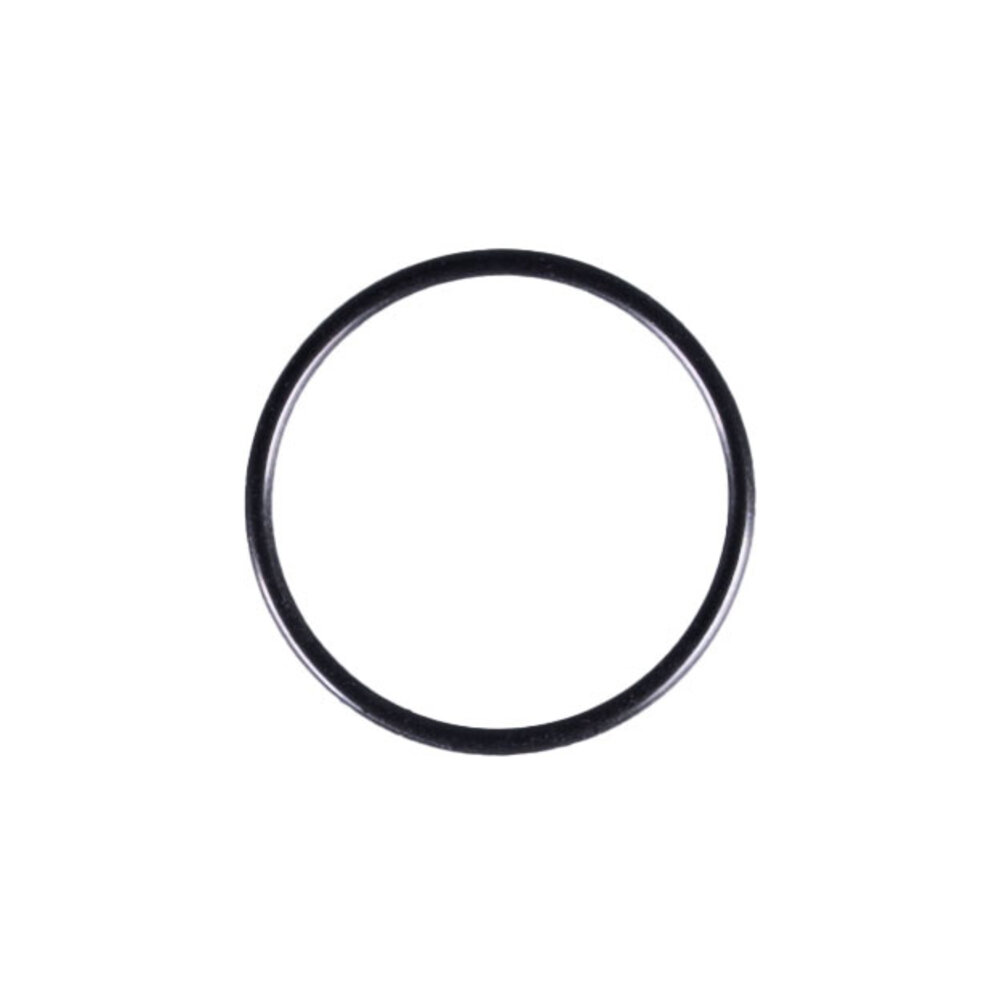

• O-rings for radial alignment of the MK 8
• Schoeps hook-and-loop cable strap

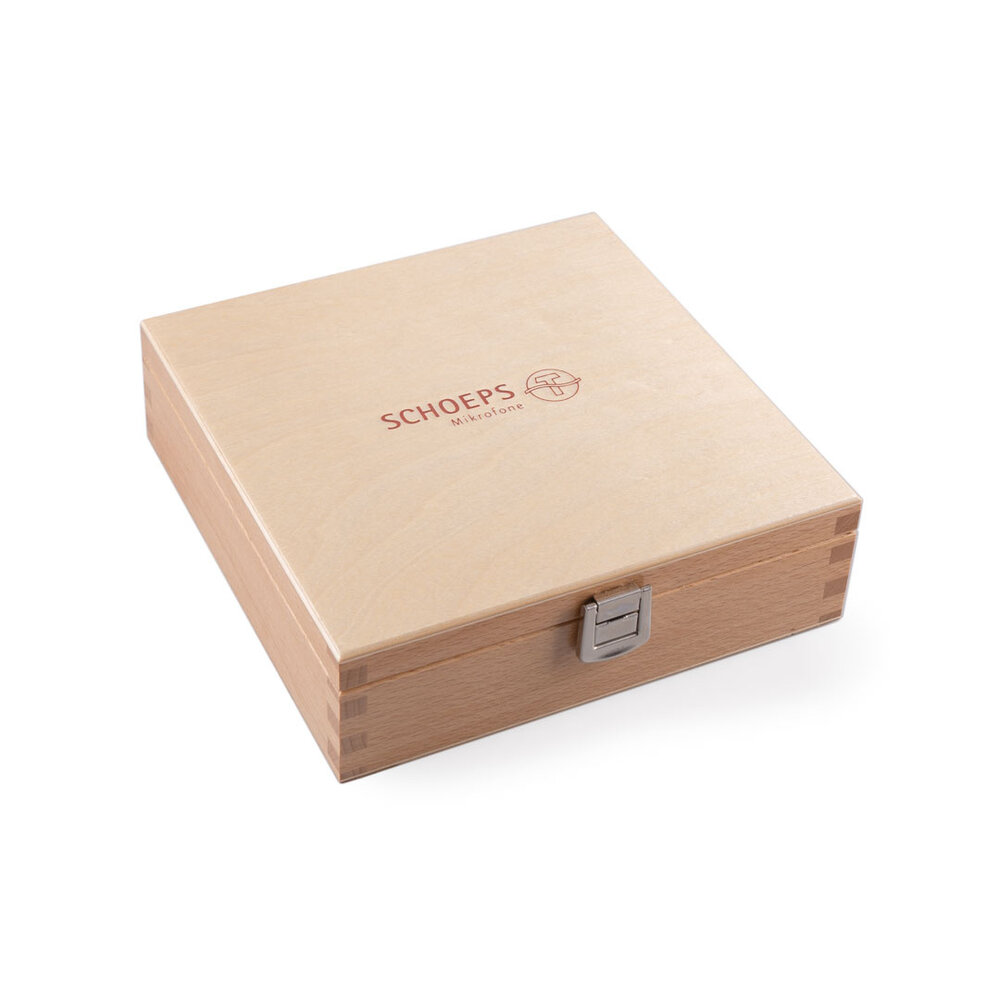

• Wooden storage case for the Mono Set

XLR microphone cable not included.
