Schoeps Mono-Set CMC 1 U, MK 22

Schoeps Mono-Set CMC 1 U, MK 22 [138207]

The Schoeps Mono-Set CMC 1 U, MK 22 combines an MK 22 open cardioid capsule with the compact CMC 1 U microphone amplifier. The set includes one complete modular Colette microphone with an analog XLR output, stand clamp, wind protection and a wooden storage case.

Applications

The open cardioid polar pattern lies between the MK 4 cardioid and the MK 21 wide cardioid. This combination suits soloists and spot microphone applications where both the sound source and room acoustics are captured.

The microphone can also serve as the mid microphone in an M/S arrangement with a separate figure-eight microphone. This mono set contains one microphone.

Features

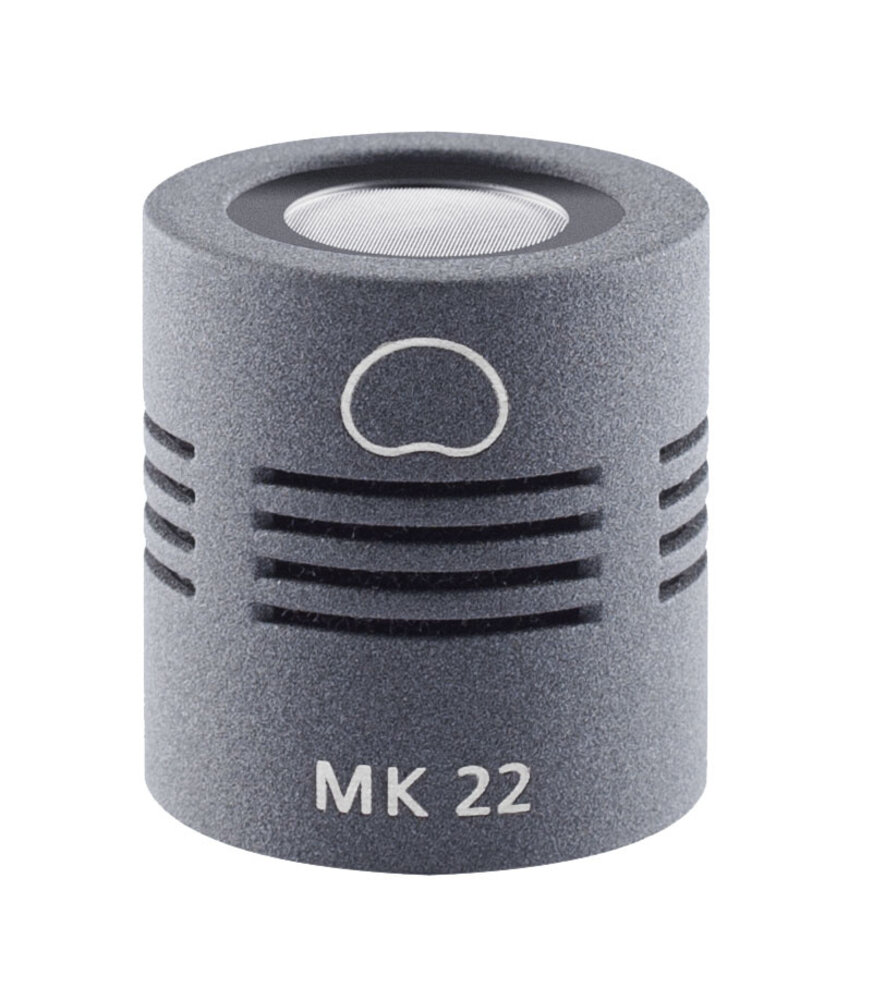

• MK 22 open cardioid capsule.

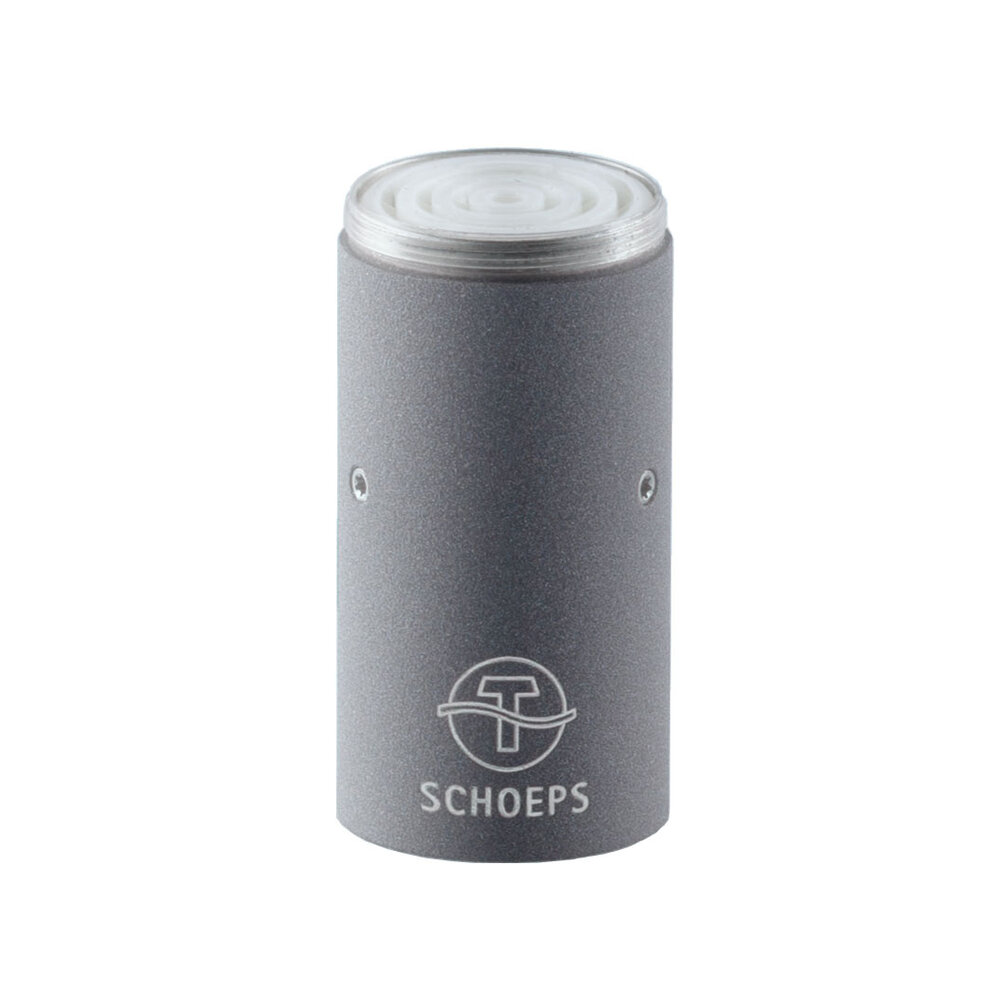

• Compact CMC 1 U microphone amplifier with a balanced XLR output.
• Modular Colette system with an interchangeable capsule.
• Operates on P12 or P48 phantom power.

Technical specifications

• Microphone type: small-diaphragm condenser microphone.

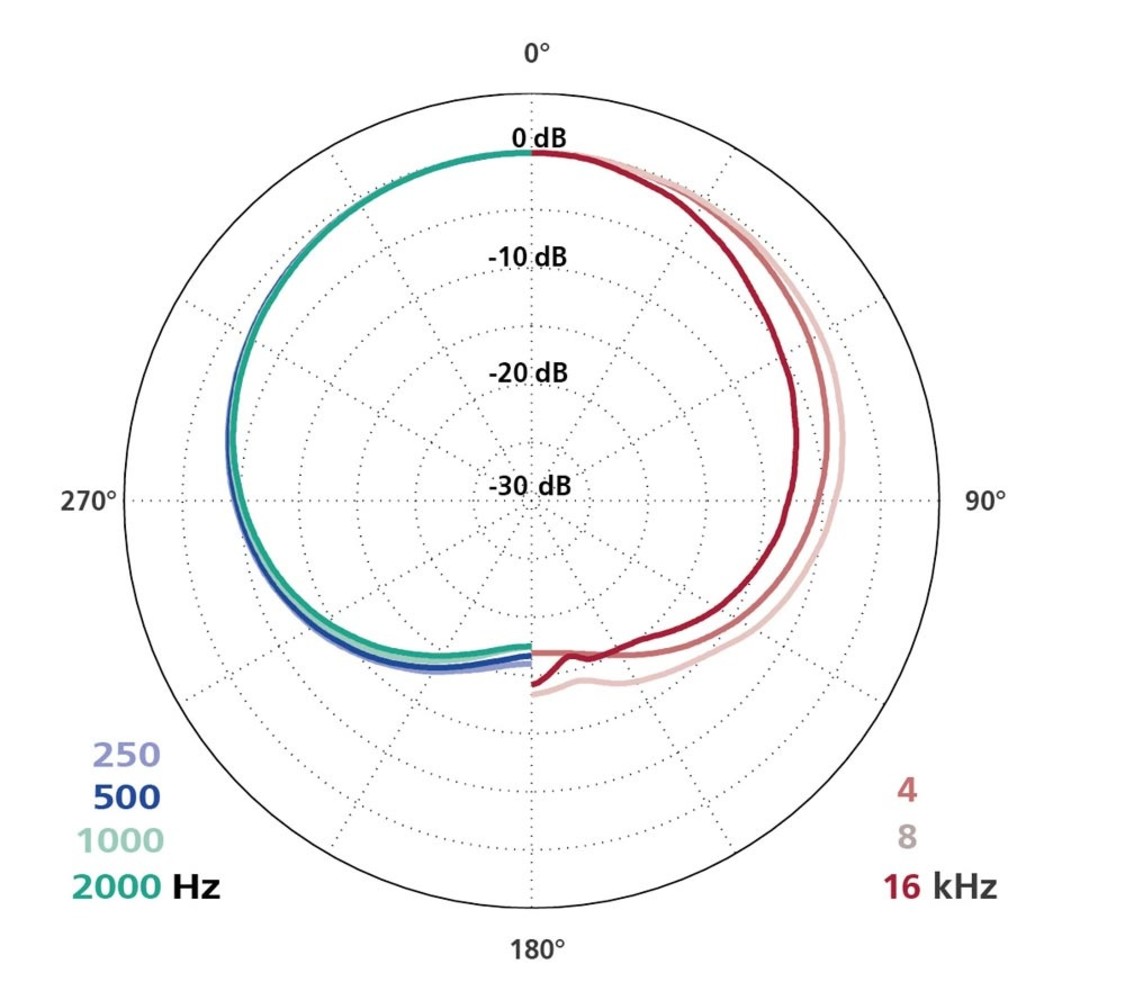

• Polar pattern: open cardioid.

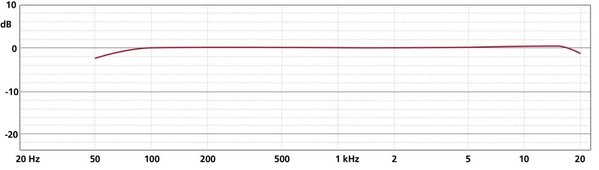

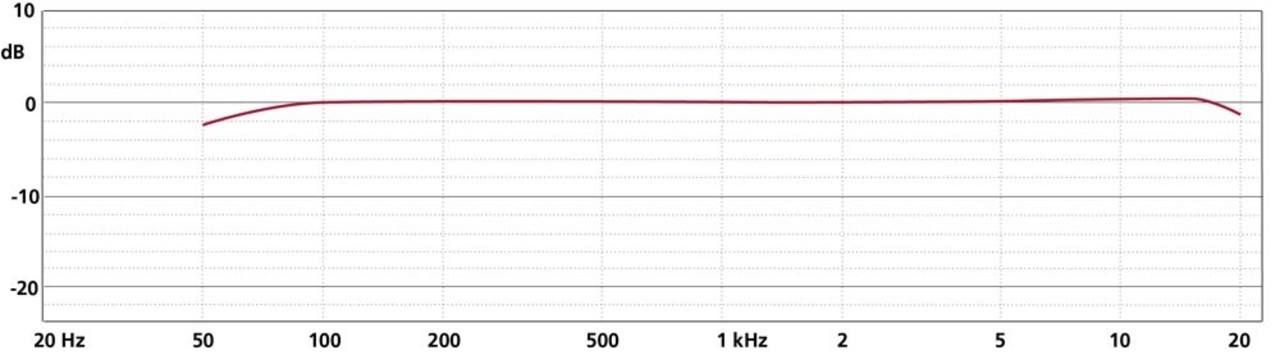

• Frequency range: 40 Hz–28 kHz.
• Sensitivity: 15 mV/Pa, -36.5 dBV/Pa.
• Equivalent noise level: 13 dB(A); 23 dB CCIR.
• Signal-to-noise ratio: 81 dB(A).
• Maximum sound pressure level: up to 134 dB SPL at THD < 0.5%.

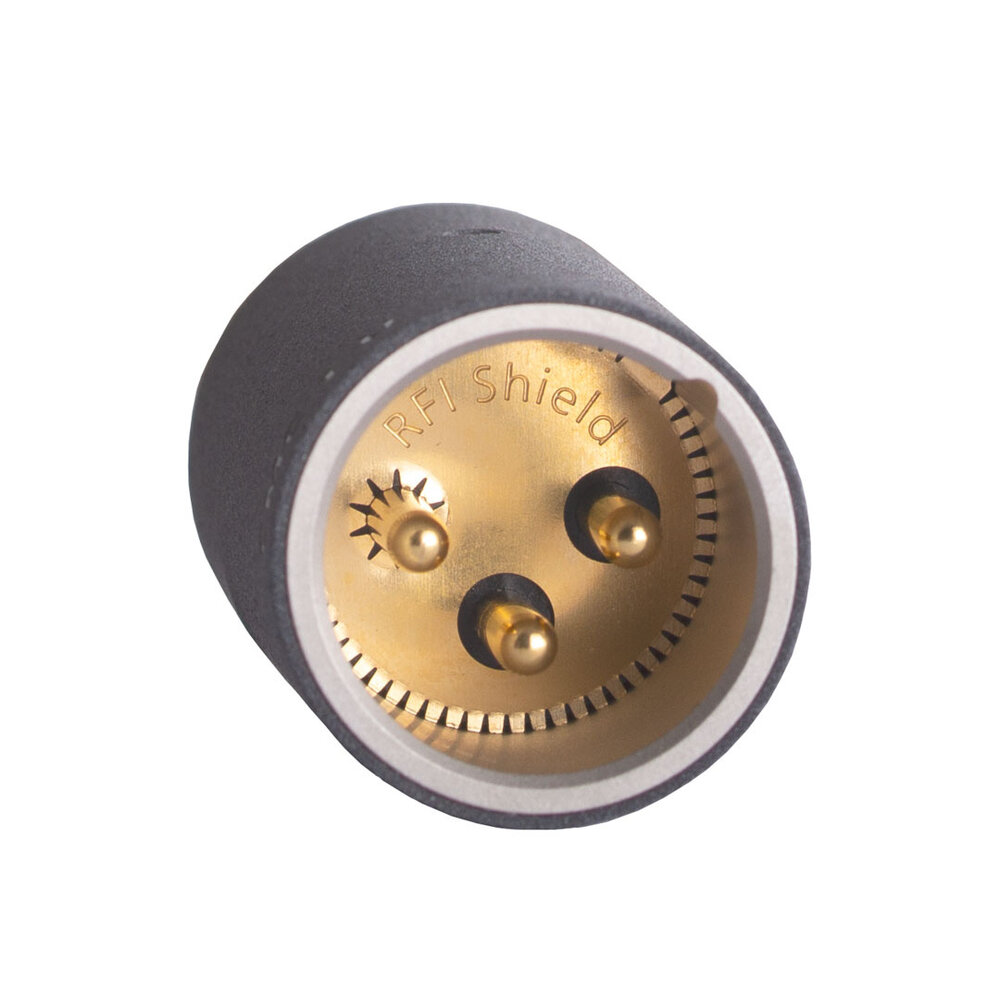

• Output: XLR-3M, analog, one channel.
• Phantom power: P12 or P48.
• Current consumption: 3 mA at P12; 2 mA at P48.
• Output impedance: 50 Ω.
• Minimum recommended load impedance: 1 kΩ.
• CMC 1 U maximum output voltage: 1.8 V into a 1 kΩ load.
• Fixed low-cut filter: 20 Hz, 12 dB/octave.

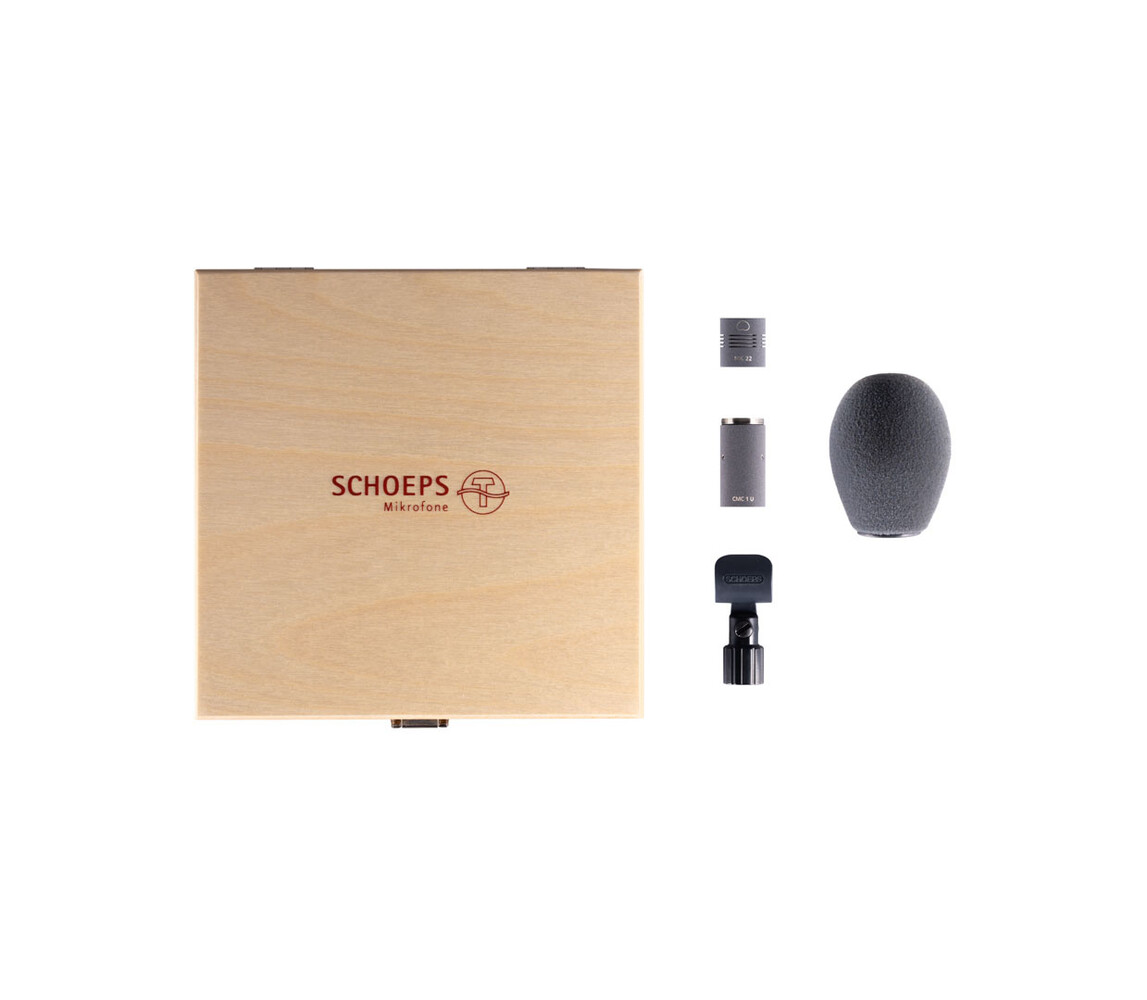

Included

• 1 × MK 22 open cardioid capsule.
• 1 × CMC 1 U microphone amplifier.

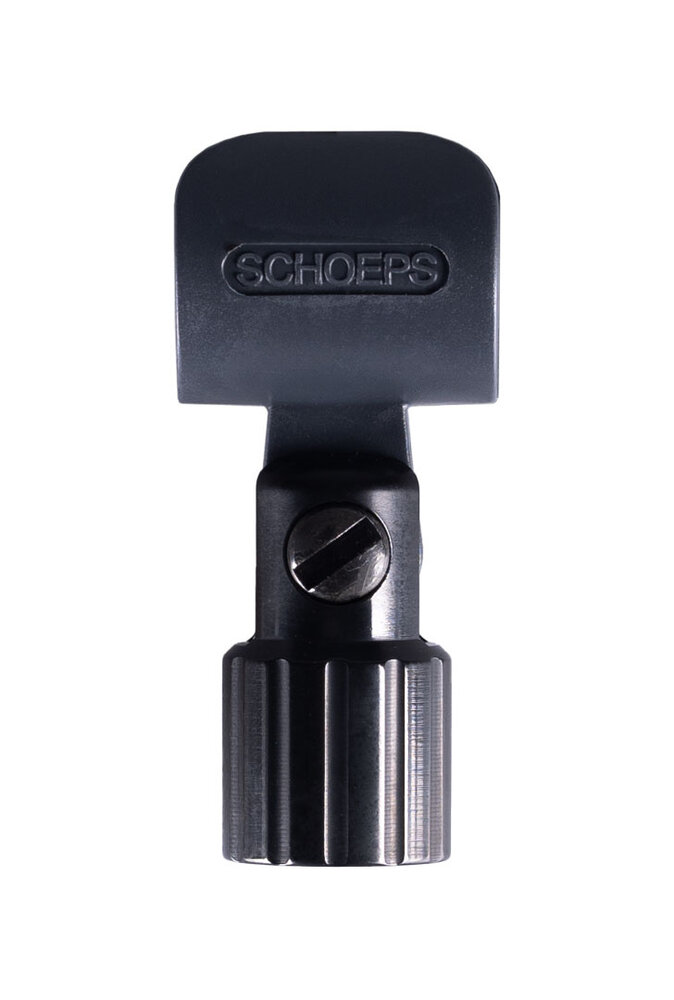

• 1 × SG 20 stand clamp, 2026 version.

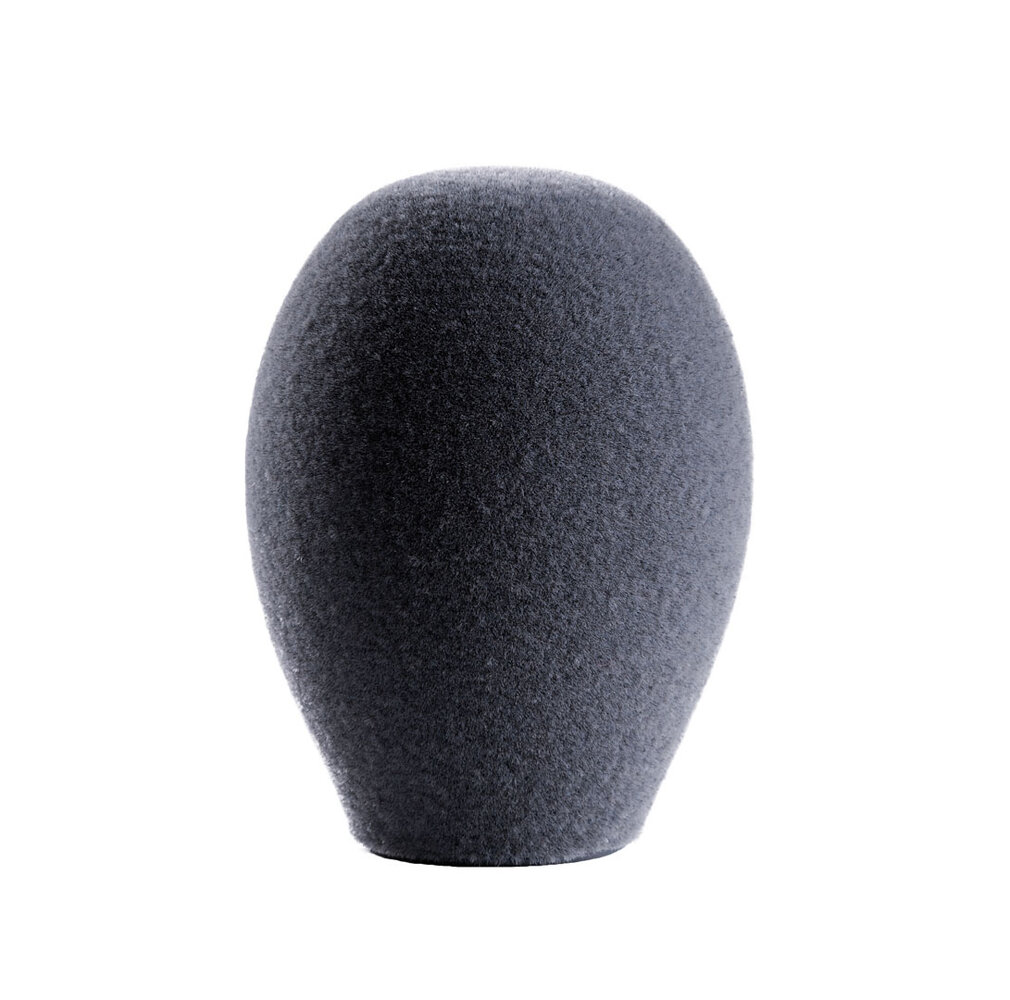

• 1 × B 5 D hollow foam windscreen and pop filter.
• Schoeps hook-and-loop cable strap.

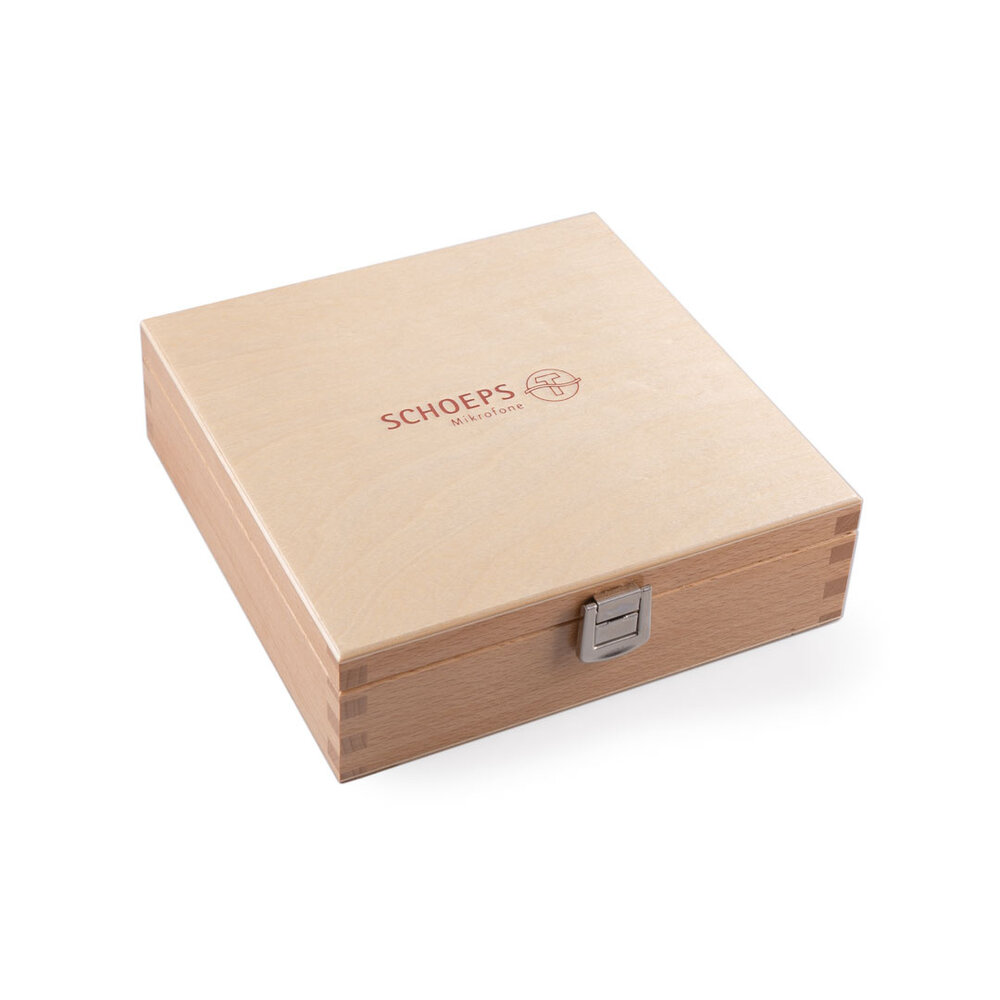

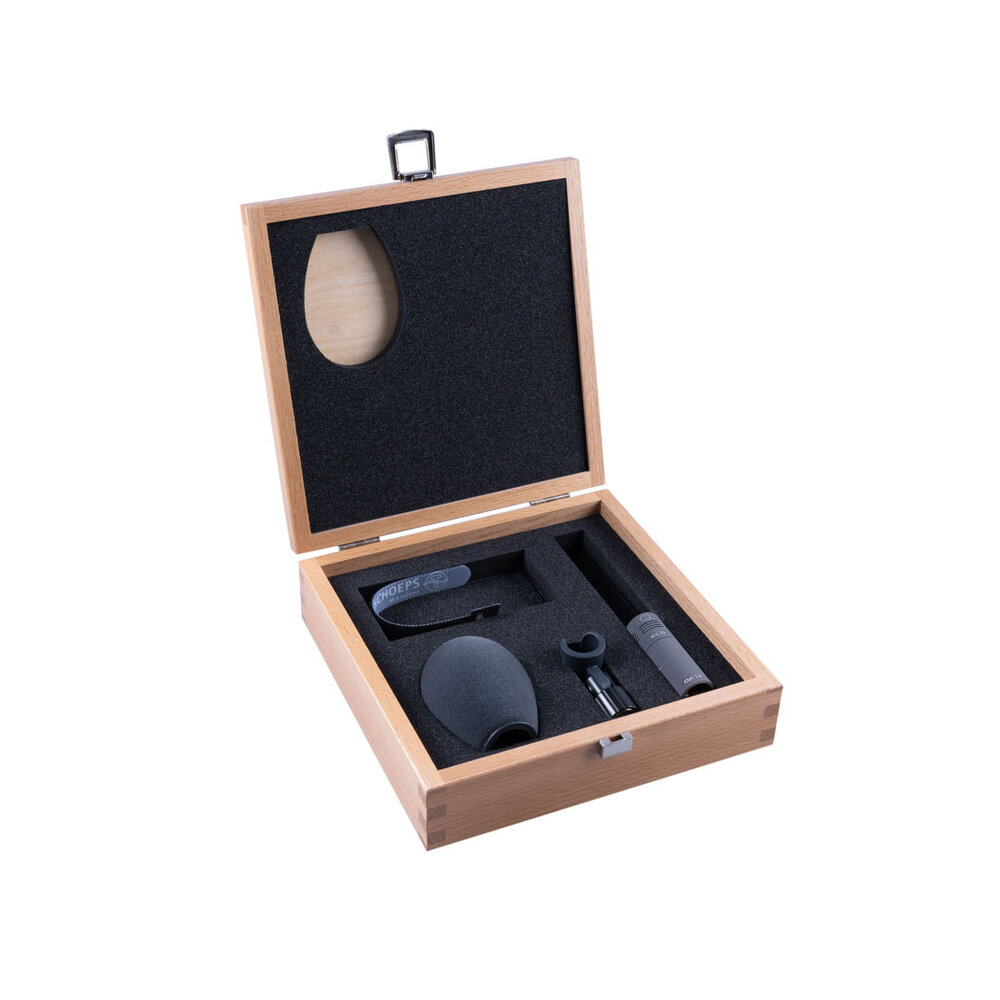

• Wooden storage case for the mono set.

Related stereo set

For a matched microphone pair, choose the Stereo-Set CMC 1 U, MK 22 [139204], supplied with a matching certificate.
