Schoeps Stereo-Set CMC 1 U, MK 2H

Schoeps Stereo-Set CMC 1 U, MK 2H [139202]

The Schoeps Stereo-Set CMC 1 U, MK 2H contains two compact Colette microphones with matched MK 2H omnidirectional capsules and CMC 1 U microphone amplifiers. It comes with a matching certificate, two stand clamps, two foam pop screens and a wooden storage case.

Applications

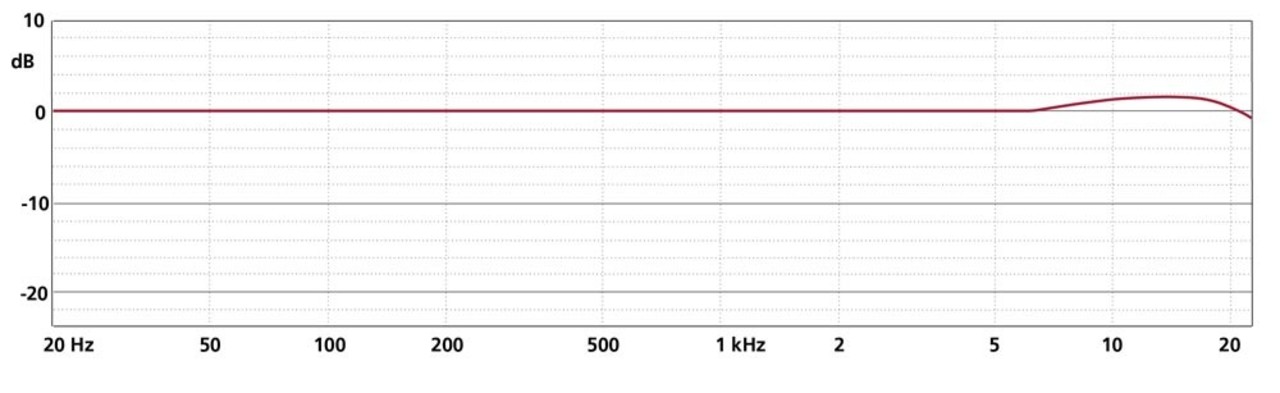

The MK 2H capsules have a gentle acoustic response elevation above approximately 6 kHz. This compensates for high-frequency loss when reflected sound contributes more strongly to the recording. The set suits instrument and orchestral recording at medium distances.

For A/B stereo, the microphones are placed apart. Microphone spacing and distance from the sound source help determine stereo width and the balance between direct sound and room acoustics.

Features

• Two MK 2H capsules, matched as a pair and supplied with a certificate.
• Omnidirectional pressure capsules with a gentle acoustic treble boost.
• Two compact CMC 1 U amplifiers with separate balanced XLR outputs.
• Modular Colette system with interchangeable capsules.
• Operates on P12 or P48 phantom power per microphone.

Technical specifications

The following values apply to each microphone.

• Microphone type: small-diaphragm condenser microphone.
• Polar pattern: omnidirectional.
• Frequency range: 20 Hz–26 kHz.
• Sensitivity: 17 mV/Pa, -35.5 dBV/Pa.
• Equivalent noise level: 10 dB(A); 22 dB CCIR.
• Signal-to-noise ratio: 84 dB(A).
• Maximum sound pressure level: up to 134 dB SPL at THD < 0.5%.

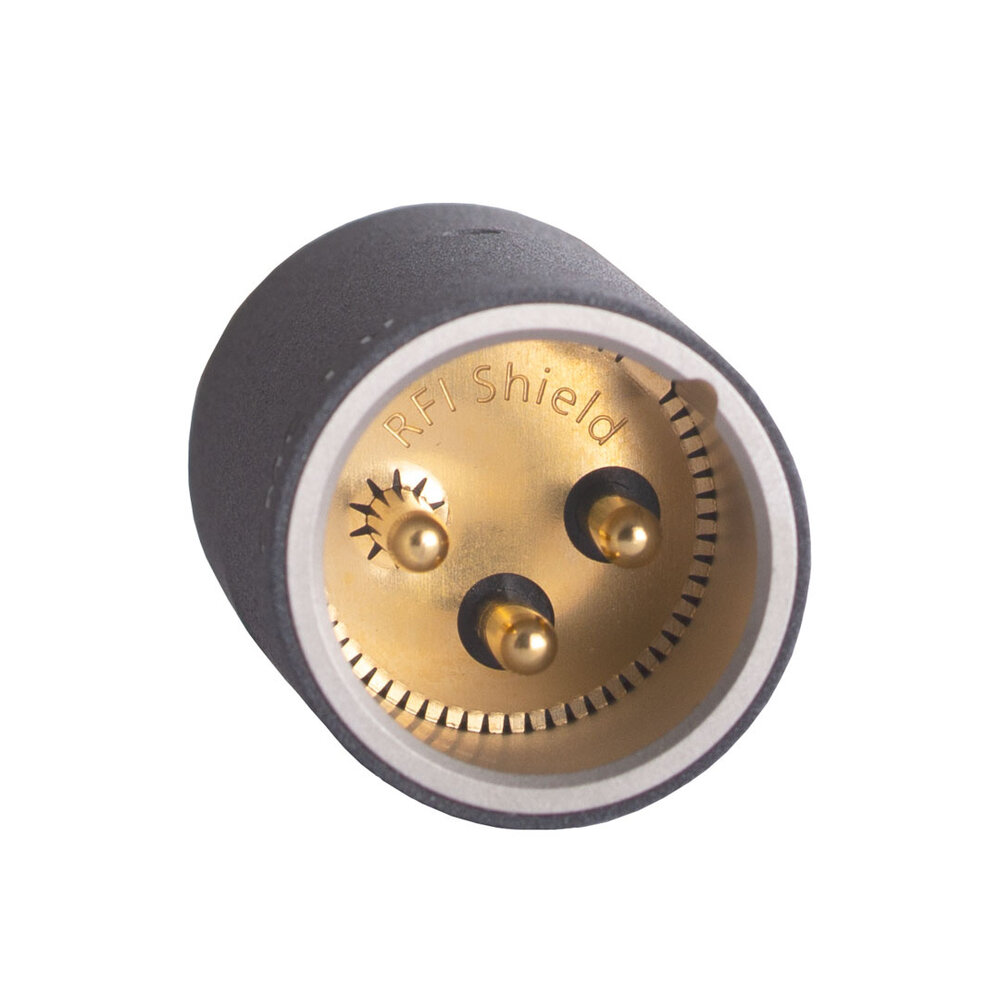

• Output: XLR-3M, analog, one channel.
• Phantom power: P12 or P48.
• Current consumption: 3 mA at P12; 2 mA at P48.
• Output impedance: 50 Ω.
• Minimum recommended load impedance: 1 kΩ.
• CMC 1 U maximum output voltage: 1.8 V into a 1 kΩ load.
• Fixed low-cut filter: 20 Hz, 12 dB/octave.

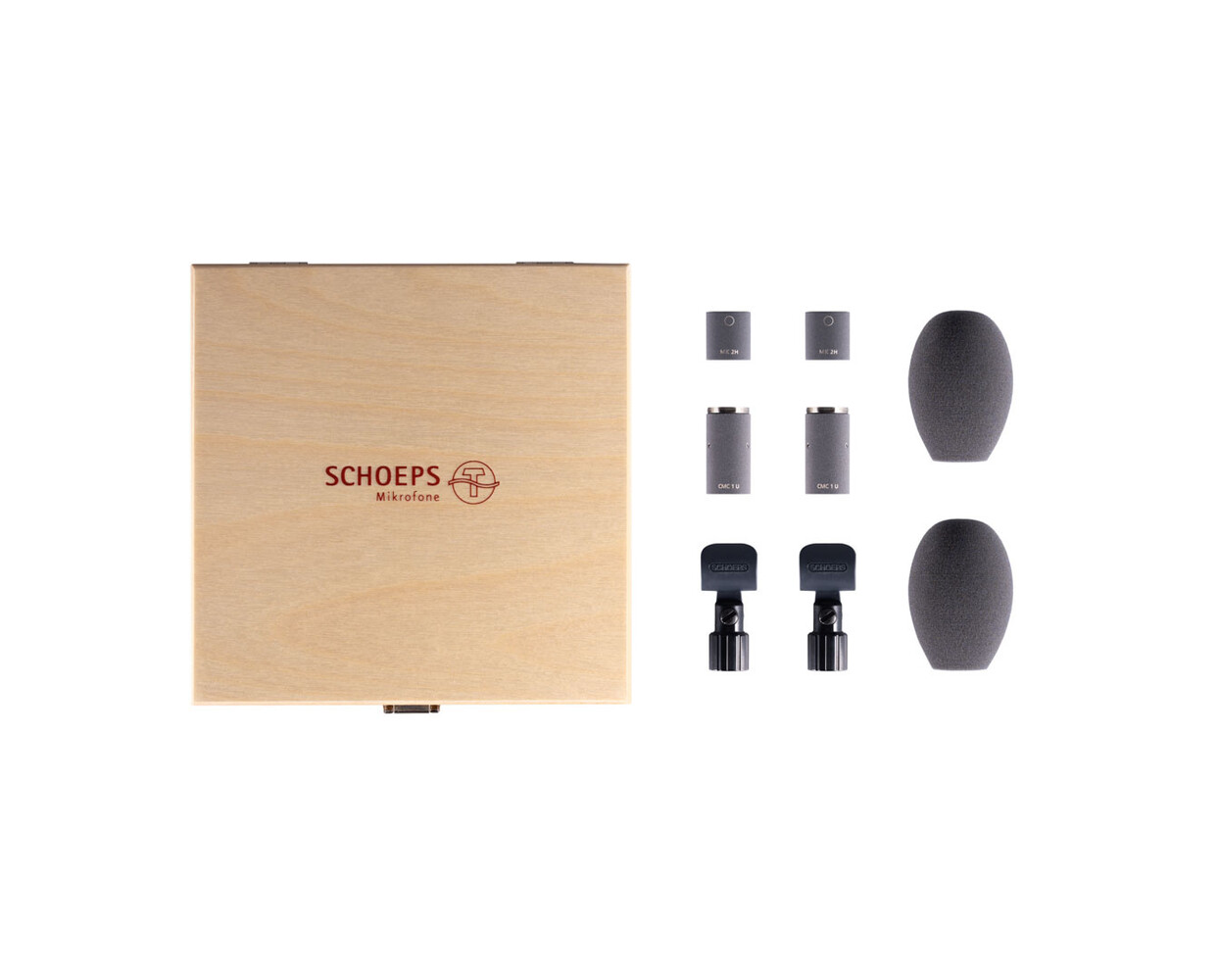

Included

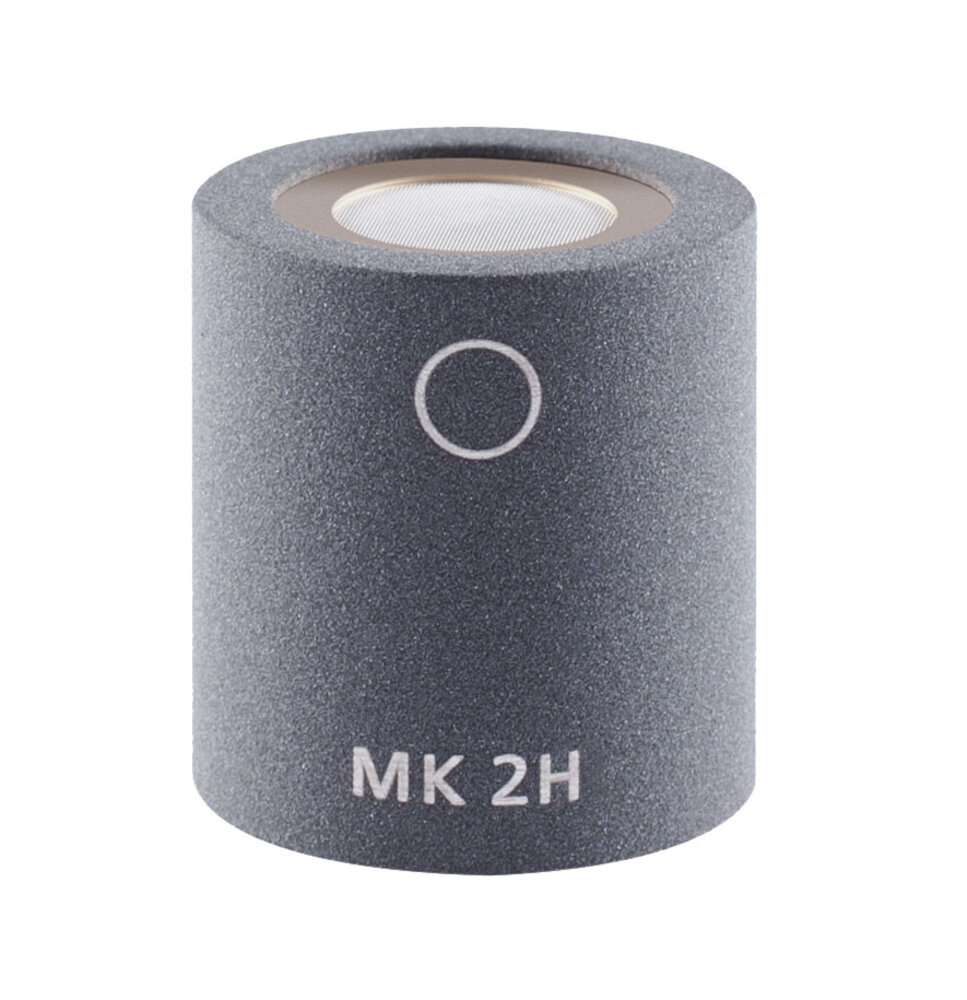

• 2 × MK 2H omnidirectional capsule, matched as a pair.
• Matching certificate.

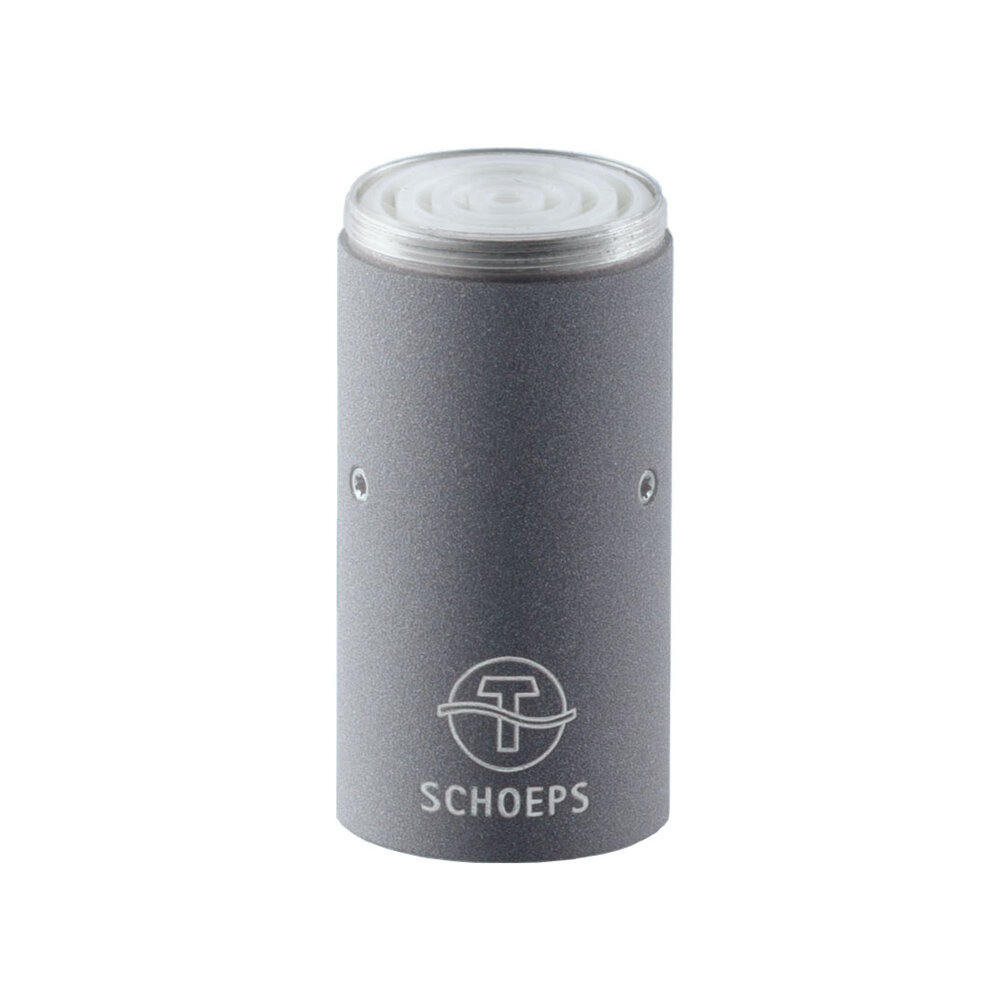

• 2 × CMC 1 U microphone amplifier.

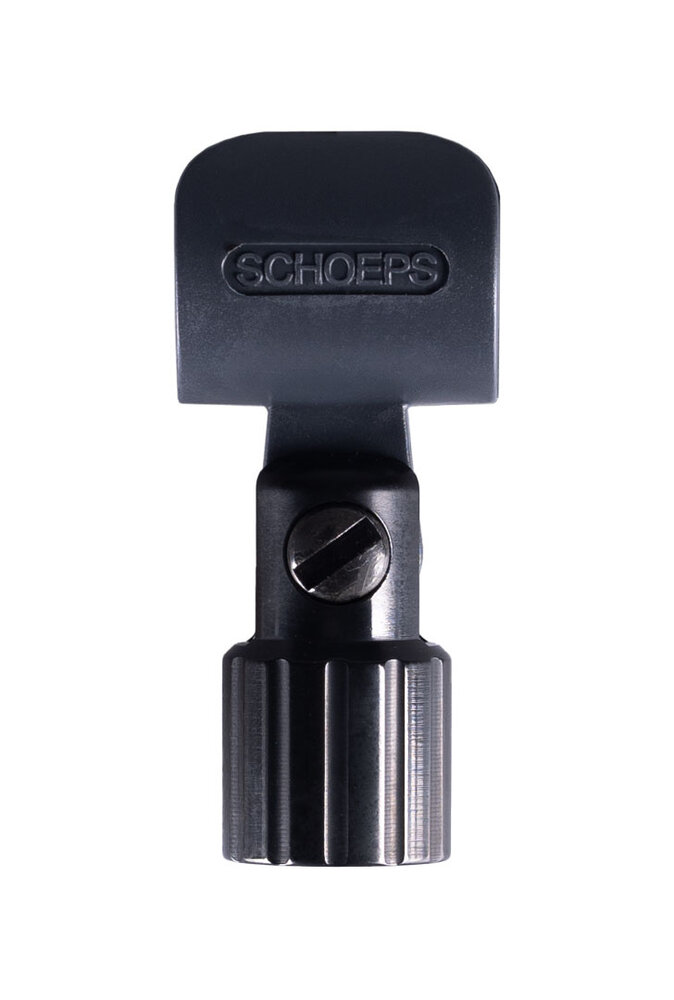

• 2 × SG 20 stand clamp, 2026 version.

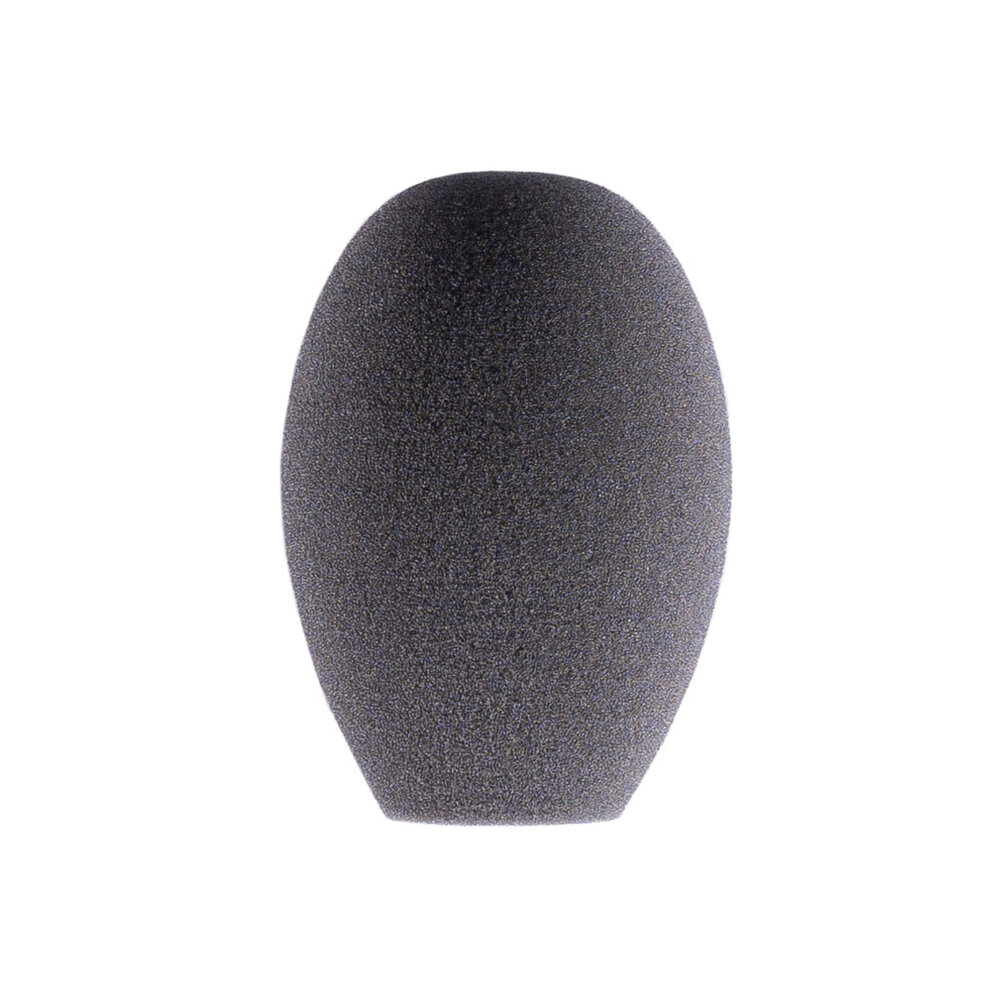

• 2 × B 5 foam pop screen.
• Schoeps hook-and-loop cable strap.

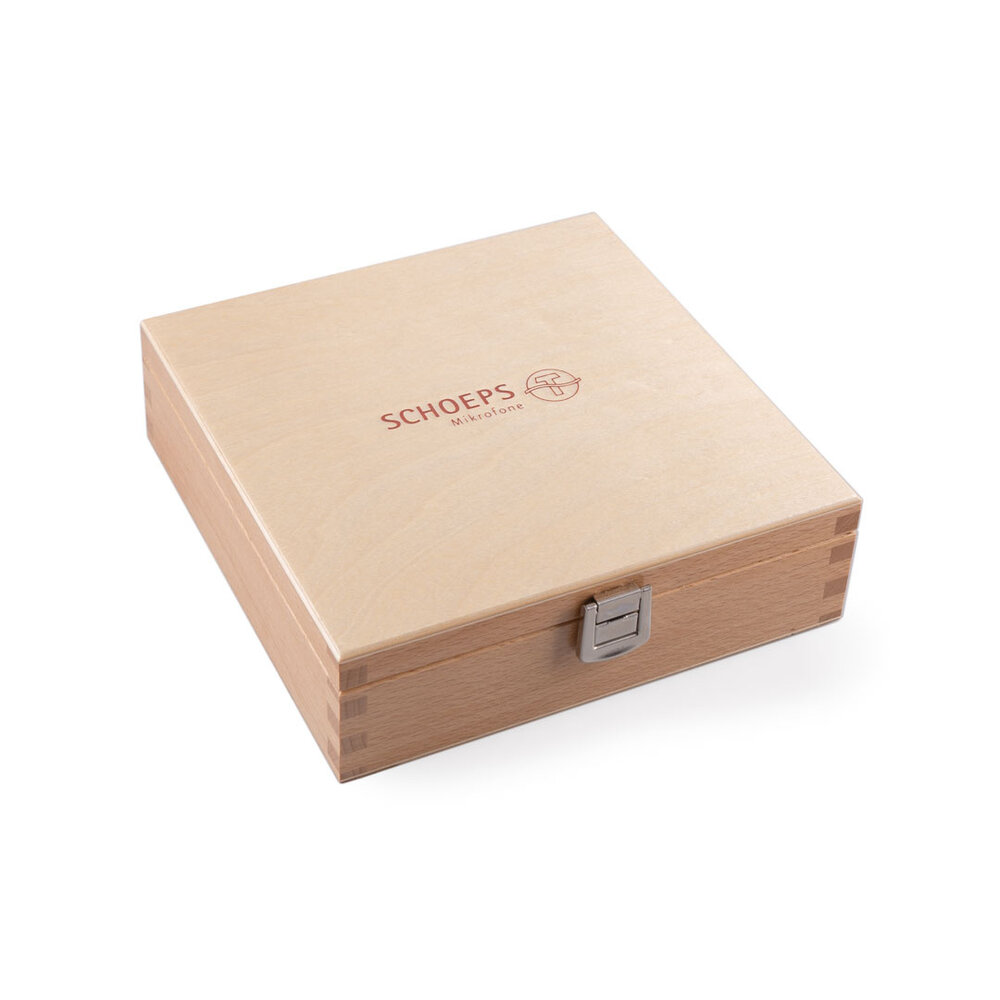

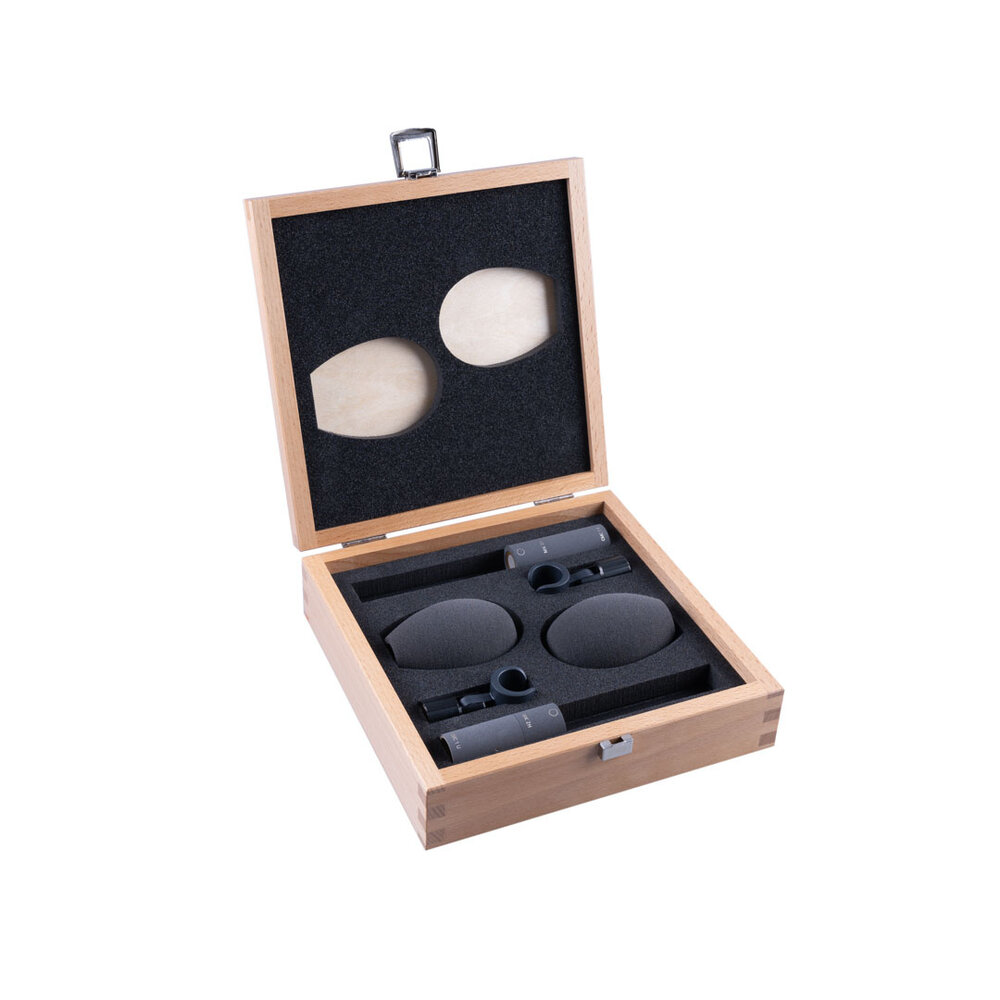

• Wooden storage case for the stereo set.

Related mono set and accessory

For one microphone with the same capsule and amplifier, choose the Mono-Set CMC 1 U, MK 2H [138209].

For A/B recording, Schoeps recommends the KA 40 [169001] acoustic sphere. It is supplied separately.
