Schoeps Stereo-Set CMC 1 L, MK 2H

Schoeps Stereo-Set CMC 1 L, MK 2H [139302]

Colette stereo microphone set with two CMC 1 L microphone amplifiers and a matched pair of MK 2H omnidirectional capsules. Schoeps selects the capsules as a pair and includes a matching certificate.

The MK 2H is designed for medium recording distances where direct and reflected sound contribute in roughly equal amounts. Its mild high-frequency boost supports this application when recording acoustic instruments, ensembles and orchestras.

Main Features

• Matched omnidirectional capsules with a mild high-frequency boost.
• Modular Colette construction with interchangeable capsules.

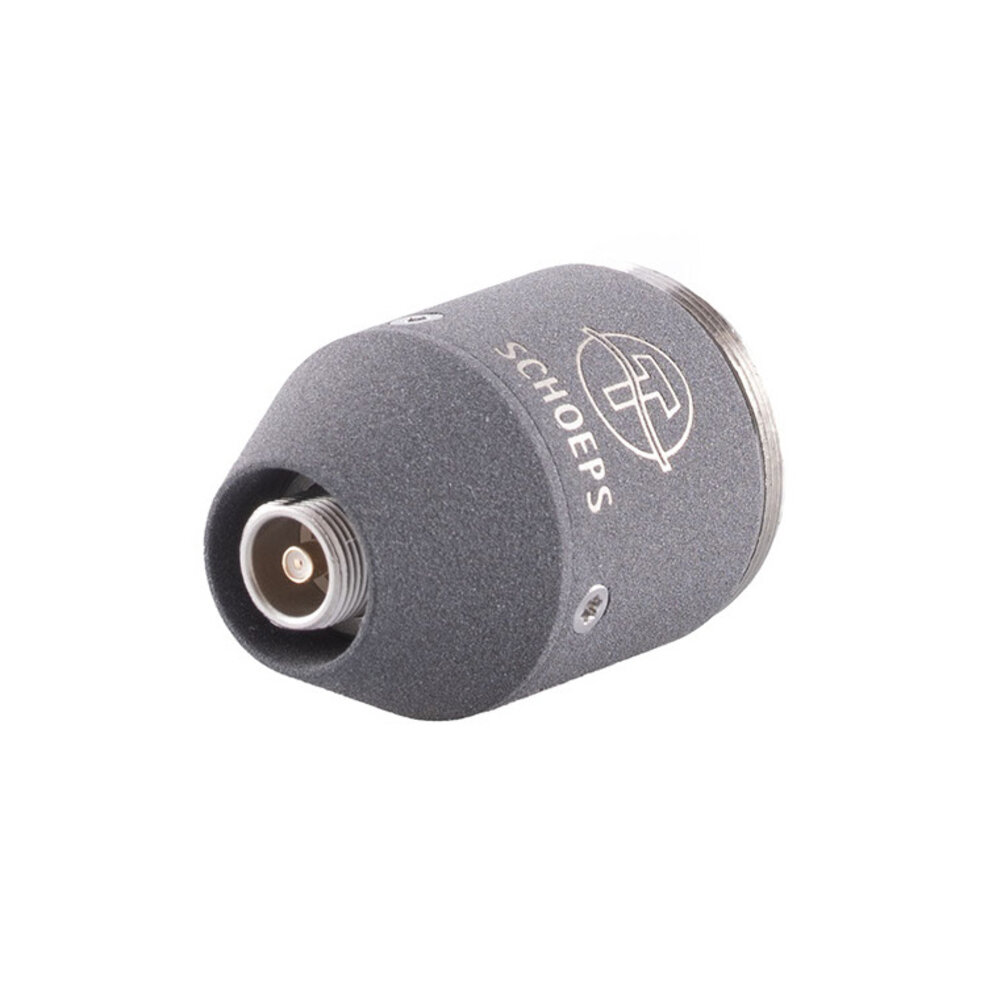

• Compact CMC 1 L amplifiers with detachable Lemo connections.
• Two separate XLR outputs via the included adapter cables.
• Includes microphone clamps, windscreens and a wooden storage case.

Specifications per Microphone

• Pickup pattern: omnidirectional.

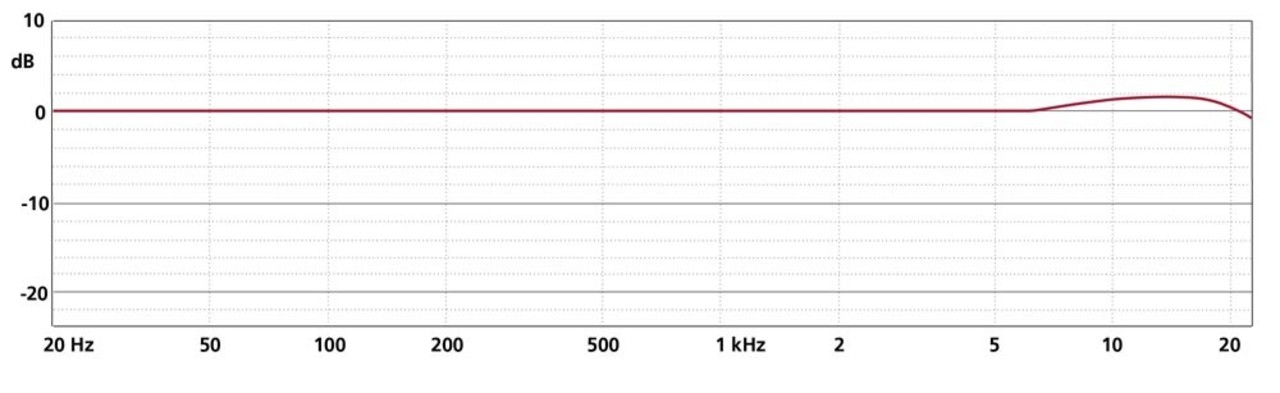

• Frequency range: 20 Hz – 26 kHz.
• Sensitivity: 17 mV/Pa.
• Equivalent noise level: 10 dB-A / 22 dB CCIR.
• Signal-to-noise ratio: 84 dB-A.
• Maximum SPL with CMC 1: up to 134 dB SPL, at less than 0.5% THD.

Connection and Powering

• Microphone connector: Lemo.
• Output via adapter cable: balanced, XLR-3 male.
• Cable length per microphone: 5 meters.
• Output impedance: 50 Ω.
• Minimum recommended load impedance: 1 kΩ.
• Maximum output voltage: 1.8 V into a 1 kΩ load.
• Powering: P12 or P48.
• Current consumption per microphone: 3 mA at P12 / 2 mA at P48.
• Fixed amplifier low-cut filter: 20 Hz, 12 dB/octave.

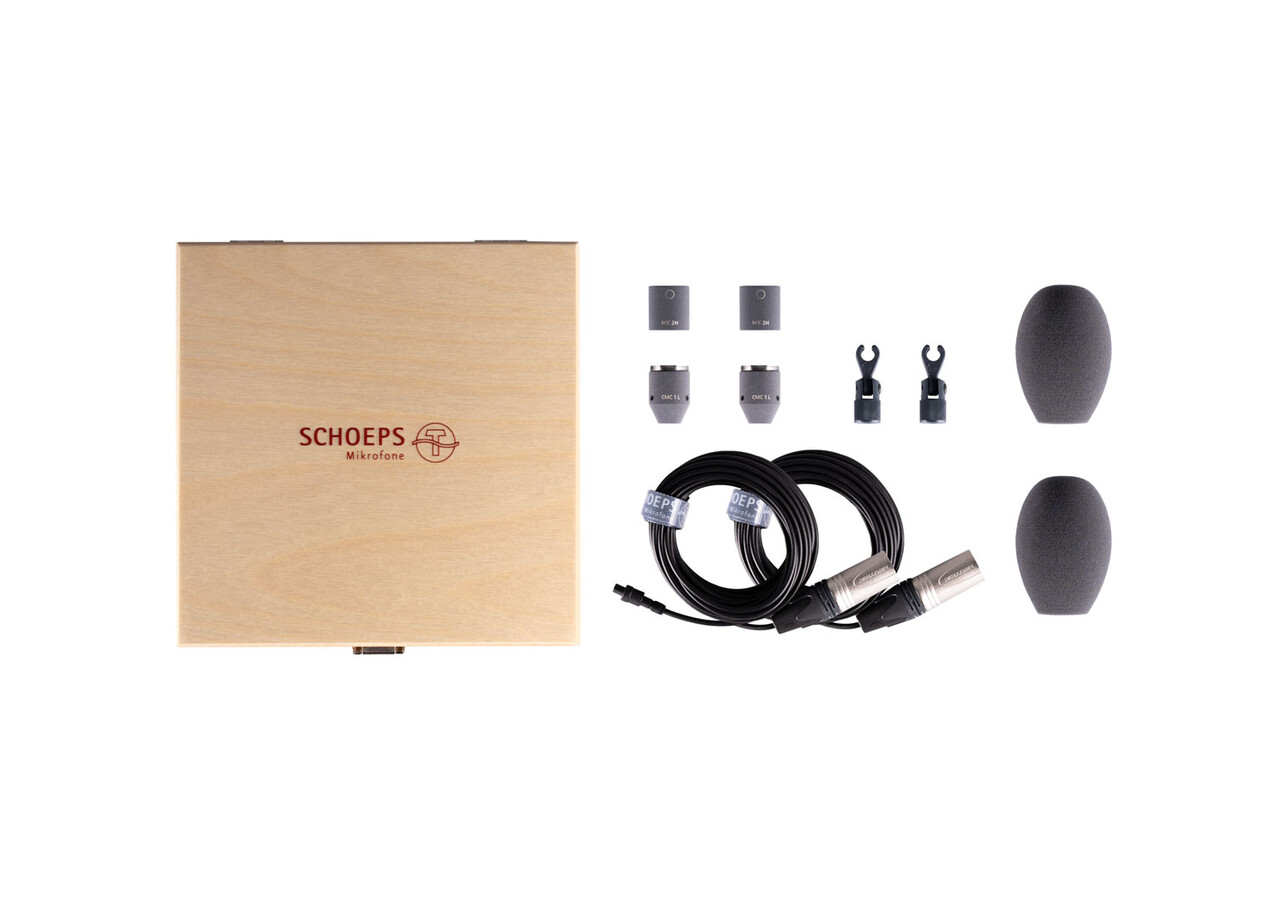

Included

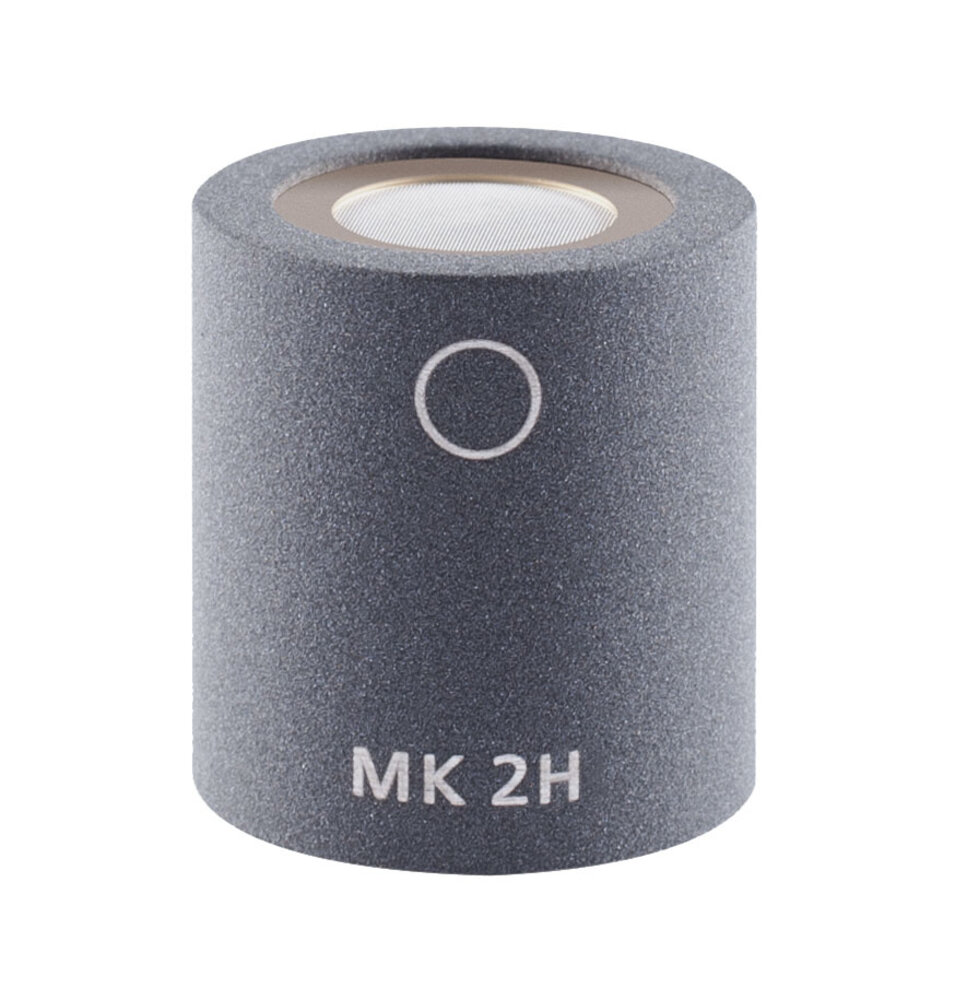

• 2 × Schoeps MK 2H capsule, matched pair.
• 1 × Matching certificate.

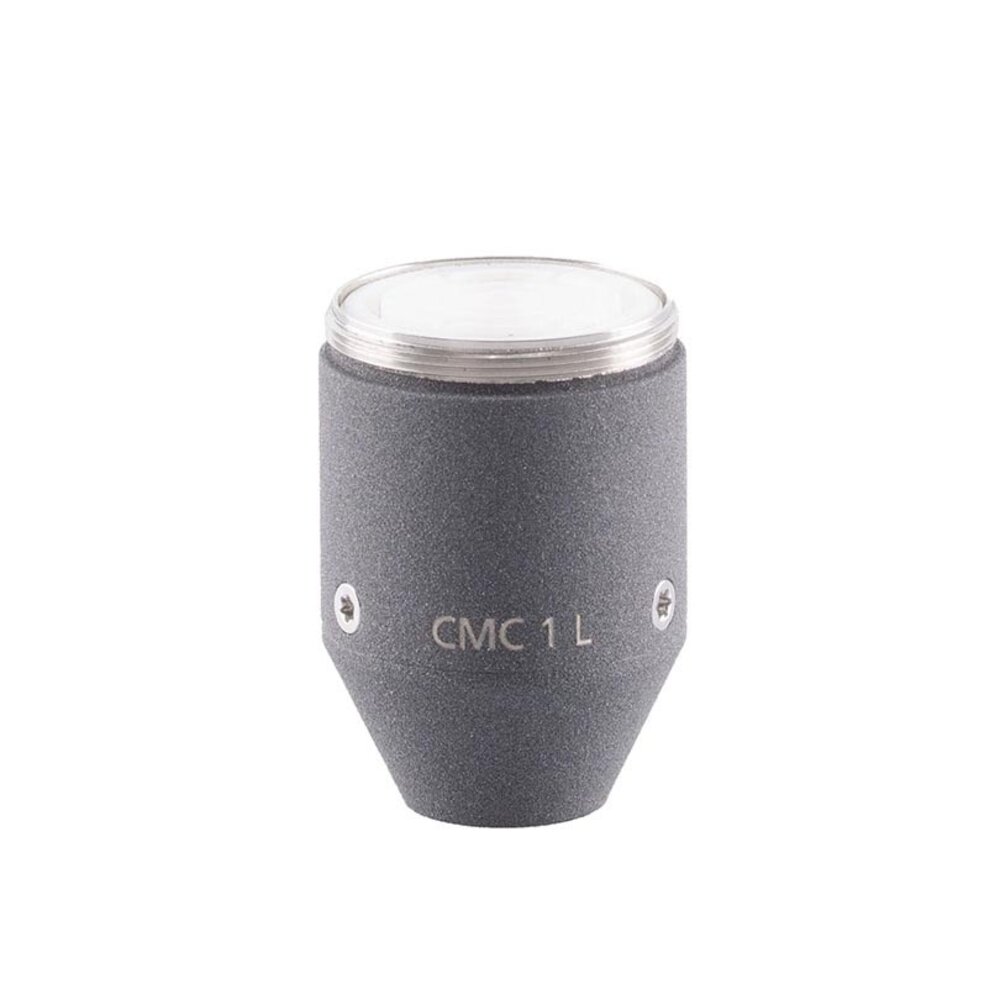

• 2 × Schoeps CMC 1 L microphone amplifier.

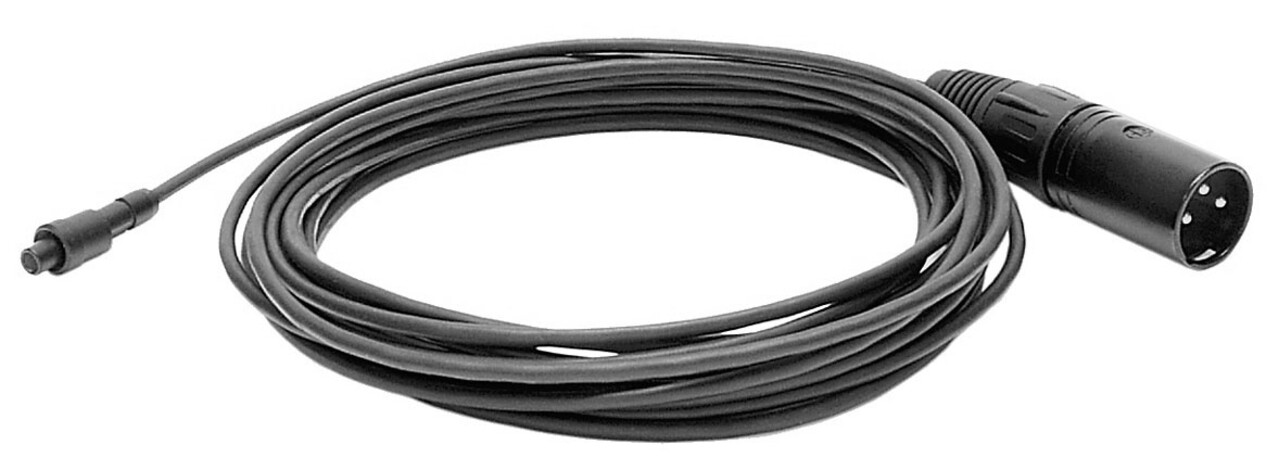

• 2 × Schoeps K 5 LU adapter cable, 5 meters, Lemo to XLR-3 male.

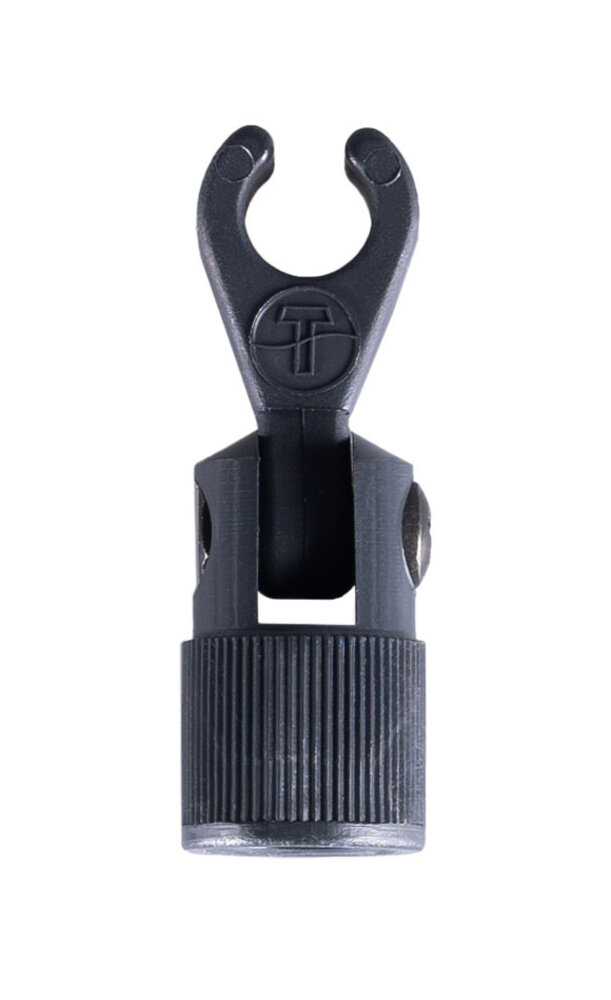

• 2 × Schoeps SGC microphone clamp.

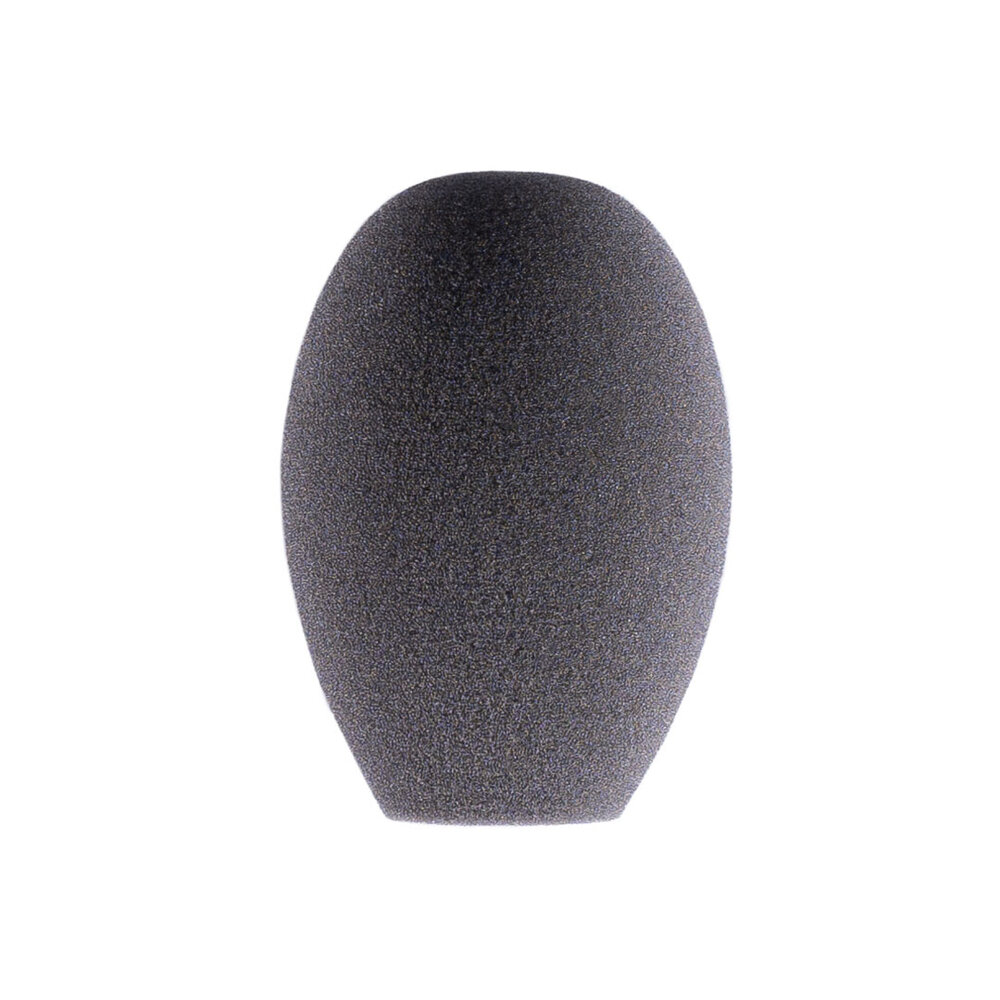

• 2 × Schoeps B 5 foam windscreen.
• 1 × Schoeps hook-and-loop cable strap.

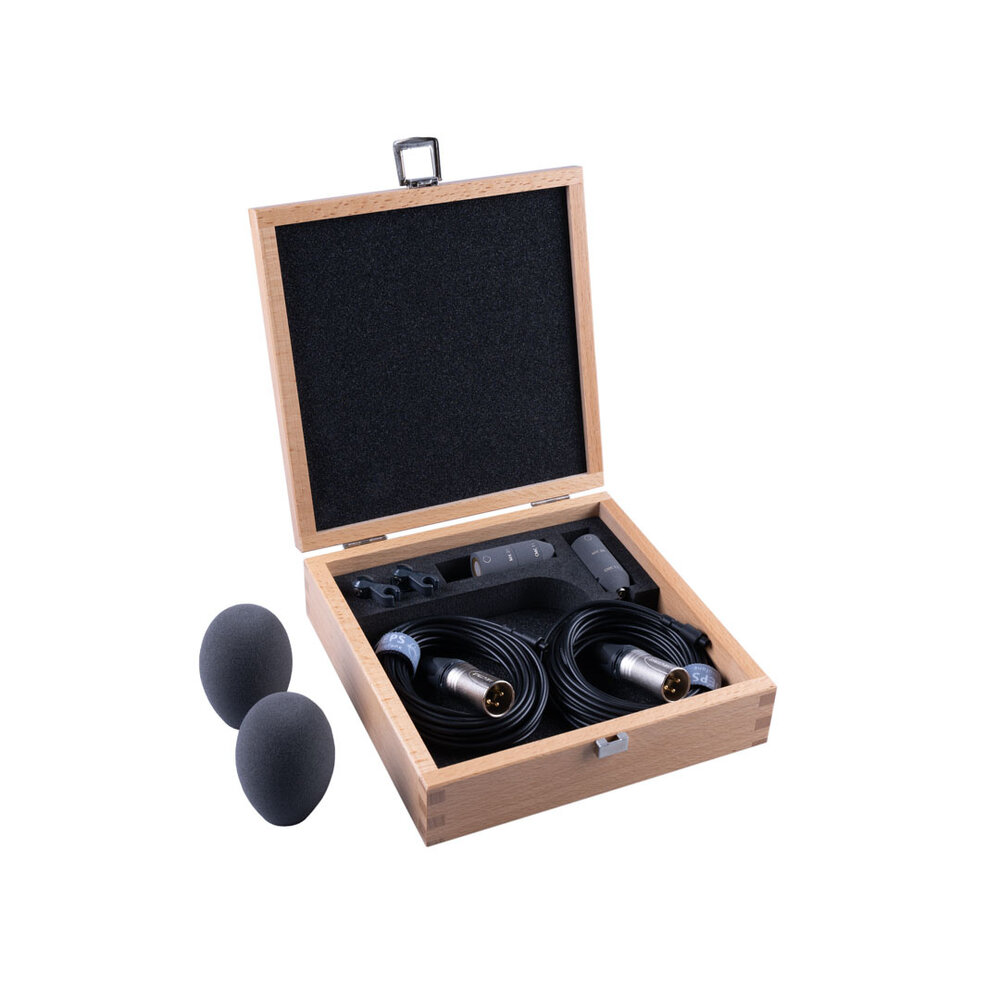

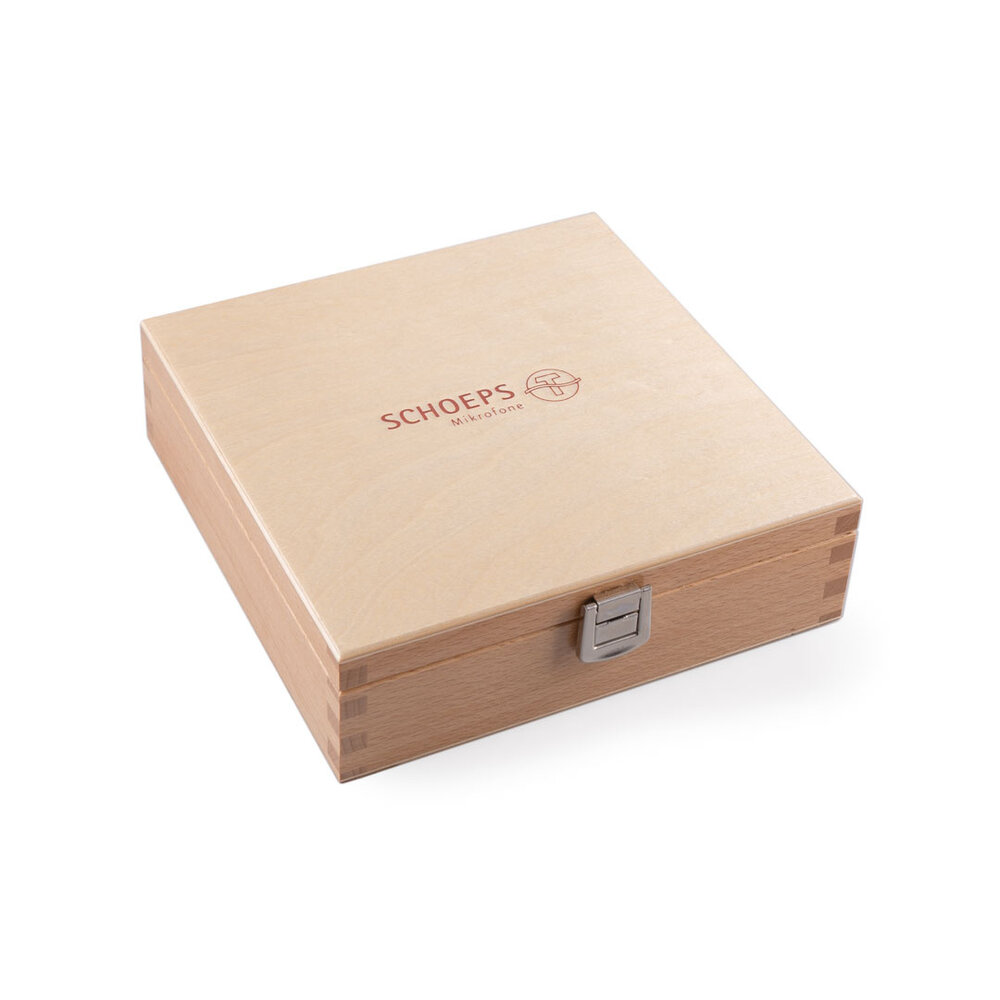

• 1 × Wooden storage case.
