Schoeps Mono-Set CMC 6, MK 2

Schoeps Mono-Set CMC 6, MK 2 [138001]

The Schoeps Mono-Set CMC 6, MK 2 combines an MK 2 omnidirectional capsule with a CMC 6 U microphone amplifier. The set includes one complete modular Colette microphone with an analog XLR output, stand clamp, foam pop screen and a wooden storage case.

Applications

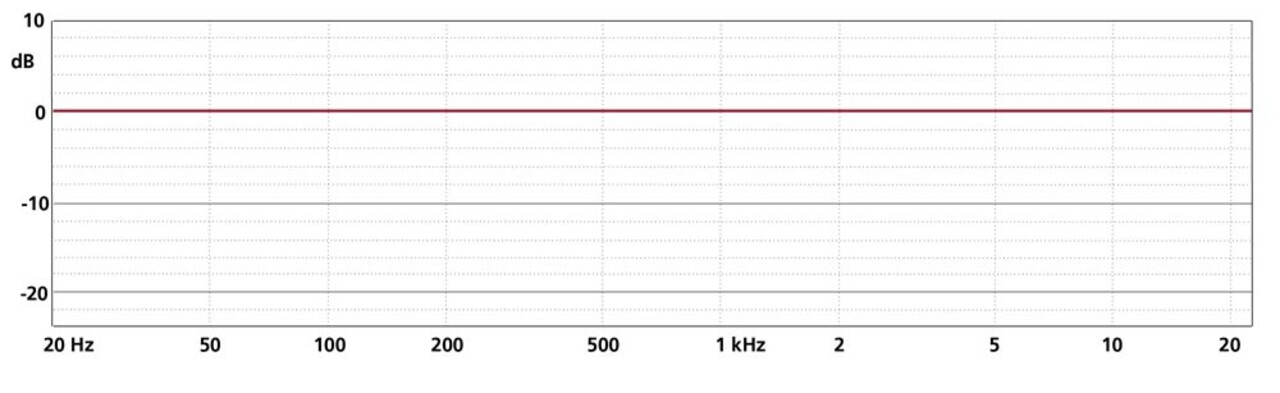

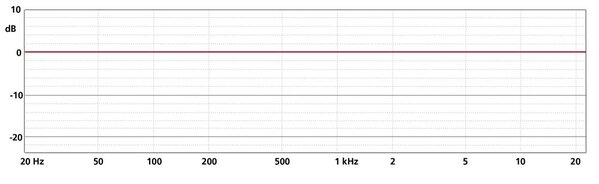

The MK 2 is free-field equalized, providing a flat frequency response for frontally arriving sound. The set suits instrument recording at relatively short distances.

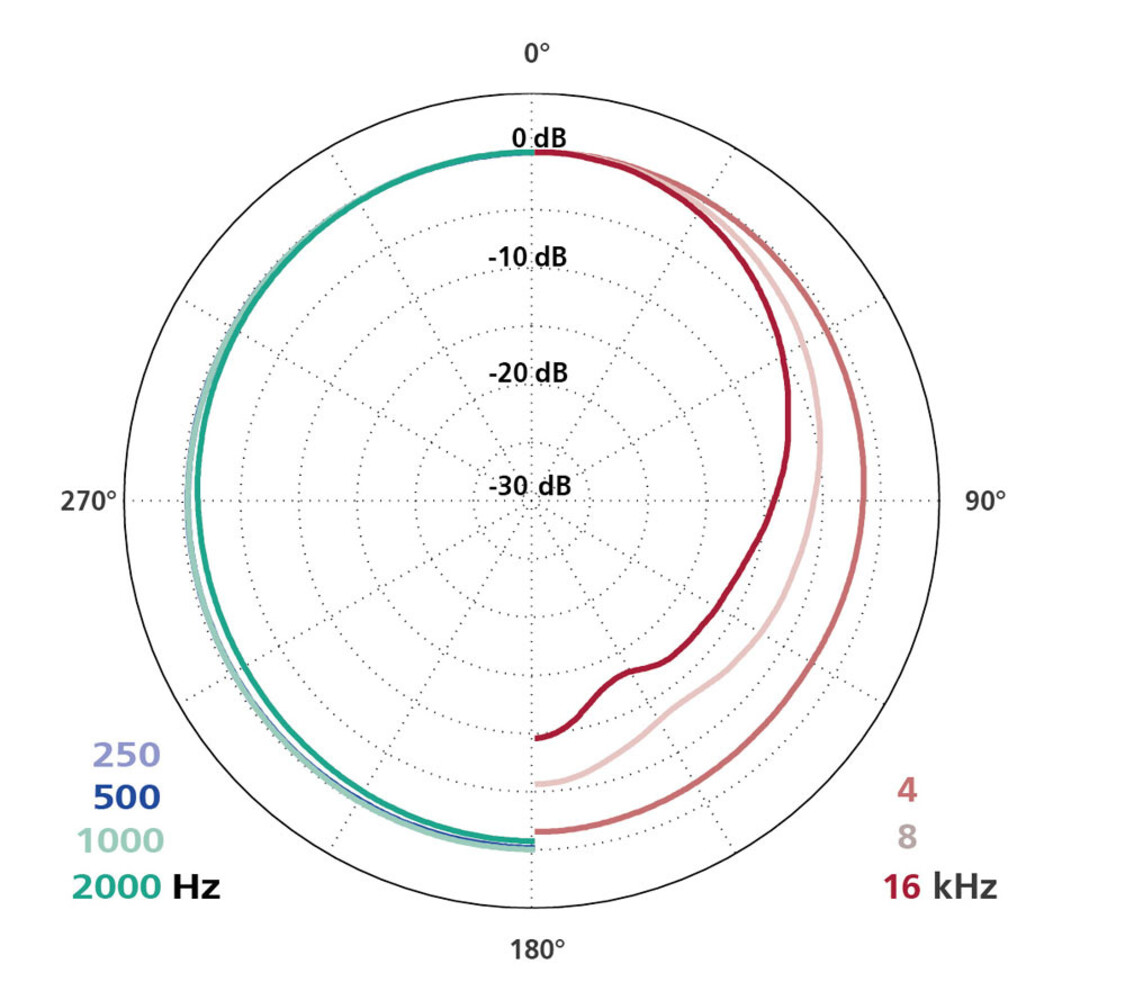

Although the capsule is omnidirectional, its orientation still matters at high frequencies, where sensitivity is not identical in every direction.

Features

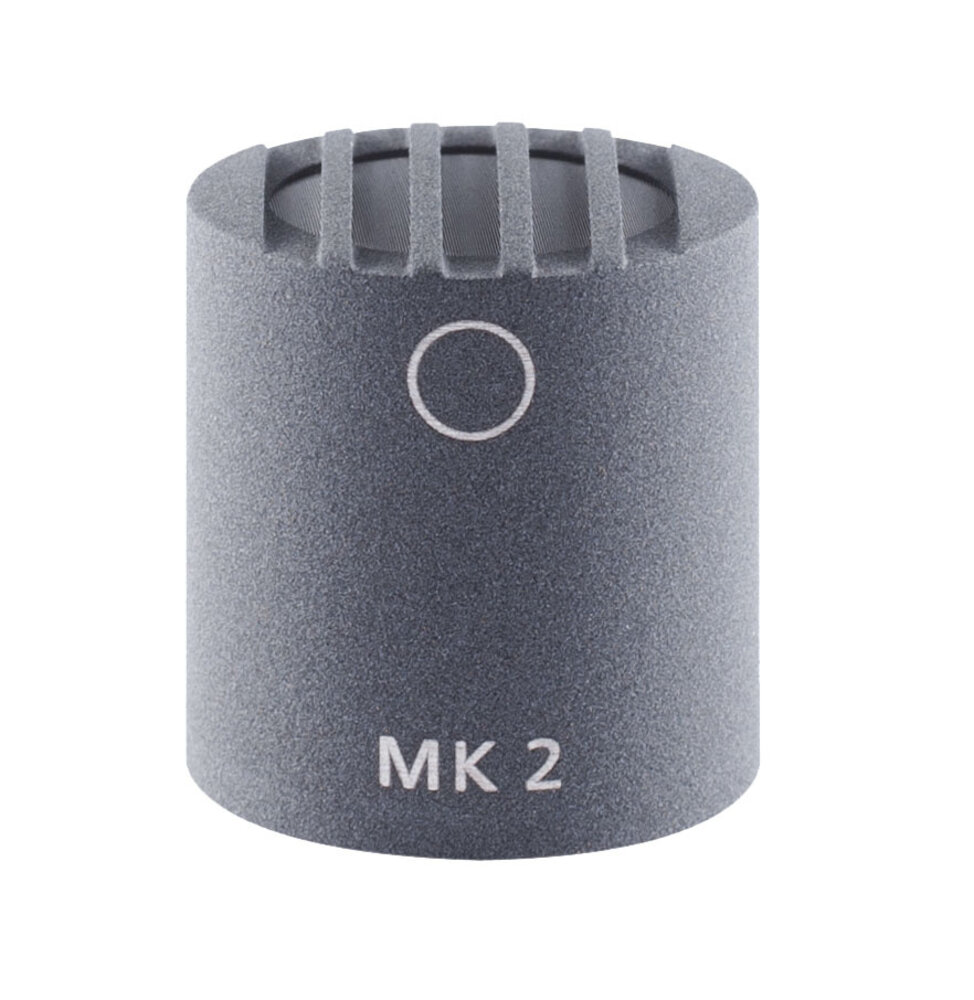

• MK 2 omnidirectional pressure capsule with free-field equalization.
• CMC 6 U microphone amplifier with a balanced XLR output.
• Modular Colette system with an interchangeable capsule.
• Operates on P12 or P48 phantom power.

Technical specifications

• Microphone type: small-diaphragm condenser microphone.
• Polar pattern: omnidirectional.
• Frequency range: 20 Hz–28 kHz.
• Sensitivity: 17 mV/Pa, -35.5 dBV/Pa.
• Equivalent noise level: 10 dB(A); 23 dB CCIR.
• Signal-to-noise ratio: 84 dB(A).
• Maximum sound pressure level: 130 dB SPL at THD < 0.5%.
• Output: XLR-3M, analog, one channel.
• Phantom power: P12 or P48.
• Current consumption: 8 mA at P12; 4 mA at P48.
• Output impedance: 42 Ω.
• Minimum recommended load impedance: 1 kΩ.
• Maximum output voltage: 1 V into a 1 kΩ load.
• Fixed low-cut filter: 20 Hz, 12 dB/octave.

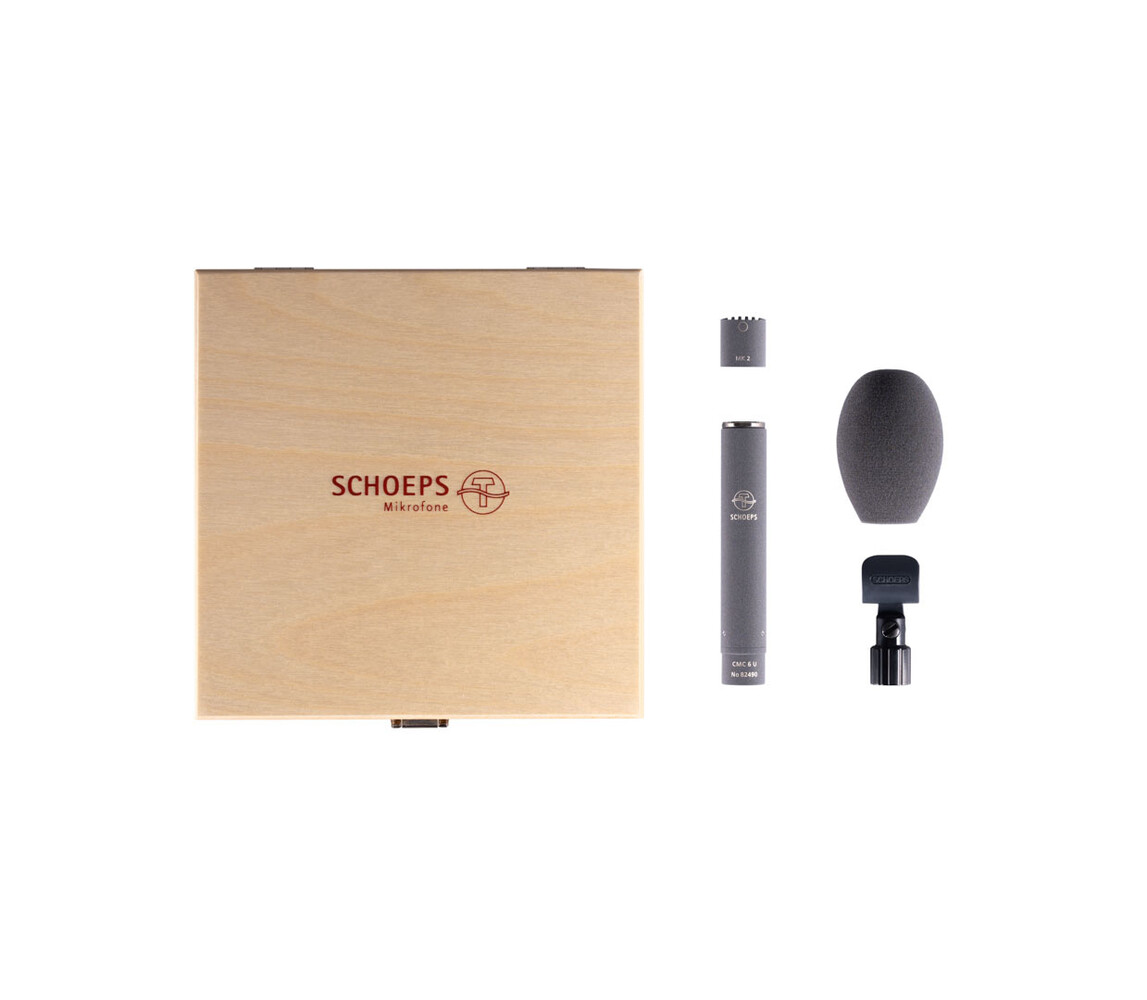

Included

• 1 × MK 2 omnidirectional capsule.

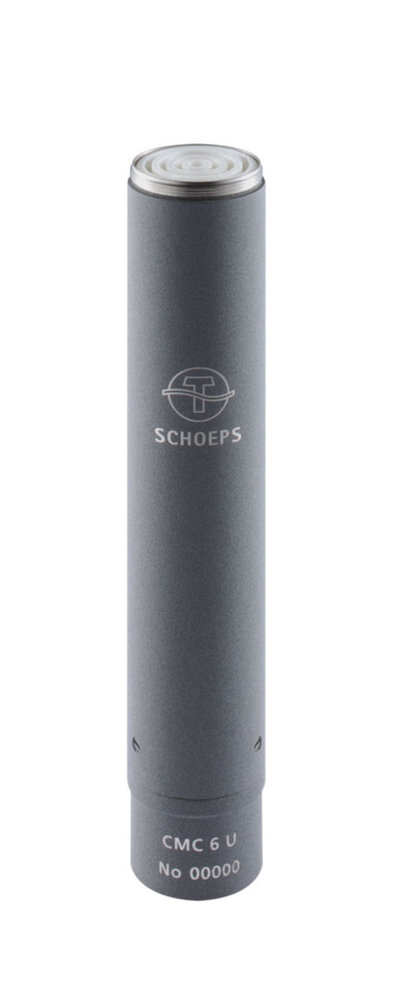

• 1 × CMC 6 U microphone amplifier.

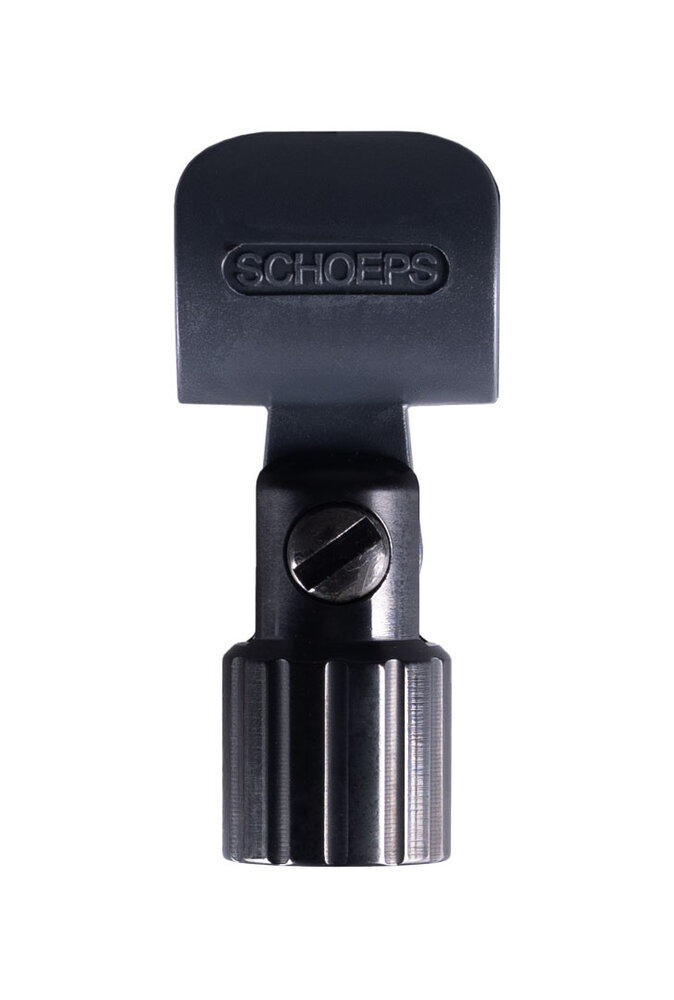

• 1 × SG 20 stand clamp, 2026 version.

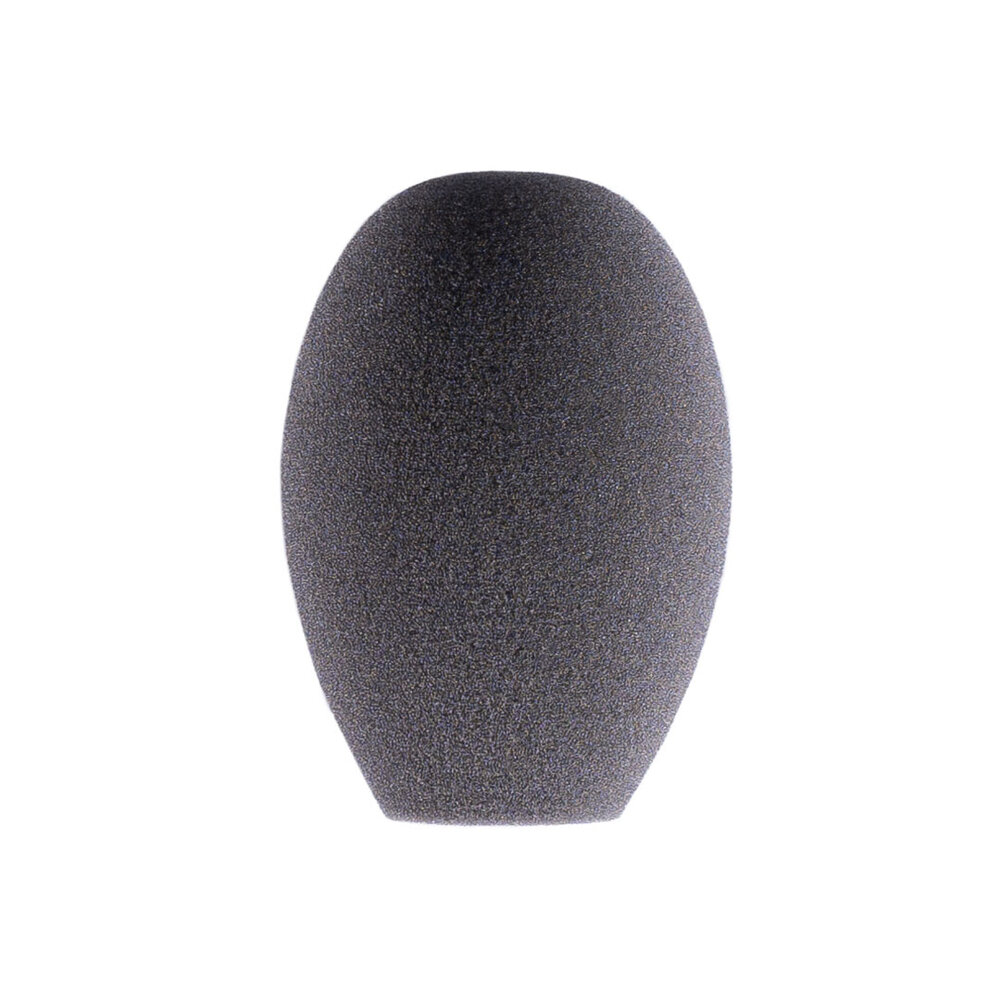

• 1 × B 5 foam pop screen.
• Schoeps hook-and-loop cable strap.

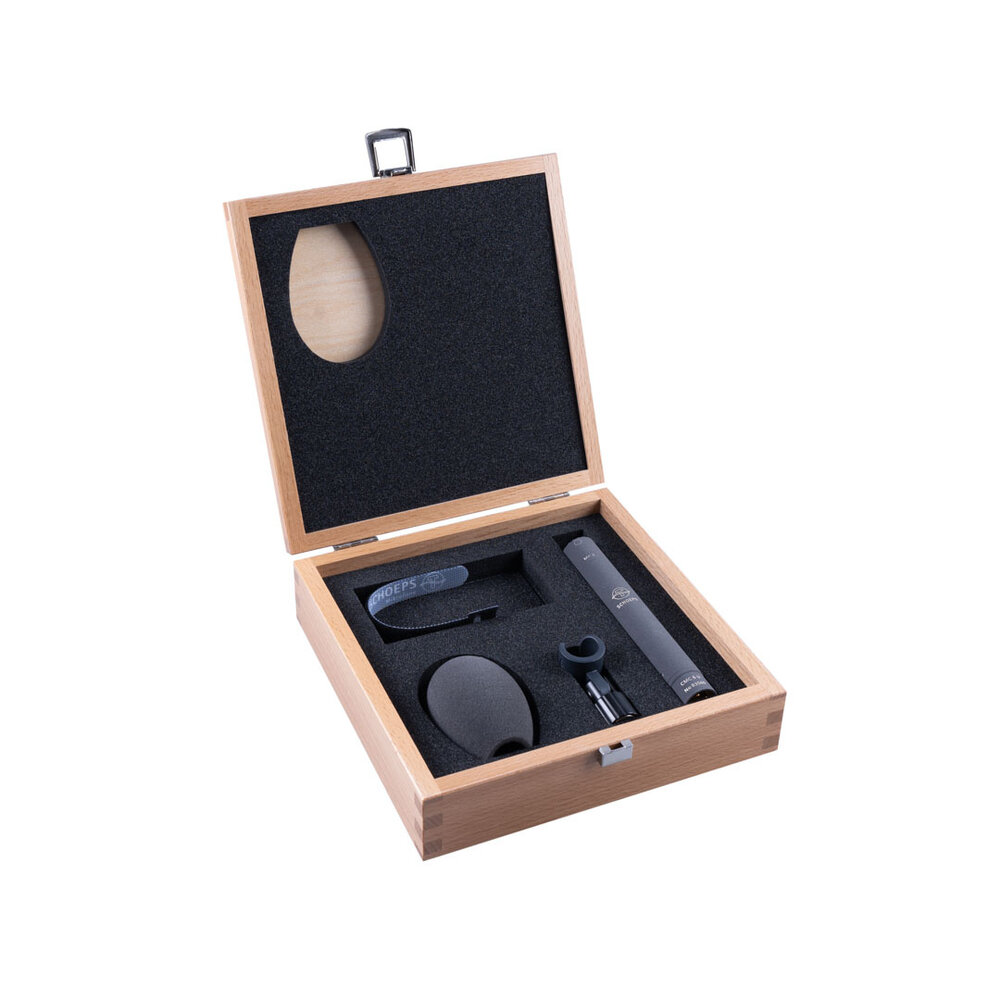

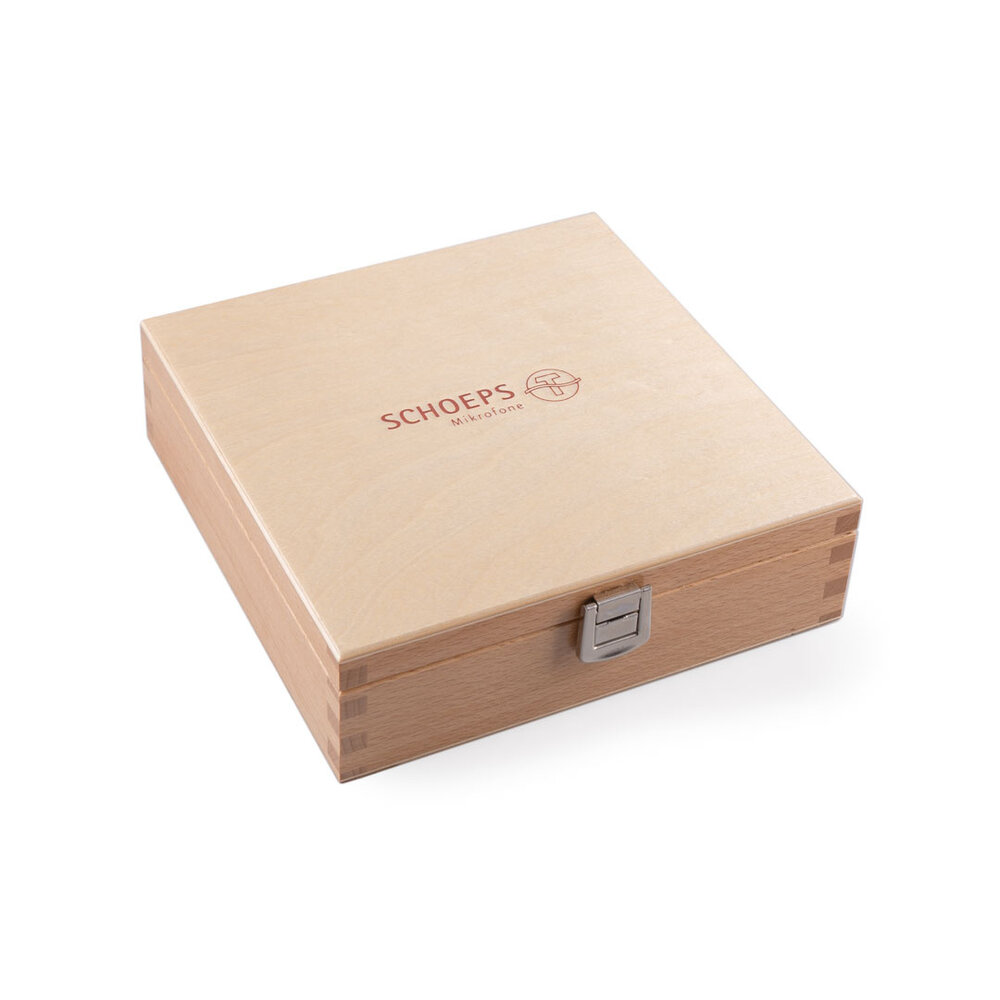

• Wooden storage case for the mono set.

Related stereo set

For a matched microphone pair, choose the Stereo-Set CMC 6, MK 2 [139001], supplied with a matching certificate.
